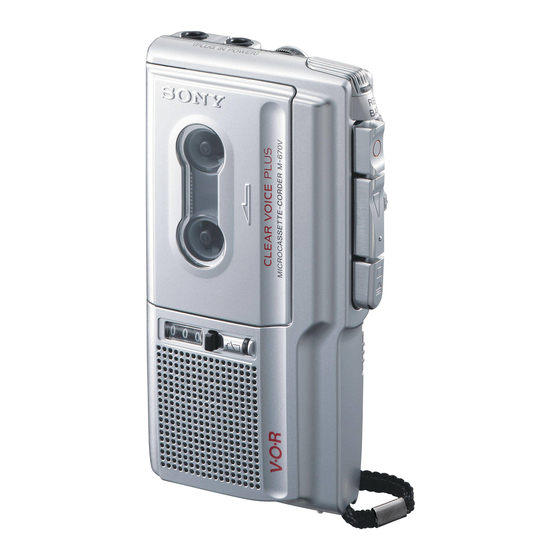

Sony M-670V Operating Instructions

3-259-967-12 (1)
™
Microcassette -Corder
Operating Instructions
Manual de instrucciones (en el reverso)
M-675V/673V/670V
© 2004 Sony Corporation Printed in China
For customers in the United States
Owner's Record
The model number is located at the back of the unit and the
serial number is located inside the cassette holder. Record
these numbers in the spaces provided below. Refer to these
numbers whenever you call upon your Sony dealer
regarding this product.
Model No._________________ Serial No._________________
Product registration
Please register this product on line at www.sony.com/
productregistration
<http://www.sony.com/productregistration>
Proper registration will enable us to send you periodic
mailings about new products, services, and other important
announcements. Registering your product will also allow us
to contact you in the unlikely event that the product needs
adjustment or modification. Thank you.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority
to operate this equipment.
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
About This Manual
The instructions in this manual are for 3 models.
There is no difference among M-675V, M-673V and M-670V
except for the supplied accessories.
For information about the supplied accessories, see
"Specifications" of this manual.
Preparing Power Sources
Choose one of the following power sources.
Dry Batteries
Insert the
batteries with
correct polarity.
Make sure that nothing is connected to the DC IN 3V jack.
1 Open the battery compartment lid.
2 Insert two size AAA (R03) batteries with correct polarity and
close the lid.
To take out the batteries
To attach the battery compartment lid if it is
accidentally detached
When to replace the batteries
Replace the batteries with new ones of the same kind when the
REC/BATT lamp dims and the E lamp flashes.
Notes
• The unit will play back normally for a while, even after the E lamp
flashes. However, replace the batteries as soon as you can. Otherwise,
the built-in speaker may emit a loud noise and recordings may not be
made correctly.
• In the following cases you do not need to replace the batteries:
– if the E lamp flashes with the playback sound when you turn up the
volume.
– if the E lamp lights momentarily when the tape starts running or at
the end of the tape.
– if the E lamp flashes during FF/REW or CUE/REVIEW.
Battery life* (Approx. hours)
Batteries Recording Playback**
Sony alkaline LR03 (SG)*** 14.5 9
Sony manganese R03 (SB) 5 2.5
NH-AAA (M-675V only) 10 6
* Measured valued by the standard of JEITA (Japan Electronics and
Information Technology Industries Association) (Using a Sony
Microcassette)
** Using a tape on which music has been recorded is played at volume
setting 7 using speaker
***When using Sony LR03 (SG) alkaline dry batteries (produced in Japan)
Note
The battery life may be shorter depending on the operating condition, the
surrounding temperature and battery type.
For maximum performance we recommend that you use
alkaline batteries.
House current
to a wall outlet
AC power adaptor
(supplied with M-675V only)
Connect the AC power adaptor to DC IN 3V and to a wall outlet.
Use the AC-E30HG AC power adaptor (not supplied)
or the supplied AC power adaptor (M-675V only) .
Do not use any other
Polarity of the plug
AC power adaptor.
Notes
• Specifications for AC-E30HG vary for each area. Check your local
voltage and the shape of the plug before purchasing.
• Do not touch the AC power adaptor with wet hands.
• Connect the AC power adaptor to an easily accessible AC outlet. Should
you notice an abnormality in the AC power adaptor, disconnect it from
the AC outlet immediately.
Rechargeable batteries (supplied with
the M-675V only)
Charge the supplied rechargeable batteries only with the
supplied charge adaptor and the supplied AC power adaptor
before using them.
Full charging takes about 12 hours. While charging, the
CHARGE indicator lights up, and when charging is completed,
it goes off. The unit can be used for recording for approximately
12 hours with fully charged rechargeable batteries.
To charge
To a wall outlet
Charge
adaptor
CHARGE
indicator
AC power adaptor
Rechargeable batteries NH-AAA
Recharge the two rechargeable batteries together.
To take out the rechargeable batteries from the charge adaptor,
push the # side of the battery first and then remove the 3 side.
To use
Insert the
batteries with
correct polarity.
• When using the supplied charge adaptor, charge the rechargeable
batteries specified on the charge adaptor only. Do not charge any other
batteries.
• When charging, use the supplied AC power adaptor only.
• If there is distortion of sound or excessive noise, or if the unit does not
operate properly, turn off the unit and recharge the two rechargeable
batteries together.
• The rechargeable batteries will discharge gradually even when not in
use. Be sure to charge them before use.
• Charging and operation should be made in temperature ranges 5°C to
40°C (40°F to 104°F).
• The charge adaptor will become warm during charging but this is not a
sign of problem.
• Do not use or leave the charge adaptor, AC power adaptor and
rechargeable batteries in a location near heat sources or in a place
subject to direct sunlight or excessive moisture.
• Unplug the AC power adaptor from the wall outlet when it is not to be
used for long.
• Do not charge dry batteries.
Recording
You can record right away with the built-in microphone.
Make sure that nothing is connected to the MIC jack.
VOL*
MIC (PLUG IN
POWER)*
Microphone
EAR
VOR
REC/BATT
> PAUSE
TAPE SPEED*
z
FF/CUE m•
Tape counter
M REW/REVIEW
Tx
Tape counter
reset button
E (Battery alert
LED)
* The button/jack
has a tactile dot.
Tx
1 Press the reset button of the tape counter.
2 Press Tx and insert a standard microcassette with the side
to start recording facing the lid.
3 Select the desired tape speed.
2.4 cm for optimum sound (recommended for normal use):
A 30-minute recording can be made using both sides of the
MC-30 microcassette (supplied for the United States and
Europe only). There is a tactile dot on this side.
1.2 cm for longer recording time: A 60-minute recording can
be made using both sides of the MC-30 microcassette
(supplied for the United States and Europe only).
4 Set VOR to OFF.
If you set VOR to ON, the unit automatically starts
recording the sound and pauses when there is no sound
(you can save tapes and batteries).
When the sound is not loud enough, set it to OFF, or the unit
may not start recording.
5 Press z. n is pressed simultaneously and recording starts.
While the tape runs, the REC/BATT lamp lights and flashes
depending on the strength of the sound.
Recording level is fixed.
At the end of the tape, recording stops and the unit turns off
automatically (Automatic shut-off mechanism).
To Press or slide
Stop recording Tx
Pause recording Slide >PAUSE in the direction of the arrow.
To release pause recording, release
>PAUSE*.
Start recording during z during playback (the unit enters the
playback recording mode)
Review the portion just Push up FF/CUEm•MREW/REVIEW
recorded toward MREW/REVIEW during the
recording. Release the button at the point to
start playback.
Take out a cassette Tx
* >PAUSE will also be automatically released when Tx is pressed
(stop-pause-release function).
Note
Select the 2.4 cm tape speed for recording, if you play back the recorded
tape with another unit. Otherwise, the sound quality may be changed.
Notes on VOR (Voice Operated Recording)
• The VOR system is affected by the environmental recording conditions.
When you use the system in a noisy place, the unit will stay in the
recording mode. If the sound is too soft, on the contrary, the unit will
not start recording. If you cannot get the results you want, set it to OFF.
• The VOR system may not record the beginning of the sound you want
to record because it starts recording only after it catches the sound. For
an important recording, set it to OFF.
To monitor the sound
Connect an earphone (not supplied) firmly to the EAR jack. The
monitor volume cannot be adjusted by VOL.
To prevent a cassette from being accidentally recorded
over
Break off and remove the cassette tabs. To reuse the cassette for
recording, cover the tab hole with adhesive tape.
Recording from Various Sound Sources
Notes
• When you are going to record something that you may not have an
opportunity to record again, test the unit first before you actually start
recording.
• When recording with an external microphone, the VOR system may not
work properly because of the difference in sensitivity.
Recording with an External Microphone
Connect a microphone firmly to the MIC jack.
M-673V : use the supplied microphone.
Other models : use a microphone of low impedance (less than 3
k ). When using a plug-in-power system microphone, the
power to the microphone is supplied from this unit.
Recording from another equipment
Connect another equipment firmly to the MIC jack using the
connecting cord (not supplied).
Set this unit to the recording mode and another equipment to
the playback mode.
Playing a Tape
EAR
VOL*
>PAUSE
FF/CUE m•
TAPE SPEED*
M REW/REVIEW
n*
Tx
E (Battery
alert LED)
FAST PB.
* The button has a
tactile dot.
1 Insert a cassette with the side to start playing facing the lid.
2 Select the tape speed to the same speed as that used for
recording.
3 Press n.
4 Turn VOL to adjust the volume. There is a tactile dot beside
VOL on to show the direction to turn up the volume.
At the end of the tape, playback stops and the unit turns off
automatically (Automatic shut-off mechanism). After the tape
has been wound or rewound, be sure to press Tx.
If you plug in headphones (not supplied) to the EAR jack, you
will get monaural output from both left and right channels.
To Press or slide
Stop playback/stop fast Tx
forward or rewind
Pause playback Slide >PAUSE in the direction of the
arrow. REC/BATT lamp goes off.
To release pause playback, release >PAUSE*.
Fast forward** (FF) Slide FF/CUE m•M REW/REVIEW
toward FF/CUE m during stop.
Rewind** (REW) Slide FF/CUE m•M REW/REVIEW
toward M REW/REVIEW during stop.
Search forward during Keep FF/CUE m•M REW/REVIEW
playback (CUE) pushed toward FF/CUE m during playback
and release it at the point you want.
Search backward during Keep FF/CUE m•M REW/REVIEW
playback (REVIEW) pushed toward M REW/REVIEW during
playback and release it at the point you want.
Start recording during z
playback
* >PAUSE will also be automatically released when Tx is pressed
(stop-pause-release function).
**If you leave the unit after the tape has been wound or rewound, the
batteries will be consumed rapidly. Be sure to press Tx.
Note
If the tape is completely rewound while searching backward during
playback (REVIEW), the FF/CUE m•M REW/REVIEW switch may
not return to the center position when you release the switch. In this case,
push back the switch to the center to start playback.
To increase the playback speed
Slide the FAST PB. switch in the direction of the arrow. The
playback speed will be increased.
To return to the original speed, slide the FAST PB. switch to
the original position.
Precautions
On power
• Operate the unit only on 3 V DC.
For AC operation, use the AC power adaptor recommended for the
unit. Do not use any other type. For battery operation, use two size
AAA (R03) batteries.
On the unit
• Use only the (standard microcassettes) with this unit.
Non-standard cassettes cannot be used because their "L" dimension
(see illustration) is different.
Standard Non-standard
Only standard microcassettes have a
small indention of side A.
Approx. 2.5 mm
Approx. 5 mm
• Do not leave the unit in a location near heat sources, or in a place
subject to direct sunlight, excessive dust or mechanical shock.
• Should any solid object or liquid fall into the unit, remove the batteries
or disconnect the AC power adaptor, and have the unit checked by
qualified personnel before operating it any further.
• Keep personal credit cards using magnetic coding or spring-wound
watches, etc. away from the unit to prevent possible damage from the
magnet used for the speaker.
• When you do not use the unit for long, remove the batteries to avoid
damage caused by battery leakage and subsequent corrosion.
• If the unit has not been used for long, set it in the playback mode and
warm it up for a few minutes before inserting a cassette.
For customers in the USA and Canada
RECYCLING NICKEL METAL HYDRIDE BATTERIES
Nickel Metal Hydride batteries are recyclable.
You can help preserve our environment by returning your
used rechargeable batteries to the collection and recycling
location nearest you.
For more information regarding recycling of rechargeable
batteries, call toll free 1-800-822-8837, or visit http://
www.rbrc.org/.
Caution: Do not handle damaged or leaking Nickel Metal Hydride
batteries.
If you have any questions or problems concerning your unit, please
consult your nearest Sony dealer.

Troubleshooting

Should any problem persist after you have made these checks,
consult your nearest Sony dealer.
You cannot close the cassette compartment lid.
t The cassette is being inserted in the wrong way.
t n has been already pressed.
t The cassette is not being inserted completely.
The unit does not operate.
t The batteries have been inserted with incorrect polarity.
t The batteries are weak. Replace both batteries with new
ones.
t >PAUSE is slid in the direction of the arrow.
t The AC power adaptor is not firmly connected.
t The unit will not run on dry batteries if the AC power
adaptor is left plugged into the DC IN 3V jack even
though you disconnect the AC power adaptor from the
power source.
Recording cannot be made.
t There is no cassette in the cassette compartment.
t The tab on the tape has been removed. To reuse the tape
for recording, cover the tab hole with adhesive tape.
t The batteries are weak. Replace both batteries with new
ones.
Recording is interrupted.
t The VOR switch is set to ON. When you do not use VOR,
set it to OFF.
Recording cannot be erased completely.
t The head is contaminated. See "Maintenance".
Playback cannot be made.
t The tape has reached the end. Rewind the tape.
No sound comes from the speaker.
t The earphone is plugged in. Unplug it.
t The volume is turned down completely.
The sound drops out or comes with excessive noise.
t The volume is turned down completely.
t The batteries are weak. Replace both batteries with new
ones.
t The head is contaminated. See "Maintenance".
t Direct placement of the cassette tape on the speaker
resulted in magnetization and deteriorated tonal quality.
t Use the unit away from radiowave-emitting devices such
as cellular phones.
Tape speed is too fast or too slow or the sound is
distorted in the playback mode.
t Improper setting of the TAPE SPEED switch. Set it to the
same speed as that used for recording.
t The FAST PB. switch is slid in the direction of the
arrow.
t The batteries are weak. Replace both batteries with new
ones.
During CUE/REVIEW the tape stops or does not run.
You cannot fast-forward or rewind.
t The batteries are weak. Replace both batteries with new
ones.
Maintenance
Capstan
Pinch roller
Head
To clean the tape head and path
Press n and wipe the head, capstan and the pinch roller with a
cotton swab, moistened with alcohol every 10 hours of use.
To clean the exterior
Use a soft cloth slightly moistened in water. Do not use alcohol,
benzine or thinner.
Specifications
Tape
(normal position type)
Recording system
2-track 1-channel monaural
Speaker
1
Approx. 2.8 cm (1 ⁄ in.) dia.
8
Tape speed
15 15
2.4 cm/s ( ⁄ ips), 1.2 cm/s ( ⁄ ips)
16 32
Frequency range
300 - 4 000 Hz (with TAPE SPEED switch at 2.4 cm/s)
Input
Microphone input jack (minijack/monaural/PLUG IN POWER)
sensitivity 0.2 mV for 3 k or lower impedance microphone
Output
Earphone jack (minijack/monaural) for 8 - 300 earphone
Power output (at 10% harmonic distortion)
450 mW
Power requirements
3 V DC batteries size AAA (R03) 2/External DC 3V power sources
Dimensions (w/h/d) (incl. projecting parts and controls)
Approx. 54.8 106.8 21.5 mm (2 1 ⁄ 4 1 ⁄ 7 ⁄ in.)
4 4 8
Mass (main unit only)
Approx. 92 g (3.3 oz)
Supplied accessories
AC power adaptor (1) (M-675V only), Battery charge adaptor (1) (M-
675V only), Rechargeable batteries NH-AAA, 1.2 V, typ. 800 mAh, Ni-
MH (2) (M-675V only), Microcassette tape MC-30 (1) (for the United
States and Europe only), Alkaline batteries LR03 (SG) (2) (M-673V, M-
670V for the United States only), Microphone (1) (M-673V only),
Carrying pouch (1) (M-673V only), Battery carrying case (1) (M-675V
only)
Design and specifications are subject to change without notice.
This warranty is valid only in the
United States.
