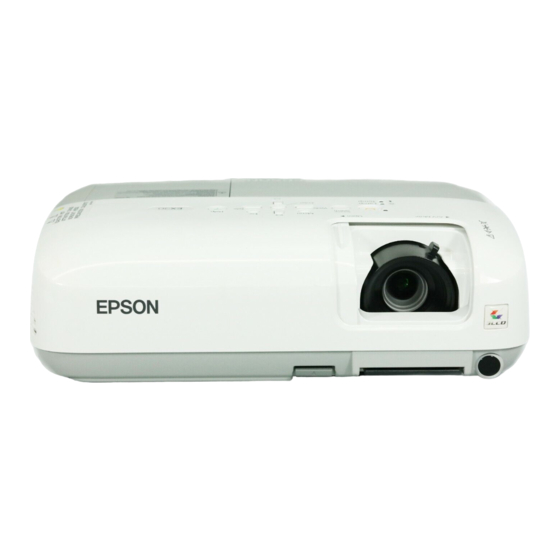

EX30/EX50/EX70
Multimedia Projector
User' s Guide

Advertisement

Table of Contents
loading

Summary of Contents for Epson EX30

  • Page 1 EX30/EX50/EX70 Multimedia Projector User’ s Guide...
  • Page 2: Important Safety Information

    Epson product. Epson is not responsible for any use of this information as applied to other products. Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to...
  • Page 3 Epson and Instant Off are registered trademarks, and Epson Exceed Your Vision is a registered logomark of Seiko Epson Corporation. PrivateLine is a registered trademark, SizeWise is a trademark, and Extra Care is a service mark of Epson America, Inc.
  • Page 5: Table Of Contents

    Connecting an External Monitor (EX30 or EX50 only) ......33 Playing Sound Through the Projector....34 Connecting a Digital Camera or Other USB Device (EX70 Only) .
  • Page 6 Turning the Projector On and Off ....37 Displaying and Adjusting the Image Selecting an Image Source ......42 Adjusting the Image .
  • Page 7 Cleaning the Lens ....... . . 76 Cleaning the Projector Case ......76 Cleaning the Air Filter .
  • Page 9: Welcome

    EX30/EX50/EX70 is an easy-to-use, compact, lightweight projector with a built-in speaker. It offers up to 2200 lumens (EX30/EX50) or 2000 lumens (EX70) of white and color light output (brightness). It also provides a native SVGA (EX30), XGA (EX50), or WXGA (EX70) resolution.
  • Page 10: Using Your Documentation

    ■ ■ ■ ■ Using Your Documentation This book contains all the information you need to set up and use your projector. Please follow these guidelines as you read through it: ■ ■ ■ ■ Welcome 2000:1 contrast ratio (with...
  • Page 11: Getting More Information

    If you still need help after checking this User’s Guide and the sources listed in this section, you can use the Epson PrivateLine Support service to get help fast. Call (800) 637-7661 and enter the PIN on the PrivateLine card. Or take advantage of Epson’s automated support services 24 hours a day.
  • Page 12: Registration And Warranty

    United States or Canada, usually via overnight delivery. See the brochure included with your projector for details. To register, simply fill out the registration card and mail it to Epson. Or you can register online at epson.com/webreg. Registering also lets you receive special updates on new accessories, products, and service.
  • Page 13 Molded hard-shell wheeled carrying case ® Swiss Gear backpack You can purchase screens or other accessories from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).
  • Page 14 Welcome...
  • Page 15: Setting Up The Projector

    Positioning the projector ■ Connecting to a computer ■ ■ Connecting to video equipment Connecting an external monitor (EX30 and EX50 only) ■ Playing sound through the projector ■ ■ Connecting to a digital camera or other USB device (EX70 only) Inserting an SD card (EX70 only) ■...
  • Page 16: Unpacking The Projector

    VGA computer cable Component-toVGA video adapter (EX30/EX50 only) Save all packaging in case you need to ship the projector. Always use the original packaging (or the equivalent) when you need to send the projector to another location. See page 83 for transportation instructions.
  • Page 17: Additional Components

    To receive an S-Video signal, you’ll need an S-Video cable. One may be included with your video equipment, or you can purchase one from Epson. See “Optional Accessories” on page 12. To receive an audio signal, you’ll need an RCA-type audio cable ■...
  • Page 18 Image size increases with distance, but can vary depending on the aspect ratio (image shape), how you zoom into the image, and whether you’ve adjusted other image settings. Use the illustrations and tables below to help you determine the projection distance. EX30 (4:3 images) Screen size 30 inches (76 cm)
  • Page 19 EX30 (16:9 images) Projection distance (A) Screen size Wide to Tele 30 inches 37 to 51 inches (76 cm) (95 to 130 cm) 50 inches 63 to 86 inches (127 cm) (161 to 218 cm) 60 inches 76 to 103 inches...
  • Page 20 (381 cm) 200 inches (508 cm) 250 inches (635 cm) 275 inches (699 cm) Setting Up the Projector Projection distance (A) Wide to Tele 170 to 204 inches (432 to 519 cm) 227 to 273 inches (577 to 693 cm)
  • Page 21 50 inches 71 to 85 inches (127 cm) (180 to 217 cm) 60 inches 85 to 103 inches (152 cm) (216 to 260 cm) 70 inches 100 to 120 inches (178 cm) (253 to 304 cm) Setting Up the Projector...
  • Page 22 (254 cm) 150 inches (381 cm) 200 inches (508 cm) 260 inches (660 cm) Setting Up the Projector Projection distance (A) Wide to Tele 114 to 137 inches (290 to 348 cm) 143 to 172 inches (363 to 436 cm)
  • Page 23: Projector Placement Options

    The center of the lens should be about level with the bottom of the screen. Front projection If you place the projector below screen level, you may need to tilt it up by extending the front adjustable foot. Tilting the projector causes the image to become “keystone” shaped, but you can correct the distortion (see page 44).
  • Page 24: Connecting To A Computer

    You can connect the projector to a Windows projector’s with you when you transport the projector. You can also connect the projector to any computer that has a standard video output (monitor) port, including desktop models, PC notebook computers, Macintosh PowerBook computers, and hand-held devices.
  • Page 25 Messages appear on your computer screen as the projector is recognized and the software is installed automatically. 6. Follow the instructions on the screen to install the Epson USB Display software. If you see a “Digital Signature Warning,” select Continue Continue Anyway only the first time you connect.)
  • Page 26: Connecting To The Vga Computer Port

    When you’re done projecting from your computer, disconnect the USB cable. Connecting to the VGA Computer Port You can connect to the projector using the VGA computer cable that came with it (the monitor port on your computer must be a D-sub 15-pin port).
  • Page 27: Connecting To Video Equipment

    Connecting to Video Equipment You can connect several video sources to the projector at the same time. Before starting, look at your video equipment to determine its available video output connections: ■ EX70 only: If your video player has an HDMI connector, see “Connecting an HDMI Video Source (EX70 only)”...
  • Page 28: Connecting An Hdmi Video Source (Ex70 Only)

    When you’ve finished making connections, see page 37 for instructions on turning on the projector and Chapter 2 for instructions on displaying and adjusting the image. Setting Up the Projector connector on the projector.
  • Page 29: Connecting A Composite Video Source

    EX30/EX50 Video port EX70 2. If you want to play sound through the projector, see page 34 for instructions on connecting an audio cable. When you’ve finished making connections, see page 37 for instructions on turning on the projector and Chapter 2 for instructions on displaying and adjusting the image.
  • Page 30: Connecting An S-Video Source

    Epson; see page 12. 2. If you want to play sound through the projector, see page 34 for When you’ve finished making connections, see page 37 for instructions on turning on the projector and Chapter 2 for instructions on displaying and adjusting the image.
  • Page 31: Connecting A Component Video Source

    Y/Cb/Cr or Y/Pb/Pr), you can use the component-toVGA video adapter that came with your projector (EX30 or EX50 only) and a component video cable, or purchase a component-to-VGA video cable from Epson (see page 12) or an electronics dealer.
  • Page 32: Connecting An Rgb Video Source

    EX30/EX50 2. You may need to change the 3. If you want to play sound through the projector, see page 34 for When you’ve finished making connections, see page 37 for instructions on turning on the projector and Chapter 2 for instructions on displaying and adjusting the image.
  • Page 33: Connecting An External Monitor

    (EX30 or EX50 only) If you want to monitor your computer presentation close-up (on a monitor placed beside the projector) as well as on the screen, you can connect an external monitor. You can use it to check on your presentation even if you’ve pressed the...
  • Page 34: Playing Sound Through The Projector

    You can connect your digital camera, USB flash memory drive, USB a longer cable or connect to hard drive, or multimedia storage viewer, such as the Epson P-3000 or a USB hub. Apple Slideshow function to display images or a presentation. See page 55...
  • Page 35 5. See page 55 for instructions on controlling the slideshow. 6. When you’re finished, press Slideshow before turning off or removing the USB device. Be sure to turn off your USB device (if necessary) before you remove the device or cable from the projector. Indicator light and select...
  • Page 36: (Ex70 Only)

    Do not remove the card when the indicator light is flashing, or you may damage the card or projector. 3. If you are not connected to another image source, the Slideshow 4. See page 55 for instructions on controlling the slideshow.
  • Page 37: Turning The Projector On And Off

    Turn on any connected computer or video equipment before starting the projector so it can automatically detect and display the image source. If you turn on the projector first, or have multiple pieces of connected equipment, you may have to select the image source manually (see page 42).
  • Page 38 2. Plug one end of the power cord into the projector, and the other end into an electrical outlet. The Ppower light turns orange. Power light Setting Up the Projector...
  • Page 39: Using The Direct Power On Function

    3. Press the Ppower button on the remote control or on the projector. EX30/EX50 EX70 The projector beeps once and the Ppower light flashes green as the projector warms up, then an image begins to appear. When the Ppower light stops flashing and remains green, the projector is ready for use.
  • Page 40: Shutting Down The Projector

    Ppower button as described below, unplug it, or turn off selected, environmental a power switch that supplies power to the projector. You don’t have to conditions, and usage. wait for the projector to cool down first.
  • Page 41: Displaying And Adjusting The Image

    Displaying and Adjusting the Image Follow the guidelines in this chapter for: ■ Selecting an image source Adjusting the image ■...
  • Page 42: Selecting An Image Source

    You can also select SD card (EX70 only). See page 55 for instructions. Displaying and Adjusting the Image On the EX30 or EX50, press the remote control or the projector until you see the image you want to project. On the EX70, press the...
  • Page 43: Adjusting The Image

    If the image is too low on the screen, you can use the front adjustable foot to raise it. 1. Press the foot release lever up and lift the front of the projector. 2. Once the image is positioned where you want it, release the lever to lock the foot in position.
  • Page 44: Adjusting The Image Shape

    This also produces the best picture quality. If the projector is tilted up or down (up to 30°), or placed at an angle, the shape may “keystone” and you may need to correct the image shape.
  • Page 45: Focusing And Zooming The Image

    Turn the focus ring on the projector to sharpen the image. EX30 EX50 or EX70: to enlarge or reduce the image, turn the zoom ring. EX30: to enlarge or reduce the image, press the (reduce) button on the projector’s control panel. You can also Tele use the setting in the projector’s...
  • Page 46: Selecting The Color Mode

    Press it until the option you want is projected in the upper right corner. On the EX30 or EX50, you can select the from the projector’s Image menu. See page 61 for instructions. Select from one of these ■...
  • Page 47: Resizing Video Images

    Press the button repeatedly to cycle through the Aspect available options. EX70 On the EX30 or EX50, you can select the the projector’s Signal menu. See page 63 for instructions. Select from one of these Aspect EX30 or EX50 ■...
  • Page 48 ■ ■ ■ ■ ■ Displaying and Adjusting the Image (for images sent through the Normal port only) Displays images using the full projection area Video) and maintains the aspect ratio of the image. Choose this setting to automatically resize the image and make the best use of the display area.
  • Page 49: Presenting With The Remote Control

    All of them can be accessed using the remote control, which lets you operate the projector from anywhere in the room—up to 19.7 feet (6 meters) away. This chapter covers: ■...
  • Page 50: Using The Remote Control

    Presenting With the Remote Control Point the remote control at the front or back of the projector, or at the screen. Stand within 19.7 feet (6 meters) of the projector.
  • Page 51: Stopping Action

    You can also set the Lens Cover Timer off the projector after 30 minutes to protect the projector if the slide is closed for a long time. See page 66 for instructions. A/V Mute Stopping Action...
  • Page 52: Controlling The Volume

    5. Press the page 63) while you are using E-Zoom. Controlling the Volume To change the volume on the EX30 or EX50 projector, press the Volume l button to decrease it. On the EX50 projector, you can also press the projector’s control panel...
  • Page 53: Operating Your Computer With The Remote Control

    Enter Before you can use one of these functions, you must connect a USB cable to the USB port on the projector (see page 24) and select TypeB the function you want to use (see page 54). port to display your...
  • Page 54 To control presentation slides using the remote control’s Page Down Type B control your presentation using those buttons. EX30/EX50 Left-click Page up or down to change slides in PowerPoint If you want to use the remote control like a wireless mouse, select Wireless Mouse (see page 66).
  • Page 55: Presenting A Slideshow (Ex70 Only)

    Presenting a Slideshow (EX70 Only) You can use your projector’s Slideshow feature whenever you insert an SD card or connect a USB device that contains .JPG image files. This lets you quickly and easily display individual images, or start a slideshow of all the images in a folder.
  • Page 56 3. If you inserted an SD card and connected a USB device at the note 4. If you need to select a subfolder on your device, press the arrow To rotate a displayed image, press the u or d button on 5.
  • Page 57: Selecting Slideshow Display Options

    6. To display a slideshow of all the images in the current folder, use the arrow buttons to highlight Slideshow screen and press one time through. At the end, you see the folder display again. Select the following as necessary to control your display or slideshow: ■...
  • Page 58 2. Highlight the options you want to use, and press 3. When you are finished, highlight Presenting With the Remote Control Option Available settings Display Name order displays files in name order order Date order displays files in date order Sort order In Ascending sorts the files first to last In Descending sorts the files last to first...
  • Page 59: Fine-Tuning The Projector

    Fine-Tuning the Projector ou can use the projector’s on-screen menus to adjust the image, sound, and other features. This chapter covers the following information: ■ Using the menu system Adjusting the image ■ Adjusting signal settings ■ ■ Customizing projector features ■...
  • Page 60: Using The Menu System

    Follow these steps: 1. To display the menu screen, press the 2. Use the arrow buttons on the remote control or the projector to 3. Once you’ve selected the menu, use the arrow buttons to scroll 4.
  • Page 61: Restoring The Default Settings

    Restoring the Default Settings You can use the option on any menu to restore the Reset factory-default settings for the settings in that menu. To restore all the projector settings to their factory-default values, select the menu, highlight Reset to confirm.
  • Page 62 The available settings vary depending on the input source selected. setting Brightness changes the opacity of the projector’s LCD panels. You can also change the lamp’s brightness. Select in the Brightness Control Settings menu, then choose (the default High...
  • Page 63: Adjusting Signal Settings

    Adjusting Signal Settings Although the projector normally detects and optimizes the input signal automatically, you can use the Signal menu to make manual adjustments. In addition to changing the position of the projected image, you can correct tracking and sync for computer images, or change the aspect ratio.
  • Page 64 (EX70 only) ■ HDMI Video Range When you connect to the HDMI input port, set the projector’s video range to match the video range setting of your device. ■ Input Signal If the colors don’t look right on the setting for the type of equipment you’ve connected to the...
  • Page 65: Customizing Projector Features

    (EX30 only) Zoom Adjusts the image size from ■ Control Panel Lock Lets you disable all of the buttons on the projector, or all of the buttons except the Ppower button. See page 72 for more information. ■ Brightness Control Lets you select from two levels of brightness.
  • Page 66: Customizing Power And Operation

    Customizing Power and Operation You can use the Extended menu to customize the way the projector displays images, enable Direct Power On, turn sleep mode on or off, and customize other projector operations. ■ note ■ If you hold down the...
  • Page 67: Using The Projector Security Features

    : Enable if you want the projector to turn off Sleep Mode automatically if it is idle and no signal is received for 1 to 30 minutes (you can adjust the amount of time using the next setting). : When Sleep Mode is on, you can set the...
  • Page 68: Enabling Password Protection

    5. Do one of the following to enter your password: Fine-Tuning the Projector Disable the projector’s buttons; this is useful, for example, in a classroom when you want to ensure that no one touches the projector’s buttons while you’re using the remote control. See page 72.
  • Page 69: Starting The Projector With A Password

    EX70: Hold down the ■ keypad to enter a four digit password. EX30 or EX50: Use the numeric keypad to enter a four digit ■ password. 6. When you see a confirmation message, reenter the password. 7. Press the button, then press Menu 8.
  • Page 70: Creating Your Own Startup Screen

    You can transfer any image from your computer or video source to the projector and then use it as your startup screen. You can also use it as the screen displayed when the projector is not receiving a signal or when you press the logo, slogan, photograph, or any other image you want to use.
  • Page 71: Choosing When To Display The Image

    Save this image as the User’s Logo? appears, select and press few moments. Do not use your projector, remote control, or video source while the logo is being saved. 8. When you see the message Choosing When to Display the Image After your image is saved, you can set it to display as the startup screen, the screen you see when there’s no signal, or the screen you see...
  • Page 72: Disabling The Projector's Buttons

    When you enable the Control Panel Lock function, you can lock all of the projector’s buttons, or all of the buttons except the Ppower button. The remote control can still be used to operate the projector. 1. Press the 2. Select 3.
  • Page 73 ■ Security cable attachment available security cable as shown below to secure the projector to a table or ceiling mount. Kensington security slot ■ Kensington security slot. of the projector) is compatible with the MicroSaver security systems manufactured by Kensington. You can purchase this lock from Epson (see page 12).
  • Page 74 Fine-Tuning the Projector...
  • Page 75: Maintaining The Projector

    Guide. Refer all other servicing to qualified service ■ personnel. ■ our projector needs little maintenance. All you have to do on a Cleaning the lens Cleaning the projector case Cleaning the air filter Replacing the air filter Replacing the lamp...
  • Page 76: Cleaning The Lens

    These can damage the case. ■ Cleaning the Air Filter Your projector includes an air filter to ensure the best performance. If note dust collects on the air filter, clean it as described here. Dust clogs To order replacement air...
  • Page 77: Replacing The Air Filter

    ■ You repeatedly see a projected message telling you to clean or replace it Contact your dealer or call Epson at 800-GO-EPSON (800-463-7766) to obtain a new air filter. Request part number V13H134A13. 1. Turn off the projector and unplug the power cord.
  • Page 78: Replacing The Lamp

    When a lamp replacement message appears, replace the lamp 2. Let the projector cool for at least an hour (if it has been on). The with a new one as soon as possible, even if it is still working.
  • Page 79 4. Loosen the two screws holding the lamp in place (you can’t remove them). 5. Hold the lamp as shown and pull it straight out. Loosen, but don’t remove these screws Maintaining the Projector note The lamp(s) in this product contain mercury. Please consult your state and local regulations regarding disposal or recycling.
  • Page 80: Resetting The Lamp Timer

    After you replace the lamp, you need to reset the lamp timer using the projector’s menu system. 1. Press the Maintaining the Projector facing the right way.) Then tighten its screws. button on the remote control or on the Menu projector’s control panel. You see the main menu.
  • Page 81: Checking Lamp Usage

    Brightness (default), and High setting is set to . Make note The information displayed depends on the input signal currently selected. If you have used the projector for less than 10 hours, the hours are listed as Maintaining the Projector...
  • Page 82: Replacing The Remote Control Batteries

    ■ Keep these batteries out of the reach of children. Batteries are choking hazards and are very EX30/EX50 dangerous if swallowed. 4. Replace the battery cover and press it down until it clicks into Maintaining the Projector EX30/EX50 shown.
  • Page 83: Transporting The Projector

    ■ When transporting the projector a long distance, first place it in a hard-shell shipping case, then pack it in a firm box with cushioning around the case. Close the slide (lens cover).
  • Page 84 Maintaining the Projector...
  • Page 85: Solving Problems

    Solving Problems his chapter helps you solve problems with your projector and tells you how to contact technical support for problems you can’t solve yourself. The following information is included: ■ Using the projector’s on-screen help system What to do when the projector’s status lights flash ■...
  • Page 86: Using On-Screen Help

    1. Press the 2. Use the arrow buttons on the remote control or the projector to 3. Press the 4. To exit the help system, press the If none of the suggestions solve your problem, see additional solutions to problems in the following sections.
  • Page 87: Checking Projector Status

    Green The projector is operating normally. Orange The projector is in sleep or standby mode. You can unplug it or press the power button to turn it on. Red, flashing red, or There is a problem with the projector. Check the next table to diagnose the orange problem.
  • Page 88 P Flashing red The projector has an internal problem. Stop using the projector, disconnect the power cord, and contact Epson for help, as described on page 96. Flashing red P Red There is a problem with the fan or temperature sensor. Stop using the projector, disconnect the power cord, and contact Epson as described on page 96.
  • Page 89: Solving Projector Operation Problems

    The power cord may be defective. Disconnect the cord from the ■ outlet and contact Epson as described on page 96. If you’re using the Direct Power On function and you ■ immediately plug the power cord back in after unplugging it, the power may not turn back on.
  • Page 90 If you’ve connected a computer and one or more video sources, you may need to press the Search select the correct source. Allow a few seconds for the projector to sync up after pressing the button. Make sure the power for your connected equipment is turned on.
  • Page 91 Make sure the correct input signal is selected in the Signal menu (see page 63). ■ Make sure your computer’s resolution and frequency or refresh rate is supported by the projector (see page 103). If necessary, change your computer’s settings. Only part of the computer image is displayed. ■...
  • Page 92 The video signal may be split between the computer and the projector. If you notice a decline in the projected image quality when the image is displayed simultaneously on your notebook computer and the projector, turn off the notebook’s LCD display.
  • Page 93 Adjust the focus using the focus ring (see page 45). ■ ■ If the projector is angled sharply toward the screen, it may not be possible to focus the entire image. Move the projector to position it more directly in front of the screen.
  • Page 94 Try adjusting the Brightness Control Check your computer display settings to correct the color balance. The projector’s lamp may need to be replaced. See page 78 for instructions. Make sure the correct input signal is selected in the Signal menu (see page 64).
  • Page 95: Solving Problems With The Remote Control

    If you’re using a DVD player or other video source, make sure the ■ cables are connected correctly, as described on page 34. Nothing appears on an external monitor (EX30 and EX50 only) The only images that can be displayed on an external monitor are computer images connected through the port (see page 33).
  • Page 96: Where To Get Help

    Epson provides these technical support services: Internet Support Visit Epson’s support website for solutions to common problems with the EX30, EX50, or EX70. You can download utilities and documentation, get FAQs and troubleshooting advice, or e-mail Epson with your questions.
  • Page 97: Purchase Supplies And Accessories

    Description of the problem ■ Purchase Supplies and Accessories You can purchase screens and other accessories from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).
  • Page 98 Solving Problems...
  • Page 99: Technical Specifications

    Technical Specifications General Type of display Resolution (native format) Color reproduction Light output (brightness) Epson poly-silicon TFT active matrix EX30 800 × 600 pixels (SVGA) EX50 1024 × 768 pixels (XGA) EX70 1280 × 800 pixels (WXGA) 16.8 million colors...
  • Page 100 EX70 410:1 (with setting turned off Auto Iris in the Image menu; see page 61) EX30 (4:3 image) 23 to 350 inches (58.4 to 889 cm) EX50 (4:3 image) 30 to 300 inches (76.2 to 762 cm) EX70 (16:10 image) 27 to 270 inches (69 to 685.8 cm)
  • Page 101: Projection Lamp

    Zoom ratio EX30 EX50/EX70 Noise level 28 dB in Low Brightness mode 35 dB in High Brightness mode Keystone correction Manual: Auto Keystone (EX50/EX70 only): 0 to 11° vertical Projection Lamp Type UHE (Ultra High Efficiency) Power consumption 170 W Lamp life Approx.
  • Page 102: Safety And Approvals

    4921 ft (1500 m), enable mode in the Extended menu Altitude (see page 66) FCC 47CFR Part 15B Class B (DoC) UL60950-1 First Edition (cTUVus Mark) ICES-003 Class B CSA C22.2 No. 60950-1 ™ ™ Pixelworks ICs are used in this projector. High...
  • Page 103: Compatible Video Formats

    To project images output from a computer, the computer’s video card must be set at a refresh rate (vertical frequency) that’s compatible with the projector. Some images are automatically resized using Epson’s ™ SizeWize technology to display in the projector’s native format. The frequencies of some computers may not allow images to display correctly;...
  • Page 104 Computer, component video, composite video, and S-Video Mode iMAC VGA iMAC SVGA iMAC XGA MAC13 MAC16 MAC19 MAC19-60 MAC21 NTSC NTSC 4:43 N-PAL M-PAL PAL—60 SECAM SDTV (480i) SDTV (576i) SDTV (480p) SDTV (576p) HDTV (720p) HDTV (1080i) * Letterbox signal Technical Specifications Refresh rate (Hz)
  • Page 105 EX70 Computer, component video, composite video, and S-Video Refresh Mode rate (Hz) VGA EGA VGA—60 VESA—72 VESA—75 VESA—85 SVGA—56 SVGA—60 SVGA—72 SVGA—75 SVGA—85 XGA—60 XGA—70 XGA—75 XGA—85 SXGA1—70 SXGA1—75 SXGA1—85 SXGA1—100 WXGA—60 WXGA—75 WXGA—85 SXGA2—60 SXGA2—75 SXGA2—85 SXGA3—60 SXGA3—75 SXGA3—85 WXGA1—60 WXGA2—60 WXGA+60...
  • Page 106 Computer, component video, composite video, and S-Video Mode iMAC VGA iMAC SVGA iMAC XGA MAC13 MAC16 MAC19 MAC19-60 MAC21 NTSC NTSC 4:43 N-PAL M-PAL PAL—60 SECAM SDTV (480i) SDTV (576i) SDTV (480p) SDTV (576p) HDTV (720p) HDTV (1080i) * Letterbox signal ** Available only when you select Wide as the Resolution setting Technical Specifications Refresh...
  • Page 107 HDMI signals Refresh Mode rate (Hz) SVGA SXGA SXGA SXGA+ UXGA SDTV (480i) SDTV (576i) SDTV (480p) SDTV (576p) HDTV (720p) 60/50 HDTV (1080i) 60/50 HDTV (1080p) 60/50 * Letterbox signal Resolution 640 × 480 (640 × 360*) 800 × 600 1024 ×...
  • Page 108 Technical Specifications...
  • Page 109: Notices

    Important Safety Instructions Follow these safety instructions when setting up and using the projector: ■ Do not look into the lens when the projector is on. The bright light can damage your eyes. ■ Do not place the projector on an unstable cart, stand, or table.
  • Page 110 Do not block the slots and openings in the projector case. They provide ventilation and prevent the projector from overheating. Do not operate the projector on a sofa, rug, or other soft surface, or set it on top of loose papers, which could block vents underneath your projector. If you are setting up the projector near a wall, leave at least 7.9 inches (20 cm) of...
  • Page 111 If you are not sure of the power available, consult your dealer or power company. ■ If you use the projector in a country other than where you purchased it, use the correct power cord for that country. ■...
  • Page 112: Fcc Compliance Statement

    FCC Compliance Statement For United States Users This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 113: Index

    Capturing image, 70 to 71 Carrying cases, 10, 13, 16, 83 Ceiling mount, 12, 23 Chalkboard, projecting on, 46 Cleaning air filter, 76 to 77 lens, 76 projector case, 76 Color correcting, 46, 61 to 62 problems, 94 saturation, 62 settings, 62 temperature, 62...
  • Page 114 HDMI Video Range setting, 64 HDTV images, video formats, 107 Height of image, adjusting, 43 Help system, using, 86 Help, Epson, 11, 96 to 97 High Altitude mode, 67, 88, 102 Image adjusting, 43 to 48, 61 to 62 blurry, 93...
  • Page 115 Lens, cleaning, 76 Light output specifications, 99 Lights, status, 87 to 88 Locking buttons, 72 projector, 72 Logo, saving on projector, 70 to 71 Macintosh display problems, 91 Manuals, 10 to 11 Menus changing settings, 60 default settings, restoring, 61...
  • Page 116 18 to 19, 100 ordering, 12 to 13 startup screen, creating, 70 to 71 Screen image, see Image Screen, distance from projector, 18 to 19, 100 SD card, inserting, 36 to 37 Security cables, 73 Control Panel Lock, 72 to 73...
  • Page 117 91 to 92 distorted image, 44 to 45 image and sound problems, 89 to 95 no signal, 90 to 91 projector problems, 85 to 97 remote control problems, 95 tapered image, 44 to 45 Turning off picture (using A/V Mute), 50...
