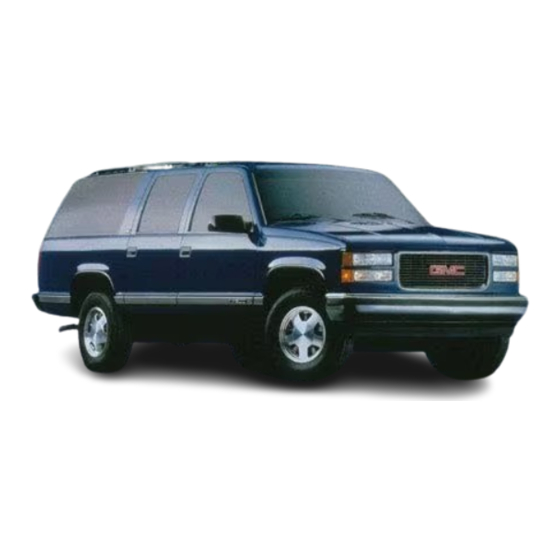

The 1999 GMC Yukon and Suburban Owner's Manual
-
1
1
Seats and Restraint Systems
This section tells you how to use your seats and safety belts properly. It also explains the air bag system.
-
2
1
Features and Controls
This section explains how to start and operate your vehicle.
-
3
1
Comfort Controls and Audio Systems
This section tells you how to adjust the ventilation and comfort controls and how to operate your audio system.
-
4
1
Your Driving and the Road
Here you'll find helpful information and tips about the road and how to drive under different conditions.
-
5
1
Problems on the Road
This section tells you what to do if you have a problem while driving, such as a flat tire or overheated engine, etc.
-
6
1
Service and Appearance Care
Here the manual tells you how to keep your vehicle running properly and looking good.
-
7
1
Maintenance Schedule
This section tells you when to perform vehicle maintenance and what fluids and lubricants to use.
-
8
1
Customer Assistance Information
This section tells you how to contact GMC for assistance and how to get service and owner publications.
It also gives you information on "Reporting Safety Defects" on page 8
-
9
1
Index
Here's an alphabetical listing of almost every subject in this manual. You can use it to quickly find
something you want to read.
-
10.
yellowblue
i

Advertisement

Table of Contents
loading

Summary of Contents for GMC 1999 Suburban

  • Page 1 This section tells you when to perform vehicle maintenance and what fluids and lubricants to use. Customer Assistance Information This section tells you how to contact GMC for assistance and how to get service and owner publications. It also gives you information on “Reporting Safety Defects” on page 8 Index Here’s an alphabetical listing of almost every subject in this manual.
  • Page 2: For Canadian Owners Who Prefer A French Language Manual

    GENERAL MOTORS, GM, the GM Emblem, GMC, the GMC Emblem and the name YUKON and the name SUBURBAN are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes in the product after that time without further notice.
  • Page 3: How To Use This Manual

    How to Use this Manual Many people read their owner’s manual from beginning to end when they first receive their new vehicle. If you do this, it will help you learn about the features and controls for your vehicle. In this manual, you’ll find that pictures and words work together to explain things quickly.
  • Page 4: Vehicle Damage Warnings

    You will also find a circle with a slash through it in this book. This safety symbol means “Don’t,” “Don’t do this” or “Don’t let this happen.” Vehicle Damage Warnings Also, in this book you will find these notices: NOTICE: These mean there is something that could damage your vehicle.
  • Page 5 Vehicle Symbols These are some of the symbols you may find on your vehicle. For example, These symbols these symbols are important are used on an for you and original battery: your passengers whenever your vehicle is CAUTION driven: POSSIBLE INJURY DOOR LOCK PROTECT...
  • Page 6: Model Reference

    yellowblue Model Reference This manual covers these models: 4-Door Utility Suburban...
  • Page 7: Section 1 Seats And Restraint Systems

    Section 1 Seats and Restraint Systems Here you’ll find information about the seats in your vehicle and how to use your safety belts properly. You can also learn about some things you should not do with air bags and safety belts. Seats and Seat Controls Safety Belts: They’re for Everyone Here Are Questions Many People Ask About...
  • Page 8: Seats And Seat Controls

    Seats and Seat Controls This section tells you about the seats them and fold them up and down. It also tells you about reclining front seatbacks and head restraints. Manual Front Seat CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving.
  • Page 9: Power Seats - If Equipped

    Power Seat(s) (If Equipped) If your vehicle has a power seat on the driver’s or passenger’s side, you can adjust it with these controls at the outside edge of the seat. The switch is located on the side of the seat, next to the door. You can use the round center knob to move the seat to where you want it.
  • Page 10: Reclining Front Seatbacks

    Heated Front Seats (If Equipped) The control for the driver’s side heated seat is located on the left side of the seat. The control for the right front passenger is located on the right side of the passenger’s seat. Move the switch forward to MED or HIGH temperature to turn on the heating elements in the seat.
  • Page 11 But don’t have a seatback reclined if your vehicle is moving. CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can’t do their job when you’re reclined like this. The shoulder belt can’t do its job because it won’t be against your body.
  • Page 12: Head Restraints

    Head Restraints Slide the head restraint up or down so that the top of the restraint is closest to the top of your ears. This position reduces the chance of a neck injury in a crash. Seatback Latches (2-Door Utility) CAUTION: If the seatback isn’t locked, it could move forward in a sudden stop or crash.
  • Page 13 Easy Entry Seat (2-Door Utility) CAUTION: If any easy entry seat isn’t locked, it can move. In a sudden stop or crash, the person sitting there could be injured. And, even if there is no crash or sudden stop, a driver sitting in an unlocked easy entry seat could be startled by the sudden movement and hit the wrong control or pedal, causing an accident.
  • Page 14: Rear Seats

    Rear Seats CAUTION: If a head restraint is not installed on the seatback or stored in the vehicle properly, it could be thrown about the vehicle in a crash or sudden maneuver. People in the vehicle could be injured. Remove the head restraints only when you need to fold the seat, and be sure that the head restraints are stored securely in the storage bag and placed under the rear seat.
  • Page 15 To fold the seat, pull on the release handle at the bottom of the seat cushion marked RELEASE. When you release the seat cushion, the seatback is automatically released. Pull the loop on the seatback forward and fold the seatback onto the seat cushion. To return the seat to the passenger position, just lift up on the seatback and push it rearward until it latches.
  • Page 16 Folding Rear Seats (4 Door Models) The rear seat of the 4 Door Utility or the second seat of a Suburban may have a 60/40 seat, either side may be folded down to give you more cargo space. Before folding, place the latch portion of the center safety belt in the center armrest.
  • Page 17 On Suburban models, to create a load floor, release the panels from the seatback by pushing rearward on the latch and fold them out to cover the rear seat footwell. To return the seat to the passenger position on a Suburban, lift the load floor panels and latch them into the seatback.
  • Page 18 There is a foot release lever for rear seat passengers to use when getting out of the third seat. To release the easy entry second seat, lift up on the top of the release lever with your foot. Push the top of the seatback forward and tilt it toward the front of the vehicle.
  • Page 19 Then, hang the latch plate end of the belt on the hook at the top of the retractor cover, out of the way. To remove the seat, fully open the rear load doors and enter the back of the vehicle. Move the seatback release lever, at the right rear of the seat, toward the center of...
  • Page 20: Safety Belts: They're For Everyone

    CAUTION: A safety belt that is twisted or not properly attached won’t provide the protection needed in a crash. The person wearing the belt could be seriously injured. After installing the seat, always check to be sure that the safety belts are not twisted and are properly attached.
  • Page 21: Why Safety Belts Work

    CAUTION: It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts.
  • Page 22 yellowblue Take the simplest vehicle. Suppose it’s just a seat Put someone on it. on wheels. 1-16...
  • Page 23 Get it up to speed. Then stop the vehicle. The rider doesn’t stop. The person keeps going until stopped by something. In a real vehicle, it could be the windshield ... yellowblue 1-17...
  • Page 24 yellowblue or the instrument panel ... or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That’s why safety belts make such good sense.
  • Page 25: Here Are Questions Many People Ask

    Here Are Questions Many People Ask About Safety Belts and the Answers Won’t I be trapped in the vehicle after an accident if I’m wearing a safety belt? You could be whether you’re wearing a safety belt or not. But you can unbuckle a safety belt, even if you’re upside down.
  • Page 26: How To Wear Safety Belts Properly

    How to Wear Safety Belts Properly Adults This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see the part of this manual called “Children.”...
  • Page 27 yellowblue The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you’d be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
  • Page 28 Shoulder Belt Height Adjuster Before you begin to drive, move the shoulder belt adjuster to the height that is right for you. 1-22 To move it down, push in at the word PRESS and move the height adjuster to the desired position. You can move the adjuster up just by pushing up on the shoulder belt guide.
  • Page 29 What’s wrong with this? The shoulder belt is too loose. It won’t give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.
  • Page 30 What’s wrong with this? The belt is buckled in the wrong place. 1-24 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
  • Page 31 What’s wrong with this? The belt is over an armrest. CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied at the abdomen, not at the pelvic bones, and that could cause serious or fatal injuries.
  • Page 32 What’s wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. 1-26 CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
  • Page 33 What’s wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you wouldn’t have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to fix it.
  • Page 34: Safety Belt Use During Pregnancy

    To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
  • Page 35: Right Front Passenger Position

    The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it’s more likely that the fetus won’t be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly.
  • Page 36 CAUTION: Air bags inflate with great force, faster than the blink of an eye. If you’re too close to an inflating air bag, it could seriously injure you. This is true even with Next Generation frontal air bags. Safety belts help keep you in position before and during a crash.
  • Page 37: How The Air Bag System Works

    There is an air bag readiness light on the instrument panel, which shows AIR BAG. The system checks the air bag electrical system for malfunctions. The light tells you if there is an electrical problem. See “Air Bag Readiness Light” in the Index for more information.
  • Page 38 The right front passenger’s air bag is in the instrument panel on the passenger’s side. 1-32 CAUTION: If something is between an occupant and an air bag, the bag might not inflate properly or it might force the object into that person. The path of an inflating air bag must be kept clear.
  • Page 39 In any particular crash, no one can say whether an air bag should have inflated simply because of the damage to a vehicle or because of what the repair costs were. Inflation is determined by the angle of the impact and how quickly the vehicle slows down in frontal or near frontal impacts.
  • Page 40 CAUTION: When an air bag inflates, there is dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so. If you have breathing problems but can’t get out of the vehicle after an air bag inflates, then get fresh air by opening a window or door.
  • Page 41: Servicing Your Air Bag-Equipped Vehicle

    If your vehicle ever gets into a lot of water water up to the carpeting or higher your vehicle and soaks the carpet, the air bag controller can be soaked and ruined. If this ever happens, and then you start your vehicle, the damage could make the air bags inflate, even if there’s no crash.
  • Page 42: Adding Equipment To Your Airbag-Equipped Vehicle

    Adding Equipment to Your Air Bag-Equipped Vehicle If I add a push bumper or a bicycle rack to the front of my vehicle, will it keep the air bags from working properly? As long as the push bumper or bicycle rack is attached to your vehicle so that the vehicle’s basic structure isn’t changed, it’s not likely to keep the air bags from working properly in a crash.
  • Page 43 When you sit in a center seating position, you have a lap safety belt, which has no retractor. To make the belt longer, tilt the latch plate and pull it along the belt. To make the belt shorter, pull its free end as shown until the belt is snug.
  • Page 44: Rear Seat Outside Passenger Positions

    Rear Seat Passengers It’s very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who aren’t safety belted can be thrown out of the vehicle in a crash.
  • Page 45 When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again. If the belt is not long enough, see “Safety Belt Extender” at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
  • Page 46 Four door utility models and the second seat of Suburbans have shoulder belt height adjusters. Move the shoulder belt height adjuster to the height that is right for you. 1-40 To move the height adjuster down, push in at the word PRESS and move the height adjuster to the desired position.
  • Page 47: Rear Safety Belt Comfort Guides For Children And Small Adults

    To unlatch the belt, just push the button on the buckle. Rear Safety Belt Comfort Guides for Children and Small Adults Your vehicle may have rear shoulder belt comfort guides. This feature will provide added safety belt comfort for children who have outgrown child restraints and for small adults.
  • Page 48 2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt, and insert the two edges of the belt into the slots of the guide. 1-42 3. Be sure that the belt is not twisted and it lies flat. The elastic cord must be under the belt and the guide on top.
  • Page 49: Smaller Children And Babies

    4. Buckle, position and release the safety belt as described in “Rear Seat Outside Passenger Positions” earlier in this section. Make sure that the shoulder belt crosses the shoulder. To remove and store the comfort guides, squeeze the belt edges together so that you can take them out from the guides.
  • Page 50 CAUTION: Smaller children and babies should always be restrained in a child or infant restraint. The instructions for the restraint will say whether it is the right type and size for your child. A very young child’s hip bones are so small that a regular belt might not stay low on the hips, as it should.
  • Page 51 CAUTION: Never hold a baby in your arms while riding in a vehicle. A baby doesn’t weigh much crash. During a crash a baby will become so heavy you can’t hold it. For example, in a crash CAUTION: (Continued) CAUTION: (Continued) at only 25 mph (40 km/h), a 12 will suddenly become a 240 your arms.
  • Page 52: Child Restraints

    Child Restraints Every time infants and young children ride in vehicles, they should have protection provided by appropriate restraints. What are the different types of add child restraints? on child restraints are available in four basic types. When selecting a child restraint, take into consideration not only the child’s weight and size, but also whether or not the restraint will be compatible with the motor vehicle in which it will...
  • Page 53 yellowblue A rear facing infant restraint (B) positions an infant to face the rear of the vehicle. Rear facing infant restraints are designed for infants of up to about 20 lbs. (9 kg) and about one year of age. This type of restraint faces the rear so that the infant’s head, neck and body can have the support they need in a frontal crash.
  • Page 54 yellowblue A forward facing child restraint (C E) positions a child upright to face forward in the vehicle. These forward facing restraints are designed to help protect children who are from 20 to 40 lbs. (9 to 18 kg) and about 26 to 40 inches (66 to 102 cm) in height, or up to around four years of age.
  • Page 55 yellowblue A booster seat (F, G) is designed for children who are about 40 to 60 lbs., or even up to 80 lbs. (18 to 27 kg, or even up to 36 kg), and about four to eight years of age. A booster seat is designed to improve the fit of the vehicle’s safety belt system.
  • Page 56: Where To Put The Restraint

    When choosing a child restraint, be sure the child restraint is designed to be used in a vehicle. If it is, it will have a label saying that it meets Federal Motor Vehicle Safety Standards. Then follow the instructions for the restraint. You may find these instructions on the restraint itself or in a booklet, or both.
  • Page 57: Top Strap

    Top Strap If your child restraint has a top strap, it should be anchored. Suburban models: If you need to have an anchor bracket installed for a second row seat or a center rear seat, you can ask your dealer to put it in for you. If you want to install the anchor yourself, your dealer can tell you how to do it.
  • Page 58 CAUTION: Routing the top strap for a child restraint over or under the cargo security shade could cause the shade to come loose and even break. If this happens, the shade could be thrown about the vehicle in a collision or sudden maneuver. You or others could be injured.
  • Page 59 CAUTION: Routing the top strap for a child restraint over or under the cargo security shade could cause the shade to come loose and even break. If this happens, the shade could be thrown about the vehicle in a collision or sudden maneuver. You or others could be injured.
  • Page 60: Securing A Child Restraint In A Rear Outside Seat Position

    Securing a Child Restraint in a Rear Outside Seat Position You’ll be using the lap shoulder belt. See the earlier part about the top strap if the child restraint has one. Be sure to follow the instructions that came with the child restraint.
  • Page 61 4. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 5. To tighten the belt, feed the shoulder belt back into the retractor while you push down on the child restraint. If you’re using a forward facing child restraint, you may find it helpful to use your knee to push down on the...
  • Page 62: Securing A Child Restraint In A Center Seat Position

    Securing a Child Restraint in a Center Seat Position You’ll be using the lap belt. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. See the earlier part about the top strap if the child restraint has one.
  • Page 63: Securing A Child Restraint In The Right Front Seat Position

    4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 5. To tighten the belt, pull its free end while you push down on the child restraint. If you’re using a forward facing child restraint, you may find it helpful to use your knee to push down on the child...
  • Page 64 Your vehicle has a right front passenger air bag. Never put a rear facing child restraint in this seat. Here’s why: CAUTION: A child in a rear facing child restraint can be seriously injured or killed if the right front passenger’s air bag inflates, even though your vehicle has Next Generation frontal air bags.
  • Page 65 yellowblue 4. Buckle the belt. Make sure the release button is 5. Pull the rest of the lap belt all the way out of the positioned so you would be able to unbuckle the retractor to set the lock. safety belt quickly if you ever had to. 1-59...
  • Page 66: Larger Children

    6. To tighten the belt, feed the lap belt back into the retractor while you push down on the child restraint. You may find it helpful to use your knee to push down on the child restraint as you tighten the belt. 7.
  • Page 67 Accident statistics show that children are safer if they are restrained in the rear seat. But they need to use the safety belts properly. Children who aren’t buckled up can be thrown out in a crash. Children who aren’t buckled up can strike other people who are.
  • Page 68 1-62 CAUTION: Never do this. Here a child is sitting in a seat that has a shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt. The belt’s force would then be applied right on the child’s abdomen.
  • Page 69: Safety Belt Extender

    Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt isn’t long enough to fasten, your dealer will order you an extender. It’s free. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you.
  • Page 70 yellowblue NOTES 1-64...
  • Page 71: Section 2 Features And Controls

    Section 2 Features and Controls Here you can learn about the many standard and optional features on your vehicle, and information on starting, shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is working properly and what to do if you have a problem.
  • Page 72 yellowblue Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. A child or others could be badly injured or even killed. They could operate power windows or other controls or even make the vehicle move. Don’t leave the keys in a vehicle with young children.
  • Page 73: Door Locks

    Your vehicle has one double ignition and all door locks. If you ever lose your key, your dealer will be able to assist you with obtaining a new one. Door Locks sided key for the CAUTION: Unlocked doors can be dangerous. Passengers open the doors and fall out.
  • Page 74: Power Door Locks

    From the inside, to lock the door, slide the lever on your door down. To unlock the door, slide the lever up. Power Door Locks Press the side of the power door lock switch marked LOCK on either front door to lock all the doors at once.
  • Page 75: Leaving Your Vehicle

    On the passenger side of the rear cargo door or tailgate, there is a power lock switch which can be used to lock or unlock all of the doors. On vehicles with cargo doors, if the rear cargo lock switch is pressed with the cargo doors open, all of the doors will lock five seconds after the cargo doors are closed.
  • Page 76: Keyless Entry System (If Equipped)

    Keyless Entry System (If Equipped) If your vehicle has this option, you can lock and unlock your doors from about 3 feet (1 m) up to 30 feet (9 m) away using the remote keyless entry transmitter supplied with your vehicle. Your interior lamps will be illuminated for a set period of time when the transmitter signal is received by the Keyless Entry System.
  • Page 77: Operation

    Operation To unlock the driver’s door, press the UNLOCK button. The interior lamps will come on for 40 seconds or until the ignition is turned on. If you press this button again within five seconds, all the remaining doors will unlock. Press the LOCK button to lock all the doors.
  • Page 78: Your Doors And How They Work

    To replace the battery: 1. Insert a small coin, or flathead screwdriver, to separate the bottom of the transmitter from the top. 2. Remove the battery and replace it with a new one, making sure the positive (+) side of the battery is facing down.
  • Page 79: Panel Doors

    CAUTION: It can be dangerous to drive with the tailgate glass, tailgate or rear doors open because carbon monoxide (CO) gas can come into your vehicle. You can’t see or smell CO. It can cause unconsciousness and even death. If you must drive with the tailgate glass, tailgate or rear doors open or if electrical wiring or other cable connections must pass through the seal between the body and the tailgate glass, tailgate...
  • Page 80: Key In The Ignition

    To open the driver’s side panel door, first open the passenger’s side door. Then, pull the handle on the left door edge out and pull the door open. The rear doors have a check assembly to keep them from fully opening during normal use. To fully open either rear door, you must release the check strap.
  • Page 81: Parking At Night

    Parking at Night Park in a lighted spot, close all windows and lock your vehicle. Remember to keep your valuables out of sight. Put them in a storage area, or take them with you. Parking Lots If you park in a lot where someone will be watching your vehicle, it’s best to lock it up and take your keys.
  • Page 82: Ignition Positions

    New Vehicle “Break In” NOTICE: Your vehicle doesn’t need an elaborate “break in.” But it will perform better in the long run if you follow these guidelines: Keep your speed at 55 mph (88 km/h) or less for the first 500 miles (805 km). Don’t drive at any one speed slow for the first 500 miles (805 km).
  • Page 83: Starting Your Gasoline Engine

    ACCESSORY (A): This position lets you use things like the radio and the windshield wipers when the engine is off. Push in the key and turn it toward you. Your steering wheel will remain locked, just as it was before you inserted the key. LOCK (B): This position locks your ignition, steering wheel and transmission.
  • Page 84: How To Start The Engine

    NOTICE: Don’t try to shift to PARK (P) if your vehicle is moving. If you do, you could damage the transmission. Shift to PARK (P) only when your vehicle is stopped. How to Start the Engine 1. Without pushing the accelerator pedal, turn your ignition key to START.
  • Page 85: Engine Coolant Heater (If Equipped)

    Engine Coolant Heater (If Equipped) In very cold weather, 0 _ F 18 _ C) or colder, the engine coolant heater can help. You’ll get easier starting and better fuel economy during engine warm up. Usually, the coolant heater should be plugged in a minimum of four hours prior to starting your vehicle.
  • Page 86: Automatic Transmission Operation

    Automatic Transmission Operation There are several different positions for your shift lever. Your vehicle features an electronic shift position indicator within the instrument cluster. This display must be powered anytime the shift lever is capable of being moved out of PARK (P). This means that if your key is in OFF, rather than LOCK, there will be a small current drain on your battery which could discharge your battery over a period of time.
  • Page 87 REVERSE (R): Use this gear to back up. NOTICE: Shifting to REVERSE (R) while your vehicle is moving forward could damage your transmission. Shift to REVERSE (R) only after your vehicle is stopped. To rock your vehicle back and forth to get out of snow, ice or sand without damaging your transmission, see “Stuck: In Sand, Mud, Ice or Snow”...
  • Page 88 AUTOMATIC OVERDRIVE ( ): This position is for normal driving. If you need more power for passing, and you’re: Going less than about 35 mph (56 km/h), push your accelerator pedal about halfway down. Going about 35 mph (56 km/h) or more, push the accelerator all the way down.
  • Page 89: Four - Wheel Drive (If Equipped)

    Four Wheel Drive (If Equipped) If your vehicle has four wheel drive, you can send your engine’s driving power to all four wheels for extra traction. To get the most satisfaction out of four drive, you must be familiar with its operation. Read the part that follows before using four wheel drive.
  • Page 90 The transfer case shift lever is on the floor to the right of the driver. Use this lever to shift into and out of four wheel drive. The front axle portion of the indicator diagram will light up when you shift into four wheel drive and the front axle engages.
  • Page 91 NEUTRAL (N): Shift to this setting only when your vehicle needs to be towed or when using a power take off. Wheel Low (4L): This setting also engages your front axle to give you extra power and also gives you a higher driveline ratio.
  • Page 92 yellowblue Automatic Transfer Case (If Equipped) The transfer case switches are below and to the left of the climate controls. Use these switches to shift into and out of four wheel drive. You can choose among four driving settings: 2HI: This setting is used for driving in most situations. Your front axle is not engaged in two wheel drive.
  • Page 93 CAUTION: Shifting the transfer case to NEUTRAL can cause your vehicle to roll even if the transmission is in PARK (P). You or someone else could be seriously injured. Be sure to set the parking brake before placing the transfer case in NEUTRAL.
  • Page 94 Shifting Out of 4LO To shift from 4LO to 4HI, AUTO 4WD or 2HI your vehicle must be stopped or moving less than 3 mph (4.8 km/h) with the transmission in NEUTRAL (N) and the engine running. The preferred method for shifting out of 4LO is to have your vehicle moving 1 to 2 mph (1.6 to 3.2 km/h).
  • Page 95: Parking Brake

    Parking Brake To set the parking brake, hold the regular brake pedal down with your right foot. Push down the parking brake pedal with your left foot. If the ignition is on, the brake system warning light will come on. To release the parking brake, hold the regular brake pedal down.
  • Page 96: Shifting Into Park (P)

    Shifting Into PARK (P) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake firmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
  • Page 97: Leaving Your Vehicle With The Engine Running

    Move the lever up as far as it will go. 3. If you have four wheel drive, be sure the transfer case is in a drive gear not in NEUTRAL (N). 4. Turn the ignition key to LOCK. 5. Remove the key and take it with you. If you can leave your vehicle with the ignition key in your hand, your vehicle is in PARK (P).
  • Page 98: Torque Lock

    If you have to leave your vehicle with the engine running, be sure your vehicle is in PARK (P) and the parking brake is firmly set before you leave it. After you move the shift lever into PARK (P), hold the regular brake pedal down.
  • Page 99: Parking Over Things That Burn

    Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Don’t park over papers, leaves, dry grass or other things that can burn. Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you can’t see or smell.
  • Page 100: Running Your Engine While You're Parked

    Running Your Engine While You’re Parked It’s better not to park with the engine running. But if ever you have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle (see the earlier Caution under “Engine Exhaust”).
  • Page 101: Locking Rear Axle (If Equipped)

    yellowblue Locking Rear Axle (If Equipped) Power Windows (If Equipped) If you have this feature, your locking rear axle can give you additional traction on snow, mud, ice, sand or gravel. It works like a standard axle most of the time, but when one of the rear wheels has no traction and the other does, this feature will allow the wheel with traction to move the vehicle.
  • Page 102 Door Utility and Suburban If you have the optional power windows, the controls are on each of the side doors. The driver’s door has a switch for the passenger windows as well. Your power windows will work when the ignition has been turned to ACC or RUN. 2-32 Push the rear of the switch with the power window symbol on it to lower the window.
  • Page 103: Tilt Wheel (If Equipped)

    Electric Tailgate Glass Release Before operating your electric tailgate glass release, see the caution under “Your Doors and How They Work” in this section. The electric hatch release button lets you release the tailgate glass. To release the glass, press the top of the button.
  • Page 104: Multifunction Lever

    Multifunction Lever The lever on the left side of the steering column includes your: Turn Signal and Lane Change Indicator Headlamp High/Low Beam Changer Windshield Wipers Windshield Washer Cruise Control (If Equipped) 2-34 Turn Signal and Lane Change Indicator The turn signal has two upward (for right) and two downward (for left) positions.
  • Page 105: Headlamp High/Low-Beam Changer

    Headlamp High/Low-Beam Changer To change the headlamps from low beam to high or high to low, pull the turn signal lever all the way toward you. Then release it. When the high beams are on, this light on the instrument panel also will be on.
  • Page 106: Windshield Washer

    Windshield Washer At the top of the lever, there’s a paddle with the word PUSH on it. To spray washer fluid on the windshield, push the paddle. CAUTION: In freezing weather, don’t use your washer until the windshield is warmed. Otherwise the washer fluid can form ice on the windshield, blocking your vision.
  • Page 107: Cruise Control (If Equipped)

    To wash the window, push in on the switch. Window washer fluid will continue to spray until the switch is released. The wiper will continue with three more wipes and then return to the setting that was chosen before the lever was pushed.
  • Page 108 Setting Cruise Control CAUTION: If you leave your cruise control switch on when you’re not using cruise, you might hit a button and go into cruise when you don’t want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use it.
  • Page 109 Reducing Speed While Using Cruise Control There are two ways to reduce your speed while using cruise control: Push in the SET button at the end of the lever until you reach the lower speed you want, then release it. To slow down in very small amounts, push the button for less than half a second.
  • Page 110: Exterior Lamps

    Exterior Lamps Your parking and headlamp knob is on the driver’s side of your instrument panel. Rotate the knob clockwise, to the parking lamp symbol, to turn on the following: Parking Lamps Sidemarker Lamps 2-40 Clearance Lamps (If Equipped) Taillamps License Plate Lamps Instrument Panel Lights Rotate the knob clockwise again, to the master lighting...
  • Page 111: Interior Lamps

    Headlamps-On Reminder A buzzer will sound when your headlamps are turned on and your ignition is in OFF, LOCK or ACCESSORY. If you need to use your headlamps when the ignition switch is in OFF, LOCK or ACCESSORY, the buzzer can be turned off by turning the thumbwheel next to the parking and headlamp switch all the way down.
  • Page 112: Illuminated Entry

    Illuminated Entry Your vehicle is equipped with an illuminated entry feature. When the doors are opened, the dome lamps will come on if the dome lamp button is in the out position. When all doors are closed or the dome lamp button is pressed in, the lamps will stay on for a short period of time and will then go out.
  • Page 113: Reading Lamps

    Reading Lamps If your vehicle has reading lamps, press the button next to the lamp to turn the lamp on. The lamps can be adjusted to point in the direction you want. Press the button again to turn the lamp off. If your vehicle has an overhead console with reading lamps, press the button next to the lamp to turn the lamp on.
  • Page 114 The mirror also includes an eight point compass display in the upper right corner of the mirror face. When on, the compass automatically calibrates as the vehicle is driven. 2-44 Mirror Operation The right side of the switch located at the bottom of the mirror turns the electrochromic mirror on and off.
  • Page 115 Compass Operation Press the COMP switch once briefly to turn the compass on or off. When the ignition and the compass feature are on, the compass will show two character boxes for approximately two seconds. After two seconds, the mirror will display the compass heading. When cleaning the mirror, use a paper towel or similar material dampened with glass cleaner.
  • Page 116 Compass Variance The mirror is set in zone eight upon leaving the factory. It will be necessary to adjust the compass to compensate for compass variance if you live outside zone eight. Under certain circumstances, as during a long distance cross country trip, it will be necessary to adjust for compass variance.
  • Page 117 Electrochromic Inside Rearview Mirror with Compass and Temperature Display (If Equipped) Your vehicle may have electrochromic inside and outside rearview mirrors. When on, an electrochromic mirror automatically dims to the proper level to minimize glare from lights behind you after dark. The mirror also includes a display in the upper right corner of the mirror face.
  • Page 118 Press and release the TEMP switch to toggle the temperature display between Fahrenheit or Celsius. If an abnormal reading is displayed, please consult your dealer. Electrochromic Mirror Operation The right side of the switch, labeled TEMP, located at the bottom of the mirror turns the electrochromic inside and outside mirrors on and off.
  • Page 119 Compass Variance The mirror is set in zone eight upon leaving the factory. It will be necessary to adjust the compass to compensate for compass variance if you live outside zone eight. Under certain circumstances, as during a long distance cross country trip, it will be necessary to adjust for compass variance.
  • Page 120 Outside Manual Adjust Mirrors Adjust your outside mirrors so you can just see the side of your vehicle and have a clear view of objects behind you. Some mirrors can be folded in, to enter narrow doorways. The use of hood mounted air deflectors and convex on mirror attachments may adversely affect mirror performance.
  • Page 121 yellowblue 1. To adjust the mirrors when hauling a slide in camper 2. Rotate the mirror head, so that the mirror surface or towing a trailer, rotate the mirror by pushing the faces the rear of the vehicle. mirror head toward the front of the vehicle. 2-51...
  • Page 122: Convex Outside Mirror

    Electric Outside Rearview Mirrors (If Equipped) If you have electric mirrors, they can be adjusted to point where you want from inside the vehicle. Select the mirror you want to move by moving the center of the switch, located on the driver’s door armrest, to L (left) or R (right).
  • Page 123: Storage Compartments

    Storage Compartments Your vehicle has a variety of storage compartments designed to store small items. Glove Box To open your glove box, move the switch button toward the passenger’s side and pull the door open. Center Overhead Console (If Equipped) Your vehicle may have an overhead console.
  • Page 124 4. Add one peg at a time until the PUSH button on the closed compartment door operates the garage door opener. 2-54 5. Now, with the compartment door closed, push the button marked PUSH to make sure the garage door opener operates properly.
  • Page 125 Sunglasses Compartment The center overhead compartment can be used to conveniently store your sunglasses. To open the center compartment, press the release button located at the rear of the compartment door. Place your sunglasses in the compartment door with the lenses facing out.
  • Page 126 Center Floor Console (If Equipped) Your vehicle may have a console compartment between the bucket seats. To open it, lift the latch handle and swing the door open. 2-56 yellowblue Your console also has a cupholder that swings out for the back seat passengers to use.
  • Page 127 Your vehicle may have a memo holder attached to the front of the console. Use it to hold pads of paper or similar items. To insert the cupholder, place it in the console. Engage the rear tabs first and then press the front portion in place.
  • Page 128 Armrest Storage Compartment (If Equipped) Your vehicle may have a center armrest storage compartment in the front bench seat. To open it, fold down the armrest and press the latch handle located at the front of the armrest. Then let the lid pop up and swing open.
  • Page 129: Other Storage Compartments

    Other Storage Compartments Your vehicle includes a number of storage compartments for storage of often used items. Some vehicles have storage areas in the instrument panel. Use these spaces for items such as gloves or small books. Some models have a storage pocket on each of the front doors.
  • Page 130 If you have a cargo security shade, you can use it to cover items in the cargo area of your vehicle. To use the shade, pull the shade handle toward the rear of the vehicle. Latch the shade posts into the retaining sockets on the cargo area trim panels.
  • Page 131: Cargo Tie-Downs

    Cargo Tie Downs There are cargo tie downs in the rear cargo area that allow you to strap cargo in and keep it from moving inside the vehicle. When not using the tie downs, flip them down out of the way. Luggage Carrier (If Equipped) If you have the optional luggage carrier, you can load things on top of your vehicle.
  • Page 132: Ashtrays And Cigarette Lighter

    Be sure the cargo is properly loaded. If small heavy objects are placed on the roof, place the load in the area over the rear wheels (behind the rear side door on Suburbans). If you need to, cut a piece of 3/8 inch plywood to fit inside the crossrails and side rails to spread the load.
  • Page 133: Rear Ashtray

    Rear Ashtray To use a rear ashtray, if you have them, pull at the top of the ashtray door to flip the door open. To remove a rear ashtray, press down on the inside tabs and open the door fully. To use the cigarette lighter, push it in all the way, and let go.
  • Page 134: Sun Visors

    Sun Visors To block out glare, you can swing down the visors. You can also swing them out to help block glare at the front and side windows. Your visor may have a strap to hold small items, such as maps. Some visors have an extender on the inside edge.
  • Page 135: Programming The Transmitter

    The transmitter will learn and transmit the frequencies of most current transmitters and is powered by your vehicle’s battery and charging system. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause...
  • Page 136: Operating The Transmitter

    3. Decide which one of the three channels you want to program. Using both hands, press the hand transmitter button and the desired button on the universal transmitter. Continue to hold both buttons through Step 4. 4. Hold down both buttons until you see the red light on the universal transmitter flash rapidly.
  • Page 137 To determine if your garage door opener has this “rolling code” feature, press the appropriate button on the universal transmitter that was programmed. If the red light flashes rapidly for one to two seconds, then turns solid, your garage door opener has this feature. To program a garage door opener with the rolling code feature, do the following: 1.
  • Page 138: Instrument Panel

    yellowblue Instrument Panel 2-68...
  • Page 139 A. Dome Lamp Switch B. Lamp Controls C. Air Outlets D. Multifunction Lever E. Instrument Cluster F. Gearshift Lever G. Audio System H. Comfort Control System I. Glove Box J. Ashtray K. Cupholder L. Auxiliary Power Outlets M. Storage Area or Compact Disc Player (If Equipped) N.
  • Page 140: Instrument Panel Cluster

    yellowblue Instrument Panel Cluster United States version shown, Canadian similar Your instrument cluster is designed to let you know at a glance how your vehicle is running. You’ll know how fast you’re going, about how much fuel you have and many other things you’ll need to know to drive safely and economically.
  • Page 141: Speedometer And Odometer

    Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada).
  • Page 142: Warning Lights, Gages And Indicators

    Warning Lights, Gages and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
  • Page 143: Airbag Readiness Light

    Air Bag Readiness Light There is an air bag readiness light on the instrument panel, which shows AIR BAG. The system checks the air bag’s electrical system for malfunctions. The light tells you if there is an electrical problem. The system check includes the air bag sensors, the air bag modules, the wiring and the crash sensing and diagnostic module.
  • Page 144: Brake System Warning Light

    Voltmeter When your engine is not running, but the ignition is in the RUN position, this gage shows your battery’s state of charge in DC volts. When the engine is running, the gage shows the condition of the charging system. Readings between the low and high warning zones indicate the normal operating range.
  • Page 145: Anti-Lock Brake System Warning Light

    This light should come on briefly when you turn the ignition key to RUN. If it doesn’t come on then, have it fixed so it will be ready to warn you if there’s a problem. If the light comes on while you are driving, pull off the road and stop carefully.
  • Page 146: Engine Coolant Temperature Gage

    Engine Coolant Temperature Gage This gage shows the engine coolant temperature. It also provides an indicator of how hard your vehicle is working. During a majority of the operation, the gage will read 210 _ F (100 _ C) or less. If you are pulling a load or going up hills, it is normal for the temperature to fluctuate and approach the 260 _ F (160 _ C) mark.
  • Page 147 NOTICE: If you keep driving your vehicle with this light on, after a while, your emission controls may not work as well, your fuel economy may not be as good and your engine may not run as smoothly. This could lead to costly repairs that may not be covered by your warranty.
  • Page 148 If the light stops flashing and remains on steady, see “If the Light Is On Steady” following. If the light continues to flash, when it is safe to do so, stop the vehicle. Find a safe place to park your vehicle. Turn the key off, wait at least 10 seconds and restart the engine.
  • Page 149: Oil Pressure Gage

    Oil Pressure Gage The oil pressure gage shows the engine oil pressure in psi (pounds per square inch) when the engine is running. Canadian vehicles indicate pressure in kPa (kilopascals). Oil pressure may vary with engine speed, outside temperature and oil viscosity, but readings above the low pressure zone indicate the normal operating range.
  • Page 150: Security Light

    Security Light This light will come on briefly when you turn the key to START. The light will stay on until the engine starts. If the light flashes, the Passlock System has entered a tamper mode. If the vehicle fails to start, see “Passlock” in the Index.
  • Page 151: Daytime Running Lamps (Drl) Indicator Light

    Daytime Running Lamps (DRL) Indicator Light This light will go on whenever the DRL are on. When it begins to get dark, the DRL indicator light is a reminder to turn on your headlamps. Check Gages Light This light will come on briefly when you are starting the engine.
  • Page 152: Fuel Gage

    Fuel Gage When the ignition is on, the fuel gage tells you about how much fuel you have left in your tank. The gage will first indicate E (empty) before you are out of fuel, and you should get more fuel as soon as possible.
  • Page 153: Section 3 Comfort Controls And Audio Systems

    Section 3 Comfort Controls and Audio Systems In this section, you’ll find out how to operate the comfort control and audio systems offered with your vehicle. Be sure to read about the particular systems supplied with your vehicle. Comfort Controls Rear Air Conditioning and Heating Systems (If Equipped) Air Conditioning...
  • Page 154: Comfort Controls

    Comfort Controls Heater Control System Fan Knob The knob on the left side of the heating system control panel controls the fan speed. The knob has four speed positions. To increase airflow, move the knob toward HI. To decrease airflow, move it toward LO. To turn the fan off, move the knob to OFF.
  • Page 155 Heater and Air Conditioning Control System (If Equipped) Fan Knob The knob on the left side of the heating system control panel controls the fan speed. The knob has four speed positions. To increase airflow, move the knob toward HI. To decrease airflow, move it toward LO. To turn the fan off, move the knob to OFF.
  • Page 156 DEFROST: This setting directs air toward the windshield. Rear Air Conditioning and Heating Systems (If Equipped) If your vehicle has one of these systems, you can increase and decrease the airflow at the rear vents. Depending on the system you have and the setting selected, you can send cooled or heated air to the rear of the vehicle.
  • Page 157 To use the rear control, first turn the front control knob to REAR CNTL. Then, the rear control can be used to increase and decrease the airflow. Rear Heater (Without Rear Air Conditioning) (If Equipped) If you have a rear heater (without rear air conditioning), the control switch is located on the...
  • Page 158 Rear Air Conditioning and Rear Heater (If Equipped) If your vehicle has the rear air conditioning and rear heater system combination, controls are provided to regulate temperature, location and speed of the airflow. To adjust the airflow speed, turn the fan control knob on the left side of the control panel to the desired blower setting.
  • Page 159: Air Conditioning

    Air Conditioning On hot days, open the windows long enough to let hot air inside escape. This reduces the time it takes for your vehicle to cool down. Then keep your windows closed for the air conditioner to work its best. The recirculation button, between the fan and temperature knobs, allows the air inside your vehicle to be recirculated.
  • Page 160: Ventilation System

    Ventilation System For mild outside temperatures when little heating or cooling is needed, use VENT to direct outside air through your vehicle. Air will flow through the instrument panel outlets. Your vehicle’s ventilation system supplies outside air to the inside of your vehicle when it is moving. With the side windows closed, air will flow into the front air inlet grilles, through the vehicle, and out the air exhaust valves.
  • Page 161: Defogging And Defrosting

    Ventilation Tips Keep the hood and front air inlet free of ice, snow or any other obstruction (such as leaves). The heater and defroster will work far better, reducing the chance of fogging the inside of your windows. When you enter a vehicle in cold weather, turn the blower fan to high for a few moments before driving.
  • Page 162: Audio Systems

    Do not attach a temporary vehicle license, tape or decals across the defogger grid on the rear window. NOTICE: Don’t use a razor blade or anything else sharp on the inside of the rear window. If you do, you could cut or damage the warming grid, and the repairs wouldn’t be covered by your warranty.
  • Page 163 AM-FM Stereo Playing the Radio VOLUME: This knob turns the system on and off and controls the volume. To increase volume and turn the radio on, turn the knob clockwise. Turn it counterclockwise to decrease volume and turn the radio off. RECALL: Display the time with the ignition off by pressing the recall knob.
  • Page 164: Am-Fm Stereo With Cassette Tape Player (If Equipped)

    In addition to the four stations already set, up to three more stations may be preset on each band by pressing two adjoining buttons at the same time. Just: 1. Tune in the desired station. 2. Press SET. (SET will appear on the display.) 3.
  • Page 165 Finding a Station FM: Press the lower knob to switch between AM, FM1 and FM2. TUNE: Turn the lower knob to tune in radio stations. SEEK: Press the right arrow to tune to the next higher station and the left arrow to tune to the next lower station and stay there.
  • Page 166 Adjusting the Speakers BAL: Turn the control behind the upper knob to move the sound to the left or right speakers. The middle position balances the sound between the speakers. FADE: Turn the control behind the lower knob to move the sound to the front or rear speakers.
  • Page 167: Am-Fm Stereo With Cassette Tape Player And Automatic Tone Control (If Equipped)

    AM-FM Stereo with Cassette Tape Player and Automatic Tone Control (If Equipped) Playing the Radio VOL: Press this knob to turn the system on and off. To increase volume, turn the knob clockwise. Turn it counterclockwise to decrease volume. The knob is capable of being rotated continuously.
  • Page 168 PUSHBUTTONS: The six numbered pushbuttons let you return to your favorite stations. You can set up to 18 stations (six AM, six FM1 and six FM2). Just: 1. Turn the radio on. 2. Press AM FM to select the band. 3.
  • Page 169 Adjusting the Speakers BAL: Press lightly on this knob to release it from its stored position. Turn the control clockwise to adjust sound to the right speakers and counterclockwise to adjust sound to the left speakers. The middle position balances the sound between the speakers. FADE: Press lightly on this knob to release it from its stored position.
  • Page 170 (5): Press this button to reduce cassette tape noise. The double D symbol will appear on the display while the player is in this mode. Dolby Noise Reduction is manufactured under a license from Dolby Laboratories Licensing Corporation. Dolby and the double D symbol are trademarks of Dolby Laboratories Licensing Corporation.
  • Page 171: Am-Fm Stereo With Compact Disc Player And Automatic Tone Control (If Equipped)

    AM-FM Stereo with Compact Disc Player and Automatic Tone Control (If Equipped) Playing the Radio VOL: Press this knob to turn the system on and off. To increase volume, turn this knob clockwise. Turn it counterclockwise to decrease volume. The knob is capable of rotating continuously.
  • Page 172 PUSHBUTTONS: The six numbered pushbuttons let you return to your favorite stations. You can set up to 18 stations (six AM, six FM1 and six FM2). Just: 1. Turn the radio on. 2. Press AM FM to select the band. 3.
  • Page 173 Adjusting the Speakers BAL: Press lightly on this knob to release it from its stored position. Turn the control clockwise to adjust sound to the right speakers and counterclockwise to adjust sound to the left speakers. The middle position balances the sound between the speakers. FADE: Press lightly on this knob to release it from its stored position.
  • Page 174 NEXT (3): Press NEXT or the SEEK right arrow to search for the next selection. If you hold this button or press it more than once, the disc will advance further. The next track number will appear on the display. Sound is muted in this mode.
  • Page 175: Remote Compact Disc Player (If Equipped)

    Remote Compact Disc Player (If Equipped) If you have this option, you can play one compact disc (CD) at a time. To load a CD into the player, hold the disc with the label side up and insert it carefully into the player (approximately halfway).
  • Page 176: Theft-Deterrent Feature (If Equipped)

    REV (4): Press and hold this button to quickly reverse within a track. As the CD reverses, elapsed time will be displayed to help you find the correct passage. FWD (6): Press and hold this button to quickly advance within a track. As the CD advances, elapsed time will be displayed to help you find the correct passage.
  • Page 177 Activating the Theft Deterrent Feature The instructions which follow explain how to enter your secret code to activate the THEFTLOCK system. It is recommended that you read through all nine steps before starting the procedure. NOTE: If you allow more than 15 seconds to elapse between any steps, the radio automatically reverts to time and you must start the procedure over at Step 4.
  • Page 178 Unlocking the Theft Deterrent Feature After a Power Loss Enter your secret code as follows; pause no more than 15 seconds between steps: 1. Turn the ignition on. LOC will appear on the display. 2. Press MN and 000 will appear on the display. 3.
  • Page 179: Understanding Radio Reception

    Understanding Radio Reception The range for most AM stations is greater than for FM, especially at night. The longer range, however, can cause stations to interfere with each other. AM can pick up noise from things like storms and power lines. Try reducing the treble to reduce this noise if you ever get it.
  • Page 180: Care Of Your Cassette Tape Player

    Care of Your Cassette Tape Player A tape player that is not cleaned regularly can cause reduced sound quality, ruined cassettes or a damaged mechanism. Cassette tapes should be stored in their cases away from contaminants, direct sunlight and extreme heat. If they aren’t, they may not operate properly or may cause failure of the tape player.
  • Page 181 If your vehicle is equipped with the AM Cassette Tape Player and Automatic Tone Control: 1. Turn the ignition to RUN or ACCESSORY. 2. Turn the radio off. 3. Press and hold the TAPE AUX button for five seconds. The tape symbol on the display will flash for two seconds.
  • Page 182: Care Of Your Compact Disc Player

    Care of Your Compact Discs Handle discs carefully. Store them in their original cases or other protective cases and away from direct sunlight and dust. If the surface of a disc is soiled, dampen a clean, soft cloth in a mild, neutral detergent solution and clean it, wiping from the center to the edge.
  • Page 183: Section 4 Your Driving And The Road

    Section 4 Your Driving and the Road Here you’ll find information about driving on different kinds of roads and in varying weather conditions. We’ve also included many other useful tips on driving. Defensive Driving Drunken Driving Control of a Vehicle Braking Steering Road Recovery...
  • Page 184: Defensive Driving

    Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. (See “Safety Belts” in the Index.) Defensive driving really means “be ready for anything.” On city streets, rural roads or freeways, it means “always expect the unexpected.”...
  • Page 185: Drunken Driving

    Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It’s the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: Judgment Muscular Coordination Vision...
  • Page 186 It’s the amount of alcohol that counts. For example, if the same person drank three double martinis (3 ounces or 90 ml of liquor each) within an hour, the person’s BAC would be close to 0.12 percent. A person who consumes food just before or during drinking will have a somewhat lower BAC level.
  • Page 187 The body takes about an hour to rid itself of the alcohol in one drink. No amount of coffee or number of cold showers will speed that up. “I’ll be careful” isn’t the right answer. What if there’s an emergency, a need to take sudden action, as when a child darts into the street? A person with even a moderate BAC might not be able to react quickly enough to avoid the collision.
  • Page 188: Control Of A Vehicle

    Control of a Vehicle You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering and the accelerator. All three systems have to do their work at the places where the tires meet the road. Sometimes, as when you’re driving on snow or ice, it’s easy to ask more of those control systems than the tires and road can provide.
  • Page 189: Anti-Lock Brakes (Abs)

    Avoid needless heavy braking. Some people drive in spurts heavy acceleration followed by heavy braking rather than keeping pace with traffic. This is a mistake. Your brakes may not have time to cool between hard stops. Your brakes will wear out much faster if you do a lot of heavy braking.
  • Page 190 Here’s how anti lock works. Let’s say the road is wet. You’re driving safely. Suddenly an animal jumps out in front of you. You slam on the brakes. Here’s what happens with ABS. A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each front wheel and at both rear wheels.
  • Page 191: Braking In Emergencies

    Remember: Anti lock doesn’t change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you won’t have time to apply your brakes if that vehicle suddenly slows or stops.
  • Page 192: Steering In Emergencies

    Experienced driver or beginner, each of us is subject to the same laws of physics when driving on curves. The traction of the tires against the road surface makes it possible for the vehicle to change its path when you turn the front wheels.
  • Page 193 An emergency like this requires close attention and a quick decision. If you are holding the steering wheel at the recommended 9 and 3 o’clock positions, you can turn it a full 180 degrees very quickly without removing either hand. But you have to act fast, steer quickly, and just as quickly straighten the wheel once you have avoided the object.
  • Page 194 Passing The driver of a vehicle about to pass another on a lane highway waits for just the right moment, accelerates, moves around the vehicle ahead, then goes back into the right lane again. A simple maneuver? Not necessarily! Passing another vehicle on a two highway is a potentially dangerous move, since the passing vehicle occupies the same lane as oncoming traffic for several seconds.
  • Page 195: Loss Of Control

    Check your mirrors, glance over your shoulder and start your left lane change signal before moving out of the right lane to pass. When you are far enough ahead of the passed vehicle to see its front in your inside mirror, activate your right lane change signal and move back into the right lane.
  • Page 196: Off - Road Driving With Your Four - Wheel - Drive Vehicle

    Of course, traction is reduced when water, snow, ice, gravel or other material is on the road. For safety, you’ll want to slow down and adjust your driving to these conditions. It is important to slow down on slippery surfaces because stopping distance will be longer and vehicle control more limited.
  • Page 197: Before You Go Off-Roading

    Before You Go Off-Roading There are some things to do before you go out. For example, be sure to have all necessary maintenance and service work done. Check to make sure all underbody shields (if so equipped) are properly attached. Be sure you read all the information about your four wheel...
  • Page 198: Environmental Concerns

    Environmental Concerns road driving can provide wholesome and satisfying recreation. However, it also raises environmental concerns. GM recognizes these concerns and urges every off roader to follow these basic rules for protecting the environment: Always use established trails, roads and areas that have been specially set aside for public off recreational driving;...
  • Page 199: Scanning The Terrain

    Controlling your vehicle is the key to successful road driving. One of the best ways to control your vehicle is to control your speed. Here are some things to keep in mind. At higher speeds: you approach things faster and you have less time to scan the terrain for obstacles.
  • Page 200: Driving On Off-Road Hills

    When you drive over obstacles or rough terrain, keep a firm grip on the steering wheel. Ruts, troughs or other surface features can jerk the wheel out of your hands if you’re not prepared. When you drive over bumps, rocks, or other obstacles, your wheels can leave the ground.
  • Page 201: Driving Uphill

    incline may get steeper as you near the top, but you may not see this because the crest of the hill is hidden by bushes, grass or shrubs. Here are some other things to consider as you approach a hill. Is there a constant incline, or does the hill get sharply steeper in places? Is there good traction on the hillside, or will the...
  • Page 202 Ease up on your speed as you approach the top of the hill. Attach a flag to the vehicle to make you more visible to approaching traffic on trails or hills. Sound the horn as you approach the top of the hill to let opposing traffic know you’re there.
  • Page 203 As you are backing down the hill, put your left hand on the steering wheel at the 12 o’clock position. This way, you’ll be able to tell if your wheels are straight and maneuver as you back down. It’s best that you back down the hill with your wheels straight rather than in the left or right direction.
  • Page 204: Driving Downhill

    Driving Downhill When off roading takes you downhill, you’ll want to consider a number of things: How steep is the downhill? Will I be able to maintain vehicle control? What’s the surface like? Smooth? Rough? Slippery? Hard packed dirt? Gravel? Are there hidden surface obstacles? Ruts? Logs? Boulders? What’s at the bottom of the hill? Is there a hidden...
  • Page 205: Driving Across An Incline

    Am I likely to stall when going downhill? It’s much more likely to happen going uphill. But if it happens going downhill, here’s what to do. Stop your vehicle by applying the regular brakes. Apply the parking brake. Shift to PARK (P) and, while still braking, restart the engine.
  • Page 206: Stalling On An Incline

    Hidden obstacles can make the steepness of the incline even worse. If you drive across a rock with the uphill wheels, or if the downhill wheels drop into a rut or depression, your vehicle can tilt even more. For reasons like these, you need to decide carefully whether to try to drive across an incline.
  • Page 207: Driving In Mud, Sand, Snow Or Ice

    CAUTION: Getting out on the downhill (low) side of a vehicle stopped across an incline is dangerous. If the vehicle rolls over, you could be crushed or killed. Always get out on the uphill (high) side of the vehicle and stay well clear of the rollover path. Driving in Mud, Sand, Snow or Ice When you drive in mud, snow or sand, your wheels won’t get good traction.
  • Page 208: Driving In Water

    Hard packed snow and ice offer the worst tire traction. On these surfaces, it’s very easy to lose control. On wet ice, for example, the traction is so poor that you will have difficulty accelerating. And if you do get moving, poor steering and difficult braking can cause you to slide out of control.
  • Page 209: After Off-Road Driving

    CAUTION: Driving through rushing water can be dangerous. Deep water can sweep your vehicle downstream and you and your passengers could drown. If it’s only shallow water, it can still wash away the ground from under your tires, and you could lose traction and roll the vehicle over.
  • Page 210: Driving At Night

    Driving at Night Night driving is more dangerous than day driving. One reason is that some drivers are likely to be impaired alcohol or drugs, with night vision problems, or by fatigue. 4-28 Here are some tips on night driving. Drive defensively.
  • Page 211: Night Vision

    Night Vision No one can see as well at night as in the daytime. But as we get older these differences increase. A 50 driver may require at least twice as much light to see the same thing at night as a 20 year old.
  • Page 212: Driving In Rain And On Wet Roads

    yellowblue Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you can’t stop, accelerate or turn as well because your tire road traction isn’t as good as on dry roads. And, if your tires don’t have much tread left, you’ll get even less traction.
  • Page 213 Driving too fast through large water puddles or even going through some car washes can cause problems, too. The water may affect your brakes. Try to avoid puddles. But if you can’t, try to slow down before you hit them. CAUTION: Wet brakes can cause accidents.
  • Page 214: Driving Through Deep Standing Water

    Hydroplaning Hydroplaning is dangerous. So much water can build up under your tires that they can actually ride on the water. This can happen if the road is wet enough and you’re going fast enough. When your vehicle is hydroplaning, it has little or no contact with the road.
  • Page 215: City Driving

    City Driving One of the biggest problems with city streets is the amount of traffic on them. You’ll want to watch out for what the other drivers are doing and pay attention to traffic signals. Here are ways to increase your safety in city driving: Know the best way to get to where you are going.
  • Page 216: Freeway Driving

    Freeway Driving Mile for mile, freeways (also called thruways, parkways, expressways, turnpikes or superhighways) are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
  • Page 217: Before Leaving On A Long Trip

    The exit speed is usually posted. Reduce your speed according to your speedometer, not to your sense of motion. After driving for any distance at higher speeds, you may tend to think you are going slower than you actually are. Before Leaving on a Long Trip Make sure you’re ready.
  • Page 218: Highway Hypnosis

    Highway Hypnosis Is there actually such a condition as “highway hypnosis”? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
  • Page 219 If you drive regularly in steep country, or if you’re planning to visit there, here are some tips that can make your trips safer and more enjoyable. (See “Off Driving” in the Index for information about driving road.) Keep your vehicle in good shape. Check all fluid levels and also the brakes, tires, cooling system and transmission.
  • Page 220: Winter Driving

    Winter Driving Here are some tips for winter driving: Have your vehicle in good shape for winter. You may want to put winter emergency supplies in your vehicle. 4-38 Include an ice scraper, a small brush or broom, a supply of windshield washer fluid, a rag, some winter outer clothing, a small shovel, a flashlight, a red cloth and reflective warning triangles.
  • Page 221 What’s the worst time for this? “Wet ice.” Very cold snow or ice can be slick and hard to drive on. But wet ice can be even more trouble because it may offer the least traction of all. You can get wet ice when it’s about freezing (32 F;...
  • Page 222: If You're Caught In A Blizzard

    If You’re Caught in a Blizzard If you are stopped by heavy snow, you could be in a serious situation. You should probably stay with your vehicle unless you know for sure that you are near help and you can hike through the snow. Here are some things to do to summon help and keep yourself and your passengers safe: Turn on your hazard flashers.
  • Page 223 CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You can’t see it or smell it, so you might not know it is in your vehicle. Clear away snow from around the base of your vehicle, especially any that is blocking your exhaust pipe.
  • Page 224: Recreational Vehicle Towing

    Recreational Vehicle Towing There may be times when you want to tow your vehicle behind another vehicle for use at your destination. Be sure to use the proper towing equipment designed for recreational vehicle towing. Follow the instructions for the towing equipment. 4-42 Two-Wheel Drive Vehicles wheel drive vehicles, should not be towed with all...
  • Page 225: Four-Wheel Drive Vehicles

    Four-Wheel Drive Vehicles CAUTION: Shifting the transfer case into NEUTRAL (N) can cause your vehicle to roll even if the transmission is in PARK (P), for an automatic transmission. You or others could be injured. Make sure the parking brake is firmly set before you shift the transfer case into NEUTRAL (N).
  • Page 226: Loading Your Vehicle

    Loading Your Vehicle The Certification/Tire label is found on the rear edge of the driver’s door. The label shows the size of your original tires and the inflation pressures needed to obtain the gross weight capacity of your vehicle. This is called the GVWR (Gross Vehicle Weight Rating).
  • Page 227 Using heavier suspension components to get added durability might not change your weight ratings. Ask your dealer to help you load your vehicle the right way. NOTICE: Your warranty does not cover parts or components that fail because of overloading. If you put things inside your vehicle tools, packages, or anything else vehicle goes.
  • Page 228: Towing A Trailer

    Towing a Trailer CAUTION: If you don’t use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well or even at all. You and your passengers could be seriously injured.
  • Page 229: Weight Of The Trailer

    If You Do Decide To Pull A Trailer If you do, here are some important points: There are many different laws, including speed limit restrictions, having to do with trailering. Make sure your rig will be legal, not only where you live but also where you’ll be driving.
  • Page 230 Vehicle Engine 1500 (2WD) Utility 5.7L 1500 (4WD) Utility 5.7L 6.5L Diesel 1500 (2WD) Suburban 5.7L 6.5L Diesel 1500 (4WD) Suburban 5.7L 6.5L Diesel 4-48 Axle Ratio Max. Trailer Wt. 3.08 5,000 lbs. (2 270 kg) 3.42 6,000 lbs. (2 724 kg) 3.73 7,000 lbs.
  • Page 231 Vehicle Engine 2500 (2WD) Suburban 5.7L 6.5L Diesel 7.4L 2500 (4WD) Suburban 5.7L 6.5L Diesel 7.4L Axle Ratio Max. Trailer Wt. 3.73 6,000 lbs. (2 724 kg) 4.10 7,500 lbs. (3 405 kg) 3.73 6,500 lbs. (2 951 kg) 4.10 8,000 lbs.
  • Page 232: Weight Of The Trailer Tongue

    You can ask your dealer for our trailering information or advice, or you can write us at the address listed in your Warranty and Owner Assistance Information Booklet. In Canada, write to: General Motors of Canada Limited Customer Communication Centre 1908 Colonel Sam Drive Oshawa, Ontario L1H 8P7 Weight of the Trailer Tongue...
  • Page 233: Total Weight On Your Vehicle's Tires

    Total Weight on Your Vehicle’s Tires Be sure your vehicle’s tires are inflated to the upper limit for cold tires. You’ll find these numbers on the Certification label at the rear edge of the driver’s door or see “Tire Loading” in the Index. Then be sure you don’t go over the GVW limit for your vehicle, including the weight of the trailer tongue.
  • Page 234: Trailer Brakes

    Trailer Brakes If your trailer weighs more than 1,000 lbs. (450 kg) loaded, then it needs its own brakes adequate. Be sure to read and follow the instructions for the trailer brakes so you’ll be able to install, adjust and maintain them properly.
  • Page 235: Following Distance

    Towing a trailer requires a certain amount of experience. Before setting out for the open road, you’ll want to get to know your rig. Acquaint yourself with the feel of handling and braking with the added weight of the trailer. And always keep in mind that the vehicle you are driving is now a good deal longer and not nearly as responsive as your vehicle is by itself.
  • Page 236: Making Turns

    Making Turns NOTICE: Making very sharp turns while trailering could cause the trailer to come in contact with the vehicle. Your vehicle could be damaged. Avoid making very sharp turns while trailering. When you’re turning with a trailer, make wider turns than normal.
  • Page 237: Parking On Hills

    Parking on Hills CAUTION: You really should not park your vehicle, with a trailer attached, on a hill. If something goes wrong, your rig could start to move. People can be injured, and both your vehicle and the trailer can be damaged. But if you ever have to park your rig on a hill, here’s how to do it: 1.
  • Page 238: When You Are Ready To Leave After Parking On A Hill

    When You Are Ready to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you: Start your engine; Shift into a gear; and Release the parking brake. 2. Let up on the brake pedal. 3.
  • Page 239: Trailer Wiring Harness

    yellowblue Trailer Wiring Harness Additional Heavy Duty Wiring An eight wire harness is stored under the rear end of Light Duty Wiring Harness your vehicle. The five wire light duty harness is located at the left hand rear inner lower quarter panel. The additional heavy duty wiring is located forward of the rear bumper and is attached to the center of the rear...
  • Page 240: Power Winches

    This harness has a 30 amp battery feed wire and no connector, and should be wired by a qualified electrical technician. After choosing an aftermarket mating connector pair, have the technician attach one connector to the eight wire trailer harness and the other connector to the wiring harness on the trailer.
  • Page 241: Step - Bumper Pad

    Step Bumper Pad If your vehicle has a rear step bumper, it may be equipped with a rear step pad at the center of the bumper. If you will be using the bumper to tow a trailer, you must remove the center cutout circle to install the trailer ball.
  • Page 242 yellowblue NOTES 4-60...
  • Page 243: Section 5 Problems On The Road

    Section 5 Problems On The Road Here you’ll find what to do about some problems that can occur on the road. Hazard Warning Flashers Other Warning Devices Jump Starting Towing Your Vehicle Engine Overheating (Gasoline Engine) Cooling System (Gasoline Engine) Engine Fan Noise If a Tire Goes Flat Changing a Flat Tire...
  • Page 244: Hazard Warning Flashers

    Hazard Warning Flashers Your hazard warning flashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will flash on and off. Press the button at the top of the steering column all the way down to make your front and rear turn signal lamps flash on and off.
  • Page 245: Jump Starting

    Jump Starting If your battery (or batteries) has run down, you may want to use another vehicle and some jumper cables to start your vehicle. But please use the following steps to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: They contain acid that can burn you.
  • Page 246 2. Get the vehicles close enough so the jumper cables can reach, but be sure the vehicles aren’t touching each other. If they are, it could cause a ground connection you don’t want. You wouldn’t be able to start your vehicle, and the bad grounding could damage the electrical systems.
  • Page 247 CAUTION: Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded. Use a flashlight if you need more light. Be sure the batteries have enough water. You don’t need to add water to the ACDelco Freedom battery (or batteries) installed in...
  • Page 248 6. Connect the red positive (+) cable to the positive (+) terminal of the vehicle with the dead battery. 7. Don’t let the other end touch metal. Connect it to the positive (+) terminal of the good battery. 8. Now connect the black negative ( to the good battery’s negative (...
  • Page 249 9. Attach the cable at least 18 inches (45 cm) away from the dead battery, but not near engine parts that move. The electrical connection is just as good there, but the chance of sparks getting back to the battery is much less. 10.
  • Page 250: Towing Your Vehicle

    Towing Your Vehicle CAUTION: To help avoid serious personal injury to you or others: Never let passengers ride in a vehicle that is being towed. Never tow faster than safe or posted speeds. Never tow with damaged parts not fully secured. Never get under your vehicle after it has been lifted by the tow truck.
  • Page 251: Engine Overheating (Gasoline Engine)

    Engine Overheating (Gasoline Engine) You will find a coolant temperature gage on your vehicle’s instrument panel. See “Engine Coolant Temperature Gage” in the Index. If your vehicle has a diesel engine, see “Engine Overheating” in the Diesel Engine Supplement. If Steam Is Coming From Your Engine CAUTION: Steam from an overheated engine can burn you badly, even if you just open the hood.
  • Page 252: If No Steam Is Coming From Your Engine

    If No Steam Is Coming From Your Engine If you get an engine overheat warning but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: Climb a long hill on a hot day. Stop after high speed driving.
  • Page 253: Cooling System (Gasoline Engine)

    Cooling System (Gasoline Engine) When you decide it’s safe to lift the hood, here’s what you’ll see: A. Coolant Recovery Tank B. Radiator Pressure Cap C. Engine Fan(s) CAUTION: If your vehicle has air conditioning, the auxiliary electric engine cooling fan under the hood can start up even when the engine is not running and can injure you.
  • Page 254 The coolant level should be at or above the COLD mark. If it isn’t, you may have a leak in the radiator hoses, heater hoses, radiator, water pump or somewhere else in the cooling system. CAUTION: Heater and radiator hoses, and other engine parts, can be very hot.
  • Page 255 NOTICE: (Continued) If coolant other than DEX-COOL is added to the system, premature engine, heater core or radiator corrosion may result. In addition, the engine coolant will require change sooner 30,000 miles (50 000 km) or 24 months, whichever occurs first. Damage caused by the use of coolant other than DEX-COOL covered by your new vehicle warranty.
  • Page 256 5-14 CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough. Don’t spill coolant on a hot engine. When the coolant in the coolant recovery tank is at or above the COLD mark, start your vehicle.
  • Page 257 yellowblue CAUTION: Steam and scalding liquids from a hot cooling system can blow out and burn you badly. They are under pressure, and if you turn the radiator pressure cap even a little they can come out at high speed. Never turn the cap when the cooling system, including the radiator pressure cap, is hot.
  • Page 258: How To Add Coolant To The Radiator

    How to Add Coolant to the Radiator 1. You can remove the radiator pressure cap when the cooling system, including the radiator pressure cap and upper radiator hose, is no longer hot. Turn the pressure cap slowly counterclockwise until it first stops.
  • Page 259 3. Fill the radiator with the proper DEX coolant mixture, up to the base of the filler neck. (See “Engine Coolant” in the Index for more information about the proper coolant mixture.) COOL 4. Then fill the coolant recovery tank to the COLD mark.
  • Page 260 6. Start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fan(s). 7. By this time, the coolant level inside the radiator filler neck may be lower. If the level is lower, add more of the proper DEX COOL through the filler neck until the level reaches the...
  • Page 261: Engine Fan Noise

    Engine Fan Noise Your vehicle has a clutched engine cooling fan. When the clutch is engaged, the fan spins faster to provide more air to cool the engine. In most everyday driving conditions, the fan is spinning slower and the clutch is not fully engaged.
  • Page 262: Changing A Flat Tire

    Changing a Flat Tire If a tire goes flat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard warning flashers. CAUTION: Changing a tire can cause an injury. The vehicle can slip off the jack and roll over you or other people.
  • Page 263 On four door utility models, the spare tire may be stored under the vehicle in an underbody carrier. Door Utility Models A. Hoist Assembly E. Retainer F. Valve Stem, Pointed B. Hoist Shaft Down C. Ratchet G. Spare Tire D. Jack Handle Follow these instructions to lower the spare tire: 1.
  • Page 264 If your two model has a jack cover, turn the wing nut counterclockwise and take the cover off. To take the jack out, turn the wing nut counterclockwise and take it and the retainer off. Take the jack and storage box out and take the tools out of the box.
  • Page 265 If your Suburban has a jack cover, lift the tab up to release the cover, then take it off. To take the jack out, turn the wing nut counterclockwise and take it and the retainer off. Take the jack and storage box out and take the tools out of the box.
  • Page 266 Attach the jack handle (and jack handle extension, if needed) to the jack. 5-24 UP Marking DOWN Marking One side of the ratchet has an UP marking. The other side has a DOWN marking. yellowblue...
  • Page 267 With the UP marking on the ratchet facing you, rotate the ratchet clockwise. That will lift the jack head a little. If your vehicle has wheel nut caps, use the wheel wrench and ratchet to remove them. Turn the wheel wrench counterclockwise, with DOWN facing you, to remove the wheel nut caps.
  • Page 268: Removing The Flat Tire And Installing The Spare Tire

    Removing the Flat Tire and Installing the Spare Tire 1. Use the ratchet and wheel wrench to loosen all the wheel nuts. Turn the wheel wrench counterclockwise, with DOWN facing you, to loosen the wheel nuts. Don’t remove the wheel nuts yet.
  • Page 269 CAUTION: Getting under a vehicle when it is jacked up is dangerous. If the vehicle slips off the jack, you could be badly injured or killed. Never get under a vehicle when it is supported only by a jack. CAUTION: Raising your vehicle with the jack improperly positioned can damage the vehicle and even make the vehicle fall.
  • Page 270 5. Remove all the wheel nuts and take off the flat tire. 6. Remove any rust or dirt from the wheel bolts, mounting surfaces and spare wheel. 5-28 CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after a time.
  • Page 271 7. Replace the wheel nuts with the rounded end of the nuts toward the wheel. Tighten each wheel nut by hand using the wheel wrench until the wheel is held against the hub. Front Position Rear Position 8. Lower the vehicle by rotating the ratchet and wheel wrench counterclockwise.
  • Page 272 10. Tighten the nuts firmly in a crisscross sequence as shown. Rotate the wheel wrench clockwise. 5-30 CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to become loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts.
  • Page 273: Storing A Flat Or Spare Tire And Tools

    NOTICE: Improperly tightened wheel nuts can lead to brake pulsation and rotor damage. To avoid expensive brake repairs, evenly tighten the wheel nuts in the proper sequence and to the proper torque specification. 11. Put the wheel trim back on. For vehicles with plastic wheel nut caps, tighten the caps until they are finger tight, then tighten them an additional half of a turn with the ratchet and...
  • Page 274 Replace the jack storage cover, if your vehicle has one, by simply reversing the removal procedure described earlier. Jacking Tool Storage A. Wheel Wrench B. Jack Handle C. Ratchet D. Jacking Tool Storage Box E. Jack Handle Extension 5-32 Jack Storage Door Utility Model A.
  • Page 275 Jack Storage Door Utility Model A. Retainer B. Nut C. Jack D. Jack Storage Box E. Bracket Jack Storage Suburban A. Retainer B. Nut C. Jack Storage Box D. Bracket E. Jack yellowblue 5-33...
  • Page 276 Store the flat tire in the cargo area of two and Suburban models and secure it to the tire carrier. To store the flat tire: 1. Put the cover back on the tire if your vehicle has one. 2. Put the flat tire in the cargo area of the vehicle, over the retainer bolt.
  • Page 277 Spare Tire Suburban 1. I Bolt 6. Nut 2. J Bolt 7. Cover 3. Carrier 8. Use Lower Adapter 4. Spare Tire Hole for eight 5. Adapter Rim Only Be sure the J bolt is hooked properly for your model or tire size as shown.
  • Page 278: If You're Stuck: In Sand, Mud, Ice Or Snow

    For four door utility models equipped with an underbody spare tire carrier, follow these instructions to restore a spare or flat tire: 1. Lay the tire on the ground at the rear of the vehicle. Position the tire so that the valve stem is pointed down and to the rear of the vehicle.
  • Page 279: Using The Recovery Hooks

    NOTICE: Spinning your wheels can destroy parts of your vehicle as well as the tires. If you spin the wheels too fast while shifting your transmission back and forth, you can destroy your transmission. For information about using tire chains on your vehicle, see “Tire Chains”...
  • Page 280 yellowblue CAUTION: The recovery hooks, when used, are under a lot of force. Always pull the vehicle straight out. Never pull on the hooks at a sideways angle. The hooks could break off and you or others could be injured from the chain or cable snapping back. NOTICE: Never use the recovery hooks to tow the vehicle.
  • Page 281: Section 6 Service And Appearance Care

    Section 6 Service and Appearance Care Here you will find information about the care of your vehicle. This section begins with service and fuel information, and then it shows how to check important fluid and lubricant levels. There is also technical information about your vehicle, and a part devoted to its appearance care.
  • Page 282: Doing Your Own Service Work

    Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you’ll go to your dealer for all your service needs. You’ll get genuine GM parts and trained and supported service people. We hope you’ll want to keep your GM vehicle all GM. Genuine GM parts have one of these marks: Doing Your Own Service Work If you want to do some of your own service work, you’ll...
  • Page 283: Adding Equipment To The Outside Of Your Vehicle

    CAUTION: You can be injured and your vehicle could be damaged if you try to do service work on a vehicle without knowing enough about it. Be sure you have sufficient knowledge, experience, the proper replacement parts and tools before you attempt any vehicle maintenance task.
  • Page 284 If your vehicle is certified to meet California Emission Standards (indicated on the underhood emission control label), it is designed to operate on fuels that meet California specifications. If such fuels are not available in states adopting California emissions standards, your vehicle will operate satisfactorily on fuels meeting federal specifications, but emission control system performance may be affected.
  • Page 285: Fuels In Foreign Countries (Gasoline Engines)

    Fuels in Foreign Countries (Gasoline Engines) If you plan on driving in another country outside the United States or Canada, the proper fuel may be hard to find. Never use leaded gasoline or any other fuel not recommended in the previous text on fuel. Costly repairs caused by use of improper fuel wouldn’t be covered by your warranty.
  • Page 286 CAUTION: Gasoline vapor is highly flammable. It burns violently, and that can cause very bad injuries. Don’t smoke if you’re near gasoline or refueling your vehicle. Keep sparks, flames and smoking materials away from gasoline. While refueling, let the cap hang by the tether below the fuel filler neck.
  • Page 287 CAUTION: If you get gasoline on yourself and then something ignites it, you could be badly burned. Gasoline can spray out on you if you open the fuel filler cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather.
  • Page 288: Filling A Portable Fuel Container

    Filling a Portable Fuel Container CAUTION: Never fill a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs.
  • Page 289: Hood Release

    Hood Release To open the hood, first pull the handle inside the vehicle. Then go to the front of the vehicle and pull up on the secondary hood release, located just to the passenger’s side of the center of the grill. Lift the hood.
  • Page 290 “VORTEC” 5700 V8 Engine When you lift up the hood you’ll see: A. Battery B. Air Cleaner C. Radiator Cap D. Coolant Recovery Tank E. Air Filter Restriction Indicator 6-10 F. Engine Oil Dipstick G. Automatic Transmission Dipstick H. Fan I.
  • Page 291 “VORTEC” 7400 V8 Engine When you lift up the hood you’ll see: A. Battery B. Coolant Recovery Tank C. Air Cleaner D. Radiator Cap E. Air Filter Restriction Indicator F. Engine Oil Dipstick G. Automatic Transmission Dipstick H. Engine Oil Fill I.
  • Page 292: Engine Oil (Gasoline Engine)

    Engine Oil (Gasoline Engine) If your vehicle has a diesel engine, see “Engine Oil (Diesel Engine)” in the Diesel Engine Supplement. It’s a good idea to check your engine oil every time you get fuel. In order to get an accurate reading, the oil must be warm and the vehicle must be on level ground.
  • Page 293: Checking Engine Oil

    Checking Engine Oil Pull out the dipstick and clean it with a paper towel or cloth, then push it back in all the way. Remove it again, keeping the tip down, and check the level. When to Add Engine Oil If the oil is at or below the ADD mark, then you’ll need to add at least one quart of oil.
  • Page 294: What Kind Of Engine Oil To Use

    What Kind of Engine Oil to Use Oils recommended for your vehicle can be identified by looking for the “Starburst” symbol. This symbol indicates that the oil has been certified by the American Petroleum Institute (API). Do not use any oil which does not carry this Starburst symbol.
  • Page 295: Engine Oil Additives

    As shown in the chart, SAE 5W 30 is best for your vehicle. However, you can use SAE 10W to be 0 C) or above. These numbers on an oil container show its viscosity, or thickness. Do not use other viscosity oils, such as SAE 20W NOTICE: Use only engine oil with the American Petroleum Institute Certified For Gasoline Engines...
  • Page 296: What To Do With Used Oil

    What to Do with Used Oil Did you know that used engine oil contains certain elements that may be unhealthy for your skin and could even cause cancer? Don’t let used oil stay on your skin for very long. Clean your skin and nails with soap and water, or a good hand cleaner.
  • Page 297 Your air cleaner is located between the battery and coolant recovery tank. To remove the air filter: 1. Unhook the retainer clips and remove the cover. 2. Lift the filter and the connected duct out of the air cleaner housing. Hold the duct and remove the filter by both pulling and twisting the filter away from the duct.
  • Page 298 4. Install the new filter by pushing it all the way to the stop on the duct. 5. Install the duct and the filter into the air cleaner housing. Make sure that the duct fits properly into the housing. 6. Install the cover and fasten the two retaining clips. 7.
  • Page 299: Automatic Transmission Fluid

    Automatic Transmission Fluid If your vehicle has a diesel engine, see “Automatic Transmission Fluid” in the Diesel Supplement. When to Check and Change A good time to check your automatic transmission fluid level is when the engine oil is changed. Change both the fluid and filter every 50,000 miles (83 000 km) if the vehicle is mainly driven under one or more of these conditions:...
  • Page 300 Get the vehicle warmed up by driving about 15 miles (24 km) when outside temperatures are above 50 colder than 50 F (10 C), drive the vehicle in THIRD (3) until the engine temperature gage moves and then remains steady for 10 minutes. Then follow the hot check procedures. Checking Transmission Fluid Cold A cold check is made after the vehicle has been sitting for eight hours or more with the engine off and is used only as...
  • Page 301: How To Add Fluid

    3. Check both sides of the dipstick, and read the lower level. The fluid level must be in the COLD area for a cold check or in the HOT area or cross for a hot check. 4. If the fluid level is in the acceptable range, push the dipstick back in all the way;...
  • Page 302: How To Check Lubricant

    Rear Axle When to Check and Change Lubricant Refer to the Maintenance Schedule to determine how often to check the lubricant and when to change it. See “Scheduled Maintenance Services” in the Index. How to Check Lubricant If the level is below the bottom of the filler plug hole, you’ll need to add some lubricant.
  • Page 303 yellowblue How to Check Lubricant Automatic Transfer Case If the level is below the bottom of the filler plug hole, Manual Transfer Case you’ll need to add some lubricant. Add enough lubricant to raise the level to the bottom of the filler plug hole. What to Use Refer to the Maintenance Schedule to determine what kind of lubricant to use.
  • Page 304: Front Axle

    Front Axle When to Check and Change Lubricant Refer to the Maintenance Schedule to determine how often to check the lubricant and when to change it. See “Scheduled Maintenance Services” in the Index. How to Check Lubricant If the level is below the bottom of the filler plug hole, you may need to add some lubricant.
  • Page 305: Engine Coolant

    NOTICE: Your radiator cap is a 15 psi (105 kPa) pressure type cap and must be tightly installed to prevent coolant loss and possible engine damage from overheating. Be sure the arrows on the cap line up with the overflow tube on the radiator filler neck.
  • Page 306: What To Use

    NOTICE: (Continued) engine coolant will require change sooner 30,000 miles (50 000 km) or 24 months, whichever occurs first. Damage caused by the use of coolant other than DEX COOL covered by your new vehicle warranty. What to Use Use a mixture of one half clean, drinkable water and half DEX COOL...
  • Page 307: Checking Coolant

    NOTICE: If you use an improper coolant mixture, your engine could overheat and be badly damaged. The repair cost wouldn’t be covered by your warranty. Too much water in the mixture can freeze and crack the engine, radiator, heater core and other parts.
  • Page 308: When To Check Power Steering Fluid

    CAUTION: Turning the radiator pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly. With the coolant recovery tank, you will almost never have to add coolant at the radiator. Never turn the radiator pressure cap little when the engine and radiator are hot.
  • Page 309: How To Check Power Steering Fluid

    How To Check Power Steering Fluid When the engine compartment is cool, wipe the cap and the top of the reservoir clean, then unscrew the cap and wipe the dipstick with a clean rag. Replace the cap and completely tighten it. Then remove the cap again and look at the fluid level on the dipstick.
  • Page 310: Brake Fluid

    NOTICE: When using concentrated washer fluid, follow the manufacturer’s instructions for adding water. Don’t mix water with ready fluid. Water can cause the solution to freeze and damage your washer fluid tank and other parts of the washer system. Also, water doesn’t clean as well as washer fluid.
  • Page 311 So, it isn’t a good idea to “top off” your brake fluid. Adding brake fluid won’t correct a leak. If you add fluid when your linings are worn, then you’ll have too much fluid when you get new brake linings. You should add (or remove) brake fluid, as necessary, only when work is done on the brake hydraulic system.
  • Page 312 What to Add When you do need brake fluid, use only DOT fluid. Refer to “Recommended Fluids and Lubricants” in the Index. Use new brake fluid from a sealed container only. Always clean the brake fluid reservoir cap and the area around the cap before removing it.
  • Page 313: Brake Wear

    Brake Wear Your vehicle has front disc brakes and rear drum brakes. Disc brake pads have built in wear indicators that make a high pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or be heard all the time your vehicle is moving (except when you are pushing on the brake pedal firmly).
  • Page 314: Fluid Leak Check

    Brake Adjustment Every time you make a brake stop, your disc brakes adjust for wear. If your brake pedal goes down farther than normal, your rear drum brakes may need adjustment. Adjust them by backing up and firmly applying the brakes a few times. Replacing Brake System Parts The braking system on a modern vehicle is complex.
  • Page 315: Bulb Replacement

    CAUTION: Batteries have acid that can burn you and gas that can explode. You can be badly hurt if you aren’t careful. See “Jump Starting” in the Index for tips on working around a battery without getting hurt. Contact your dealer to learn how to prepare your vehicle for longer storage periods.
  • Page 316 Headlamps Sealed Beam Headlamps 1. Remove the four screws from the headlamp retainer. 2. Pull the headlamp out and remove the retainer. 6-36 3. Unplug and remove the headlamp. 4. Plug in the new headlamp and put it in place. 5.
  • Page 317 Composite Headlamps 1. Remove the two hex head pins at the top of the radiator support, as shown. 2. Pull the headlamp lens assembly out. 3. Unplug the electrical connector. 4. Turn the bulb counterclockwise and remove it. 5. Put the new bulb into the lens assembly and turn it clockwise until it is tight.
  • Page 318 Front Parking/Turn Signal Lamps with Sealed Beam Headlamps 1. Remove the two screws at the inside edge of the parking/turn signal lamp assembly. 2. Remove the lamp assembly by swinging it out from the inside edge and sliding it out at the outside edge. 6-38 3.
  • Page 319 Front Parking/Turn Signal Lamps with Composite Headlamps 1. Remove the four screws and take out the parking/turn signal lamp assembly. 2. Squeeze the tab on the side of the lamp socket while turning the socket counterclockwise. 3. Pull the socket out of the lamp assembly.
  • Page 320 Sidemarker Lamps with Sealed Beam and Composite Headlamps 1. Remove the four screws and pull out the parking/turn signal lamp assembly. 2. Reach through the opening and turn the sidemarker bulb socket counterclockwise and remove it. 6-40 3. Pull the bulb straight out of the socket.
  • Page 321: Center High-Mounted Stoplamp (Chmsl)

    Center High-Mounted Stoplamp (CHMSL) The individual bulbs in the CHMSL are not replaceable. See your dealer for assistance. Rear Lamps 1. Open the tailgate or rear doors. 2. Remove the two black plastic plugs from the rear lamp assembly access holes. 3.
  • Page 322: Roof Marker Lamps

    Roof Marker Lamps 1. Remove the screws and lift off the lens. 2. Pull the bulb straight out of the socket. 3. Put a new bulb into the socket and push it in until it is tight. 4. Replace the lens and tighten the screws. Windshield Wiper Blade Replacement Windshield wiper blades should be inspected at least twice a year for wear or cracking.
  • Page 323: Inflation -- Tire Pressure

    Tires Your new vehicle comes with high a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. CAUTION: Poorly maintained and improperly used tires are dangerous. Overloading your tires can cause overheating as a result of too much friction.
  • Page 324: Tire Inspection And Rotation

    NOTICE: Don’t let anyone tell you that underinflation or overinflation is all right. It’s not. If your tires don’t have enough air (underinflation), you can get the following: Too much flexing Too much heat Tire overloading Bad wear Bad handling Bad fuel economy.
  • Page 325 When rotating your tires, always use one of the correct rotation patterns shown here. After the tires have been rotated, adjust the front and rear inflation pressures as shown on the Certification/Tire label. Make certain that all wheel nuts are properly tightened. See “Wheel Nut Torque” in the Index.
  • Page 326: Buying New Tires

    When It’s Time for New Tires One way to tell when it’s time for new tires is to check the treadwear indicators, which will appear when your tires have only 1/16 inch (1.6 mm) or less of tread remaining. You need a new tire if any of the following statements are true: You can see the indicators at three or more places around the tire.
  • Page 327: Uniform Tire Quality Grading

    CAUTION: Mixing tires could cause you to lose control while driving. If you mix tires of different sizes or types (radial and bias belted tires), the vehicle may not handle properly, and you could have a crash. Using tires of different sizes may also cause damage to your vehicle.
  • Page 328: Wheel Alignment And Tire Balance

    Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and a half (1 1/2) times as well on the government course as a tire graded 100.
  • Page 329: Wheel Replacement

    Wheel Replacement Replace any wheel that is bent, cracked, or badly rusted or corroded. If wheel nuts keep coming loose, the wheel, wheel bolts and wheel nuts should be replaced. If the wheel leaks air, replace it (except some aluminum wheels, which can sometimes be repaired).
  • Page 330: Tire Chains

    Used Replacement Wheels CAUTION: Putting a used wheel on your vehicle is dangerous. You can’t know how it’s been used or how far it’s been driven. It could fail suddenly and cause an accident. If you have to replace a wheel, use a new GM original equipment wheel.
  • Page 331: Appearance Care

    Appearance Care Remember, cleaning products can be hazardous. Some are toxic. Others can burst into flame if you strike a match or get them on a hot part of the vehicle. Some are dangerous if you breathe their fumes in a closed space. When you use anything from a container to clean your vehicle, be sure to follow the manufacturer’s warnings and instructions.
  • Page 332: Special Fabric Cleaning Problems

    Use a clean cloth or sponge, and change to a clean area often. A soft brush may be used if stains are stubborn. If a ring forms on fabric after spot cleaning, clean the entire area immediately or it will set. Using Multi-Purpose Interior Cleaner on Fabric 1.
  • Page 333: Cleaning The Top Of The Instrument Panel

    Fabric Protection Your vehicle has upholstery and carpet that has been treated with Scotchgard Fabric Protector, a 3M product. It protects fabrics by repelling oil and water, which are the carriers of most stains. Even with this protection, you still need to clean your upholstery and carpet often to keep it looking new.
  • Page 334: Care Of Safety Belts

    Care of Safety Belts Keep belts clean and dry. CAUTION: Do not bleach or dye safety belts. If you do, it may severely weaken them. In a crash, they might not be able to provide adequate protection. Clean safety belts only with mild soap and lukewarm water.
  • Page 335: Cleaning The Outside Of Your Vehicle

    Cleaning the Outside of Your Vehicle The paint finish on your vehicle provides beauty, depth of color, gloss retention and durability. Washing Your Vehicle The best way to preserve your vehicle’s finish is to keep it clean by washing it often with lukewarm or cold water.
  • Page 336: Protecting Exterior Bright Metal Parts

    Foreign materials such as calcium chloride and other salts, ice melting agents, road oil and tar, tree sap, bird droppings, chemicals from industrial chimneys, etc., can damage your vehicle’s finish if they remain on painted surfaces. Wash the vehicle as soon as possible. If necessary, use non abrasive cleaners that are marked safe for painted surfaces to remove foreign matter.
  • Page 337: Sheet Metal Damage

    NOTICE: When applying a tire dressing always take care to wipe off any overspray or splash from all painted surfaces on the body or wheels of the vehicle. Petroleum based products may damage the paint finish and tires. Sheet Metal Damage If your vehicle is damaged and requires sheet metal repair or replacement, make sure the body repair shop applies anti...
  • Page 338: Gm Vehicle Care / Appearance Materials

    GM Vehicle Care / Appearance Materials PART NUMBER SIZE 994954 23 in. x 25 in. 1050172 16 oz. (0.473 L) 1050173 16 oz. (0.473 L) 1050174 16 oz. (0.473 L) 1050214 32 oz. (0.946 L) 1050427 23 oz. (0.680 L) 1052918** 8 oz.
  • Page 339: Vehicle Identification Number (Vin)

    Vehicle Identification Number (VIN) This is the legal identifier for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle. The VIN also appears on the Vehicle Certification and Service Parts labels and the certificates of title and registration.
  • Page 340: Electrical System

    Electrical System Add-On Electrical Equipment NOTICE: Don’t add anything electrical to your vehicle unless you check with your dealer first. Some electrical equipment can damage your vehicle and the damage wouldn’t be covered by your warranty. Some add on electrical equipment can keep other components from working as they should.
  • Page 341: Fuses And Circuit Breakers

    Fuses and Circuit Breakers The wiring circuits in your vehicle are protected from short circuits by a combination of fuses, circuit breakers and fusible thermal links in the wiring itself. This greatly reduces the chance of fires caused by electrical problems.
  • Page 342 Fuse/Circuit Usage Breaker Stop/TCC Switch, Buzzer, CHMSL, Hazard Lamps, Stoplamps Transfer Case Courtesy Lamps, Cargo Lamp, Glove Box Lamp, Dome/Reading Lamps, Vanity Mirrors, Power Mirrors 6-62 Fuse/Circuit Usage Breaker Instrument Cluster, DRL Relay, Lamp Switch, Keyless Entry, Low Coolant Module, Illuminated Entry Module, DRAC (Diesel Engine) Rear Comfort Controls Cruise Control...
  • Page 343 Fuse/Circuit Usage Breaker 4WD Indicator, Cluster, Front and Rear Comfort Controls (If Equipped), Instrument Switches, Radio Illumination, Chime Module DRL Relay, Fog Lamp Relay Front and Rear Turn Signals, Back Up Lamps, BTSI Solenoid Radio (Ignition) 4WAL/VCM, ABS, Cruise Control Radio (Battery) PRNDL, Automatic Transmission, Speedometer, Check Gages,...
  • Page 344 Name Circuits Protected Fuel Pump, PCM/VCM RR DEFOG Rear Window Defogger (If Equipped) Auxiliary Fan Relay Coil, A/C Compressor Relay, Hot Fuel Module FUEL SOL Fuel Solenoid (Diesel Engine) GLOW PLUG Glow plugs (Diesel Engine) HORN Horn, Underhood Lamps 6-64 Name Circuits Protected AUX FAN...
  • Page 345: Replacement Bulbs

    Replacement Bulbs LAMP OR BULB HEADLAMPS 2 Headlamp System (Sealed Beam) Low/High Beam 4 Headlamp System (Composite) Low Beam High Beam LAMP OR BULB EXTERIOR Front Marker Lamp Front Parking and Turn Lamp Rear Parking Lamp Rear Stop and Turn Lamp Back up Lamp Roof Marker Lamp*...
  • Page 346 LAMP OR BULB INTERIOR Dome Lamps Reading Lamps Roof Console Lamps* Door Courtesy Lamp Four Wheel Drive Indicator** Four Wheel Drive Shift Lever** Instrument Panel Compartment Lamp Ashtray Lamp Sunshade Vanity Mirror *Suburban Only **Manual Transfer Case 6-66 TRADE NO. yellowblue 2/4*...
  • Page 347: Capacities And Specifications

    Capacities and Specifications Please refer to “Recommended Fluids and Lubricants” in the Index for more information. Engine Identification -- Gasoline Engines Engine Type RPO Code VIN Code Fuel System *Sequential Fuel Injection Wheels and Tires MODEL C 1500 K 1500, C K 2500 K 2500 Tire Pressure...
  • Page 348: Air Conditioning Refrigerants

    Cooling System Capacity (Approximate) After refill, the level must be rechecked. See “Cooling System” in the Index. ENGINE “VORTEC” 5700 V8 “VORTEC” 7400 V8 Crankcase Capacity (Approximate) After refill, the level must be rechecked. Add enough engine oil so that the fluid is within the proper operating range. See “Engine Oil”...
  • Page 349: Normal Maintenance Replacement Parts

    Normal Maintenance Replacement Parts Replacement part numbers listed in this section are based on the latest information available at the time of printing, and are subject to change. If a part listed in this manual is not the same as the part used in your vehicle when it was built, or if you have any questions, please contact your GM truck dealer.
  • Page 350 yellowblue NOTES 6-70...
  • Page 351: Section 7 Maintenance Schedule

    Section 7 Maintenance Schedule This section covers the maintenance required for your vehicle. Your vehicle needs these services to retain its safety, dependability and emission control performance. Introduction Part A: Scheduled Maintenance Services Short Trip/City Definition Gasoline Engines Short Trip/City Intervals Long Trip/Highway Definition Gasoline Engines...
  • Page 352: Your Vehicle And The Environment

    Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet, or your dealer for details. Introduction Your Vehicle and the Environment Proper vehicle maintenance not only helps to keep your vehicle in good working condition, but also helps the environment.
  • Page 353 CAUTION: Performing maintenance work on a vehicle can be dangerous. In trying to do some jobs, you can be seriously injured. Do your own maintenance work only if you have the required know and the proper tools and equipment for the job. If you have any doubt, have a qualified technician do the work.
  • Page 354: Using Your Maintenance Schedule

    Part A: Scheduled Maintenance Services Using Your Maintenance Schedule We at General Motors want to help you keep your vehicle in good working condition. But we don’t know exactly how you’ll drive it. You may drive very short distances only a few times a week. Or you may drive long distances all the time in very hot, dusty weather.
  • Page 355: Scheduled Maintenance

    Scheduled Maintenance Short Trip/City Definition -- Gasoline Engines Follow the Short Trip/City Scheduled Maintenance if any one of these conditions is true for your vehicle: Most trips are less than 5 to 10 miles (8 to 16 km). This is particularly important when outside temperatures are below freezing.
  • Page 356 Scheduled Maintenance Short Trip/City Intervals -- Gasoline Engines Every 100,000 Miles (166 000 km): Spark Plug Wire Inspection. Spark Plug Replacement. Automatic Transmission Service (normal conditions). Positive Crankcase Ventilation (PCV) Valve Inspection. Every 150,000 Miles (240 000 km): Cooling System Service (or every 60 months, whichever occurs first).
  • Page 357 Scheduled Maintenance Long Trip/Highway Intervals -- Gasoline Engines Every 7,500 Miles (12 500 km): Engine Oil and Filter Change (or every 12 months, whichever occurs first). Chassis Lubrication (or every 12 months, whichever occurs first). Drive Axle Service. Tire Rotation. Every 30,000 Miles (50 000 km): Fuel Filter Replacement.
  • Page 358 Short Trip/City Scheduled Maintenance -- Gasoline Engines The services shown in this schedule up to 100,000 miles (166 000 km) should be performed after 100,000 miles (166 000 km) at the same intervals. The services shown at 150,000 miles (240 000 km) should be performed at the same interval after 150,000 miles (240 000 km).
  • Page 359 Short Trip/City Scheduled Maintenance -- Gasoline Engines 3,000 Miles (5 000 km) Change engine oil and filter (or every 3 months, whichever occurs first). An Emission Control Service. Lubricate chassis components (or every 3 months, whichever occurs first). (See footnote #.) Check rear/front axle fluid level and add fluid as needed.
  • Page 360 Short Trip/City Scheduled Maintenance -- Gasoline Engines 9,000 Miles (15 000 km) (Continued) Lubricate chassis components (or every 3 months, whichever occurs first). (See footnote #.) Check rear/front axle fluid level and add fluid as needed. Check constant velocity joints and axle seals for leaking. (See footnote **.) 12,000 Miles (20 000 km) Change engine oil and filter (or every 3 months, whichever occurs first).
  • Page 361 Short Trip/City Scheduled Maintenance -- Gasoline Engines For Two Wheel Drive vehicles only: Clean and repack the front wheel bearings (or at each brake relining, whichever occurs first). 18,000 Miles (30 000 km) Change engine oil and filter (or every 3 months, whichever occurs first). An Emission Control Service.
  • Page 362 Short Trip/City Scheduled Maintenance -- Gasoline Engines 21,000 Miles (35 000 km) (Continued) Lubricate chassis components (or every 3 months, whichever occurs first). (See footnote #.) Check rear/front axle fluid level and add fluid as needed. Check constant velocity joints and axle seals for leaking. (See footnote **.) 24,000 Miles (40 000 km) Change engine oil and filter (or every 3 months, whichever occurs first).
  • Page 363 Short Trip/City Scheduled Maintenance -- Gasoline Engines 30,000 Miles (50 000 km) Change engine oil and filter (or every 3 months, whichever occurs first). An Emission Control Service. Lubricate chassis components (or every 3 months, whichever occurs first). (See footnote #.) Check rear/front axle fluid level and add fluid as needed.
  • Page 364 Short Trip/City Scheduled Maintenance -- Gasoline Engines 33,000 Miles (55 000 km) (Continued) Lubricate chassis components (or every 3 months, whichever occurs first). (See footnote #.) Check rear/front axle fluid level and add fluid as needed. Check constant velocity joints and axle seals for leaking. (See footnote **.) 36,000 Miles (60 000 km) Change engine oil and filter (or every 3 months, whichever occurs first).
  • Page 365 Short Trip/City Scheduled Maintenance -- Gasoline Engines 42,000 Miles (70 000 km) Change engine oil and filter (or every 3 months, whichever occurs first). An Emission Control Service. Lubricate chassis components (or every 3 months, whichever occurs first). (See footnote #.) Check rear/front axle fluid level and add fluid as needed.
  • Page 366 Short Trip/City Scheduled Maintenance -- Gasoline Engines 48,000 Miles (80 000 km) Change engine oil and filter (or every 3 months, whichever occurs first). An Emission Control Service. Lubricate chassis components (or every 3 months, whichever occurs first). (See footnote #.) Check rear/front axle fluid level and add fluid as needed.
  • Page 367 Short Trip/City Scheduled Maintenance -- Gasoline Engines 51,000 Miles (85 000 km) Change engine oil and filter (or every 3 months, whichever occurs first). An Emission Control Service. Lubricate chassis components (or every 3 months, whichever occurs first). (See footnote #.) Check rear/front axle fluid level and add fluid as needed.
  • Page 368 Short Trip/City Scheduled Maintenance -- Gasoline Engines 57,000 Miles (95 000 km) (Continued) Lubricate chassis components (or every 3 months, whichever occurs first). (See footnote #.) Check rear/front axle fluid level and add fluid as needed. Check constant velocity joints and axle seals for leaking. (See footnote **.) 60,000 Miles (100 000 km) Change engine oil and filter (or every 3 months, whichever occurs first).
  • Page 369 Short Trip/City Scheduled Maintenance -- Gasoline Engines Conduct Exhaust Gas Recirculation (EGR) system inspection as described in the service manual. An Emission Control Service. (See footnote Conduct evaporative control system inspection. Check all fuel and vapor lines and hoses for proper hook up, routing and condition.
  • Page 370 Short Trip/City Scheduled Maintenance -- Gasoline Engines 66,000 Miles (110 000 km) Change engine oil and filter (or every 3 months, whichever occurs first). An Emission Control Service. Lubricate chassis components (or every 3 months, whichever occurs first). (See footnote #.) Check rear/front axle fluid level and add fluid as needed.
  • Page 371 Short Trip/City Scheduled Maintenance -- Gasoline Engines Check rear/front axle fluid level and add fluid as needed. Check constant velocity joints and axle seals for leaking. (See footnote **.) Rotate tires. See “Tire Inspection and Rotation” in the Index for proper rotation pattern and additional information.
  • Page 372 Short Trip/City Scheduled Maintenance -- Gasoline Engines 78,000 Miles (130 000 km) Change engine oil and filter (or every 3 months, whichever occurs first). An Emission Control Service. Lubricate chassis components (or every 3 months, whichever occurs first). (See footnote #.) Check rear/front axle fluid level and add fluid as needed.
  • Page 373 Short Trip/City Scheduled Maintenance -- Gasoline Engines Check rear/front axle fluid level and add fluid as needed. Check constant velocity joints and axle seals for leaking. (See footnote **.) Rotate tires. See “Tire Inspection and Rotation” in the Index for proper rotation pattern and additional information.
  • Page 374 Short Trip/City Scheduled Maintenance -- Gasoline Engines 90,000 Miles (150 000 km) (Continued) For Two Wheel Drive vehicles only: Clean and repack the front wheel bearings (or at each brake relining, whichever occurs first). Replace fuel filter. An Emission Control Service. (See footnote Rotate tires.
  • Page 375 Short Trip/City Scheduled Maintenance -- Gasoline Engines 96,000 Miles (160 000 km) Change engine oil and filter (or every 3 months, whichever occurs first). An Emission Control Service. Lubricate chassis components (or every 3 months, whichever occurs first). (See footnote #.) Check rear/front axle fluid level and add fluid as needed.
  • Page 376 Short Trip/City Scheduled Maintenance -- Gasoline Engines 100,000 Miles (166 000 km) (Continued) Replace spark plugs. An Emission Control Service. Change automatic transmission fluid and filter if the vehicle is mainly driven under one or more of these conditions: – In heavy city traffic where the outside temperature regularly reaches 90 _ F (32 _ C) or higher.
  • Page 377 Long Trip/Highway Scheduled Maintenance -- Gasoline Engines The services shown in this schedule up to 100,000 miles (166 000 km) should be performed after 100,000 miles (166 000 km) at the same intervals. The services shown at 150,000 miles (240 000 km) should be performed at the same interval after 150,000 miles (240 000 km).
  • Page 378 Long Trip/Highway Scheduled Maintenance -- Gasoline Engines 7,500 Miles (12 500 km) Change engine oil and filter (or every 12 months, whichever occurs first). An Emission Control Service. Lubricate chassis components (or every 12 months, whichever occurs first). (See footnote #.) Check rear/front axle fluid level and add fluid as needed.
  • Page 379 Long Trip/Highway Scheduled Maintenance -- Gasoline Engines 22,500 Miles (37 500 km) Change engine oil and filter (or every 12 months, whichever occurs first). An Emission Control Service. Lubricate chassis components (or every 12 months, whichever occurs first). (See footnote #.) Check rear/front axle fluid level and add fluid as needed.
  • Page 380 Long Trip/Highway Scheduled Maintenance -- Gasoline Engines 30,000 Miles (50 000 km) (Continued) Replace fuel filter. An Emission Control Service. (See footnote 37,500 Miles (62 500 km) Change engine oil and filter (or every 12 months, whichever occurs first). An Emission Control Service. Lubricate chassis components (or every 12 months, whichever occurs first).
  • Page 381 Long Trip/Highway Scheduled Maintenance -- Gasoline Engines Check rear/front axle fluid level and add fluid as needed. Check constant velocity joints and axle seals for leaking. (See footnote **.) Rotate tires. See “Tire Inspection and Rotation” in the Index for proper rotation pattern and additional information.
  • Page 382 Long Trip/Highway Scheduled Maintenance -- Gasoline Engines 52,500 Miles (87 500 km) Change engine oil and filter (or every 12 months, whichever occurs first). An Emission Control Service. Lubricate chassis components (or every 12 months, whichever occurs first). (See footnote #.) Check rear/front axle fluid level and add fluid as needed.
  • Page 383 Long Trip/Highway Scheduled Maintenance -- Gasoline Engines Inspect engine accessory drive belt. An Emission Control Service. Replace fuel filter. An Emission Control Service. (See footnote Inspect fuel tank, cap and lines for damage or leaks. Inspect fuel cap gasket for any damage. Replace parts as needed. An Emission Control Service.
  • Page 384 Long Trip/Highway Scheduled Maintenance -- Gasoline Engines 67,500 Miles (112 500 km) Change engine oil and filter (or every 12 months, whichever occurs first). An Emission Control Service. Lubricate chassis components (or every 12 months, whichever occurs first). (See footnote #.) Check rear/front axle fluid level and add fluid as needed.
  • Page 385 Long Trip/Highway Scheduled Maintenance -- Gasoline Engines 82,500 Miles (137 500 km) Change engine oil and filter (or every 12 months, whichever occurs first). An Emission Control Service. Lubricate chassis components (or every 12 months, whichever occurs first). (See footnote #.) Check rear/front axle fluid level and add fluid as needed.
  • Page 386 Long Trip/Highway Scheduled Maintenance -- Gasoline Engines 90,000 Miles (150 000 km) (Continued) Rotate tires. See “Tire Inspection and Rotation” in the Index for proper rotation pattern and additional information. (See footnote +.) 97,500 Miles (162 500 km) Change engine oil and filter (or every 12 months, whichever occurs first). An Emission Control Service.
  • Page 387 Long Trip/Highway Scheduled Maintenance -- Gasoline Engines Change automatic transmission fluid and filter if the vehicle is mainly driven under one or more of these conditions: – In heavy city traffic where the outside temperature regularly reaches 90 _ F (32 _ C) or higher.
  • Page 388: At Least Once A Month

    Part B: Owner Checks and Services Listed in this part are owner checks and services which should be performed at the intervals specified to help ensure the safety, dependability and emission control performance of your vehicle. Be sure any necessary repairs are completed at once. Whenever any fluids or lubricants are added to your vehicle, make sure they are the proper ones, as shown in Part D.
  • Page 389 Also look for any opened or broken air bag coverings, and have them repaired or replaced. (The air bag system does not need regular maintenance.) Wiper Blade Check Inspect wiper blades for wear or cracking. Replace blade inserts that appear worn or damaged or that streak or miss areas of the windshield.
  • Page 390 Starter Switch Check CAUTION: When you are doing this check, the vehicle could move suddenly. If it does, you or others could be injured. Follow the steps below. 1. Before you start, be sure you have enough room around the vehicle. 2.
  • Page 391 Ignition Transmission Lock Check While parked, and with the parking brake set, try to turn the ignition key to LOCK in each shift lever position. The key should turn to LOCK only when the shift lever is in PARK (P). The key should come out only in LOCK.
  • Page 392: Exhaust System Inspection

    Part C: Periodic Maintenance Inspections Listed in this part are inspections and services which should be performed at least twice a year (for instance, each spring and fall). You should let your dealer’s service department or other qualified service center do these jobs.
  • Page 393: Throttle System Inspection

    Throttle System Inspection Inspect the throttle system for interference or binding, and for damaged or missing parts. Replace parts as needed. Replace any components that have high effort or excessive wear. Do not lubricate accelerator and cruise control cables. Drive Axle Service Check rear/front axle fluid level and add as needed.
  • Page 394 Part D: Recommended Fluids and Lubricants NOTE: Fluids and lubricants identified below by name, part number or specification may be obtained from your dealer. USAGE FLUID/LUBRICANT Engine Oil Engine Oil with the American (Gasoline Petroleum Institute Certified For Gasoline Engines “Starburst” Engine) symbol of the proper viscosity.
  • Page 395 USAGE FLUID/LUBRICANT Front and Rear SAE 80W-90 Axle Lubricant (GM Axle (Standard Part No. 1052271 or equivalent). Differential) Rear Axle SAE 80W-90 Axle Lubricant; Use (Locking only GM Part No. 1052271. Do not add friction modifier. Differential) Manual Transfer DEXRON III Automatic Case Transmission Fluid.
  • Page 396: Maintenance Record

    Part E: Maintenance Record After the scheduled services are performed, record the date, odometer reading and who performed the service in the boxes provided after the maintenance interval. Any additional information from “Owner Checks and ODOMETER DATE SERVICED BY READING 7-46 Services”...
  • Page 397 yellowblue Maintenance Record ODOMETER DATE SERVICED BY MAINTENANCE PERFORMED READING 7-47...
  • Page 398 yellowblue Maintenance Record ODOMETER DATE SERVICED BY MAINTENANCE PERFORMED READING 7-48...
  • Page 399: Section 8 Customer Assistance Information

    Section 8 Customer Assistance Information Here you will find out how to contact GMC if you need assistance. This section also tells you how to obtain service publications and how to report any safety defects. Customer Satisfaction Procedure Customer Assistance for Text Telephone...
  • Page 400: Customer Satisfaction Procedure

    Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to GMC. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
  • Page 401 STEP TWO -- If after contacting a member of dealership management, it appears your concern cannot be resolved by the dealership without further help, contact the GMC Consumer Relations Manager by calling 1-800-GMC-8782 (1-800-462-8782, Customer Assistance prompt). In Canada, contact GM of Canada Customer Communication Centre in Oshawa by calling 1-800-263-3777 (English) or 1-800-263-7854 (French).
  • Page 402: Customer Assistance For Text Telephone (Tty) Users

    1 free telephone Customer Assistance Offices GMC encourages customers to call the toll-free number for assistance. If a U.S. customer wishes to write to GMC, the letter should be addressed to GMC’s Customer Assistance Center. United States Pontiac-GMC Customer Assistance Center P.O.
  • Page 403: All Overseas Locations

    Canada General Motors of Canada Limited Customer Communication Centre, 163-005 1908 Colonel Sam Drive Oshawa, Ontario L1H 8P7 1-800-263-3777 (English) 1-800-263-7854 (French) 1-800-263-3830 (For Text Telephone devices (TTYs)) Roadside Assistance: 1-800-268-6800 All Overseas Locations GMODC Customer Communication Centre 169-007 1908 Colonel Sam Drive Oshawa, Ontario L1H 8P7 Telephone: 905-644-4112 Fax:...
  • Page 404: Roadside Assistance

    Maps include points of interest and a list of GMC dealers along the route. Also included is a list of hotels along the route that are discounted through affiliation with “Quest...
  • Page 405: Canadian Roadside Assistance

    A service representative will provide assistance when you call. The Roadside Assistance services listed are available to retail and retail lease customers operating 1999 GMC light duty trucks for a period of 3 years/36,000 miles (60 000 km). All services must be pre GMC Roadside Assistance.
  • Page 406: Courtesy Transportation

    Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait GMC helps minimize your inconvenience by providing several transportation options. Depending on the circumstances,...
  • Page 407: Additional Program Information

    Courtesy Rental Vehicle When your vehicle is unavailable due to overnight warranty repairs, your dealer may arrange to provide you with a courtesy rental vehicle or reimburse you for a rental vehicle you obtained, at actual cost, up to a maximum of $30.00 per day supported by receipts.
  • Page 408: Reporting Safety Defects To The United States Government

    REPORTING SAFETY DEFECTS TO THE UNITED STATES GOVERNMENT If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA), in addition to notifying General Motors.
  • Page 409: Reporting Safety Defects To General Motors

    In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you’ll notify us. Please call us at 1 8782 8782), or write: Pontiac-GMC Customer Assistance Center P.O. Box 436008 Pontiac, MI 48343 6008 In Canada, please call us at 1 or 1 7854 (French).
  • Page 410 1999 GMC SERVICE PUBLICATIONS ORDERING INFORMATION The following publications covering the operation and servicing of your vehicle can be purchased by filling out the Service Publication Order Form in this book and mailing it in with your check, money order, or credit card information to Helm, Incorporated (address below.)
  • Page 411 (CITY) (STATE) DAYTIME TELEPHONE NO. AREA CODE GM-GMC-ORD99 *(Prices are subject to change without notice and without incurring obligation. Allow ample time for delivery.) Orders will be mailed within 10 days of receipt. Please allow adequate time for postal service. If further information is needed, write to the address shown below or call 1-800-551-4123.
  • Page 412 yellowblue NOTES 8-14...
  • Page 413: Section 9 Index

    Section 9 Index ir Bag ........Adding Equipment .
  • Page 414 Brake Adjustment ........Fluid ........Master Cylinder .
  • Page 415 Climate Control, Optional ......Climate Control, Standard ......Climate Control System .
  • Page 416 asy Entry Seat (2 Door Utility) ....Electric Tailgate Glass Release ....Electrical Equipment, Adding .
  • Page 417 Fuel ......... . Canada .
  • Page 418 Instrument Panel ....... Brightness Control ......Cleaning .
  • Page 419 Maintenance Schedule ......Long Trip/Highway Definition ....Long Trip/Highway Intervals .
  • Page 420 Passing ........Passlock .
  • Page 421 Right Front Passenger Position ....Roadside Assistance ......Roadside Assistance, Canadian .
  • Page 422 Service and Appearance Care ..... . Service and Owner Publications ....Service Four Wheel Drive Warning Light Service Publications...
  • Page 423 Pressure ........Temperature ....... . . Traction .
  • Page 424 arning Devices ....... Warning Lights, Gages and Indicators ....Warranty Information .

This manual is also suitable for:

1999 yukon

Table of Contents
