Bush Hog 3710 Specifications

Bush Hog
®

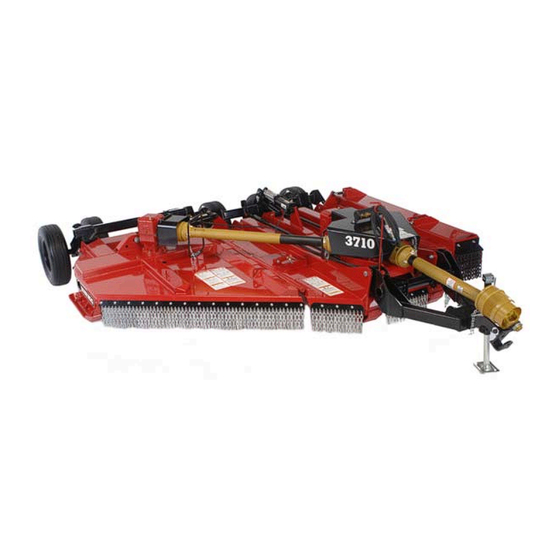

3710 Single Wing
Flex Series Rotary Cutters
Recommended Tractor HP Minimum 80 PTO
BUSH HOG TOUGH FeaTUReS
®
TOUGH 7 Gauge Deck Construction
TOUGH 7 Gauge Strongbacks
TOUGH Inch Sidebands
1/4
TOUGH Independent Spring Cushion at each axle arm
TOUGH Heavy Duty axle Turn Buckles
TOUGH Greaseable axle Pivot Points
TOUGH Heavy Duty Wheel Hubs and axle Spindles
TOUGH Driveline Safety Retaining Rings
TOUGH 5 Year Gearbox Limited Warranty
TOUGH Powder Coat Paint
MODeL
Cutting Width
Cutting Capacity
Cutting Height
Overall Width x Length (from clevis to wheel hub at transport height)
Transport Width (from weight box to wing skid)
Tractor PTO
Minimum Tractor HP
Deck Thickness
Side Bands
Gearbox HP
PTO Driveline
Wing Driveline
Slip Clutches
Blade Tip Speed
Blades
Type Hitch
Wing Flex
Tires
axles
Wheel Shock Protection
Deflectors
Options
Warranty
FeaTUReS
• High blade tip speeds • Deep sidebands • Heavy duty wheel hubs • Quick detach gearbox shields
BUSH HOG exCLUSIve:
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
TOUGH
235/Transfer, 190/Center & Wing
Input: Constant Velocity or Cardan/jackshaft - Cat. 5 (540 RPM)
16,289 FPM/540 RPM; 16,000 FPM/1000 RPM
Self Leveling with Perma Level Hitch® or 2
Standard Front Belting and Rear Band, Optional Chains Front and Rear
Chain Shielding, Tandem Walking Axle, Deck Rings
1 year limited warranty with a 5 year gearbox limited warranty
• Perma Level Hitch • Cylinder style anti wrap device around lower gearbox housing
3710
10 ft 6 inches
3 1/2 inch diameter
2 to 14 inches
11 ft 8 inches x 14 ft 6 inches
8 ft
540 RPM/1000 RPM
80 PTO
7 gauge
x 10 inches
1/4 1/2
Cat. 4 or 5 (1000 RPM)
ASAE Cat. 5
(2) 4 Friction Plates
x 4 inches – Uplift with 6 inch Overlap
1/2
inch Ball Hitch or Swivel Clevis Hitch
5/16
87° Up to 22° Down
Laminated, Pneumatic or Aircraft
Greaseable with bushings
Independent Springs/Each Axle
Driveline safety retaining rings
Model 3710
Page 31
