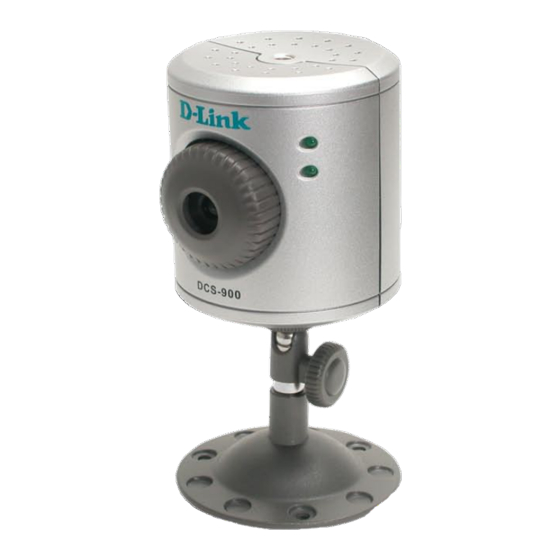

D-link DCS-900 Install Manual

D-link dcs-900: install guide.
Also See for DCS-900:
User manual - 76 pages
Reference manual - 93 pages
User manual - 92 pages
Version 2.0
DCS-900
Fast Ethernet Internet Camera
Wireless G USB 2.0 Adapter

   Also See for D-link DCS-900

   Related Manuals for D-link DCS-900

   Summary of Contents for D-link DCS-900

  • Page 1

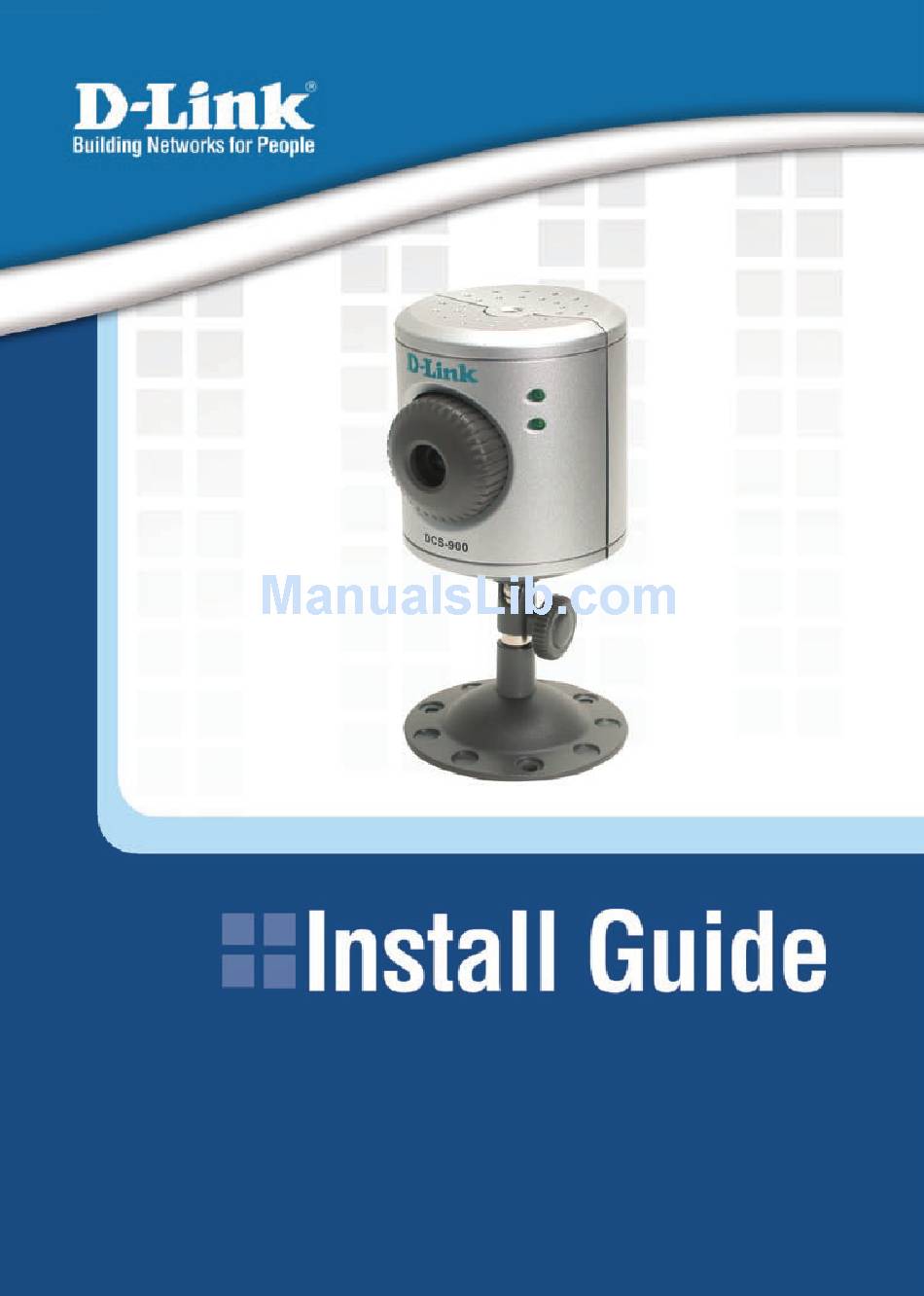

    Version 2.0 DCS-900 Fast Ethernet Internet Camera Wireless G USB 2.0 Adapter...

  • Page 2

    • An existing 10/100 Ethernet-based network. Package Contents DCS-900 Fast Ethernet Internet Camera CAT5 Ethernet Cable Manual and Software on CD If any of the above items are missing, please contact your reseller. D-Link DCS-900 Quick Install Guide Power Adapter Camera Stand...

  • Page 3

    Hardware Overview Front Panel LEDs D-Link DCS-900 Quick Install Guide...

  • Page 4

    Hardware Overview Back Panel Connections Ethernet Cable Connector Reset Power Connector D-Link DCS-900 Quick Install Guide...

  • Page 5

    Attach the Swivel Stand Locate the stand mount on the bottom panel of the DCS-900 and screw on the swivel stand to the base of the DCS-900. Connect the Ethernet Cable Connect the included Ethernet cable to the network cable...

  • Page 6

    Configuration You are now ready to run the Setup Wizard, which will guide you quickly through the installation process. Insert the D-Link Driver CD into your CD-ROM drive. Click Install Wizard Click Next D-Link DCS-900 Quick Install Guide...

  • Page 7

    Click Yes Click Next Click Finish D-Link DCS-900 Quick Install Guide...

  • Page 8

    To run the Setup Wizard, click on: Start > Programs > D-Link Setup Wizard. Your camera’s IP Address will be displayed here along with its corresponding MAC Address. Click Wizard You must change the Admin ID and Password immediately to protect your camera against unauthorized access.

  • Page 9

    Click Next If you need to make any changes, click Back to modify your settings. Otherwise, click Restart to save and apply your settings. Click Restart D-Link DCS-900 Quick Install Guide...

  • Page 10

    Wizard using the Link button. You can also use your favorite Web browser, type “http://address” in the address box where address is the IP address that you assigned to the DCS-900 from the previous section. Press Enter. Click ActiveX or Java to view your video images.

  • Page 11

    4 DCS-900s remotely. Administrators can also record to hard drive and configure advanced settings for the DCS-900. IPView SE is a complete software management tool for the DCS-900 and includes all configurable settings available in the web configuration utility.

  • Page 12

    Click Next Click Yes Click Next Click Finish D-Link DCS-900 Quick Install Guide...

  • Page 13

    After successfully installing the IPView SE, the application program for the DCS-900 is automatically installed to \Programs\IPView SE Directory. To start IPView SE, click on Windows Start > Programs > IPView ® SE > IPView SE. Once the IPView SE application control panel is executed, the...

  • Page 14

    To add cameras in IPView SE, check that you have your network configured correctly. To add a remote camera, you need to have Internet access. D-Link DCS-900 Quick Install Guide from the IPView...

  • Page 15

    Highlight the camera you wish to add and click on Add. The camera will automatically be added into the IPView SE list view. If you add the same camera more than once you will receive the following message (see below). D-Link DCS-900 Quick Install Guide...

  • Page 16

    IPView SE. The Login Camera dialog box will appear only if your have already set the Username and Password during the Web Configuration setting. Once you login, the following screen will appear. D-Link DCS-900 Quick Install Guide...

  • Page 17

    IPView SE control panel. Please refer to the Manual located on the CD-ROM for additional information regarding IPView SE. on the IPView SE and you should D-Link DCS-900 Quick Install Guide...

  • Page 18

    Notes D-Link DCS-900 Quick Install Guide...

  • Page 19

    Notes D-Link DCS-900 Quick Install Guide...

  • Page 20

    Monday through Friday, 7:30am to 9:00pm EST. Copyright ©2006 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link, the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property of their respective owners.
