Overview
The system uses biometric technology that enables an
authorized user to gain access by scanning their fingerprint.
The sensor strip on the unit makes a numeric template of the
fingerprint that is unique to that user. The unit’s memory can
store up to four fingerprints.
• The term “enroll” refers to scanning the fingerprint so the
device will recognize the user.
• The term “swipe” refers to the movement of the finger across
the sensor strip.
• The term “LED” stands for Light Emitting Diode. There are
6 LEDs located on the Fingerprint Keyless Entry.
When unit is on, it is programmed to shut off after a short
period of time. The unit’s sensor strip is sensitive so it is
important to read the Tips for Success before attempting to
use the Fingerprint Keyless Entry.

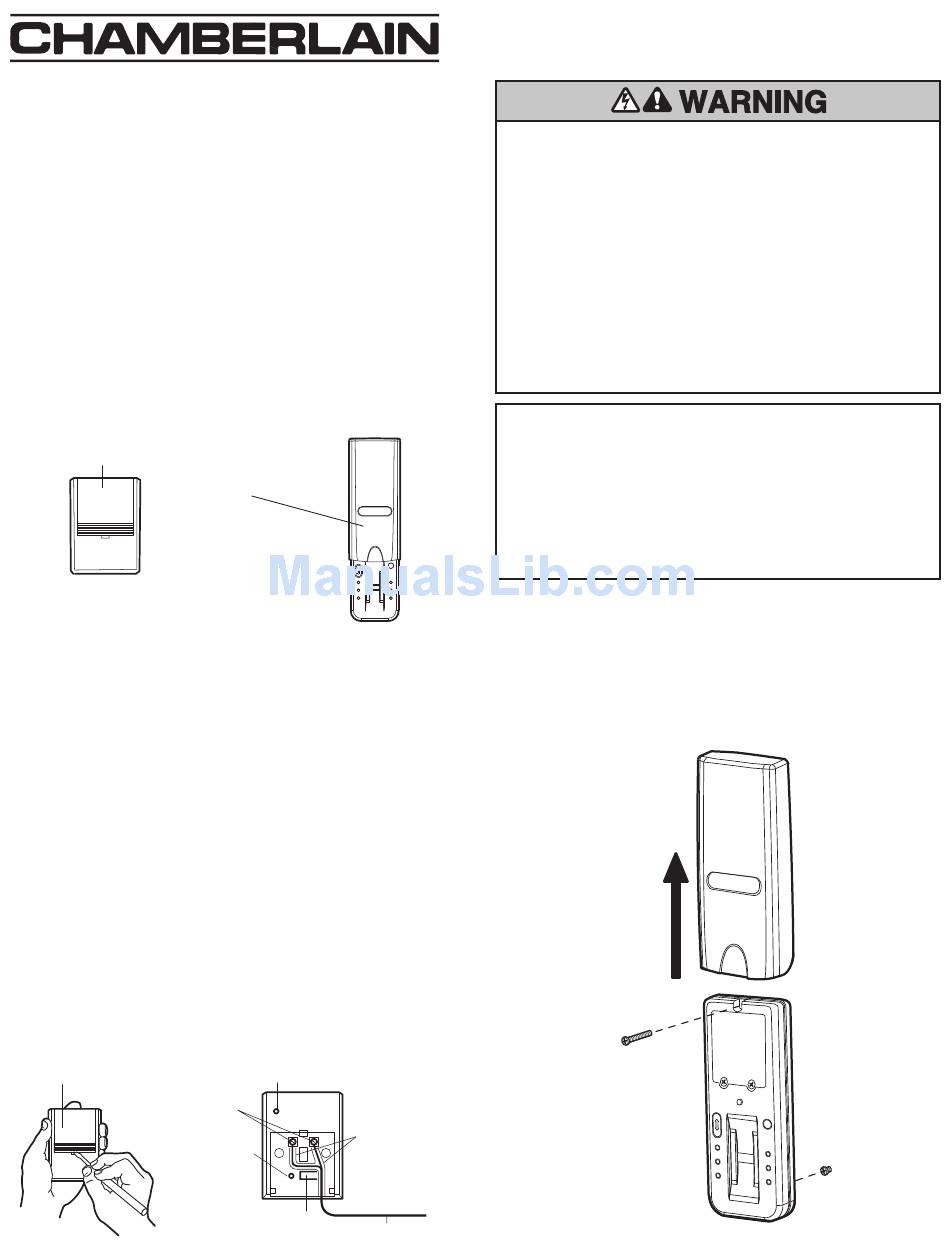

Carton Inventory
Receiver
Fingerprint Keyless
Entry
ENROLL
SEND
ENROLL
PASS
FAIL
READY
RETRY
Step 1 Install the Receiver
1. Unplug the opener before proceeding.
2. OPEN RECEIVER: Insert a small screwdriver in slot on
receiver front panel as shown. Twist up actuator cover.
3. CONNECT RECEIVER AND OPENER: Remove about 1/4"
(6 mm) of insulation from each end of the 2-strand bell wire.
Connect one end to the receiver screw terminals (polarity is
NOT required). Route wire along the channels and out the
bottom as shown.
4. Connect the other end of the bell wire to the two opener
terminals labeled “2” (white) and “1” (red), “common” and
“command” or the terminals used for the push button control.
5. Use insulated staples to secure bell wire between receiver
and opener. Length of bell wire depends on where the
receiver will be installed. Replace actuator cover.
6. Choose a 120Vac polarized outlet for the receiver which is
OUT OF THE REACH OF CHILDREN. Plug receiver into
selected outlet. Return power to the opener.
Power Indicator Light
Actuator Cover
Terminals
Bell Wire
Channels
“SMART”
Indicator
Light
Connect Bell Wire
To Garage Door
Opener Terminals
“SMART”
Bell Wire
Actuator
Model 942FPC
Fingerprint Keyless Entry
To prevent possible SERIOUS INJURY or DEATH from electrocution:
• Be sure power is not connected BEFORE installing the receiver.
To prevent possible SERIOUS INJURY or DEATH from a moving
gate or garage door:
• Install Keyless Entry Control within sight of the garage door, out of
reach of children at a minimum height of 5 feet (1.5 m), and away
from all moving parts of door.
• ALWAYS keep remote controls out of reach of children. NEVER
permit children to operate, or play with remote controls.
• Activate gate or door ONLY when it can be seen clearly, is properly
adjusted, and there are no obstructions to door travel.
• ALWAYS keep gate or garage door in sight until completely closed.
NEVER permit anyone to cross path of moving gate or door.
NOTICE TO U. S. CONSUMERS:
Some states prohibit the service or repair of garage door openers which
cannot be made to comply with the safety standards contained in UL
325 (1988 revision). In order to comply with both the letter and the spirit
of these laws, this universal radio control should not be used with
any LiftMaster
®
, Chamberlain
®
, or Sears Craftsman
®
garage door
opener manufactured prior to April 1, 1982. To find out if your
Chamberlain-made garage door opener was manufactured prior to or
after April 1, 1982, please call 1-800-528-9131 before installing this
universal radio control.
Step 2 Install the Keyless Entry
1. Remove cover.
2. Fasten bottom screw to mounting surface. Allow 1/8"
(3 mm) to protrude above surface. Position unit on screw
head and adjust for snug fit.
3. Fasten top screw. Replace cover.
1
3
2
Page 1
