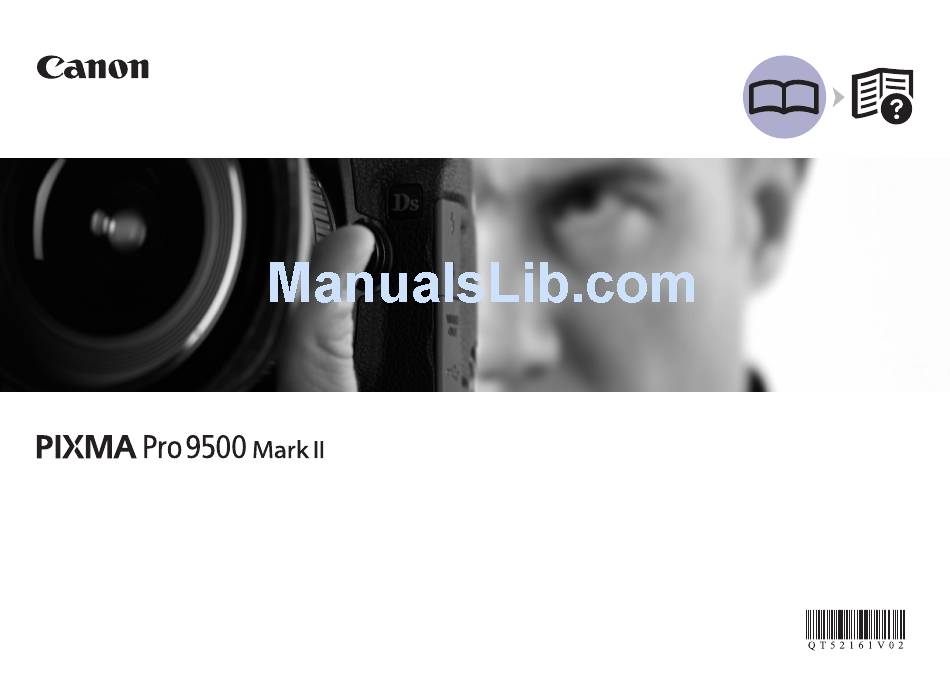

Canon PIXMA Pro9500 Mark II Getting Started Manual

Canon pixma pro9500 mark ii: quick start.


Photo Printer
series
Getting Started
Read Me First
Make sure to read this manual before using the printer. Please keep it in hand for future reference.

Summary of Contents

  • Page 1

    Photo Printer series Getting Started Read Me First Make sure to read this manual before using the printer. Please keep it in hand for future reference.

  • Page 2

    Contents Preparation Turn the Power On Install the Print Head Install the Ink Tanks Install the Software Loading Paper After Installing the Printer...

  • Page 3

    ■ Sy m b ol s The following symbols are used to mark important instructions. Observe these instructions. Caution Instructions that, if ignored, could result in personal injury or material damage. Instructions that must be observed for safe operation. Additional explanations. Descriptions for operations that take some time to complete.

  • Page 4

    Preparation ■ Che c k th e In cl ud ed I tem s Before turning on the printer, remove all the orange tapes and the protective sheets. Print Head • Manuals • Setup CD-ROM (containing the drivers, applications and on-screen manuals) •...

  • Page 5

    Front Tray. In that case, keep a space of 15.7"/40 cm behind the printer. • There are wheels on the back corners of the printer. Lift the front of the printer to move it back and forth easily.

  • Page 6

    Turn the Power On Plug the power cord into the back left of the printer, then connect the other end to the wall outlet. • Do NOT connect the USB cable at this stage. Turn on the printer (A). Confirm that the POWER lamp (B) lights blue.

  • Page 7

    The Print Head Holder (D) comes out. (This is where you install the Print Head.) • The Print Head Holder makes a noise as it moves. This is normal operation. • If the Print Head Holder does not move, make sure that the printer is turned on.

  • Page 8

    Firmly raise the Print Head Lock Lever (E) until it stops. Remove the Print Head from the silver package. • There may be some transparent or light color ink on the inside of the bag the Print Head comes in, or the inside of the protective cap - this has no effect on print quality.

  • Page 9

    Set the Print Head in place. • Do not knock the Print Head against the sides of the holder. Lower the Print Head Lock Lever (E) completely. • Pinch the Print Head Lock Lever firmly and lower it gently. • Once you have installed the Print Head, do not remove it unnecessarily.

  • Page 10

    Install the Ink Tanks • Handle the ink tanks carefully. Do not drop or apply excessive pressure to them. • If the Print Head Holder moves to the right, close and reopen the Top Cover. • Be sure to use the supplied ink tanks. Remove the ink tank from its package.

  • Page 11

    Install the ink tank Insert the ink tank. Press the PUSH mark on the ink tank until it clicks into place. Make sure the Ink lamp lights red.

  • Page 12

    Wait for about 3 minutes until the POWER lamp (blue) (C) stops flashing and stays lit then operating noise stops, and go to the next step. Do not open the Top Cover while the lamp is flashing. The printer vibrates while the lamp is flashing because ink is stirred inside the printer. •...

  • Page 13

    Install the Software To use the printer by connecting it to a computer, software including the drivers needs to be copied (installed) to the computer's hard disk. The screens below are based on Windows Vista operating system Ultimate Edition (hereafter referred to as "Windows Vista") and Mac OS X v.10.5.x.

  • Page 14

    Make sure that the POWER lamp (B) has stopped flashing and is off. • It takes about 1 minute until the printer turns off. Turn on the computer, then insert the Setup CD- ROM into the CD-ROM drive. The setup program should start automatically.

  • Page 15

    Windows Macintosh Windows Vista AutoPlay screen appears, click Run Msetup4.exe. Windows Vista User Account Control dialog box appears, click Continue. If the same dialog box reappears in subsequent steps, click Continue.

  • Page 16

    • You can install the XPS Printer Driver from Custom Install. (Windows Vista SP1 or later.) • The XPS Printer Driver is a printer driver suitable for printing High Dynamic Range images (full 16-bit workflow) using Easy-PhotoPrint Pro. • When installing the XPS Printer Driver, select the IJ Printer Driver at the same time.

  • Page 17

    Windows Macintosh Read the License Agreement screen carefully and click Yes. • During installation, follow any on-screen instructions to install the software. When the Please Allow All Install Wizard Processes screen appears, click Next. Installation starts.

  • Page 18

    Windows Macintosh When the Printer Connection screen appears, connect the printer to the computer with a USB cable. • The USB port is located on the right side of the printer. Turn on the printer (A). When the printer is recognized by the computer, a message appears on the screen.

  • Page 19

    Windows Macintosh Align the Print Head When the Print Head Alignment screen appears, load two sheets of A4 or Letter-sized plain paper in the Rear Tray (C) as shown. Pinch and slide the Paper Guide (D) against the left edge of the paper. •...

  • Page 20

    Windows Macintosh When the Start Print Head Alignment dialog box appears, click Align Print Head. Click OK in the subsequent message. Printing of the pattern starts. • Wait until the pattern printing ends (about 10 minutes), and go to the next step. •...

  • Page 21

    • Internet connection is required. (Connection fees apply.) • To register later, click Cancel. User registration can be started from the Canon Solution Menu icon. For details, refer to "Solution Menu" on page 31. • If you are already registered, the Product Registration screen appears.

  • Page 22

    If you can agree, click Agree. If you click Do not agree, the Extended Survey Program will not be installed. (This has no effect on the printer's functionality.) Click Exit. If Restart is displayed, make sure that the Restart the system now (recommended) check box is selected, then click Restart.

  • Page 23

    Connect the printer to the computer with a USB cable. Make sure the printer is turned on. • The USB port is located on the right side of the printer. Turn on the computer, then insert Double-click the Setup icon.

  • Page 24

    Windows Macintosh Enter your administrator name and password. Click OK. If you do not know your administrator name or password, click Help, then follow the on-screen instructions. Click Easy Install. Drivers, application software, and on-screen manuals are installed automatically. • If you want to select particular items to install, click Custom Install and follow the on-screen instructions to proceed with the installation.

  • Page 25

    Windows Macintosh Read the License Agreement screen carefully and click Yes. Installation starts. • During installation, follow any on-screen instructions to install the software. When the Start Setup screen appears, click Execute. Click Restart. The Print Head Alignment screen appears after the computer has been restarted.

  • Page 26

    Windows Macintosh Align the Print Head When the Print Head Alignment screen appears, load two sheets of A4 or Letter-sized plain paper in the Rear Tray (A) as shown. Pinch and slide the Paper Guide (B) against the left edge of the paper. •...

  • Page 27

    Windows Macintosh When this screen appears, click OK. Printing of the pattern starts. • Wait until the pattern printing ends (about 10 minutes), and go to the next step. • Do not open the Top Cover (C) while printing. • Pull out the Front Tray Extension (D) beforehand.

  • Page 28

    Click Next. If connected to the Internet, the user registration page appears. Follow the on-screen instructions to register your printer. You will need your product serial number, which is located on the inside of the printer. • Internet connection is required. (Connection fees apply.) •...

  • Page 29

    If you can agree, click Agree. If you click Do not agree, the Extended Survey Program will not be installed. (This has no effect on the printer's functionality.) • The screen does not appear on Mac OS X v.10.3.9.

  • Page 30

    Loading Paper This section explains how to load paper in the Rear Tray (A). Open the Paper Support (C). • Pull out the Front Tray Extension (B) beforehand. Open the Feed Slot Cover (D), then pinch and slide the Paper Guide (E). Load paper straight along the right edge of the Rear Tray.

  • Page 31

    You can print on large size paper such as 14" x 17"/355.6 x 431.8 mm or thick paper by loading the paper in the Front Tray. For details on how to load paper in the Front Tray, refer to "Loading Paper" in the on-screen manual: Basic Guide. Printer installation is now complete!

  • Page 32

    In for ma t i on For proper use, read safety Describes how to set up and use precautions before using the your printer. Introduces the printer printer. and its functions, the included manuals and application software. For details on opening the on-screen manuals, refer to page 31.

  • Page 33

    Sol uti on Menu is a gat eway to fu nct ion s a n d i n fo r m a t io n th a t a ll o w yo u to ma ke fu ll use...

  • Page 34

    ■ Util i z i ng th e Pri n te r Easy-P hot oPrin t P ro i s one o f t he ap p lica tio n so ftware. E asy -P hot oP r int Pro a llo ws yo u to pri nt h i g h qual i t y phot o s easily b y ut ilizi n g th e dig ital p hoto color s .

  • Page 35

    Windows: Note: Operation can only be guaranteed on a PC with Windows Vista, XP or 2000 pre-installed. • Easy-PhotoPrint Pro is a software plug-in for Canon Digital Photo Professional Ver. 2.1 or later, Adobe Photoshop CS/CS2/CS3/CS4 and Adobe Photoshop Elements 6. •...

  • Page 36

    1039B002 PGI-9 Red 1040B002 PGI-9 Green 1041B002 PGI-9 Gray 1042B002 Call 1-800-OK-CANON to locate a dealer near you, or visit the Canon eStore at www.canonestore.com CANON U.S.A. INC. One Canon Plaza, Lake Success, NY 11042 U.S.A. www.usa.canon.com QT5-2161-V02 XXXXXXXX ©CANON INC.2009...
