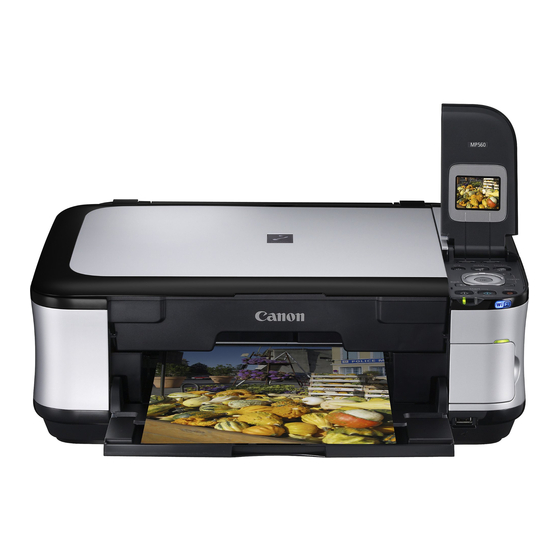

Canon PIXMA MP560 Network Setup Manual
  1. Manuals
  2. Brands
  3. Canon Manuals
  4. All in One Printer
  5. MP560 - PIXMA Color Inkjet
  6. Network setup manual
Canon PIXMA MP560 Network Setup Manual

Canon PIXMA MP560 Network Setup Manual

Canon pixma mp560: supplementary guide
Hide thumbs Also See for PIXMA MP560:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Network Setup Manual
Network Setup Troubleshooting

Advertisement

Table of Contents
loading

Related Manuals for Canon PIXMA MP560

Summary of Contents for Canon PIXMA MP560

  • Page 1 Network Setup Troubleshooting...

  • Page 2: Table Of Contents

    Network Setup Troubleshooting This manual mainly describes problems you may encounter when setting up a network, and the possible causes and solutions. Find a description related to your problem and follow the solution. If you cannot find a description for your problem or if you encounter a problem after setup, refer to the on- screen manual: Basic Guide/Advanced Guide.

  • Page 3: Problems During Network Setup

    Problems during Network Setup Easy Settings The Target Access Point is Not Displayed (Detected) Check Check 1 Make sure that you follow Check 1, 2, 5 and 6 of "Connection Checklist" on page 11, then press the left FUNCTION button (A) on the machine to search for the access point again.

  • Page 4: Failed To Connect To The Access Point. Is Displayed

    Failed to connect to the access point. is Displayed Check Check 1 Is WEP key number 2, 3 or 4 of the access point in use? • For details on how to check the WEP key number of the access point, refer to the manual supplied with the access point or contact its manufacturer.

  • Page 5: Access Point Was Not Detected Is Displayed

    Access point was not detected is Displayed Check The message appears when no access point is found. Refer to "The Target Access Point is Not Displayed (Detected)" on page 1. Multiple access points with the same name exist. is Displayed Check The message appears when multiple access points with the same name are found.

  • Page 6: Wps Settings

    WPS Settings Cannot connect. Multiple access points are enabled. is Displayed Action The message appears when multiple access points are detected. Wait for a while, then configure the settings again. Connection failed. is Displayed Check The message appears when an error occurs. Check the access point settings, then configure WPS settings again.

  • Page 7: Check Printer Settings Dialog Box Is Displayed

    Check 4 When obtaining an IP address automatically, make sure that the DHCP function of the access point is active. • For details on how to check the settings of the access point, refer to the manual supplied with the access point or contact its manufacturer.

  • Page 8: Other Troubleshooting Tips

    Check 4 When obtaining an IP address automatically, make sure that the DHCP function of the access point is active. • For details on how to check the settings of the access point, refer to the manual supplied with the access point or contact its manufacturer.

  • Page 9: Reference Information

    Reference Information Entering the Access Point's Wireless LAN Settings Directly on the Machine Action Enter the access point name/network name (SSID) and security setting (WEP, WPA, etc.) on the machine directly. Follow the procedure below. Use the Easy-Scroll Wheel to select Settings, then press the OK button.
  • Page 10 Select the network key format. • Select Characters when the network key is 5 or 13 characters. Select Hexadecimal when it is 10 or 26 characters (digits). Select the WEP key number you want to use, then press the OK button. •...

  • Page 11: Specifying The Machine's Ip Address (Ipv4 Only)

    Specifying the Machine's IP Address (IPv4 only) Action The machine's IP Address can be specified by the following procedure. Use the Easy-Scroll Wheel to select Settings, then press the OK button. Select Device settings, then press the OK button. Select LAN settings, then press the OK button. Select Other settings, then press the OK button.

  • Page 12: Restoring The Machine's Default Lan Settings To Perform Setup Again

    Restoring the Machine's Default LAN Settings to Perform Setup Again Action Follow the procedure below to restore LAN settings of the machine to the default state. Use the Easy-Scroll Wheel to select Settings, then press the OK button. Select Device settings, then press the OK button. Select LAN settings, then press the OK button.

  • Page 13: Connection Checklist

    Is the firewall function of your security software active? A message may appear on the computer monitor warning that Canon software is attempting to access the network. If the warning message appears, set the security software to always allow access.
  • Page 14 Check 6 Is the access point operating in IEEE802.11b or IEEE802.11g (2.4 GHz)? • For details on how to check the operating mode of the access point, refer to the manual supplied with the access point or contact its manufacturer. Set the access point to operate in IEEE802.11b or IEEE802.11g (2.4 GHz).

  • Page 15: Specifications

    • 2000 pre-installed. • To upgrade from Windows XP to Windows Vista, first uninstall software bundled with the Canon inkjet printer. • Some functions may not be available with Windows Media Center. • Macintosh: Hard Disk must be formatted as Mac OS Extended (Journaled) or Mac OS Extended.
  • Page 16 QT5-2627-V01 XXXXXXXX ©CANON INC.2009 PRINTED IN THAILAND...
