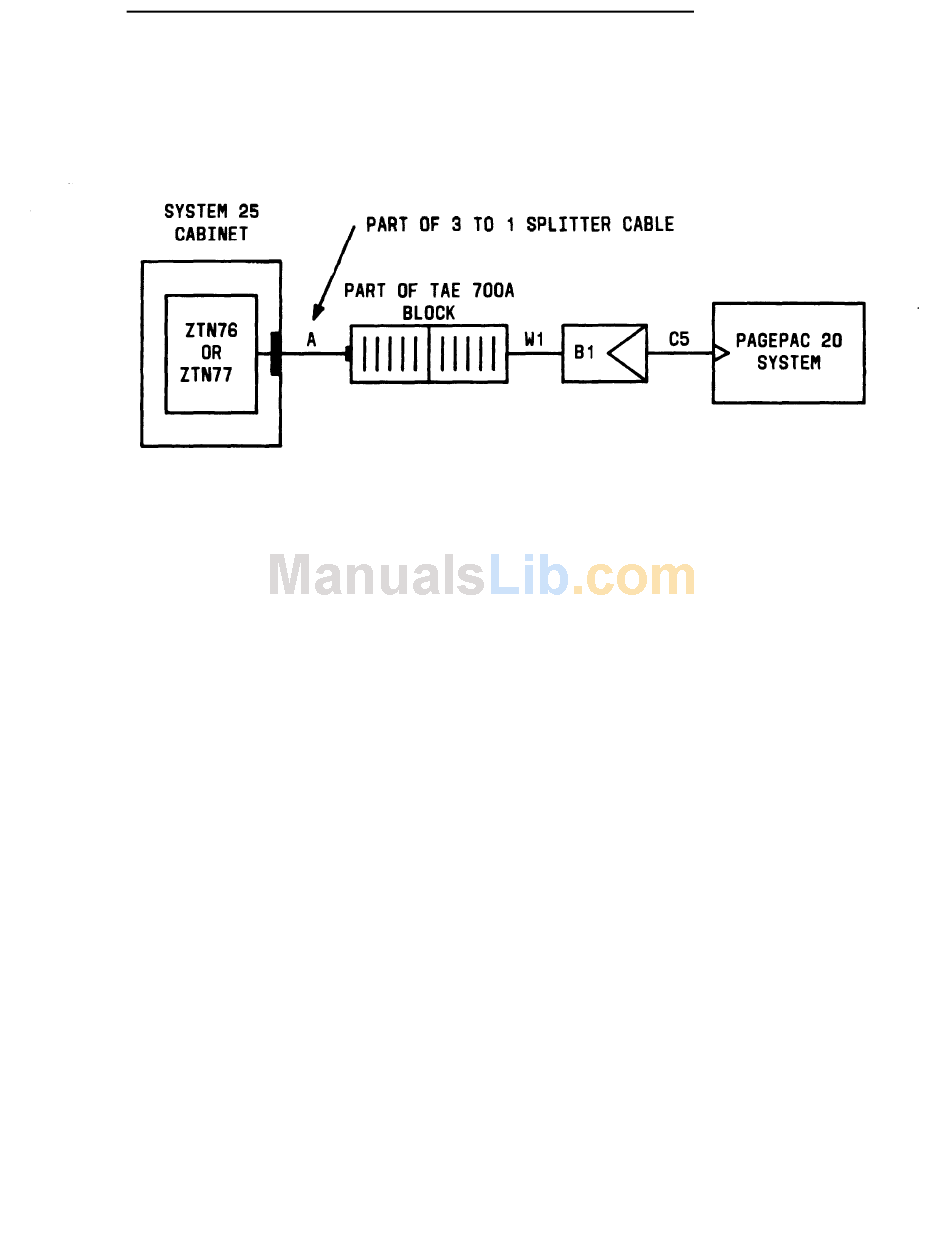

Figure 2-58. Pagepac 20 System Connection To Ztn76 Or Ztn77 Circuit Pack - AT&T Network Adapter 25 Installation And Maintenance Manual

LEGEND :
ZTN76 - GROUND START C'
ZTN77 - LOOP START C'
A - 3 TO 1 SPLITTER CABLE (WP-90929,L1)
B1 - TYPICAL- 103A CONNECTING BLOCK
C5 - MODULAR CORD (D4BU-87)
W1 - INSIDE WIRING CABLE (4-PAIR)
PagePac 20 System Connection to ZTN76 or ZTN77 Circuit
Figure 2-58.
Pack
INSTALLATION
2-129
