Summary of Contents for Sharp LC-40LE511E

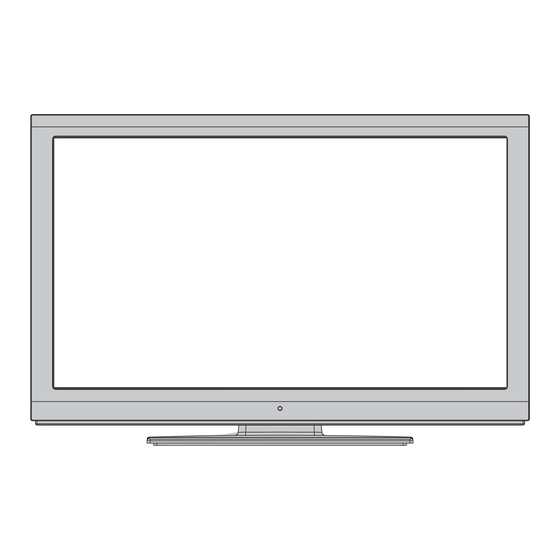

- Page 1 LC-40LE511E LCD COLOUR TELEVISION OPERATION MANUAL SHARP ELECTRONICS (UK) Limited 4 Furzeground Way, Stockley Park Uxbridge, UB11 1EZ, UK...
-
Page 2: Table Of Contents
Contents Features ... 4 Dear SHARP customer ... 4 Introduction ... 4 Preparation ... 4 Important safety precautions ... 5 Safety Precautions ... 6 Power Source ... 6 Power Cord ... 6 Moisture and Water ... 6 Cleaning... 6 Ventilation ... 6 Heat and Flames ... - Page 3 Recording Con guration ... 33 Con guring Date/Time Settings ... 33 Con guring Source Settings ... 34 Con guring Other Settings ... 34 Operation ... 34 Other Features ... 35 Teletext ... 35 Tips ... 36 Appendix A: PC Input Typical Display Modes ... 37 Appendix B: AV and HDMI Signal Compatibility (Input Signal Types) ...
- Page 4 SPECIAL NOTE FOR USERS IN THE U.K. The mains lead of this product is tted with a non-rewireable (moulded) plug incorporating a 5A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked as above, which is also indicated on the pin face of the plug, must be used.
-
Page 5: Features
The examples used throughout this manual are based on the LC-32LE511E model. Dear SHARP customer Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble-free operation of your product, please read Important safety precautions carefully before using this product. -
Page 6: Important Safety Precautions
Important safety precautions • Cleaning—Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. • Use a soft damp cloth to gently wipe the panel when it is dirty. To protect the panel, do not use a chemical cloth to clean it. -
Page 7: Safety Precautions
Safety Precautions Please read the following recommended safety precautions carefully for your safety. Power Source The TV set should be operated only from a 220-240 V AC, 50 Hz outlet. Ensure that you select the correct voltage setting for your convenience. Power Cord Do not place the set, a piece of furniture, etc. -
Page 8: Headphone Volume
Headphone Volume Excessive sound pressure from earphones and headphones can cause hearing loss. Installation To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available). -
Page 9: Package Contents
Package Contents Batteries: 2 X AAA Instruction Book Remote Control 1 X Audio & Video Connection Cable LCD TV Note: You should check the accessories after purchasing. Make sure that each accessory is included. As the manufacturer’s speci cation supports communication on cable lengths shall be smaller than 3m. -
Page 10: Environmental Information
Environmental Information • This television is designed to consume less energy to save environment. You not only help to save the environment but also you can save money by reducing electricity bills thanks to the energy ef ciency feauture of this TV. To reduce energy consumption, you should take the following steps: •... -
Page 11: Remote Control Buttons
Remote Control Buttons Standby Image size Sleep Timer Mono/Stereo - Dual I-II / Currrent Language (*) (in DVB channels) / Play preview (in Media Browser mode) Favourite Mode Selection (in DVB channels) Numeric buttons Electronic programme guide(in DVB channels) No function Media Browser Navigation buttons (Up/Down/Left/Right) No function... -
Page 12: Lcd Tv And Operating Buttons
LCD TV and Operating Buttons FRONT and REAR VIEW Standby-LED Viewing the Connections- Back Connectors EXT 2 inputs or outputs for external devices. EXT 1 inputs or outputs for external devices. Connect the SCART cable between SCART socket on the TV and SCART socket on your external device (such as a decoder, a VCR or a DVD player). -
Page 13: Viewing The Connections - Side Connectors
PC/YPbPr Audio Inputs are used for connecting audio signals of a PC or a device that connects to the TV via YPbPr. Connect the PC audio cable between the AUDIO INPUTS on the TV and audio output of your PC to enable PC audio. Connect the audio cable between AUDIO INPUTS on the TV and audio outputs of your device to enable component audio. -
Page 14: Power Connection
Power Connection IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. • After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. • Plug the power cable to the mains socket outlet. Antenna Connection Aerial Connection •... -
Page 15: Side Hdmi Connection (Hdmi 4)
• For more information on recording programmes, see sections “Instant Recording”, “Timeshifting”, “Electronic Programme Guide”, “Recordings Library” or “Recording Timers” in the following parts. • Recorded programmes are stored in the following directory of the connected USB disk: \DVR\RECS. All recordings are indicated with a number (such as 4801-000.ts). -
Page 16: Connecting To A Dvd Player
Connecting to a DVD Player If you want to connect a DVD player to your LCD TV, you can use connectors of the TV set. DVD players may have different connectors. Please refer to your DVD player’s instruction book for additional information. -
Page 17: Remote Control Handset
Remote Control Handset • Remove the battery cover located on the back of the remote control by gently pulling backwards from the indicated part. • Insert two AAA/R3 or equivalent type batteries inside. Observe the correct polarity (+/-) when inserting batteries and replace the battery cover. Note: Remove the battery from remote control when it is not to be used for a long period. -
Page 18: Input Selection
Input Selection Once you have connected external systems to your TV, you can switch to different input sources. Press “SOURCE” button on your remote control consecutively for directly changing sources. You can operate your TV using both the remote control and onset buttons. -
Page 19: Recording Via Epg Screen
(RECORD): the TV will start to record the selected progamme. You can press again to stop the recording. Red button (Prev Time Slice): Displays the programmes of previous time slice. Green button (Next Time Slice): Displays the programmes of the next time slice. Yellow button (Prev Day): Displays the programmes of previous day. -
Page 20: First Time Installation
• To cancel an already set recording, highlight that programme and press the OK button and select the option “Delete Rec. Timer”. The recording will be cancelled. Note: You cannot switch to any other channel or source while there is an active recording on the current channel. -
Page 21: Auto Tuning
Note: You can press “MENU” button to cancel. IMPORTANT! If you are located at a TV regional border or are able to receive broadcasts from more than one transmitter the “Choose Region” OSD will be displayed after the digital channels have been scanned. To prevent poor quality pictures or unwanted regional variation from being stored in your main channel list you MUST! select your preferred regional options for... -
Page 22: Manual Tuning
Manual Tuning HINT: This feature can be used for direct broadcast entry. Select Manual Channel Scan from the Installation menu by using “ ”/“ ” and OK buttons. Manual Scan options screen will be displayed. • Select the desired Search Type using “ ” or “ ”... -
Page 23: Moving A Channel
Select Edit Channel List to manage all stored channels. Use “ ” or “ ” and OK buttons to select Edit Channel List. Operating the Channel List • Press “ ” or “ ” button to select the channel that will be processed. -
Page 24: Managing Stations: Favourites
Managing Stations: Favourites You can create a list of favourite programmes. • Press “ MENU” button to view main menu. Select Channel List item by using “ ” or “ ” button. Press OK to view menu contents. • Select Favourites to manage favourite list. -
Page 25: Viewing Videos Via Usb
When you have selected the desired media type Videos, Photos or Music the USB device will be scanned for all matching media, this may take several minutes depending on the device size and number of les contained within. During the scanning process “Please wait…”... -
Page 26: Slideshow Options
Slideshow Options Pause ( button) : Pauses the slideshow. Continue ( button) : Continues the slideshow. Previous/Next (Left/Right buttons): Jumps to previous or next le on slideshow. Rotate (Up/Down buttons): Rotates the image using up/down buttons. Loop/Shuf e (GREEN button): Press once to disable Loop. -
Page 27: Instant Recording
• Use (PREVIOUS/NEXT) buttons to move forward or backward on timeshift playback. When the timeshift is reached, timeshifting mode will be quitted and you will switch back to watching normal broadcast. • Press (STOP) button to quit timeshifting mode. (*) Continuous time shift recording’s duration depends on your connected USB disk’s ... -
Page 28: Changing Image Size: Picture Formats
Slow Forward If you press (PAUSE) button while watching recorded programmes, slow forward feature will be available. You can use button to slow forward. Pressing button consecutively will change slow forwarding speed. Changing Image Size: Picture Formats • Programmes can be watched in different picture formats, depending on the transmission received. -
Page 29: Con Guring Picture Settings
Cinema This zooms up the wide picture (16:9 aspect ratio) to the full screen. Con guring Picture Settings You can use different picture settings in detail. Press “MENU” button and select the Picture icon by using “ ” or “ ” button. Press OK button to view Picture Settings menu. -
Page 30: Pc Picture Settings
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode. PC Picture Settings For adjusting PC picture items, do the following: Press “ ” or “ ” button to select Picture icon. Picture menu appears on the screen. -
Page 31: Con Guring Your Tv's Settings
Balance: This setting is used for emphasizing left or right speaker balance. Headphone: Sets headphone volume. Sound Mode: You can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode. AVL: Automatic Volume Limiting (AVL) function sets the sound to obtain ... -
Page 32: Con Guring Language Preferences
Con guring Language Preferences You can operate the TV’s language settings using this menu. Press “MENU” button and select the Settings icon by using “ ” or “ ” button. Press OK button to view Settings menu. Use “ ” or “ ” button to highlight Language and press OK to continue: Use “... -
Page 33: Parental Settings Menu Operation (*)
To display parental lock menu options, PIN number should be entered. Factory default PIN number is 0000. After coding the correct PIN number, parental settings menu will be displayed: Parental Settings Menu Operation • Select an item by using “ ”... -
Page 34: Deleting A Timer
• Press GREEN button. Edit Timer menu screen will be displayed. • When nished with editing, press GREEN button to save. You can press “MENU” button to cancel. Deleting a Timer • Select the timer you want to delete by pressing “ ”... -
Page 35: Con Guring Source Settings
Con guring Source Settings You can enables or disable selected source options. The TV will not switch to the disabled source options when “SOURCE” button is pressed. • Select Sources in the Settings menu and press OK button. • Press“ ”... -
Page 36: Other Features
Standby Search (optional): Use “ ” or “ ” button to select Standby Search and then press “ ” or “ ” button to set this setting as On or Off. If you change Standby Search to Off, this function will be unavailable.To use Standby Search please make sure that you select Standby Search as On. -
Page 37: Tips
Tips Screen Care: Clean the screen with a dry, soft cloth. Do not use abrasive solvents as they may damage the coating layer of the TV screen. For your safety, unplug the mains plug when cleaning the set. When moving the TV, hold it properly from the bottom part. -
Page 38: Appendix A: Pc Input Typical Display Modes
Appendix A: PC Input Typical Display Modes The display has a maximum resolution of 1920 x 1200. The following table is an illustration of some of the typical video display modes. Your TV may not support different resolutions. Supported resolution modes are listed below. If you switch your PC to an unsupported mode, a warning OSD should appear on the screen giving you 15 seconds to change back to your last setting. -
Page 39: Appendix B: Av And Hdmi Signal Compatibility (Input Signal Types)
Appendix B: AV and HDMI Signal Compatibility (Input Signal Types) Source EXT-1 EXT-2 (SIDE AV) YPbPr HDMI1 HDMI2 HDMI3 HDMI4 In some cases a signal on the LCD TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc. -
Page 40: Appendix C: Supported Dvi Resolutions
Appendix C: Supported DVI Resolutions When connecting devices to your TV’s connectors by using DVI converter cables (not supplied), you can refer to the following resolution information. 24Hz 480i 480p 576i 576p 720p 1080i 1080p þ Appendix D: Supported File Formats for USB Mode Player Stream Audio... -
Page 41: Appendix E: Software Upgrade
Appendix E: Software Upgrade • Your TV is capable of nding and updating new software upgrades over broadcast channels. • For broadcast channels search, TV looks the available channels stored in your settings. So before software upgrade search, it is advised to auto search and update all available channels. 1) Software upgrade search via user interface •... -
Page 42: Speci Cations
Speci cations TV BROADCASTING PAL/SECAM B/G D/K K’ I/I’ L/L’ RECEIVING CHANNELS VHF (BAND I/III) UHF (BAND U) HYPERBAND NUMBER OF PRESET CHANNELS 10.000 CHANNEL INDICATOR On Screen Display RF AERIAL INPUT 75 Ohm (unbalanced) OPERATING VOLTAGE 220-240V AC, 50 Hz. AUDIO OUTPUT POWER (W ) (10% THD) RMS. -
Page 43: Dimensional Drawings
Dimensional Drawings English - 42 -... -
Page 44: End Of Life Disposal
End of life disposal English - 43 -...
