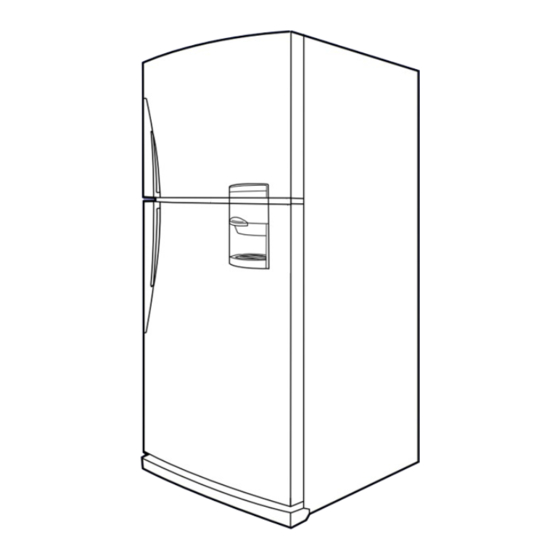

- Page 1 ELECTRO REFRIGERATOR Before operating the unit, please read this manual throughly, and retain for future reference. OWNER’S INSTRUCTIONS SR-608EV/648EV/688EV 606EV-646EV/686EV If you took out of the power supply outlet, you should plug in again after five minutes. DA68-60306A (Dispensor Applied)
-
Page 2: Table Of Contents
FEATURE What is H.M.CYCLE(High-efficiency Multi- evaporator CYCLE)? • A high efficiency cooling method adopting an independent cooler and an independent cool- ing fan in freezing room and refrigerating room, respectively. • A new cooling method providing an economic energy, power cooling function and supply of high humidity cool air by independent cooler and cooling fan. -
Page 3: Warnings For Safety
WARNING FOR SAFETY This is to prevent users or other persons from being wounded or injured, by using the present product properly. Be sure to observe these contents for safety. (After reading these contents, please keep in such a safe place as to look up) Contents of Caution/Warning Represents the contents that Warning... - Page 4 Do not put a tank filled with water on the product. • If water poured, it cause bad insu- lation of the electric parts which may lead to fire or electric shock. Do not disassemble, repair or alter. • It may cause fire or abnormal operation which leads to injury.
-
Page 5: Cautions For Safety
CAUTIONS FOR SAFETY Do not store too much foodstuffs therein. • Opening of the door may cause pouring over which may inflict a wound. If the hole of the power plug socket is loose, don’t insert the power plug. • It may cause electric shock and fire. Do not store articles on the product. - Page 6 Do not touch the tank and the food stuffs of the frezzing room with the wet hand. • It may cause frostbite. Please wipe out foreign materials of the metal option of the power plug cleanly. • Use of it as it is may cause fire. Move it by catching the upper handle of rear side and the lower handle of front side.
-
Page 7: Features
FEATURES X-FLOW COOLING SYSTEM FOR REDUCING THE LOSS OF COOL AIR! Rotation cooling method • The current cooling method has been a fixed one where the cool air comes directly out of one or 2~3 walls of refrigerator. X-FLOW cooling refrigerator has adopted the rotating fans in all 3 rooms that make use of the sensitivity technology that rotate vigorously, allowing the cool air to be spurted out and the whole area including every corner in refrigerator to be cool instantly. - Page 8 SEPARATE AND INDEPENDENT COOLING OF REFRIGERATING AND FREEZING ROOMS! Refrigerator of energy-saving type • It adopts the high-efficiency Multi-evaporator CYCLE that makes it possible to cool the refrigerating room and freezing room separately and to reduce the power consumption and energy. Super-power cooling technique for quick refrigeration.
-
Page 9: Ready To Use
READY TO USE This mark indicates the page to be referred to. Please install the refrigerator with sufficient space apart at the place with a flat bottom surface. • An incorrect leveling may cause noises and impossible cooling. over 30cm over 5cm Please insert the plug in an outlet. - Page 10 THE CORRECT WAY OF PRESERVING FOODS. Please keep them after washing. Please do not store foods which are apt to go bad in low temperature. (Examples : Bananas, Pineapples, Tomatoes etc.) Please arrange foods with proper distance each other. • If the exit of cool air is blocked, the storing efficiency gets low due to the bad cool air circulation.
-
Page 11: Front Operating Panel
FRONT OPERATING PANEL This mark indicates the page to be referred to. Power freezing It freezes the foods in the freezing room at a high speed. QUICK FRE. FRE. CONTROL DOOR ODOR QUICK FRE. ALARM FREE FRE. Temperature control button of freezing room It is able to adjust the temperature in freezing room. -
Page 12: Display Panel
DISPLAY PANEL High moisture refrigerating function A high moisture refrigerating display lamp is always on when the refrigerator is in opera- tion. • The refrigerator adopted separate coolers in freezing and refrigerating rooms, respectively, that can supply a high moist cool air and there- fore it can preserve the foods in fresh state. -
Page 13: How To Use Freezing Room
HOW TO USE FREEZING ROOM ICE TRAY Indoor lamp in freezing ce storage tank HOW TO MAKE ICE Please pour water of appropriate amount on the ice tray. Drying room Air-shower What is the technique of air-shower? It is a technique that allows spraying the cool air evenly in freezing room, thus foods can be frozen more uniformly. - Page 14 POWER FREEZING/TEMPERATURE CONTROL OF FREEZING ROOM The artificial intelligent function keeps the adjusted temperature of freezing room in the optimum state conforming with conditions of use. Power freezing(Quick freezing) When you want to freeze foods at a fast speed or to get ice quickly, The red lamp is on when selecting Power freezing by pressing “QUICK FRE”...
-
Page 15: How To Use Refrigerating Room
HOW TO USE REFRIGERATING ROOM High humidity special fresh room (Chilled room) High humidity Vegetable room Transparent safe shelf Models applied : SR-608EV/648EV/688EV(Dispenser Model) Water tank Space for drinks Egg tray Guard variety Jumbo guard bottle... - Page 16 POWER REFRIGERATION/TEMPERATURE CONTROL OF REFRIGERATING ROOM The artificial intelligent function keeps the adjusted temperature of refrigerating room in an optimum state conform- ing with conditions of use. Power refrigeration When you want to cool the foods quickly. The red lamp is on when selecting POWER REFRIGERATING by pressing “QUICK ref” button Please press the button one more time for cancelling power refrigeration.
- Page 17 Whenever pressing the temperature control, the temperature setting is changed in sequence of “LOW LOW MID MID MID HIGH HIGH” and it goes to “LOW” when pressing the button one more time at “HIGH”. Since power refrigerating function is automatically completed, it is automatically transferred, after power refrigeration, to the previous temperature setting before the power refrigerating function is operated.
-
Page 18: How To Preserve The Refrigerated Foods
HOW TO PRESERVE THE REFRIGERATED FOODS High humidity special fresh room (chilled Room ) • Please use this room for foods to be stored in colder environments than refrigerating room. Please keep meat or fish in freezing room for its long storage. - Page 19 Space for drinks • Lower space for beer, 1000ml milk, juice and upper space for 1.5 l tank or water jar. Lower space Upper space The frequent opening of refrigerator door may cause dews on the inside of it. Super high humidity vegetable room •...
-
Page 20: Functions Of Water Dispenser
FUCTIONS OF WATER DISPENSER Models applied : SR-608EV/648EV/688EV What is the water dispenser? If a water tank full of water and equipped with water supply device is inserted into the location where the water supply lever in the refrigerating room is connected to, the cold water can be available at the outside of door even without opening the door by pressing the water supply lever. - Page 21 HOW TO USE WATER DISPENSER Please lift up and pull out the water tank. • Please hold the groove of both hand grips and pull out the water tank while lifting it up. • Please clean the inside of water tank when using it for the first time.(Refer to page 21) Please fill the water tank with water after placing it up on flat surface except for water sup- ply device.
-
Page 22: How To Clean
HOW TO CLEAN HOW TO CLEAN WATER DISPENSER Please separate the large lid from water tank after pulling it out. • It can be separated from water tank when pulling up both hand-grips of large lid. Please separate the water tank from water supply device. - Page 23 OTHER WAYS OF CLEANING High humidity special fresh room (Chilled room) Please wipe and clean the high humidity special fresh room with water and neutral detergent after pulling it out. Rubber packing • Clean the rubber packing with neutral deter- gent as the door can not be easily closed if it is polluted.
-
Page 24: How To Disassemble And Assemble The Water Supply Device
HOW TO DISASSEMBLE AND ASSEMBLE THE WATER SUPPLY DEVICE When you want to further clean every corners of the water supply device, disassemble and assemble it after clean- ing as follows. HOW TO DISASSEMBLE (MODELS APPLIED : SR-608EV/648EV/688EV) Part (small rubber packing) Part (2-1) Part (Medium rubber packing) Part (Large rubber packing) - Page 25 Pull out part while pressing the lower end of part with the thumb. • At this time, pull it out lightly so as not to dam- age the part (small rubber packing) part Pull out part. Pull out part by tapping the part on the floor.
- Page 26 HOW TO ASSEMBLE Fit the part, while pressing it, into part. Insert part and part into part. part Insert ®Á part while pressing the lower end of ® A part. part part • At this time, the popping portion of part has to be fitted into the grooves of part.
-
Page 27: How To Disassemble The Accessories
HOW TO DISASSEMBLE THE ACCESSORIES Freezing room shelf • Pull out the ice tray first and then lift up the front part of freezing room shelf and pull it out forward. High humidity special fresh shelf • Lift up and pull out the high humidity special fresh shelf at the blocking point while pulling it out to the arrow direction. -
Page 28: How To Install
HOW TO INSTALL HOW TO ADJUST LEVELING Adjust the leveling of refrigerator. • If the refrigerator is so installed to make its front a little high, the door can be easily opened and closed. Refrigerator leaning to the left. Make leveling by filling the groove of adjustible leg on the left side and turning it to arrow direction. - Page 29 PRECAUTIONS FOR INSTALLATION Aviod any flammable materials. • Spraying of flammable materials may cause a fire. • It is dangerous to unplug when gas is leaking. Avoid heat and water • They may cause rust or color deteri- oration on exterior of refrigerator. Do not keep other stuffs in rear and top of refrigerator.
- Page 30 HOW TO GROUND The refrigerator should be grounded. The purpose of grounding is to prevent any power leakage or electric shock caused by the current leakage from the refrigerator. Never ground to gas pipes, telephone line and lightning rod as it is very dangerous at the time of lightning strikes. In case of outlets without ground terminals.
- Page 31 3. After fitting the front part of indoor lamp cover, fit the rear sill area and then fix it with screw. In case of having difficulties in replacing and purchasing parts, contact the nearest Samsung Electronic service center. driver –...
-
Page 32: Before Asking For Service
BEFORE ASKING FOR SERVICE SYMPTIOMS Non-operation or bad refrigeration Foods in refrigerating room are frozen Noises and strange sound Too hot at the front corner and side wall areas of refrigerator. Dew are forming CHECK • Check the connection of power plug. •... - Page 33 SYMPTIONS Sound of water flow in refrigerator Smell in the refrigerator Frost on the wall of freezing room Dews in the refrigerating room walls and vegetable CHECK • It is the flowing sound of refrigerant that is cooling the inside of refrigerator. Some smells may be generated in refrigerator or in ice when in use as follow.
-
Page 34: Questions
QUESTIONS WHAT IS THE LOW TEMPERATURE CATALYZING DEODORIZER? Low temperature catalyzing deodoriz- er is installed at cool air suction hole where the air of refrigerating room is sucked, therefore, even without any additional operation, smells are removed while air is in a natural circulation. - Page 35 MEMO...
- Page 36 ELECTRONICS...
