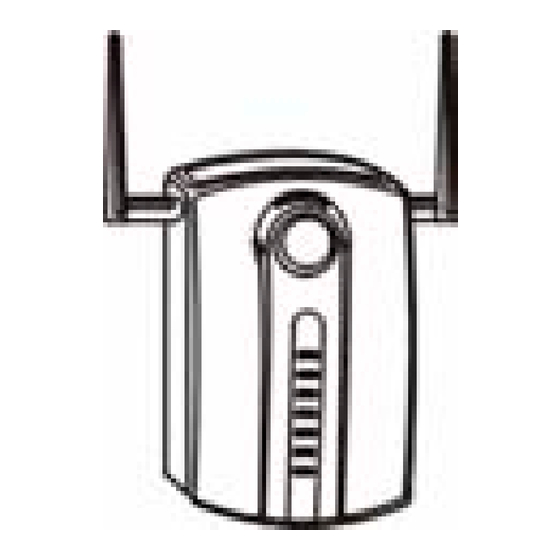

ZyXEL Communications ZYAIR B-3000 Quick Start Manual

802.11b wireless access point
Hide thumbs Also See for ZYAIR B-3000:
Table of Contents

Advertisement

Quick Links

See also: User Manual
ZyAIR B-3000
802.11b Wireless Access Point

Quick Start Guide

Version 3.50
5/2005

Advertisement

Table of Contents
loading

Related Manuals for ZyXEL Communications ZYAIR B-3000

Summary of Contents for ZyXEL Communications ZYAIR B-3000

  • Page 1: Quick Start Guide

    ZyAIR B-3000 802.11b Wireless Access Point Quick Start Guide Version 3.50 5/2005...

  • Page 2: Hardware Connections

    Overview The ZyAIR B-3000 offers highly secured wireless connectivity to your wired network with IEEE 802.1x, Wi-Fi Protected Access, WEP data encryption and MAC address filtering. This Quick Start Guide shows how to set up and configure the ZyAIR to allow wireless clients to access your wired network. See your User’s Guide for more information.

  • Page 3: Accessing The Web Configurator

    ETHERNET port is properly connected. See the ZyAIR Front Panel LED Description table in the User’s Guide for more information. 2 Accessing the Web configurator Use Internet Explorer 6.0 and later or Netscape Navigator 7.0 and later versions with JavaScript enabled. ZyAIR B-3000...
  • Page 4 192.168.1.254), Subnet mask (255.255.255.0), and Default gateway (192.168.1.2) fields. 7 Click OK to close the Internet Protocol (TCP/IP) Properties window. 8 Click Close (OK in Windows 2000/NT) to close the Local Area Connection Properties window. Close the Network Connections screen. ZyAIR B-3000...
  • Page 5 ZyAIR’s default IP address) as the address. If the login screen does not display, see 6.1 on page 10 to set your computer’s IP address. ZyAIR B-3000 2 Click Login (the default password 1234 is already entered). Section 3 Change the login password by entering a new...

  • Page 6: Internet Access Setup

    Domain Name: Enter a domain name if your ISP requires one for authentication; otherwise you can leave it blank or set to whatever may have displayed automatically. 2 Use the second wizard screen to set up the wireless LAN. ZyAIR B-3000...
  • Page 7 Use fixed IP address and enter it along with the subnet mask and gateway IP address. Click Finish. Note: If you change the ZyAIR’s IP address, you must use the new IP address if you want to access the web configurator again. ZyAIR B-3000...

  • Page 8: Attaching Antennas

    ZyAIR high up free of obstructions. Free-standing Place your ZyAIR on a flat, level surface (on a desk or shelf) that is strong enough to support the weight of the ZyAIR with connection cables. ZyAIR B-3000...
  • Page 9 Note: Make sure the screws are securely fixed to the wall and strong enough to hold the weight of the ZyAIR with the connection cables. 3 Adjust the cables. Run the connection cables down the back of the ZyAIR as shown in the following figure. Run the connection cables upward and along the edge of the ceiling. ZyAIR B-3000...

  • Page 10: Power Over Ethernet (Poe)

    Make sure you are using the correct power adaptor and the power adaptor is plugged into an appropriate power supply. Unplug the power adaptor and plug it in again. If the error persists, you may have a hardware problem. In this case, you should contact your vendor. ZyAIR B-3000...
  • Page 11 6.1 Procedure to View a Product’s Certification(s) 1 Go to www.zyxel.com. 2 Select your product from the drop-down list box on the ZyXEL home page to go to that product's page. 3 Select the certification you wish to view from this page. ZyAIR B-3000...
