Page 1: Tumble Dryer

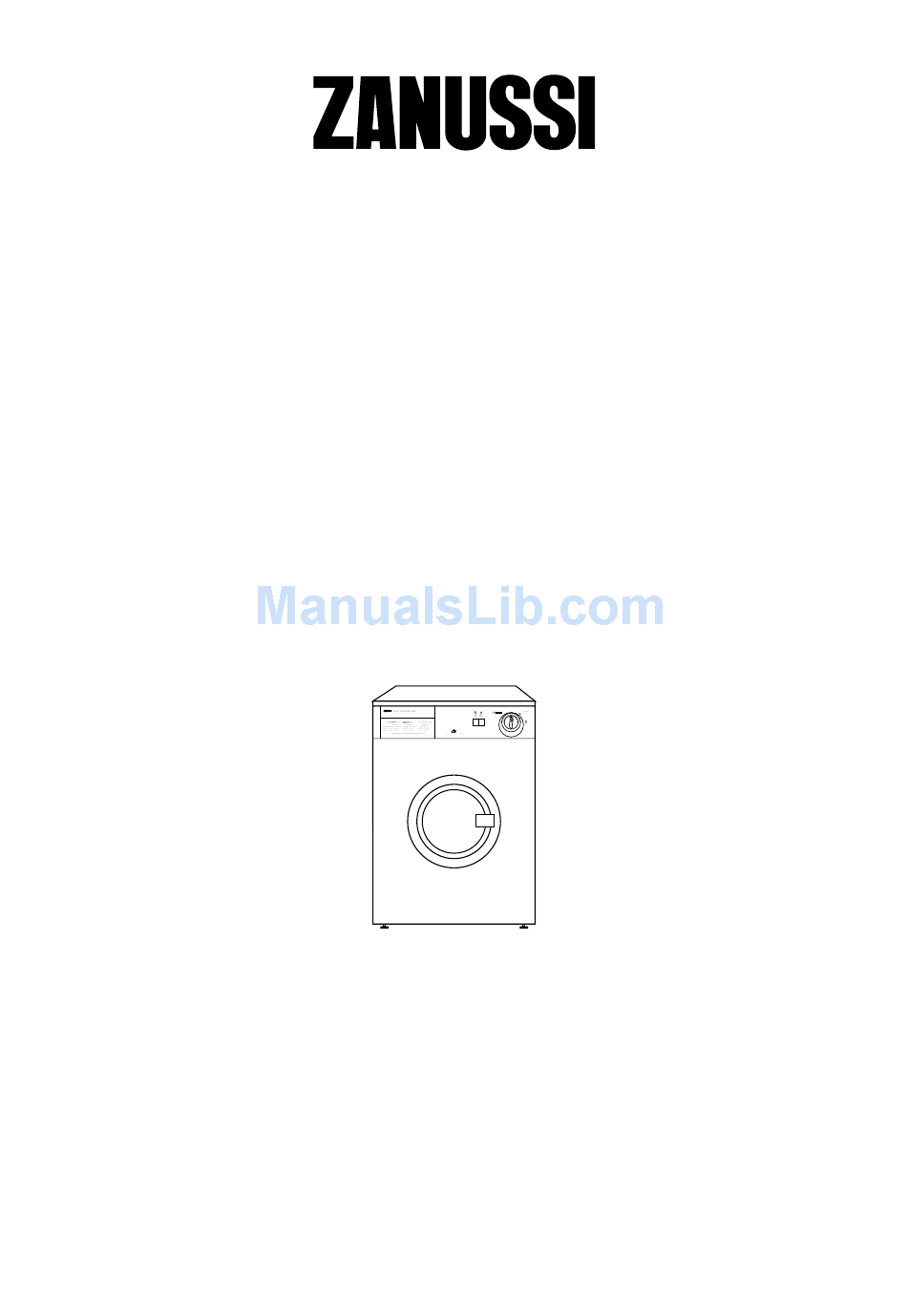

TUMBLE DRYER TDS 383 W INSTRUCTION BOOKLET 125994181... -
Page 2: Important Safety Information
Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Zanussi Service Centre. Always insist on genuine Zanussi spare parts. -
Page 3: Table Of Contents
Something Not Working Service and Spare Parts Customer Care Guarantee Conditions Zanussi Service Force Guide to use the Instruction Book The following symbols will be found in the text to guide you throughout the instructions: For the Installer Installation Instructions... -
Page 4: Your New Tumble Dryer
Your New Tumble Dryer This tumble dryer will give your wash that soft, relaxed feel whatever the weather. Extremely high quality standards both during development and manufacturing guarantee a long service life for your appliance. Maximum economy in the operation of your dryer is achieved through very frugal electricity consumption and short drying times. -
Page 5: Description Of The Appliance
Description of the Appliance 1 Top cover 2 Programme chart 3 Low Temperature Button 4 Cool Tumbling Button 5 Mains-On Light 6 Drying Time Selector Dial 7 Rating Plate 8 Fluff filter 9 Door Handle 10 Adjustable feet 11 Side vent outlet 12 Ring nut 13 Rear vent outlet... -
Page 6: The Control Panel
The Control Panel 1 Programme Chart This will help you to select the correct time for drying. 2 Low Temperature Button Press this button to reduce the temperature when drying particularly delicate cotton or linen items. In this case you should select a longer drying time. On the programmes for synthetics the temperature is automatically reduced. -
Page 7: Programme Chart
Programme Chart Cotton and linen Selector dial: up to 120 minutes Type of laundry: Cotton Towelling Shirts Sheets Hand towels Tablecloths Table napkins (not completely dry; suitable for ironing) ATTENTION! If you are drying delicate cotton, select the ‘low temperature’ option Synthetics Selector dial: up to 80 minutes Degree of drying... -
Page 8: Operating Sequence
Operating Sequence Before using your tumble dryer for the first time, we recommend to place a few damp cloths inside the appliance and dry for approximately 20 minutes. There may be dust inside a brand new tumble dryer. 1. Load the laundry Open the door by pulling the door handle forwards. -
Page 9: Hints & Tips On Drying
Hints & Tips on Drying Before placing articles of laundry in your tumble dryer, check the care labels to ensure they are recommended for tumble drying. Care Labels you may find on your laundry normal drying (high temperature) delicate drying (low temperature) may be tumble dried do not tumble dry Do not overload the appliance. -
Page 10: Maintenance And Cleaning
Maintenance and Cleaning You must disconnect the appliance from the electricity supply, before you can carry out any cleaning or maintenance work. External cleaning Use only soap and water and then dry thoroughly. From time to time, apply a little wax furniture cream with a soft cloth. -
Page 11: Something Not Working
Service & Spare Parts In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Zanussi Service Force Centre by telephoning: 0870 5 929929 Your telephone call will be automatically routed to the Service Force Centre covering your post code area. -
Page 12: Guarantee Conditions
Guarantee Conditions Standard guarantee conditions We, Zanussi undertake that if, within 12 months of the date of the purchase, this Zanussi appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at... -
Page 13: Zanussi Service Force
To contact your local Zanussi Service Force Centre telephone CHANNEL ISLANDS GUERNSEY Guernsey Electricity PO Box 4 Vale, Guernsey Channel Islands JERSEY Jersey Electricity Company PO Box 45 Queens Road St Helier Jersey Channel Islands JE4 8NY SCOTLAND ABERDEEN 54 Claremont Street... -
Page 14: Zanussi Service Force
To contact your local Zanussi Service Force Centre telephone MIDLANDS BIRMINGHAM 66 Birch Road East (M18) Wyrley Road Ind. Estate Witton Birmingham B6 6DB BOURNE Manning Road Ind. Estate (M44) Pinfold Road Bourne PE10 9HT BRIDGNORTH 68 St. Mary’s Street... -
Page 15: Installation Instructions
Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 16: I Positioning
Positioning It is recommended that, for your convenience, the machine is positioned close to your washing machine. Whilst drying, the tumble dryer will expel a certain amount of warm, very moist air, and this should be removed from the room as quickly as possible to prevent condensation. - Page 17 Advice: If the hose is long and the room temperature low, the moisture might condense to water inside the hose. This is an unavoidable natural phenomenon. To prevent this water from lying in the hose or flowing back into the tumble dryer, it is advisable to drill a small hole (dia.
-
Page 18: Door Reversal
Door reversal To make it easier to load or unload the laundry the door can be reversed. This operation must be carried out by qualified personnel. Operate as follows: - Remove the door by unscrewing the two screws (1) fastening the hinge to the cabinet (Fig. A). - Remove the safety catch (2) and the plug (3) by bending the two fastening tags (Fig. -
Page 19: Electrical Connection
Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. WARNING: THIS APPLIANCE MUST BE EARTHED. The manufacturer declines any liability should this safety measure not be observed. Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance’s rating plate. - Page 20 From the Electrolux Group. The world’s No. 1 choice The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
