Yamaha MV800 Owner's Manual

Yamaha mixer owner's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

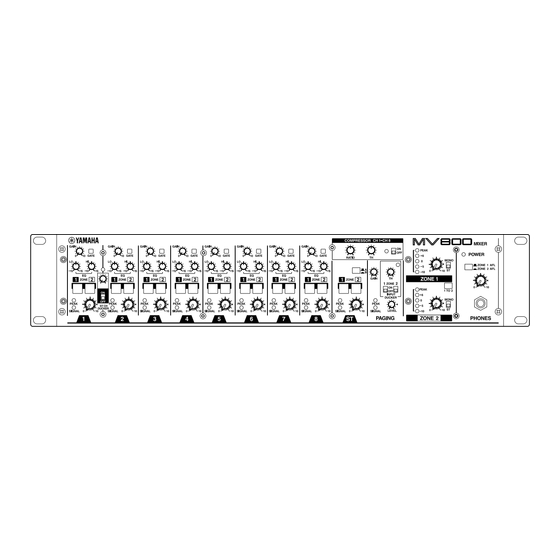

MIXER
Owner's Manual
Thank you for purchasing the YAMAHA MV800.
The MV800 is an easy to operate mixer that offers an excellent balance
between line input devices for BGM or Karaoke and microphone input.
When the hall is divided into two zones, the MV800 also offers individual
control of those two zones directly from the front panel without the need to
change the wiring making it an excellent mixer for banquet rooms, etc.
In order to get the most out of your MV800 and its excellent functions, and
to enjoy years of trouble-free use, please read this Owner's Manual thor-
oughly before using. And please keep it, in a safe place for future reference.
Keep This Manual For Future Reference.

Advertisement

Table of Contents
loading

Related Manuals for Yamaha MV800

Summary of Contents for Yamaha MV800

  • Page 1 In order to get the most out of your MV800 and its excellent functions, and to enjoy years of trouble-free use, please read this Owner’s Manual thor- oughly before using.
  • Page 2 N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. * This applies only to products distributed by YAMAHA KEMBLE MUSIC (U.K.) LTD.

  • Page 3: Operating Notes

    Consult your dealer about replacing defective components. • Use only the specific screws that are provided with the MV800 to attach the supplied security cover. Also, after wiring the Euro-block connectors, use the same screws that held the security cover in place when replacing the cover.

  • Page 4: Table Of Contents

    MV800 Features • The MV800 provides 8 channels with monaural input jacks, A/B stereo line input jacks and two sets of stereo outputs that are selectable from the front panel. • Monaural input jacks are equipped with an input select switch that...

  • Page 5: Front & Rear Panels

    • DUCKER Attenuator Sets the volume level to which the signal from the ST input jacks will be lowered when the DUCKER Function is operating. Rotating the knob to the right decreases the volume. Front & Rear Panels MV800 — Owner’s Manual...

  • Page 6: Stereo Channel & Master Control Sections

    • COMPRESSOR ON/OFF Switch Switches the COMPRESSOR ON/OFF. • COMPRESSOR Indicator Lights when the COMPRESSOR is activated. MV800 — Owner’s Manual !0 !1 • TH Control Sets the input level (Threshold level) at which the compressor will function. Rotating the control to the right allows the compressor to function at lower volume levels.

  • Page 7: Power Indicator

    I Attaching the Security Cover The MV800 is supplied with a security cover for channels 1-8, the ST channel, and the compressor and paging sections. If the security cover is needed to protect knobs and switches from being tampered with, attach the security cover after connecting and setting up the microphones and line devices, etc.

  • Page 8: Rear Panel Section

    MV800 — Owner’s Manual MIC: Compatible with 50-600Ω microphones. • LINE: Compatible with 600Ω line level devices.
  • Page 9 ZONE 1 signal is sent to the Tip while the ZONE 2 signal is sent to the Ring. When multiple MV800s are connected together, this jack sends the signal to the main MV800. It can also be used to send the signal to an external device. r PAGING Input •...

  • Page 10: About The Accessories

    After wiping any dust and grime on the surface of the mixer, remove the adhesive’s protective cover on the top of the feet and attach to the mixer. MV800 — Owner’s Manual Secure with a minus (-) driver. Euro-block connector...

  • Page 11: About The Mv800'S Functions

    An unused microphone often picks up unwanted background noise. One way to prevent the problem is to turn the microphone off or set its channel volume on the MV800 to “0” when necessary. An easier way to solve the problem is to use the NOISE GATE.

  • Page 12: Applications

    Example) When Using Two Zones In this example, the MV800 is used to control the sound in two rooms, a banquet room and a Karaoke room. Before making any connections, make sure that power switches on the MV800 and any connected devices are turned OFF.
  • Page 13 OUTPUT Select the zone you want to monitor. Set the 1 TO 2 Switch OFF PHONES REC OUT 1L, 1R Cassette Deck for recording ZONE 1 REC OUT 2L, 2R Cassette Deck for recording ZONE 2 MV800 — Owner’s Manual...

  • Page 14: Overall Controls

    • Connect a pair of headphones to the PHONES jack and set the ZONE AFL Select Switch to “ZONE 1 AFL” (?) to monitor the final output. MV800 — Owner’s Manual <Setting: ZONE 2> G Channel 5 and 6 Settings 1.

  • Page 15: Supplement

    • 3-pin Euro-block connectors x 14 • Security Cover Set (Security Cover, Post Screws x4, Set Screws x4) USA and Canadian: 120V AC 60Hz General: 230V AC 50Hz 479 x 88 x 325 mm (without accessories) 7.2kg Supplement 0dB=0.775Vrms MV800 — Owner’s Manual...

  • Page 16: Input Specifications

    *3 Phone jack (TRS) (T=ZONE 1, R=ZONE 2, S=Gnd): unbalanced type. *4 RCA phono jack: unbalanced type. *5 Stereo phone jack (TRS) (T=L, R=R, S=Gnd): unbalanced type. • 0dB=0.775Vrms, 0dBV=1Vrms Specifications are subject to change without prior notice. MV800 — Owner’s Manual Input level Nominal impedance Sensitivity *1 Nominal -72 dB (0.195mV)

  • Page 17: Dimensions

    Supplement Dimensions 87.5 Units: mm MV800 — Owner’s Manual...

  • Page 18: Block And Level Diagrams

    Supplement Block and Level Diagrams RATIO ZONE2 ZONE1 MV800 — Owner’s Manual ZONE2 ZONE1...
  • Page 19 MV800 — Owner’s Manual...
  • Page 20 YAMAHA CORPORATION V627640 R1 1 CP 20 Pro Audio & Digital Musical Instrument Division P.O. Box 3, Hamamatsu, 430-8651, Japan NP Printed in Taiwan...
