White Rodgers 1F97W-71 Operation Manual

7-day programmable electronic digital thermostat
Hide thumbs Also See for 1F97W-71:
Table of Contents

Advertisement

Quick Links

See also: User Manual

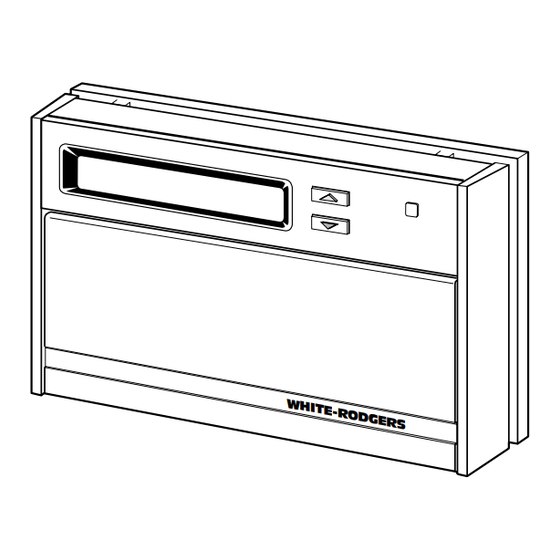

1F97W-71
OPERATION GUIDE
7-Day Programmable Electronic
Digital Thermostat
WHITE-RODGERS
W H I T
E - R O
D G E R
S
Operator: Save this booklet for future use!

Advertisement

Table of Contents
loading

Related Manuals for White Rodgers 1F97W-71

Summary of Contents for White Rodgers 1F97W-71

  • Page 1 1F97W-71 OPERATION GUIDE 7-Day Programmable Electronic Digital Thermostat WHITE-RODGERS W H I T E - R O D G E R Operator: Save this booklet for future use!

  • Page 2: About Your New Thermostat

    About Your New Thermostat . . . Your new White-Rodgers Digital Thermostat uses the technology of a solid-state microcomputer to provide precise time/temperature control. This thermostat offers you the flexibility to design heating and cooling programs that fit your needs. Please read this manual thoroughly before operating or programming your thermostat.
  • Page 3 YOUR NEW THERMOSTAT'S FEATURES ... 4 OPERATING YOUR THERMOSTAT ... 5 PARTS OF THE THERMOSTAT The Back Of the Thermostat Body The Display The Thermostat Buttons OPERATING FEATURES PROGRAMMING YOUR THERMOSTAT ... 18 PLANNING FOR YOUR NEEDS In This Guide . . . ENTERING YOUR PROGRAM Set Current Time and Day Select Heating and Cooling Temperatures...

  • Page 4: Your New Thermostat's Features

    YOUR NEW THERMOSTAT’S FEATURES • Seven independent day programming • Simultaneous heat and cool program storage • Four separate time/temperature settings per 24-hour period • Computed Energy Management Recovery (EMR) • Automatic changeover (operator-selectable) • Armchair programming capability • Backlit LCD displays continuous set point, time, and room temperature •...

  • Page 5: Operating Your Thermostat

    OPERATING YOUR THERMOSTAT Before you begin programming your thermostat, you should be familiar with its features and with the display and the location and operation of the ther- mostat buttons. The information in this section will help you become familiar with your new thermostat so that you can easily program it.

  • Page 6: Parts Of The Thermostat

    connect the three pin connectors on the lower portion of the thermostat back. Gently push until the snap connectors engage. DO NOT FORCE OR PRY THE THERMOSTAT, as this may dam- age the unit. PARTS OF THE THERMOSTAT The Back of The Thermostat Body Turn the thermostat body over.
  • Page 7 You may adjust the option switches for EMR, keypad lockout, and automatic changeover from heat to cool (see OPERATING FEATURES). Other than cated behind the thermostat door. To open the door, pull the door out from the top, then swing the door down on its hinges.
  • Page 8 The Display Continuously displays system mode (HEAT, OFF, COOL, AUTO, HOLD). During pro- gramming, the day of the week is displayed (MON, TUE, WED, etc.). Alternately displays room temperature (F de- notes degrees Fahrenheit and C denotes de- grees Celsius) and time of day (A denotes AM time and P denotes PM time).
  • Page 9 FAN AUTO TIME SYSTEM HEAT-OFF-COOL-AUTO TIME BACK - AUTO FAN AUTO VIEW HOLD CLOCK PRGM COPY VIEW TEMP PRGM FAN ON BATTERY...
  • Page 10 The Thermostat Buttons Sets the system mode (HEATing, OFF, COOLing, or AUTOmatic changeover). Selects fan operation (see #6, above). This button is also used to program the fan to run continuously during a program period. Runs display forward or backward through time, day, or anticipation settings during pro- gramming.
  • Page 11 FAN AUTO TIME SYSTEM HEAT-OFF-COOL-AUTO TIME BACK - AUTO 10 11 12 13 14 15 VIEW HOLD CLOCK PRGM COPY VIEW TEMP PRGM...

  • Page 12: Operating Features

    OPERATING FEATURES Now that you are familiar with the thermostat display and buttons, read the following information to learn about the many features of the thermostat. • COMPUTED ENERGY MANAGEMENT RE- COVERY (EMR) — The thermostat’s micro- computer can be set to automatically calculate the time it will take to change the temperature to the next program setting.
  • Page 13 AUTOMATIC CHANGEOVER to determine proper positions of Group B option switches #1 and #2. EMR Switch Positions Group B Option Switches Switch #1 (see AUTOMATIC CHANGEOVER) Switch #2 (see AUTOMATIC CHANGEOVER) Switch #3 OFF • AUTOMATIC CHANGEOVER — If you have a heating/cooling system, you can set the thermostat to automatically switch the system from heating to cooling as needed.
  • Page 14 (the setpoint temperature display is blank in the AUTO mode). The system will now auto- matically switch between heating and cooling, depending on the actual room temperature. Auto Changeover Switch Positions Group B Option Switches Switch #1 ON Switch #2 OFF Switch #3 (see Energy Management Recovery) NOTE In the AUTO mode, the thermostat will not allow...
  • Page 15 the selected setting until you press start program operation again. This feature is ideal for energy conservation when the build- ing is unoccupied for an extended period of time. • F/ C CONVERTIBILITY — Press TIME at the same time until the temperature BACK display is in C (Celsius).
  • Page 16 TIME press to decrease the cycle time. To set BACK cooling anticipation, press at the same time again. The display will show COOL 14 (factory preprogrammed cooling anticipation). Use the tons to adjust anticipation. Press return to your program. • LOW BATTERY INDICATOR — The three "AA"...
  • Page 17 • AUDIO PROMPTING — Each time you press a button, the thermostat will beep. • BACKLIT DISPLAY — When you press any button on the thermostat, the display is lit for approximately eight seconds. • SYSTEM INDICATOR LIGHT — The red light on the upper right part of the thermostat indi- cates system operation (see PARTS OF THE THERMOSTAT).

  • Page 18: Programming Your Thermostat

    Total Keypad Lockout Switch Positions Group A Option Switches Switch #1 ON Switch #2 OFF PROGRAMMING YOUR THERMOSTAT Now you are ready to program your thermostat. This section will help you plan your thermostat's program to meet your needs. For maximum comfort and efficiency, keep the following guidelines in mind when planning your program.

  • Page 19: Planning For Your Needs

    PLANNING FOR YOUR NEEDS First, answer the following questions to help you decide what your needs are. If you are using the thermostat for a commercial application (a store, office building, etc.), answer questions 1 through 4. If you are using the thermostat in your home, answer questions 5 through 8.
  • Page 20 6a. What time does the last person leave the house in the morning? b. What temperature should the house be at this time? These will be your DAY temperature settings. 7a. What time does the first person arrive home in the evening? b.
  • Page 21 est heat temperature and the lowest cool tempera- ture (see diagram below). COOLING TEMPERATURES DEAD BAND 1°F HEATING TEMPERATURES Determine the time periods during which you will program the temperatures you have just selected. You must program four periods for each day (periods 1, 2, 3, and 4).

  • Page 22: Entering Your Program

    different time periods for each day separately (for example, heating/cooling period 1 on Mon- day may begin at 5:00 AM, but heating/cooling period 1 on Saturday may begin at 9:00 AM). Use the following table to plan your program time periods, and the temperatures you want during each period.
  • Page 23 Heating/Cooling Schedule Plan THIS THERMOSTAT ALLOWS ONE SET OF TIMES FOR BOTH HEATING AND COOLING Period 1 Period 2 Period 3 Period 4 Heat Cool Heat Cool Heat Cool Heat Cool Time Temp. Temp. Time Temp. Temp. Time Temp. Temp. Time Temp.
  • Page 24 Joe's Restaurant Closed Mondays Open Tues. – Sat. 10:30 AM to 10:00 PM Open Sunday 6:30 AM to 2:00 PM THIS THERMOSTAT ALLOWS ONE SET OF TIMES FOR BOTH HEATING AND COOLING Period 1 Heat Time Temp. Monday 5:00 AM 65°...
  • Page 25 Press once. The display window will CLOCK show the hour only. EXAMPLE: TIME Press and hold either reach the correct hour and AM/PM designa- tion (AM begins at midnight; PM begins at noon). Press once. The display will show the CLOCK day of the week as an abbreviation (MON for Monday, TUE for Tuesday, etc.).
  • Page 26 temperature (HEAT A). At the right of the display is the currently programmed HEAT A setting. Press either temperature to your selected HEAT A setting (if you only want to program a temperature for HEAT A, skip to step 7.) VIEW Press once.
  • Page 27 Program Heating/Cooling Times and Heating Temperatures SYSTEM Press until HEAT is displayed. HEAT-OFF-COOL-AUTO VIEW Press once. MON, the abbreviation for PRGM Monday, and the number 1, representing the first heating/cooling period, will be displayed. Also displayed are the currently programmed start time for heating/cooling period 1 and the currently programmed HEAT A, B, C, or D temperature for heating/cooling period 1.
  • Page 28 time and heating temperature for Monday's period 2 will be displayed. Repeat steps 3 through 5 to select the start time, heating temperature, and fan operation for Monday's heating/cooling period 2. Repeat steps 3 through 7 for Monday's heat- ing/cooling periods 3 and 4. The thermostat has a built-in COPY feature.
  • Page 29 Program Cooling Temperatures CAUTION If outside temperature is below 50 F, we recommend that you remove the thermo- stat from the wall before proceeding with the following steps to program cooling temperatures. Personal injury and/or prop- erty damage could result from air condi- tioner compressor slugging.
  • Page 30 continuously during this period, press until PRG FAN is displayed. Repeat step 4 for Monday's heating cooling periods 3 and 4. HOLD Use the button, or press COPY other days to program. Remember, once you enter Monday's program, Monday's program is automatically copied into Tuesday's through Sunday's programs.

  • Page 31: Check Your Programming

    HOLD Press once. COPY will appear on the COPY display. A number from 1 to 7 will also be displayed, representing the day you have se- lected to copy from (Monday is 1, Tuesday is 2, etc.). For example, if in step 2 you selected to copy Wednesday's program, when you press HOLD , COPY 3 will be displayed.
  • Page 32 day's programming, go back to the program- ming instructions to correct the error. Press PRGM SYSTEM Press until COOL is displayed. HEAT-OFF-COOL-AUTO Repeat steps 2 through 5 to check cooling temperatures. Press to begin program operation. PRGM YOUR THERMOSTAT IS NOW COMPLETELY PROGRAMMED AND READY TO AUTOMATI- CALLY PROVIDE MAXIMUM COMFORT AND EFFICIENCY!

  • Page 33: Questions And Answers

    QUESTIONS AND ANSWERS How can I permanently change a part of my program? VIEW Press PRGM time/temperature schedule you want. Then TIME TIME press BACK change the program. See PROGRAMMING YOUR THERMOSTAT. How can I have no change in temperature from one time period to another? Simply select the same temperature for each consecutive time period.
  • Page 34 What happens if the electricity goes off or is manually shut off? If you have not installed 3 "AA" alkaline batter- ies, the display will go blank and the program will be lost in approximately one minute. When electricity is restored, the clock will reset itself to 12:00 PM (noon) and the thermostat will maintain a heating temperature of 64 F and a cooling temperature of 82 F until you reenter...
  • Page 35 During periods of low humidity (especially during cold weather), you may feel or see a spark discharge when you touch the thermo- stat. This may cause the program to be lost or the thermostat to display incorrectly. To cor- rect this, remove the thermostat from the wall and disconnect the battery.
  • Page 36 The display is flashing BATTERY. What does this mean? The "AA" batteries installed in the thermostat are low and should be replaced with fresh "AA" ® Energizer alkaline batteries. See OPERAT- ING YOUR THERMOSTAT. 10. The thermostat beeps every few minutes. What does this mean? The thermostat will beep every five minutes when the batteries are low and need replac-...
  • Page 37 CAUTION If the outside temperature is below 50 F, DO NOT use the button to move the temperature below the setpoint tempera- ture. Property damage may result due to compressor slugging. 13. Why doesn’t the temperature change at the time I programmed? There may be a number of causes for this situation.
  • Page 38 • The blower delay feature is operating. This energy saving feature continues to blow conditioned air through the ducts after the system has turned off, rather than letting the air dissipate. 15. Why is the system turning on and off so frequently (seldom)? The anticipation setting is too low (high).
  • Page 39 18. Do I have to reprogram my thermostat after I change the batteries? When the thermostat is on the wall and the system has power, the thermostat is being powered by a 24v AC source. If power is lost, or if the thermostat is removed from the wall, the program will be retained for approximately one minute if there are no batteries installed or if the installed batteries are dead.
  • Page 40 If you need further information on programming or operation, write to: White-Rodgers Division, Emerson Electric Co. 9797 Reavis Road St. Louis, MO 63123 Attn: Technical Service Department Part No. 37-5092A 9140...
