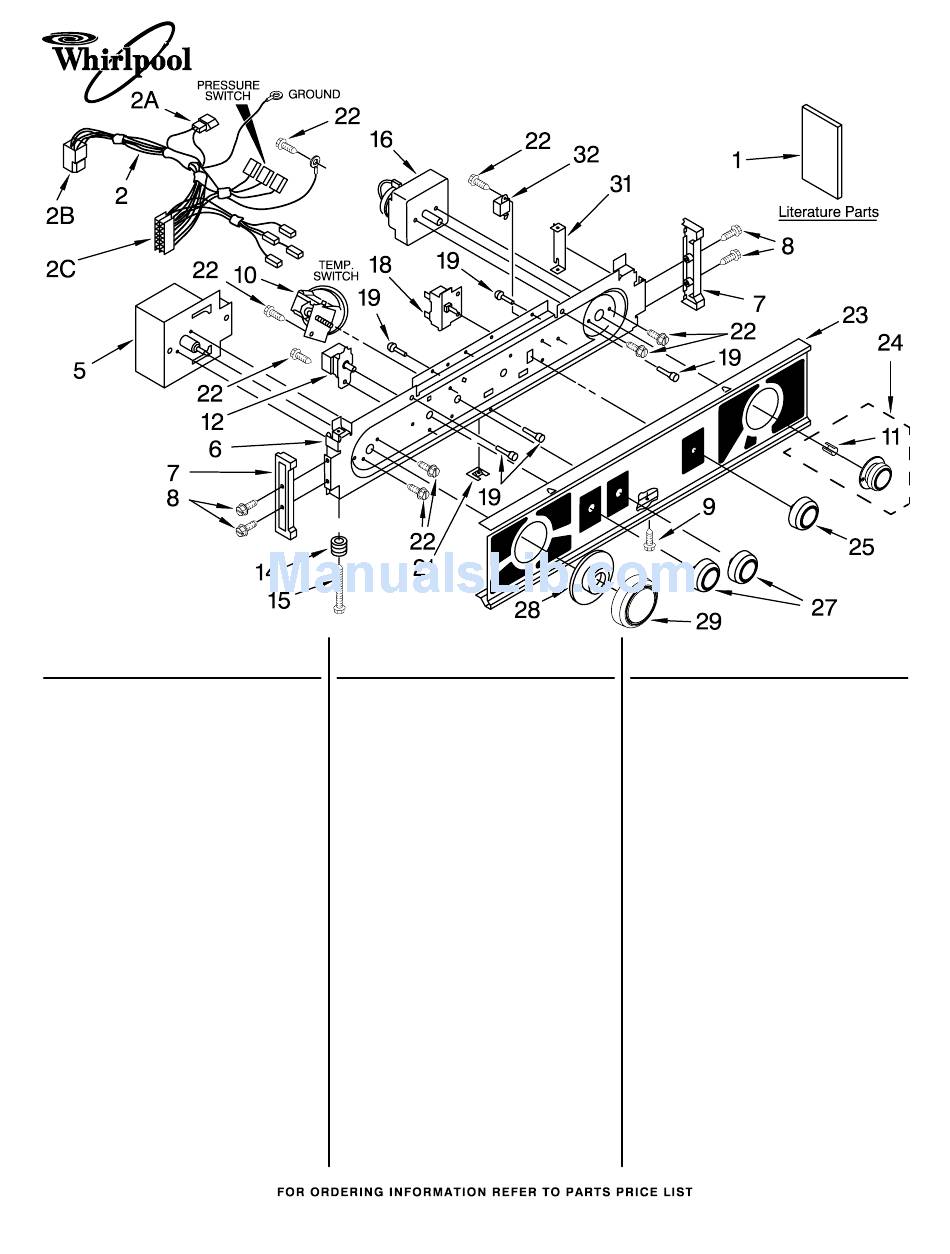

WASHER/DRYER CONTROL PANEL PARTS
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
8542748 Installation
Instructions
3406880 Use & Care Guide
3954161 Energy Guide
8542754 Sheet,
Cycle Feature
3952874 Wiring Diagram
2
3406288 Harness, Console
Wiring (Automatic)
(Includes Illus.
2A, 2B & 2C)
2A
3350130 Plug, Terminal
(2−Way)
(Connects With
Main Dryer
Harness)
2B
696073 Receptacle,
Connector
(Connects With
Lower Automatic
Harness)
2C
3948614 Disconnect Block
(Connects With
Automatic Timer)
8−05 Litho in U.S.A. (LT)
For Models: LTE5243DQ5, LTE5243DT5
(Designer White) (Biscuit)
Illus.
Part
No.
No.
DESCRIPTION
5
3952499 Timer, Control
(60 Hz.)
(Automatic Washer)
6
8528154 Bracket, Control
7
End Cap, Console
(L.H. & R.H.)
692993 White
3978584 Biscuit
8
348689 Screw, End Cap
Mounting (4)
9
694091 Screw, Mounting (2)
10
3362987 Switch, Water Level
11
688805 Spring Clip,
Knob
12
8054142 Switch, Water
Temperature
14
693151 Spring, Console
Lock (2)
15
3400860 Screw, Console
Lock (2)
16
3406720 Timer, Control
(60 Hz.) (Dryer)
(Timer Motor
Not Serviceable)
18
3977456 Switch,
Push−To−Start
19
693152 Bumper, Console (5)
21
694037 Clip, Console
1
WASHER/DRYER
LAUNDRY SYSTEM
Illus.
Part
No.
No.
DESCRIPTION
22
3390646 Screw,
(8−18 x 5/16)
23
Panel, Control
3977194 White
3977195 Biscuit
24
Knob, Timer
(Dryer)
3957752 White
3957753 Biscuit
25
Knob,
Push−To−Start
3957800 White
3957801 Biscuit
27
Knob, Control (2)
3957796 White
3957797 Biscuit
28
Dial, Timer
(Washer)
3957841 White
3957842 Biscuit
29
Knob, Timer
(Washer)
3957821 White
3957822 Biscuit
31
692983 Lock, Console (2)
32
694419 Buzzer
Part No. 8180758
