Whirlpool LA7700XW Use And Care Manual

Large capacity variable two speed automatic washer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

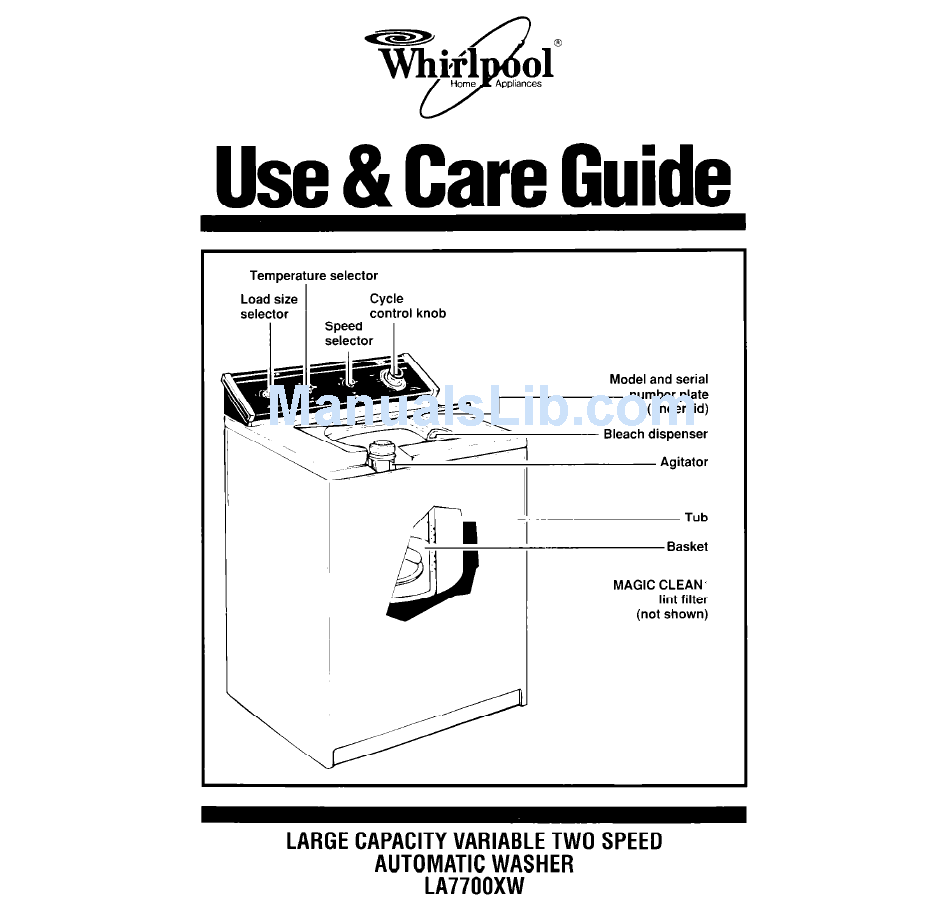

Use & Care Guide
Temperature
selector
Load size
Cycle
selector
control
knob
I
Speed
selector
Model and serial
Bleach dispenser
Tub
Basket
MAGIC CLEAN I
lint filter
(not shown)
LARGE CAPACITY VARIABLE TWO SPEED
AUTOMATIC WASHER
LA7700XW

Advertisement

Table of Contents
loading

Related Manuals for Whirlpool LA7700XW

Summary of Contents for Whirlpool LA7700XW

  • Page 1 Use & Care Guide Temperature selector Load size Cycle selector control knob Speed selector LARGE CAPACITY VARIABLE TWO SPEED AUTOMATIC WASHER LA7700XW Model and serial Bleach dispenser Basket MAGIC CLEAN I lint filter (not shown)

  • Page 2: Table Of Contents

    Whirlpool Automatic Washer Warranty .._._... 16 01990 Whirlpool Corporation Thank you for buying a Whirlpool appliance. Please complete and mail the Owner Registration Card provided with this product. Then complete the form below. Have this information ready if you need service or call with a question.

  • Page 3: Important Safety Instructions

    Important Safety Instructions . Read all instructions before using the washer. NEVER wash items cleaned, wash- ed, soaked in or spotted with wax, paint, gasoline, or flammable fluids in the washer. The fumes can create a FIRE HAZARD or EXPLOSION. ALWAYS hand launder and air dry fabrics containing these materials.

  • Page 4: Operating Instructions

    Operating Instructions Starting your washer Be sure to measure and add deteroent, then place a sorted load in the washer before starting it. 1. Select a load size Turn the knob to point at a setting that describes the size of load you want to wash.
  • Page 5 3. Select agitation and spin speeds Turn the knob to point at the wash cycle speeds you want for your wash load. . The top speed is the agitation selection and the bottom speed is the spin selection. See page 6 for tips on selecting speeds.

  • Page 6: Recommended Wash Speeds

    Operating Instructions Continued Recommended wash speeds To select the best cycle for your wash load, see the descriptions The following speed selections are recommended AGITATION/SPIN SPEED USED FOR LOW/LOW Delicate fabrics or bulky knits that are easily wrinkled LOW/HIGH Delicate fabrics HIGH/LOW Permanent press, synthetics...
  • Page 7 Regular/Heavy Cycle A cycle for fabrics that are heavily soiled. FILL to Selected Level WASH 8 Minutes Selected Speed WASH 6 Minutes Low Speed DRAIN No Agitation SPIN Selected Speed FILL for Deep Rinse RINSE Selected Speed DRAIN No Agitation SPIN Selected Speed, Spray Rinse When using high speed in the...
  • Page 8 Operating Instructions Continued Permanent Press Cycle A cycle designed for moderately soiled permanent press and some synthetic fabrics. The cool-down rinse helps keep wrinkles from setting into these items. to Selected Level -2 Minutes Select GentleShort Cycle A cycle that gently washes and spins lightly soiled delicate items and washable knits.
  • Page 9 Pre-Wash Cycle Brief periods of agitation and soak time help remove heavy soils and certain stains that need extra pretreat- ment. Use recommended amount of detergent or pre-soak additive. to Selected Level Minutes Selected Speed WASH Agitation DRAIN Selected Speed SPIN Select Wash Cycle WASHER STOPS...

  • Page 10: Other Operating Instructions

    Other Operating Instructions Rinse and spin When using extra detergent for heavily soiled clothes, or washing special-care items, you may want an extra rinse and spin. 1. Push Cycle Control Knob in. 2. Turn clockwise to one of the dots on the dial, as illustrated.

  • Page 11: Liquid Bleach Dispenser

    Liquid bleach dispenser Always measure bleach. Do not guess. Never use more than 1 cup (250 mL) for a full load. Use less with lower water level settings. Follow directions on bottle for safe use. Use a cup with a pouring spout to avoid spilling.

  • Page 12: If You Need Service Or Assistance

    United States. To locate the authorized Whirlpool service com- pany in your area, call our COOL-LINE” service assistance telephone number (see Step 2) or look in your telephone...
  • Page 13 Contact MACAP only when the dealer, authorized servicer or Whirlpool have failed to resolve your problem. Major Appliance Consumer Action Panel 20 North Wacker Drive...
  • Page 14 Notes...
  • Page 15 Notes...

  • Page 16: Whirlpool Automatic Washer Warranty

    “Service and Assistance,” additional help can be found by calling our COOL-LINER service assistance telephone number, l-800-253-1301, in the U.S. @ Registered Trademark / SM Service Mark of Whirlpool Corporation Part No. 3354636 cl 990 Whirlpool Corporation WILL PAY FOR from anywhere Printed in U.S.A.
