VocoPro PA-MAN Owner's Manual

VocoPro PA-MAN Owner's Manual

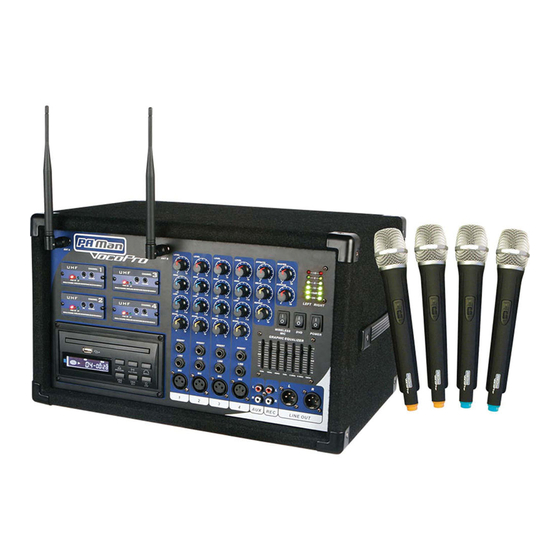

All-in-one four-channel wireless p.a. system
Hide thumbs Also See for PA-MAN:

Advertisement

R
TM
THE SINGER'S ULTIMATE CHOICE
PA-MAN
All-In-One Four-Channel Wireless P .A. System

Advertisement

Table of Contents
loading

Summary of Contents for VocoPro PA-MAN

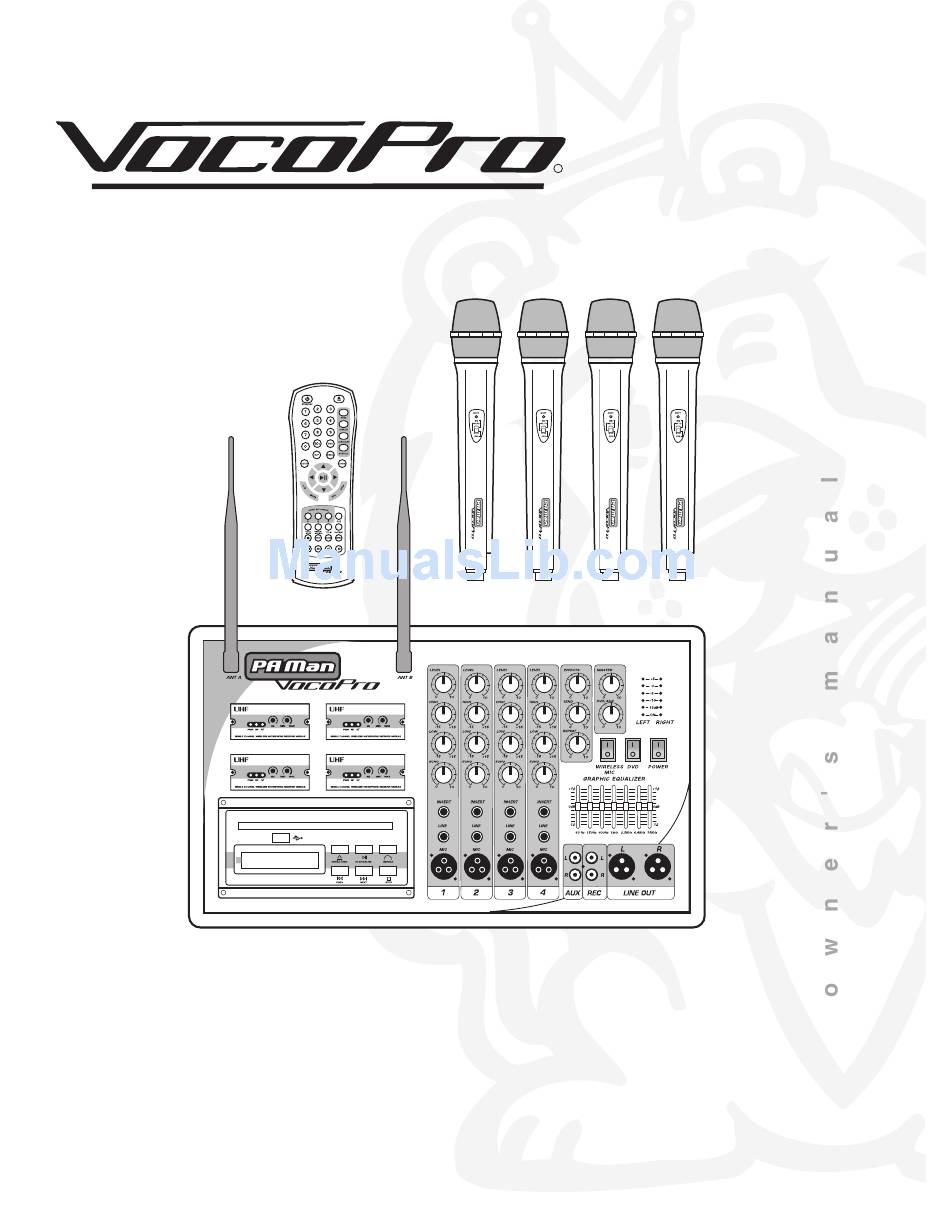

  • Page 1 THE SINGER'S ULTIMATE CHOICE PA-MAN All-In-One Four-Channel Wireless P .A. System...
  • Page 2: Table Of Contents

    Table of Contents FCC Information ... 3 Listening for a Lifetime... 4 Safety Instructions... 5 Welcome ... 6 Features and Specifications ... 7 Before Getting Started ... 8 Getting Started ... 9 Getting Connected Connecting Speakers ... 10 Connecting a TV or Monitor ... 11 Connecting External Devices ...
  • Page 3: Fcc Information

    UNIT!: This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Vocopro may void your authority, granted by the FCC, to use this product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables.
  • Page 4: Listening For A Lifetime

    Now itʼs time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Associationʼs Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing.
  • Page 5: Safety Instructions

    Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user- serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger.
  • Page 6: Welcome

    Club VocoPro for Karaoke news and events, chat rooms, club directories and even a KJ Service directory! We look forward to hearing you sound like a PRO, with VocoPro, the singer’s ultimate choice. Please record the model number and serial number below, for easy reference, in case of loss or theft. These numbers are located on the rear panel of the unit.
  • Page 7: Features And Specifications

    Features and Specifications • Four Channel Mixing and Effect Control • Master EQ, Effect and Volume Controls • Four Handheld Wireless Mics • Four Independent Field-Replaceable Wireless Modules • Built-in Removable DVD/CD/CD+G Player with USB Reader • LED Level Indicators •...
  • Page 8: Before Getting Started

    Before Getting Started Thank you for purchasing the PA-MAN system. The PA-MAN will provide years of reliability and high quality entertainment for you if used properly. Please read this manual carefully before using your PA-MAN to ensure best performance. Unpacking the PA-MAN: Carefully remove the PA-MAN from its carton.
  • Page 9: Getting Started

    Connecting the Antennas Connect each of the two included antennas to the connections labeled ANT A and ANT B on the front panel of the PA-MAN and turn each clockwise to lock. ��������� ������� Connecting the Power Cable Plug the supplied AC power cable into the AC inlet after all other connections are complete and then plug the AC power cable to an AC wall outlet.
  • Page 10: Getting Connected

    The ¼” output jacks are located on the rear panel. Use these to connect speakers with a ¼” connection.* • Before connecting the speakers, make sure that the PA-MAN is disconnected from the power source. • Connect the left speaker to the left output (L), connect the right speaker to the right output (R).
  • Page 11: Connecting A Tv Or Monitor

    Connecting a TV or Monitor to the PA-MAN The PA-MAN has a VIDEO OUTPUT jack which sends video from the disc player to TVs and other video monitor devices. • Connect an RCA style video cable (included) from the VIDEO OUTPUT on the PA-MAN to the VIDEO INPUT jack on your TV or other monitor.
  • Page 12: Connecting External Devices

    Connect your effects device to the INSERT connection with the proper cables for your device. The illustration below is an example of how an external effects device may be connected to the PA-MAN. It is suggested that you consult the user manual for your individual effects device for information on making this connection and use of the proper cable connector.
  • Page 13: Descriptions And Functions

    11. REC Output - Output the audio signal from the PA-MAN for monitoring or recording purposes. 12. XLR L/R Line Outputs - Output the PA-MAN audio through stereo XLR connections to an input device. Note: Output level controlled by the master volume control.
  • Page 14: Rear Panel

    Descriptions and Functions, cont. Rear Panel 1. Fuse - This plastic cover is the housing for the PA-MAN’s fuse. When replacing the fuse, only use the same type and rating. 2. Power Input - Connect the power cord (included) here.
  • Page 15: Disc/Usb Player

    6. Remote Sensor - When operating the PA-MAN with the REMOTE CONTROL, direct the REMOTE towards this SENSOR within 23 feet. Maintain a line of sight between REMOTE and REMOTE SENSOR clear of obstacles to prevent signal deflection.
  • Page 16: Mic Channel Controls

    5. ¼” Insert Effects Loop Output/Input - Connect an external effects processor to each channel with this ¼” input. To ensure that your effects processor will properly function with the PA-MAN’s INSERT connection, use a cable with a ¼” stereo TRS (tip ring sleeve) connector.
  • Page 17: Microphone

    Descriptions and Functions, cont. Microphone 1. LED- This will blink on when micropone power is switched on, it will remain lit if the battery is weak and needs replacement. 2. On- Turn the microphone power on by moving the switch to the highest position.
  • Page 18: Remote Control

    10. PScan/Normal - This button changes video output mode. NOTE: The PA-MAN only has one ouput option, so this feature is not enabled on the PA-MAN. 11. Video Mode - To change the video display mode press the VIDEO button until desired mode is selected.
  • Page 19 Descriptions and Functions, cont. Remote Control, cont. 15. Open/Close ( ) - Opens and closes the disc tray. 16. Program - Opens the Program Menu which lets you program a custom playlist order of up to 16 tracks or DVD chapters. Check the “Programming...”...
  • Page 20: General Operations

    General Operations Performing Karaoke The PA-MAN provides microphone support, playback of CD+G discs and vocal adjustments to allow you to create Karaoke performances of your favorite songs. Follow these steps to ensure that your Karaoke performance is the best it can be.
  • Page 21 4. The disc will begin playing at 1:45 minutes in the disc Programming a Custom Track Order The PA-MAN allows you to create a custom playlist of up to 16 tracks using the PROGRAM button on the remote control. 1. If there is a disc in the PA-MAN, make sure it is stopped 2.
  • Page 22 • TITLE REPEAT (DVD only): Repeats the current title on a DVD disc Switching Between PAL and NTSC Video Modes The PA-MAN is defaulted to NTSC. Use the N/P button on the remote control to switch between PAL and NTSC.
  • Page 23: General Operations

    General Operations DVD Operations Accessing the DVD Menu Use the MENU button on the remote control to access the main menu on a DVD. Use the arrow buttons on the remote control to navigate through the main menu and the ENTER button to make selections. Accessing the Title Screen Each section on a DVD such as the movie, special features, etc.
  • Page 24: Media File Operations

    Repeat modes. There are 3 available repeat modes for files. Access these by pressing the REPEAT button on the PA-MAN’s remote control. REPEAT 1: Repeats the same song. REPEAT DIR: Repeats the entire directory (folder) once it has played through.
  • Page 25: Removing Modules

    Removing Modules Removing the Field Replaceable UHF Modules Each of the 4 microphone modules on the PA-MAN were designed in a way that allows them to slide out. This is a convenient feature if ever a module needs to be repaired or replaced.
  • Page 26: Setting Up Preferences

    Press SETUP on the remote control to get into the SETUP menus. All settings have been preset in the DEFAULT mode. This means that the most common settings will already be active when you first setup the PA-MAN. It may not be necessary to make any changes for the PA-MAN to work correctly.
  • Page 27 Setting Up Preferences, cont. Language Setup 1. OSD Language The OSD only has two languages: ENGLISH or CHINESE 2. Audio Language Sets the language for discs with multi-language capabilities. 3. Subtitle Language Sets the language for the movie subtitles. The disc must be equipped with multi-language subtitles for this to work. 4.
  • Page 28: Setting Up Preferences

    Setting Up Preferences, cont. The following modes are accessible but not enabled on the PA-MAN. The DVD Decoder used in the PA MAN is standard and not specialized for this unit. Speaker Setup 1. Downmix LT / RT: When connecting to a Dolby Digital amplifier.
  • Page 29: Troubleshooting

    Troubleshooting There is No Power • Make sure the power cord is firmly connected to the power outlet • If using a power strip/surge-protector, make sure that it is plugged in and switched on. • Check to make sure the switch for the component you are using is in the on position. There is No Sound from Disc •...
  • Page 30: Troubleshooting

    Troubleshooting, cont. No Sound Output, RF/AF LED(s) are Not Glowing • Make sure the microphone and receiver power switches and receiver are set to the ON position. • Check microphone batteries to ensure that they are providing sufficient power. Replace battery if necessary.
  • Page 31 Notes...
  • Page 32 � �� ���������������������������� PA-MAN Owner’s Manual © VocoPro 2008 v1.0 www.vocopro.com...

This manual is also suitable for:

Pa-man ii

Table of Contents
