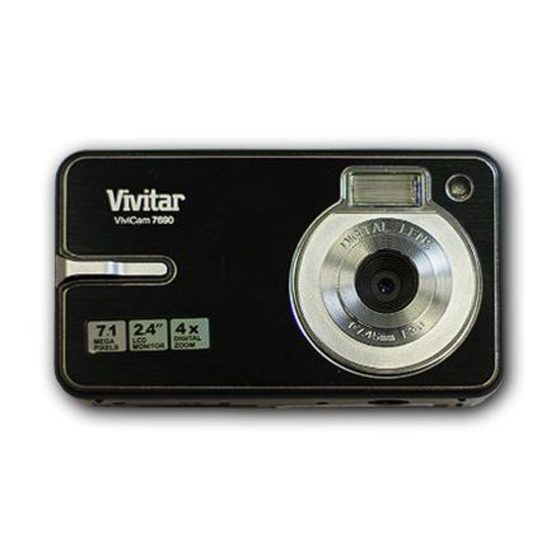

Vivitar VIVICAM 7690 User Manual

Vivitar digital camera user manual
Hide thumbs Also See for VIVICAM 7690:

Advertisement

ViviCam7690 Digital Camera
Owner‟s Manual
© 2009 Sakar International, Inc. All rights reserved.
Windows and the Windows logo are registered trademarks of Microsoft Corporation.
All other trademarks are the property of their respective companies.

Advertisement

Table of Contents
loading

Summary of Contents for Vivitar VIVICAM 7690

  • Page 1 ViviCam7690 Digital Camera Owner‟s Manual © 2009 Sakar International, Inc. All rights reserved. Windows and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective companies.
  • Page 2: Table Of Contents

    Camera mode ... 13 Video Mode ... 28 Playback Mode ... 30 Install the Vivitar Experience Image Manager Software ... 39 Connect your camera to the computer ... 41 Get photos and videos from your camera to your computer ... 41 Get started! ...
  • Page 3: Introduction

    Introduction Thank you for purchasing the ViviCam 7690 Digital Camera. Everything you need to take quality digital photos and videos is included with your camera. Your digital camera can also be used as a removable disk. It enriches your life.
  • Page 4: What Your Camera Includes

    What Your Camera Includes  Digital Camera  Vivitar Experience Image Manager software Installation CD  USB cable  Quick Start Guide  Strap Computer System Requirements for Windows XP To be able to download photos and videos to your PC, you will need the following minimum configuration: ...
  • Page 5: Computer System Requirements For Windows Vista

    Computer System Requirements for Windows Vista To be able to download photos to your PC your will need the following minimum configuration:  Windows Vista  800MHz processor and 512 MB of system memory  20GB hard drive with at least 15GB of available space ...
  • Page 6: Quick Look At Your Camera

    Quick Look at Your Camera...
  • Page 7: Prepare Your Camera For Use

    Prepare Your Camera for use Install batteries Your camera requires three AAA batteries (alkaline batteries recommended). Please refer to the following installation instructions: Open the battery compartment on the side of the camera. Insert the alkaline batteries correctly, with the correct polarity as shown on the battery cover. Close the battery compartment.
  • Page 8: Install Sd Memory Card

    WARNING: Unless you are using an SD memory card, opening the battery compartment and removing the battery will erase the test photos currently stored in the camera. Download your photos as often as possible. Photos will be lost when the camera switches-off or when the batteries run low. Do not open the battery door before switching off the camera.
  • Page 9 Locate the SD memory card slot on the bottom of the camera and insert an SD memory card as above. You will feel and hear a “Click” sound. When the that your SD card is installed correctly. Note: After you insert the SD memory card, a “Copy to Card?” message will appear on the LCD. To save the photos, press the Right/Left button to select “Yes”...
  • Page 10: Starting Your Digital Camera

    Starting Your Digital Camera Power on Press the Power button once to turn on your camera. The LCD will light up and the camera will emit a “beep” to indicate that your camera is turned on and ready for use. Power off Press the Power button once to turn off your camera.
  • Page 11 Camera mode is for you to take still photos. You can shoot video files while in Video mode. In Playback mode you can preview the photos/videos you captured, rotate, protect, delete, crop and print your photos. Main buttons on the camera...
  • Page 12: Main Icons On The Lcd

    Main Icons on the LCD...
  • Page 13: Battery Power Level

    Battery power level Full battery power Medium battery power Low battery power Photo quality Normal quality Fine quality Super quality Flash Force Flash Auto No Flash Modes Camera Playback Video SD card inserted SD card inserted (Locked) Self-timer On 10 seconds Self-timer On 2 seconds Normal Capture Macro Capture...
  • Page 14: Camera Mode

    Please download the test images to your computer as soon as possible using the Vivitar Experience Image Manager software as described below in the section “Transfer photos and videos to your computer” or insert an SD...
  • Page 15 Macro/Far shooting The camera has the function that allows you to capture objects at very near (macro) or very far distances per your request. Slide the Macro/Far switch on the left side of the camera up to the The icon will appear on the left hand side of the LCD screen and indicates that the macro shooting is on.
  • Page 16 Note: A “No Power” message will appear on the LCD screen, if you select the flash function when the battery power is insufficient. To continue using the camera with the flash, please install new batteries. Self-Timer You can include yourself in a photo by using this feature to delay the time between your pressing the shutter and when the photo is actually taken.
  • Page 17 From the “This Image” or “This Video” message that appears, press Left/Right button to select “Yes”. Press the Menu/OK button to confirm and for the selected image to be deleted. At step 2, if you do not wish to delete the photo select “No” by pressing the Up/Down button, then press the Menu/OK button.
  • Page 18 Set the mode to Camera Mode - the Press the Menu/OK button. Press the Left/Right buttons to move between the menu options that appear. Press the Up/Down buttons to select the submenu option within the selected menu. Press the Menu/OK button to confirm and save the setting. Scene Your camera comes with built-in scenes for you to take photos in almost any environment.
  • Page 19: Image Size

    After you have selected your scenery, the corresponding scenery icon will appear on the LCD. Some scenery will automatically activate the flash function after setting. The default scene is Auto. You can press the Left button for setting different scenes quickly. Image Size The image size and quality settings determine the number of photos that can be saved and the amount of memory required for each photo.
  • Page 20: Setup Menu

    Note: The image size icon will appear on the right side of the LCD screen. Anti-Shake Your Digital Camera has a function that prevents photos coming out blurry as a result of trembling or shaking when taking the photo. Because of this function, you are not required to use a tripod to shoot steady photos.
  • Page 21 Press the Menu/OK button. Press the Right/Left button until you select the Setup menu. Exposure This setting allows you to control the brightness of your images. Press the Up/Down button to select the Exposure option in the Setup menu. Press the Menu/OK button to open the Exposure submenu. Press the Up/Down button to select the exposure value (from+3 to -3).
  • Page 22 Press the Menu/OK button to confirm, save your setting and exit. This setting allows you to select the ISO setting that you want as per your current conditions. Press Up/Down button to select the ISO option in the Setup menu. Press the Menu/OK button.
  • Page 23 Press the Up/Down button to choose the best option – Auto / Daylight / Cloudy / Tungsten / Fluorescent Press the Menu/OK button to confirm and exit. Sharpness This setting allows you to adjust the sharpness of your images, making edges more or less distinct. Press the Up/Down button to select the Sharpness option in Setup menu.
  • Page 24 Quality The quality settings determine the number of photos and the amount of memory required for each photo. The better the quality, the more memory each photo will use. The quality will also affect the maximum size you can print your photo effectively. The default value is Fine.
  • Page 25 Press the Menu/OK button. Press the Up/Down button to select: On - displays date on photos Off - won’t show date on photos Set date - setting the system date Press the Menu/OK button to confirm. If you wish to change the date press the Set Date option: Press the Menu/OK button to enter the Set Date submenu option.
  • Page 26 Press the Up/Down button to set the digits for each of the date, time and format options. Press the Menu/OK button to confirm and exit. Auto Power Off By default your camera will automatically power off if idle for 60 seconds. Use this option to change the time.
  • Page 27 Language Your Digital Camera only supports English for now. Format This function reformats the memory card and will erase all files in memory including files that have been protected, please operate cautiously. Press the Up/Down button to select the Format option in the Setup menu. Press the Menu/OK button.
  • Page 28 Press the Right/Left button to select “Yes” to begin the format or “No” to exit. Press the Menu/OK button to confirm and exit. Default Setting If you are not sure as to what settings have been activated on your camera you can reset the camera to the original factory settings.
  • Page 29: Video Mode

    Press the Shutter button again to stop recording and save this file in AVI format (without voice). You can play this AVI file in playback mode or on your computer using the Vivitar Experience Image Manager software. Please read the section on “Minimum Computer Requirements for your operation system”...
  • Page 30 White Balance You can select different White Balance for shooting. Press the Menu/OK button. Press the Left/Right button to select the White Balance menu option Press the Up/Down button to select the White Balance you desire: Auto / Daylight / Cloudy / Tungsten / Fluorescent Press the Menu/OK button to confirm and exit to the video standby mode.
  • Page 31: Playback Mode

    Press the Up/Down button to select the resolution option you desire. VGA (640x480) / QVGA (320x240) Press the Menu/OK button to confirm. The corresponding resolution icon will appear on the right hand side of the LCD screen. Playback Mode Set the mode switch to the Playback mode. You can preview the photos and videos you have recorded. In Playback mode you can rotate, protect, delete and crop your photos and you can protect and delete video clips.
  • Page 32 Thumbnail and Zoom You can view the images on your camera as thumbnails. You can also press the T and W buttons to zoom in and out of your photos: Pressing the W button once will open the thumbnail display view. Press the Right/Left button to move between the images.
  • Page 33 Note: You cannot zoom in to AVI files. If you select an AVI file, an If you select a JPEG file, an Playing the AVI video file Select an AVI file you want to play. Press the Shutter button to begin playing the AVI file. Press the Shutter button to pause and again to continue.
  • Page 34 Edit photos and videos Select a still photo you want to rotate, protect, delete, crop or print. Select a video you want to protect or delete. Rotate Press the Menu/OK button. Press the Right/Left button to select the Rotate menu option. Press the Up/Down button to select the degree you want to rotate your photo or cancel to exit.
  • Page 35 Press the Up/Down button to select the “Lock” option. Press the Menu/OK button to confirm and exit. A lock icon will appear on that image when it appear on the LCD. To unlock a locked image, press the Menu/OK button. At step 3 select “Unlock”...
  • Page 36 Press the Up/Down button to select: “This image” (photos) or “This Video” (videos) depending on the file selected to delete the current photo or video “ALL” to delete all unprotect photos or videos “Cancel” to exit. Press the Menu/OK button. The Delete confirmation message will appear to confirm the deletion.
  • Page 37 Press the Up/Down button to select Crop or cancel. Press the Menu/OK button. The Crop feature opens. Press the T/W buttons to out change the size of the rectangle (the area you will crop). Press the Up/Down/Right/Left button to move the rectangle to select the area of the photo you want to crop.
  • Page 38 Print You can print photos directly from the camera using the Pictbridge technology on your printer. Select a photo you want to print. Press the Menu/OK button. Press the Left/Right button to select the Pictbridge menu option. Press the Up/Down button to select Pictbridge. Press the Menu/OK button to confirm.
  • Page 39 11. Select “OK” and press the Menu/OK button to start printing. 10. Wait for the printer to process your request. After a moment the photo is printed. Note: Printing many photos will take more time. Please be patient and wait for all the photos to print.
  • Page 40: Install The Vivitar Experience Image Manager Software

    Install the Vivitar Experience Image Manager Software Warning: Do not plug your camera into the computer until the software installation is complete You must be connected to the internet to install and run the Vivitar Experience Image Manager software. Insert the installation CD into your CD-ROM drive. The installation screen should automatically open.
  • Page 41 Note: If you do not have internet access, you can still download media from the camera. Click the “How to transfer photos and videos from my camera to my computer” button for instructions. If you have internet access, the “Choose your language” window opens, choose your language and click “Next”...
  • Page 42: Connect Your Camera To The Computer

    10. On PC only: Let the “Vivitar Experience Image Manager” installer create the folder to where the program will be installed, and then click “Install”. 11. Please wait while the application continues the installation process on your computer. 12. On PC: Click the “Close” button when the installation is complete.
  • Page 43 The “Get media from device” window opens. You can select to download photos, videos or both. Select your camera (removable disk) from the device window. If your camera is the only USB device connected then it will be selected automatically. Select a location on the computer where to place the new photo and video files.
  • Page 44: Get Started

    Use automatic “Geotagging” with built in Google Maps. For more details on how to use the Vivitar Experience Image Manager open the Help file or click the “Take the Tour” button on the application`s Home page.
  • Page 45: Transfer Media From My Camera To My Computer Manually (Using Macintosh)

    into the Videos/My Videos folder. Do not disconnect the cable during transfer. Doing so will cancel the transfer of any files on their way to your computer. Transfer media from my camera to my computer manually (Using Macintosh) Use the USB cable that came with your camera to connect your camera to your computer. The camera‟s device icon appears on the desktop.
  • Page 46 195 Carter Drive Edison, NJ 08817 TECHNICAL SUPPORT For technical support issues please visit our website at www.vivitar.com. You can find manuals, software and FAQ‟s at the website. Can‟t find what you are looking for? E-mail us at support@vivitar.com and one of our technical support team members will answer your questions. For phone support in the US please call 1-800-592-9541, in the UK call 0800 917 4831.
  • Page 47: Appendix A: Technical Specifications

    Appendix A: Technical Specifications Image Sensor Image Size Video Resolution File Format External Memory Storage capability – example for reference LCD Display Lens Zoom Exposure White Balance (Video Mode) Auto, Daylight, Cloudy, Tungsten, Fluorescent Scene (Camera Mode) Flash Self-timer Anti-Shake PictBridge Interface System Requirements...
  • Page 48: Appendix B: Troubleshooting

    Appendix B: Troubleshooting Q: I have taken photos but my computer does not recognize my camera. What do I do? First, ensure that you have in fact taken photos. Press the Shutter/OK button a few times to take some sample photos and then try downloading them again. It is also recommended that you have an SD card inserted in the camera.
