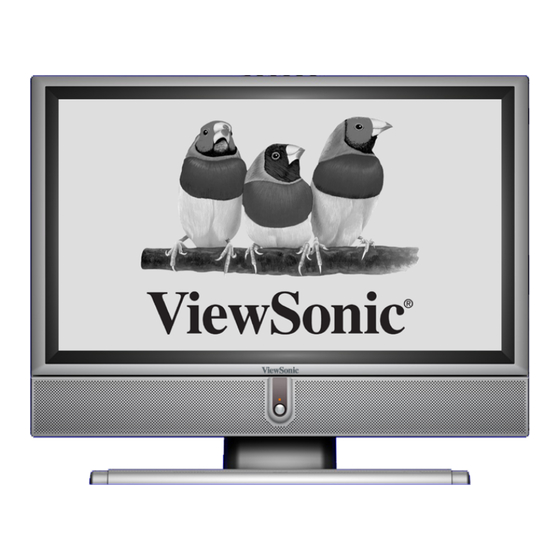

- Page 1 N2750w LCDTV Display User’s Guide Guide de I’utilisateur Bedienungsanleitung Guía de usuario Användarhandbok käyttöohje Ðóêîâîäñòâî ïîëüçîâàòåëÿ Guida utente...
-
Page 2: Table Of Contents
Adjust the Video...20 Adjust the Graphics...21 Adjust the Audio...22 Adjust the Display...23 To setup the Setting...24 Adjust the PIP...26 Adjust the Option...28 Other Information Specifications...29 Troubleshooting...30 Customer Support...31 Limited Warranty...32 Appendix Safety Guidelines...33 CE Conformity for Europe...33 ViewSonic N2750w 1... -
Page 3: Product Registration
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic Corporation. Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 4: Important Product Safety Instructions
Do not place heavy objects on the LCD display, video cable, or power cord. If smoke, abnormal noise, or strange odor is present, immediately switch the LCD display off and call your dealer or ViewSonic. It is dangerous to continue using the LCD display. ViewSonic... -
Page 5: Antenna Installation Instructions
LCD display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD display. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. ViewSonic... -
Page 6: Getting Started
Getting Started Congratulations on your purchase of a ViewSonic Save the original box and all packing material for future shipping needs. Package Contents Your LCD TV display package includes: LCD TV Display Power Cable (s) ViewSonic User Guide RF Cable VGA Cable LCD TV display. -
Page 7: Front View Of The Product
Channel down when source is at TV or select a control while in OSD menu. CH Up Channel up when source is at TV or select a control while in OSD menu. ENTER To highlight a control in OSD menu. Power button Power LED indicator Remote control receiver ViewSonic N2750w... -
Page 8: Rear View Of The Product
Connect the external audio into this jack. YPbPr signal input Connect the external video devices with progressive component output to these jacks. VGA signal input Power (AC input) Using cable provided, connect to a power source. AC power switch ViewSonic N2750w... -
Page 9: Remote Control
Remote Control ViewSonic N2750w... - Page 10 Freeze picture Select the sound from main or sub picture of PIP/ PBP/ Multi Window Swap main and sub picture of PIP/ PBP/ Multi Window Enter to teletext mode (next page) Adjust the Volume when Change the channel on ViewSonic N2750w...
- Page 11 Selects double height text under Teletext mode for full screen. Press this button to enlarge the top half of the page. Press this button again to enlarge the bottom half of the page. Press this button again to return to the normal display. ViewSonic N2750w...
- Page 12 1. Press the subcode button. Screen will show « = = = = » 2. Enter 4 digits number button to correspond to the subpage desired. E.g. 0010 for subpage number 10. 3. Wait until the page appears ViewSonic N2750w...
-
Page 13: Installation
When the remote control will not to be used for an extended period, remove the batteries. 2. Connecting with the antenna Make sure the power is off before installing N2750w. Connect the LCD TV to TV antenna terminal or CATV box by 75-ohm coaxial cable. RF Cable or Adapter ViewSonic N2750w... - Page 14 Stereo system Audio Cable (Cable not supplied) 4. Connect AV, S-Video, YPbPr to Video Devices Connect Video/Audio cables from compatible devices into the back panel of N2750w. AV model: RCA A/V Cable (Cable not supplied) ViewSonic N2750w...
- Page 15 S-Video model: S-Video Cable (Cable not supplied) YPbPr model: (Cable not supplied) DVD Palyer or VCR Audio in Cable (Cable not supplied) ViewSonic N2750w Audio in Cable (Cable not supplied) YPbPr Cable...
- Page 16 PC up to 1280 x 1024, 1024 x 768 is the preferred resolution. VGA 15 Pin Cable (Cable not supplied) PC Audio in: Connect the Audio In cable (green) from audio output of your PC to the audio input terminal (green) of N2750w. PC Audio in Cable (Cable not supplied) ViewSonic N2750w...
- Page 17 (Earphone not supplied) 6. Connect power cable Connect the power cord to the N2750w then to a properly grounded AC outlet. Turn on the AC Switch on the back of N2750w ViewSonic N2750w AC Switch Switch to ON AC wall socket...
- Page 18 8. Select input source for your LCDTV display, via either OSD menu or Remote control The Enter key of N2750w is the shortcut key for selection of input source to display. TV key of remote control is shortcut for TV selection. ViewSonic N2750w...
-
Page 19: Osd Functions
Press CH-/+ key or After auto scanning all the available channels, the ordinal of favorite channel is as following. If you want to set up the favorite channels, please reference page 20. ViewSonic N2750w press 0 button to select your favorite channels. - Page 20 OSD menu is enabled. Use ENTER to get into your desired item. Press to adjust the condition. Press EXIT to close the recent page. Use MENU again to leave OSD Menu. ViewSonic N2750w 19...
-
Page 21: Advanced Operation
Contrast: To adjust the white level of the video. Brightness: To adjust the black level of the video. Colour: To adjust the colour saturation. Sharpness: To adjust the picture sharpness of the video. Tint: To adjust the tint level. ViewSonic N2750w Press MENU. Press Press ENTER. -
Page 22: Adjust The Graphics
Phase: To remove any horizontal distortion and clear or sharpen the display characters. Press MENU. Press to select Graphics. Press ENTER. Press to select the desired item you want to adjust. to adjust it. Press EXIT to close the recent page. Press MENU again to leave OSD Menu. ViewSonic N2750w 21... -
Page 23: Adjust The Audio
Mode Exchangeable type of sound dual dual 1, dual 2 stereo stereo, mono mono mono ViewSonic N2750w Press MENU. Press Press ENTER. Press you want to adjust. Press EXIT to close the recent page. Press MENU again to leave OSD Menu. -
Page 24: Adjust The Display
Press MENU. Press to select DISPLAY. Press ENTER. Press to select the desired item you want to adjust. to adjust it. Press EXIT to close the recent page. Press MENU again to leave OSD Menu. ViewSonic N2750w 23... -
Page 25: To Setup The Setting
2. After auto scan all the channels, you need not to do it again when turning on your TV next time. 3. If you want to stop auto scan, press EXIT. Fine Tune: To fine tune TV reception. ViewSonic N2750w Press MENU. Press to select DISPLAY. - Page 26 Memory Recall: Restore the factory setting of Contrast, Brightness, Colour, Sharpness, Tint, Colour Temperature, Volume, Treble, Bass, and Balance. Definition: 1. Channel: Indicate the original channel number. 2. Program Name: Indicate the name you edit for the appointed channel. with your remote ViewSonic N2750w 25...
-
Page 27: Adjust The Pip
PIP Contrast: To adjust the contrast of the sub-screen of PIP, PBP, or Multi Window condition. PIP Brightness: To adjust the brightness of the sub-screen of PIP, PBP, or Multi Window condition. ViewSonic N2750w Input Source of Sub-Screen AV/ S-Video/ SCART/ TV D-Sub/ YPbPr Press MENU. - Page 28 1. Press ENTER to switch to pan. 2. Press 3. Pan is only active on the enlarged picture (When the 4. Press ZOOM again to exit. Multi-Window to adjust zoom factor. to adjust pan. screen is I:I, the pan has no function). ViewSonic N2750w 27...
-
Page 29: Adjust The Option
Sleep: To set up the off timer of TV— 15min, 30min, 45min, 60min, or 90min. Choose OFF for disable Sleep function. BY REMOTE CONTROL Sleep: To set up the off timer of TV— 15min, 30min, 45min, 60min, or 90min. To cancel the function, choose OFF. ViewSonic N2750w Press MENU. Press Press ENTER. Press you want to adjust. -
Page 30: Other Information
680 mm (W) x 540 mm (H) x 243 mm (D) 26.8" (W) x 21.3" (H) x 9.6" (D) 18.3 kg (40.3 lb) CE, CB, TÜV/GS <150W (green LED) <8W (green LED) ® 1024 x 768 @ 60 Hz) ViewSonic N2750w 29... -
Page 31: Troubleshooting
Set PC to “1024 x 768” or “1280 x 1024” @ 60 Hz signal timing. NO SCART Check your SCART settings for composite video input/ output, RGB inputs and stereo audio input/ output. NO Teletext Check your remote control button for Teletext function. ViewSonic N2750w... -
Page 32: Customer Support
Customer Support For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product serial number. Contry/ Region Web site United Kingdom www.viewsonic.com/ support France German Nordics www.infocare.no/ eservice All other www.viewsonic.com/... -
Page 33: Limited Warranty
How long the warranty is effective: ViewSonic N2750w is warranted for one (1) year for all parts including the light source and one (1) year for all labor from the date of the first consumer purchase. -
Page 34: Appendix
CE Conformity for Europe The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility”, and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety.” ViewSonic N2750w 33...
