- Page 2 (consisting of the compressor, the condenser, the evaporator, the hot gas bypass valve, the dryer and the connecting tubing) in each U-Line product to be free from defects in materials and workmanship for a period of five years from the date of purchase. During the initial one-year warranty period for all U-Line products U-Line shall: (1) at U-Line’s...
-
Page 3: Introduction

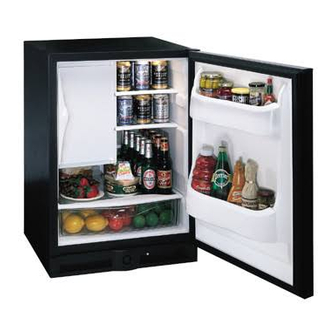

INTRODUCTION Congratulations on your purchase of U-Line ice making or refrigeration products. A pioneer in the field for nearly 40 years, U-Line is the world’s number one manufacturer of built-in, under-counter ice making and specialty refrigeration products. U-Line dedicates 100% of its research and development to these products. -
Page 4: Table Of Contents
User’s Manual If you do not return your Warranty Registration Card, U-Line will use the date of sale to the U-Line distributor as the first date of warranty for your unit. Please also record the purchase date of your U-Line unit and your dealer’s name, address and telephone number. -
Page 5: Safety Precautions
SAFETY PRECAUTIONS Do not attempt to install or operate your unit until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a Danger, Warning or Caution based on the risk type. DEFINITIONS Danger means that failure to follow this safety statement may result in severe personal injury or death. - Page 6 • Use only genuine U-Line replacement parts. Imitation parts can reduce ice rate, cause water to overflow from ice maker mold, damage the unit, and may void the war- ranty.
-
Page 7: Installation
NOTE All U-Line units Stainless Steel models) have a zero clearance for the door to open (see Figure 1). See BUILT-IN INSTALLATION for additional clearance require- ments. - Page 8 User’s Manual 3. If installing an Ice Maker model, install and connect the water sup- ply line. See CONNECTING THE WATER SUPPLY for installation requirements. 4. Position the unit to allow free air flow through the front grille (see Figure 2). 5.
-
Page 9: Connecting The Water Supply
• Connect sufficient tubing to the unit to allow the unit to be moved for cleaning and servicing. However, make certain that the tubing is not pinched or damaged during installation. • U-Line recommends the use of copper tubing for installation. 1. Locate the compression fit- ting and ferrule packed in the unit. - Page 10 User’s Manual 3. For recessed allow extra water supply line length to provide slack for easy removal from the recessed area (see Figure 5). This will also safeguard against kinking the line. CAUTION If you are not intending to use the ice maker and do not con- nect the water supply (or turn the supply valve off), it is...
-
Page 11: Leveling The Unit
UL105 Figure 7 Figure 7A REVERSING THE DOOR All U-Line units (except Stainless Steel models which must be ordered left or right hand opening) are field reversible for left or right hand opening. The door opening is easily reversed by moving the hinge hardware to the opposite side (see Figure 8). - Page 12 User’s Manual To reverse the door: 1. Remove top hinge screw pin (7/64" Allen wrench) from cabinet (see Figure 9). Re- move door by tilting forward and lifting off bottom hinge pin. Figure 9 2. Remove plastic screw plugs (3 each, top and bottom) from new hinge location.
- Page 13 5. Remove existing bottom hinge (3 screws) and remount on oppo- site side TOP . Remove top hinge screw pin. 6. With bottom of door facing up, remove pivot plate (2 screws), flip over, and remount on opposite side of door (see Figure 13). 7.
-
Page 14: Custom Door Panels
User’s Manual CUSTOM DOOR PANELS Two types of custom door panels can be installed on your U-Line unit to harmonize with or accent the surrounding decor. FULL OVERLAY DOOR PANEL A full overlay door panel completely covers the door frame and handle to give a built-in appearance. - Page 15 Install the insert as follows: WARNING Insert edges may be SHARP! Use care when installing. 1. Remove top hinge screw pin (7/64" Allen wrench, see Figure 15). Remove door by tilting forward and lifting off bottom hinge pin. 2. Remove two outside screws holding door handle.
-
Page 16: Built-In Installation
9. Place door on bottom hinge pin and install upper hinge screw. BUILT-IN INSTALLATION Your U-Line product has been designed for either free-standing or built- in installation. When built-in, your U-Line product does not require addi- tional air space for top, sides, or rear. However, the front grille must NOT be obstructed. - Page 17 CONTROL SETTINGS - COMBO/ICE MAKER Models BI 2015 and 2075FF are turned ON with the ON/OFF switch recessed in the front grille (see Figure 19). In these units, the control dial is used only for tem- perature control. 1. Plug the appliance cord into a 115V polarized and grounded elec- trical outlet.
-
Page 18: Normal Operation
User’s Manual NORMAL OPERATION On units with refrigerator sections, the unit has been designed to achieve a fresh food temperature of approximately 38°F. Those units with a freezer section are designed to have a freezer temperature of approximately 0°F. On units with ice makers, when the ice buck- et is full, the ice making mechanism will shut off. -
Page 19: Adjusting The Temperature Control
The ice bin door must be fully closed with the door lip inside the ice bucket. Frost free models: Do not place any objects over air inlet or outlet in freezer section. For frost free models: Light frosting may occur in high humidity condi- tions or if the ice bucket is not pushed in completely. -
Page 20: Outdoor & Marine Use
User’s Manual OUTDOOR & MARINE USE Many U-Line models are designed to operate in harsh outdoor/marine environments. Special considerations include the following: • For best performance, keep the unit out of direct sunlight. • On Ice Maker models, turn the unit OFF and dispose of any ice cubes if the unit will not be used for 5 days or more. -
Page 21: Maintenance
3. Turn the adjusting screw toward the minus (–) sign (clockwise) for smaller cubes or toward the plus (+) sign (counterclockwise) for larger cubes. 4. Install the ice maker assembly cover. Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. - Page 22 User’s Manual • DO NOT use solvent cleaning agents or abrasives on the interior. These cleansers may transmit taste to the ice cubes, or damage or discolor the interior. CONDENSER CLEANING - EVERY 3 MONTHS Disconnect electric power to the unit before cleaning the condenser.
- Page 23 2. Remove the screws at each end of the grille. 3. Remove the grille. DO NOT touch the condenser fins. The condenser fins are SHARP and can be easily damaged. 4. Clean the condenser coil using a brush or vacuum cleaner. Do not touch.
- Page 24 User’s Manual GLASS SHELF REMOVAL/INSTALLATION Removal (see Figure 27) 1. Pull shelf out about 6" until back of shelf clears the “hump” on the right hand side. 2. Tilt right hand edge of shelf 3. Remove shelf from unit by pulling out.
- Page 25 (see Figure 30). 2. Replace bulb with genuine U-Line replacement. 3. Replace the light housing cover by inserting the tab FIRST, sliding the cover toward the tab and pushing up the other end.
-
Page 26: Defrosting
User’s Manual DO NOT use any type of electrical heating device, ice pick, knife, or other sharp instrument to defrost. Doing so may cause personal injury or damage the inner lining or refrig- eration system and void the warranty. BI 2015 is a manual defrost model and should be defrosted approxi- mately every 8 weeks. -
Page 27: Storage
If the unit is to be stored or not used for extended periods, it will be necessary to drain the system of water. 1. Shut off water supply at the main water source. 2. Disconnect the water supply line from the solenoid valve. 3. -
Page 28: Troubleshooting
User’s Manual TROUBLESHOOTING BEFORE CALLING FOR SERVICE If the unit appears to be malfunctioning, read through NORMAL OPER- ATION first. If the problem persists, check the TROUBLESHOOTING GUIDE. Locate the problem in the guide and refer to the cause and its remedy before calling for service. - Page 29 Problem Possible Cause The unit frosts Unit is manual defrost model. High ambient temperatures or humidity. Water is leaking Water supply out the back connection leaking. of the unit. Ice cubes Infrequent use of cubes. sticking together. Noise during Copper water supply operation.
-
Page 30: If Service Is Required
User’s Manual IF SERVICE IS REQUIRED If the need for service arises, contact the dealer from whom the unit was purchased. State the Model Number and Serial Number and explain the problem. The Model and Serial Number plate is located inside unit at upper right hand corner. - Page 32 P . O . B o x 2 4 5 0 4 0 Milwaukee, WI 53224-9540 P h o n e : 4 1 4 . 3 5 4 . 0 3 0 0 F a x : 4 1 4 . 3 5 4 . 7 9 0 5 w w w .
