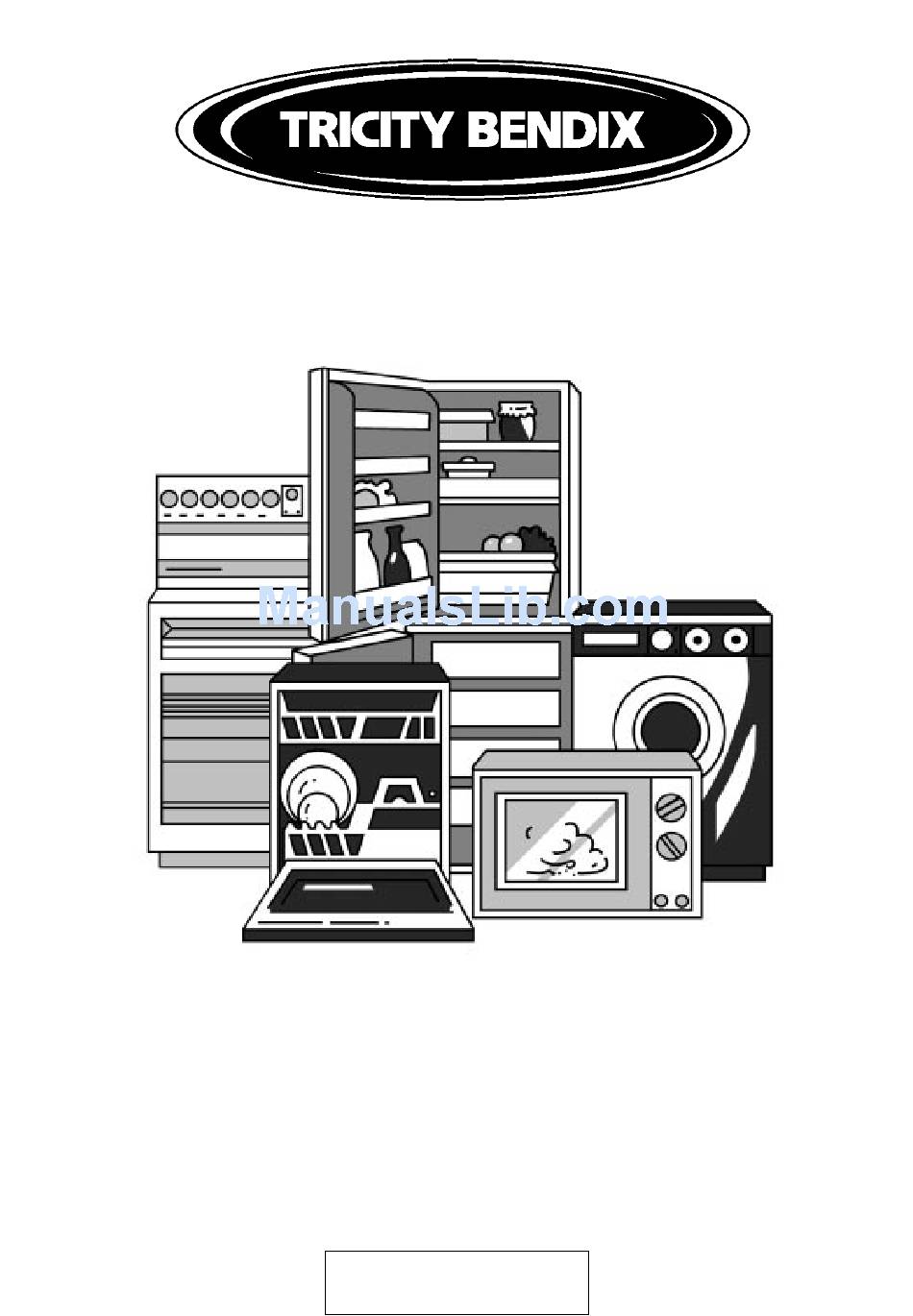

- Page 1 OPERATING AND INSTALLATION INSTRUCTIONS MODEL NO. DSIE 343...
-
Page 2: Technical Details
TECHNICAL DETAILS MODEL NO. DSIE 343 Voltage: 230/240 Volts AC 50Hz Wattage: 9.9/10.8kW Height: 900mm Width: 500mm Depth: 600mm This appliance complies with: European Council Directive 73/23/EEC. EMC Directive 89/336/EEC. CE Marking Directive 93/68/EEC. -
Page 3: Table Of Contents
CONTENTS Technical Details ................. 2 Contents . - Page 4 CONTENTS Defrost Feature ................. . 23 Uses of Defrost Feature .
-
Page 5: Preface
They have been approved by BEAB (British Electrotechnical Approvals Board) and are covered by a 12 month parts and labour guarantee. To get the best from your new Tricity Bendix cooker, we ask that you PLEASE READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be made to cooking times and temperatures which may differ from your previous cooker. -
Page 6: Safety
SAFETY THESE WARNINGS ARE PROVIDED IN THE INTERESTS OF YOUR SAFETY. ENSURE THAT THEM ALL BEFORE INSTALLING OR USING THE COOKER. PLEASE READ CAREFULLY BEFORE INSTALLATION This appliance is heavy and care must be taken when moving it. Ensure that all packaging, both inside and outside the appliance, been... -
Page 7: After Use
Always use oven gloves to remove and replace food in the oven. Similarly always use oven gloves to remove and replace the grill pan handle when grilling. Recommendations Ensure that you support the grill pan when it is in the withdrawn or partially withdrawn position. -
Page 8: Introduction
INTRODUCTION WARNING: THIS APPLIANCE MUST BE EARTHED RATING PLATE Record the model, product and serial numbers on the back cover of this instruction book, from the rating plate. This is situated on the lower front frame of the appliance and can be seen upon opening the oven door. -
Page 9: Reversible Main Oven Door
Overhanging surfaces or a cooker hood should be a minimum of 685mm above the hob. It is important to ensure that the appliance is level after installation. Levelling feet are fitted to the front of the appliance to accommodate uneven floors. REVERSIBLE MAIN OVEN DOOR If you require the oven door to be hinged on the opposite side, you will need to contact a qualified... -
Page 10: Getting To Know Your Cooker
GETTING TO KNOW YOUR COOKER THE CONTROL PANEL FEATURES Main Oven Temperature Control Main Oven Indicator Neon Top Oven/Grill Control Top Oven/Grill Indicator Neon Hotplate Controls DSIE343... -
Page 11: The Electronic Minute Minder
ELECTRONIC MINUTE MINDER DECREASE CONTROL & MINUTE MINDER SETTING BUTTON INCREASE CONTROL ) COOKPOT SYMBOL ) CLOCK SETTING SYMBOL ) MINUTE MINDER SYMBOL The electronic minute minder can indicate the time of day, operate as a minute minder and it can be used to time and switch off the main oven. - Page 12 2. THE MINUTE MINDER IMPORTANT The minute minder can be used to time a set cooking period. At the end of the cook time the minute minder will automatically switch off the main oven if in use. The minute minder gives an audible reminder at the end of any period of cooking up to 23 hours and 59 minutes.
-
Page 13: The Ceramic Hob
THE CERAMIC HOB CAUTION: DO NOT USE THE COOKER IF THE CERAMIC GLASS IS DAMAGED. IF A FAULT OR CRACK BECOMES VISIBLE DURING COOKING, DISCONNECT THE COOKER IMMEDIATELY FROM THE ELECTRICITY SUPPLY AND CONTACT THE CUSTOMER SERVICE CENTRE. USING THE HOB For single hotplates, turn the control knob in either direction to vary the heat setting. -
Page 14: Deep Fat Frying
Never use utensils with a skirt, e.g. a bucket. Never use an asbestos mat. Never leave the hotplates ON when not covered with a saucepan. Ensure that hob and saucepans are clean and dry before the start of cooking to reduce cleaning. -
Page 15: The Grill
THE GRILL CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE KEPT AWAY. SELECTING THE GRILL To operate the grill open the grill door and turn the top oven/grill control clockwise so that '0' on the control knob lines up with setting 1, 2 or 3. -
Page 16: Hints And Tips
To correctly locate the grill pan on the shelf, ensure that the cut out on the underside of the handle bracket locates over the front bar of the shelf. To check the progress of the food being grilled, the grill pan should be withdrawn on the shelf to tend the food during cooking, or the carrier shelf can be lifted away from the cooker and rested on a heat resistant work surface. -
Page 17: The Top Oven
THE TOP OVEN USES OF THE TOP OVEN The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is designed for cooking on one level and for smaller quantities of food. It gives especially good results if used to cook fruit cakes, sweet or savoury flans or quiche. - Page 18 There should always be at least 2.5cm (1") between the top of the food and the element. This gives best cooking results and allows room for rise in yeast mixtures, Yorkshire puddings, etc. When cooking cakes, pastry, scones, bread, etc., place the tins or baking trays centrally on the shelf directly below the element.
-
Page 19: The Main Fan Oven
THE MAIN FAN OVEN USES OF THE FAN OVEN PREHEATING The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without preheating, however, you may find you need to add an extra 5 - 10 minutes on the recommended cooking times. For recipes needing high temperatures, e.g. -
Page 20: To Fit The Main Oven Shelves
TO FIT THE MAIN OVEN SHELVES The shelves should be fitted with the straight rods uppermost on the frame and the forms towards the back of the oven. If not fitted correctly the anti-tilt and safety stop mechanism will be affected. HINTS AND TIPS Arrange the shelves in the required positions before switching the oven ON. -
Page 21: Oven Cooking Chart
OVEN COOKING CHART The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatu by 10°C to suit individual preferences and requirements. FOOD Biscuits Bread Bread rolls/buns Cakes: Small & Queen Sponges Victoria Sandwich Madeira Rich fruit... -
Page 22: Roasting Chart
ROASTING CHART ROASTING CHART INTERNAL TEMPERATURES - Rare: 50-60°C; Medium: 60-70°C; Well Done: 70-80°C MEAT Beef Beef, boned Mutton and Lamb Pork and veal Chicken Turkey and goose Duck Pheasant Rabbit Potatoes with meat Potatoes without meat The roasting temperatures and times given in the chart should be adequate for most joints, but slight adjustments may be required to allow for personal requirements and the shape and texture of the meat. -
Page 23: Defrost Feature
DEFROST FEATURE USES OF DEFROST FEATURE This fan oven function defrosts most foods faster than more conventional methods. It is particularly suitable for delicate frozen foods which are to be served cold e.g. cream filled gateaux, cakes covered with icings or frostings, cheesecakes, biscuits, scones, etc. -
Page 24: Care And Cleaning
CARE AND CLEANING ALWAYS SWITCH OFF THE SUPPLY AT THE MAIN WALL SWITCH AND ALLOW THE COOKER TO COOL BEFORE CLEANING. CLEANING MATERIALS Before using any cleaning materials on your cooker, check that they are suitable and that their use is recommended by the manufacturer. -
Page 25: Cleaning The Outside Of The Cooker
TO REMOVE DISCOLOURATIONS OR WHITE AND SILVER MARKS These marks sometimes give the impression of being in or underneath the hob glass. They can almost always be removed provided they have not become excessively burnt on. Follow the instructions under 'To Remove more Stubborn Marks' above. If this is unsuccessful, make up a paste of one part water to three parts Cream of Tartar and leave on the discoloured areas overnight. -
Page 26: Cleaning Inside The Grill/Oven Compartments
CLEANING INSIDE THE GRILL / OVEN COMPARTMENTS The sides, and back panel of the main oven are coated with special Stayclean linings. The Stayclean linings should not be cleaned manually. The vitreous enamel main oven base, interior main oven door and top oven/grill compartment base can be cleaned using normal oven cleaners or aerosol oven cleaners... -
Page 27: Something Not Working
SOMETHING NOT WORKING? We strongly recommend that you carry out the following checks on your appliance before calling a Service Engineer. It may be that the problem is a simple one, which you can solve yourself without the expense of a service call. If our Service Engineer finds that the problem is listed below you will be charged for the call whether or not the appliance is under guarantee. -
Page 28: Service And Spare Parts
In the event of your appliance requiring service, or if you wish to purchase spare parts please contact your local Tricity Bendix Service Force Centre by telephoning: The address of your local Service Force Centre is detailed on the following pages headed Tricity Bendix Service Force. -
Page 29: Customer Service Centres
TRICITY BENDIX SERVICE FORCE 08705 929929 To contact your local Tricity Bendix Service Centre telephone CHANNEL ISLANDS NORTH EAST SCOTLAND NORTHERN IRELAND WALES NORTH WEST... -
Page 30: Tricity Bendix Service Force
TRICITY BENDIX SERVICE FORCE To contact your local Tricity Bendix Service Centre telephone MIDLANDS Unit 7 Oaks Industrial Estate Coventry Road Narborough Leicestershire LE9 5GF LONDON & EAST ANGLIA WEST DRAYTON 2 / 4 Royal Lane (M76) Yiewsley West Drayton... -
Page 31: Guarantee Conditions
Standard guarantee conditions We, Tricity Bendix, undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: The appliance has been correctly installed and used only on the electricity supply stated on the rating plate. - Page 32 This handbook is accurate at the date of printing, but will be superseded and should be disregarded if specifications or appearance are changed. TRICITY BENDIX,PO BOX 47,NEWBURY,BERKSHIRE, RG14 5XL TELEPHONE (01635) 525542 MODEL NO. PART NO.
