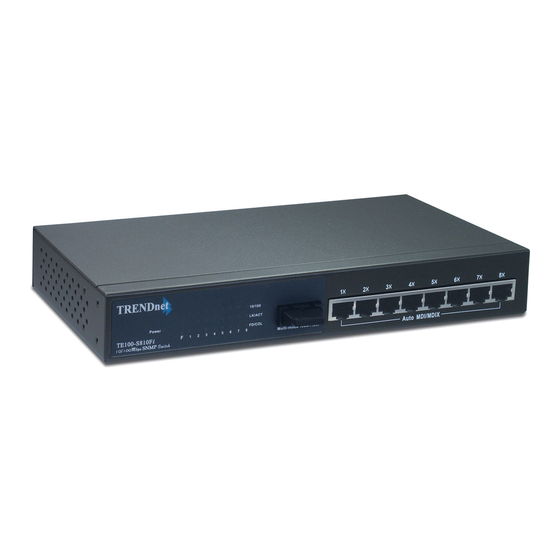

- Page 1 Quick Installation Guide TE100-S800i TE100-S810Fi...
-
Page 2: Table Of Contents
Table of Contents English ... 1. Before You Start 2. How to Connect ... 3. Using the Switch ... Troubleshooting ... Version 10.13.05... -
Page 3: English
1. Before You Start System Requirements 1. Workstations with network cards 2. TCP/IP protocol installed in all workstations 3. A web browser such as Internet Explorer or Netscape Navigator 4. RJ-45 Network Patch Cable to connect your workstations to the TE100-S800i/TE100-S810Fi 8-Port 10/100Mbps Layer 2 Managed Switch 8-Port 100Base-FX Layer 2 Managed Switch with 100Base-FX Port... -
Page 4: How To Connect
2. How to Connect 1. Connect the AC Power cord to the back of the TE100-S800i/TE100-S810Fi. 2. Connect the network cable to the front of the switch and your PC. 3. Verify that the PWR led displays a solid green light. English... -
Page 5: Using The Switch
3. Using the Switch 1. Go to Start ? Settings ? Control Panel. 2. Double-Click the Network Connection Icon. 3. Right-Click Local Area Connection, and select Properties. English... - Page 6 4. Click the General tab, select Internet Protocol(TCP/IP), and click Properties. Change the IP address to 192.168.16.222 and click OK to apply the settings. 5. Open your web browser, type http://192.168.16.1, and press Enter. 6. User Name: root Password: root 7.
-
Page 7: Troubleshooting
IP conflict between these two switches. Please configure each switch one at a time, and make sure you assign a unique IP address to each switch. If you have any questions regarding the TE100-S800i/TE100-S810Fi, please contact TRENDnet Technical Support Department. - Page 8 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 9 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 20675 Manhattan Place Torrance, CA 90501 Copyright ©2006. All Rights Reserved. TRENDnet.
