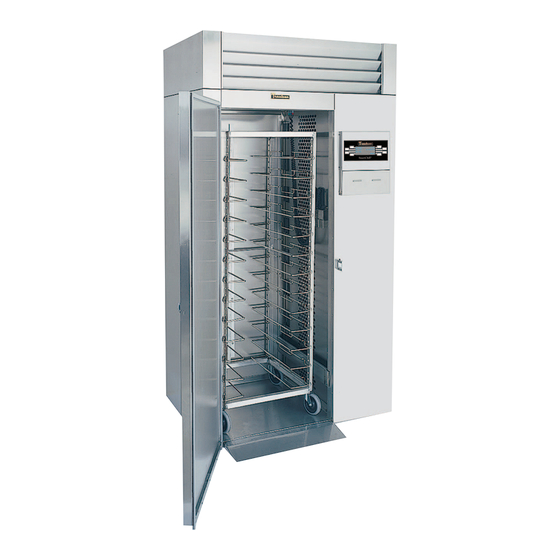

TRAULSEN RBC50, RBC100 & RBC200
BLAST CHILLERS
This Manual is prepared for the use of qualified personnel. It should not be used by those not properly
qualified. Before proceeding with any work, you should read, in its entirety, the procedure you wish to
perform in order to determine if you have the necessary tools and skill required to perform the procedure.
Procedures for which you do not have the necessary tools and/or skill should not be performed.
-NOTICE-

Advertisement

Table of Contents
loading

Related Manuals for Traulsen TRAULSEN RBC100

Summary of Contents for Traulsen TRAULSEN RBC100

  • Page 1 TRAULSEN RBC50, RBC100 & RBC200 BLAST CHILLERS This Manual is prepared for the use of qualified personnel. It should not be used by those not properly qualified. Before proceeding with any work, you should read, in its entirety, the procedure you wish to perform in order to determine if you have the necessary tools and skill required to perform the procedure.

  • Page 2: Table Of Contents

    TRAULSEN RBC50, RBC100 & RBC200 BLAST CHILLER BASIC SERVICE GUIDE Table of Contents Programming The Control... 2 General Troubleshooting... 3-4 Replacing The Control Board... 5 Replacing Either Printer... 6 Repairing Moisture Damage... 7 Verifying Control Version... 8 Locating Refrigerant Leaks... 9 Resetting The Control...10...

  • Page 3: Programming The Control

    How to Set Correct Date & Time 1. From the Main Menu Screen press MORE, then SETUP. The display will change to the Password Screen. 2. From the Select Supervisor Screen, use the UP and DOWN arrows to the left and right of PASSWORD to select 57.

  • Page 4: General Troubleshooting

    TRAULSEN RBC50, RBC100 & RBC200 BLAST CHILLER BASIC SERVICE GUIDE General Troubleshooting PROBLEM: Extended or unsafe chill times. a. Is the door closed properly? If not close door. b. Excessive product load. Reduce product loaded. c. Has pan been covered with a lid, plastic wrap or foil, and is this not in direct contact with the product? Cover product correctly.

  • Page 5: General Troubleshooting

    General Troubleshooting (cont’d.) PROBLEM: Incorrect date/time shown on display and/or printouts. a. Incorrect time and/or date setting. Correct date and/or time settings. b. Control issue. Replace control. PROBLEM: Defrost appears to have occured before chill cycle completion. Defrost will not occur until all food probes have reached target temp (DONE). a.

  • Page 6: Replacing The Control Board

    Remove Five (5) #2 Phillips head screws (see fig. 2). Disconnect ten (10) electrical connections (see fig. 3). Re-assemble in reverse order. Restore power. If previously authorized by Traulsen, insert original control in pre addressed mailer and return to Traulsen. WARNING Fig. 1 Fig.

  • Page 7: Replacing Either Printer

    7) Thermal Paper or Label Stock NOTE: Order printer supplies from Traulsen or your local Hobart Sales/Service Office. Record Paper: p/n 400-60003-00, Labels: p/n 400-60004-00. NOTE: Record paper is also available from: Office Depot (item# 302-224) or Staples (item# PMF-5233).

  • Page 8: Repairing Moisture Damage

    TRAULSEN RBC50, RBC100 & RBC200 BLAST CHILLER BASIC SERVICE GUIDE Repairing Moisture Damage DISCONNECT THE ELECTRICAL POWER TO THE MACHINE AND FOLLOW PROPER LOCKOUT/TAGOUT PROCEDURES. Fig. 1 Fig. 2 WARNING Access the control boardand/or printers by removing four (4) thumb screws & control cover (see fig.

  • Page 9: Verifying Control Version

    Verifying The Control Version On the main menu display press MORE. Press SETUP. The SELECT SUPERVISOR screen will be displayed. Enter PASSWORD/PIN 85. Press the top left, top right, and bottom right buttons at the same time. The control version will appear on the display. °...

  • Page 10: Locating Refrigerant Leaks

    TRAULSEN RBC50, RBC100 & RBC200 BLAST CHILLER BASIC SERVICE GUIDE Locating Refrigerant Leaks DISCONNECT THE ELECTRICAL POWER TO THE MACHINE AND FOLLOW PROPER LOCKOUT/TAGOUT PROCEDURES. WARNING: THIS PROCEDURE REQUIRES THE USE OF REFRIGERANTS. BE CERTAIN THE WORK AREA IS WELL VENTILATED. SAFETY GOGGLES AND GLOVES SHALL BE WORN SINCE REFRIGERANTS MAY CAUSE INJURY TO THE SKIN.

  • Page 11: Resetting The Control

    Refers To Older Control Versions Only If memory reaches capacity during a chill cycle there is potential that some printout data could be incorrect (date & time). This will reset on it’s own, however to do so manually... STEP 1 °...

  • Page 12: Parts List

    RECORD/LABEL PRINTER PRINTER COVER DOOR - HINGED LEFT LOUVER ASSEMBLY ROLL-IN RAMP RECORD/LABEL PRINTER PRINTER COVER DOOR - HINGED LEFT 4401 Blue Mound Road, Fort Worth, TX 76106 • (800) 825-8220 • www.traulsen.com PART # 333-13013-01 900-60233-00 344-13168-01 401-60027-01 701-60115-00 500-60154-00...
