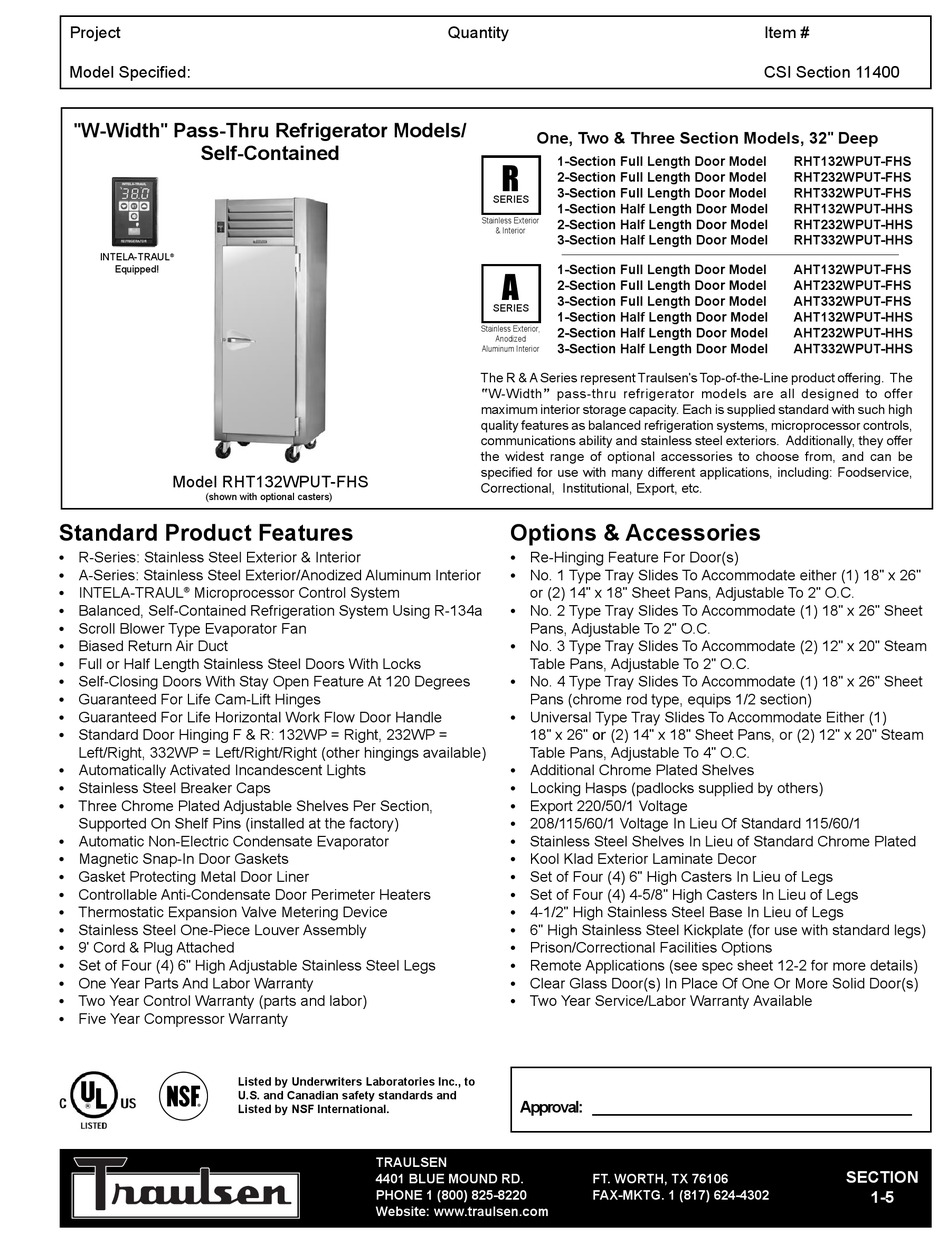

Traulsen RHT132WPUT-FHS Specification Sheet

Traulsen pass-thru refrigerator specification sheet.
Hide thumbs

Project
Quantity
Item #
Model Specified:
CSI Section 11400
"W-Width" Pass-Thru Refrigerator Models/
One, Two & Three Section Models, 32" Deep
Self-Contained
1-Section Full Length Door Model
RHT132WPUT-FHS
R
2-Section Full Length Door Model
RHT232WPUT-FHS
3-Section Full Length Door Model
RHT332WPUT-FHS
SERIES
1-Section Half Length Door Model
RHT132WPUT-HHS
Stainless Exterior
2-Section Half Length Door Model
RHT232WPUT-HHS
& Interior
3-Section Half Length Door Model
RHT332WPUT-HHS
INTELA-TRAUL
®
1-Section Full Length Door Model
AHT132WPUT-FHS
Equipped!
A
2-Section Full Length Door Model
AHT232WPUT-FHS
3-Section Full Length Door Model
AHT332WPUT-FHS
SERIES
1-Section Half Length Door Model
AHT132WPUT-HHS
Stainless Exterior,
2-Section Half Length Door Model
AHT232WPUT-HHS
Anodized
3-Section Half Length Door Model
AHT332WPUT-HHS
Aluminum Interior
The R & A Series represent Traulsen's Top-of-the-Line product offering. The
"W-Width" pass-thru refrigerator models are all designed to offer
maximum interior storage capacity. Each is supplied standard with such high
quality features as balanced refrigeration systems, microprocessor controls,
communications ability and stainless steel exteriors. Additionally, they offer
the widest range of optional accessories to choose from, and can be
specified for use with many different applications, including: Foodservice,
Model RHT132WPUT-FHS
Correctional, Institutional, Export, etc.
(shown with optional casters)
Standard Product Features
Options & Accessories
• R-Series: Stainless Steel Exterior & Interior
• Re-Hinging Feature For Door(s)
• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
• No. 1 Type Tray Slides To Accommodate either (1) 18" x 26"
• INTELA-TRAUL
Microprocessor Control System
or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C.
®
• Balanced, Self-Contained Refrigeration System Using R-134a
• No. 2 Type Tray Slides To Accommodate (1) 18" x 26" Sheet
• Scroll Blower Type Evaporator Fan
Pans, Adjustable To 2" O.C.
• Biased Return Air Duct
• No. 3 Type Tray Slides To Accommodate (2) 12" x 20" Steam
• Full or Half Length Stainless Steel Doors With Locks
Table Pans, Adjustable To 2" O.C.
• Self-Closing Doors With Stay Open Feature At 120 Degrees
• No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet
• Guaranteed For Life Cam-Lift Hinges
Pans (chrome rod type, equips 1/2 section)
• Guaranteed For Life Horizontal Work Flow Door Handle
• Universal Type Tray Slides To Accommodate Either (1)
• Standard Door Hinging F & R: 132WP = Right, 232WP =
18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam
Left/Right, 332WP = Left/Right/Right (other hingings available)
Table Pans, Adjustable To 4" O.C.
• Automatically Activated Incandescent Lights
• Additional Chrome Plated Shelves
• Stainless Steel Breaker Caps
• Locking Hasps (padlocks supplied by others)
• Three Chrome Plated Adjustable Shelves Per Section,
• Export 220/50/1 Voltage
Supported On Shelf Pins (installed at the factory)
• 208/115/60/1 Voltage In Lieu Of Standard 115/60/1
• Automatic Non-Electric Condensate Evaporator
• Stainless Steel Shelves In Lieu of Standard Chrome Plated
• Magnetic Snap-In Door Gaskets
• Kool Klad Exterior Laminate Decor
• Gasket Protecting Metal Door Liner
• Set of Four (4) 6" High Casters In Lieu of Legs
• Controllable Anti-Condensate Door Perimeter Heaters
• Set of Four (4) 4-5/8" High Casters In Lieu of Legs
• Thermostatic Expansion Valve Metering Device
• 4-1/2" High Stainless Steel Base In Lieu of Legs
• Stainless Steel One-Piece Louver Assembly
• 6" High Stainless Steel Kickplate (for use with standard legs)
• 9' Cord & Plug Attached
• Prison/Correctional Facilities Options
• Set of Four (4) 6" High Adjustable Stainless Steel Legs
• Remote Applications (see spec sheet 12-2 for more details)
• One Year Parts And Labor Warranty
• Clear Glass Door(s) In Place Of One Or More Solid Door(s)
• Two Year Control Warranty (parts and labor)
• Two Year Service/Labor Warranty Available
• Five Year Compressor Warranty
Listed by Underwriters Laboratories Inc., to
U.S. and Canadian safety standards and
Approval: ___________________________________
Listed by NSF International.
TRAULSEN
SECTION
4401 BLUE MOUND RD.
FT. WORTH, TX 76106
PHONE 1 (800) 825-8220
FAX-MKTG. 1 (817) 624-4302
1-5
Website: www.traulsen.com

   Related Manuals for Traulsen RHT132WPUT-FHS

   Summary of Contents for Traulsen RHT132WPUT-FHS

  • Page 1

    Anodized 3-Section Half Length Door Model Aluminum Interior The R & A Series represent Traulsen's Top-of-the-Line product offering. The “W-Width” pass-thru refrigerator models are all designed to offer maximum interior storage capacity. Each is supplied standard with such high quality features as balanced refrigeration systems, microprocessor controls, communications ability and stainless steel exteriors.

  • Page 2: Specifications

    Part No. TR35759 (revised 1/07) TRAULSEN SECTION 4401 BLUE MOUND RD. PHONE 1 (800) 825-8220 Website: www.traulsen.com Quantity Specifications Refrigeration System A top mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one piece louver assembly. It features...

This manual also for:

Aht132wput-fhs Aht132wput-hhs Aht232wput-fhs Aht232wput-hhs Aht332wput-fhs Aht332wput-hhs... Show all
