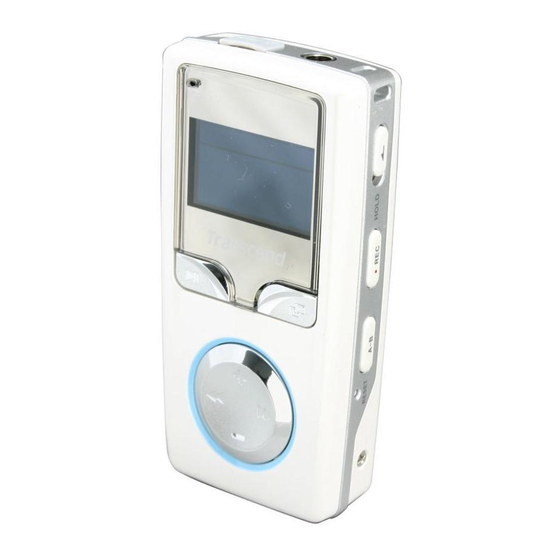

- Page 1 T.sonic User’s Manual P/N TS512M/1G/2GMP610 P/N TS512M/1GMP610C...
-
Page 2: Table Of Contents
Introduction...1 Package Contents ...1 Features ...1 System Requirements...2 Reminders ...2 Caution: Risk of Deafness ...2 Product Overview ...3 OLED Display ...4 Charging the Battery ...5 Basic Operation...6 Power On...6 Power Off...6 Play a Track ...6 Pause a Track ...6 Advance to the Next Track ...6 Return to the Previous Track ...6 Fast Forward ...6 Fast Rewind ...7... - Page 3 AB Repeat Function...14 FM Functions ...15 Scan for a Channel ...15 Preset a Channel...15 Select a Preset Channel ...16 Rescan favorite channel ...16 Record an FM Channel ...17 Voice Recording Function ...17 Record a Voice...17 Play the Recorded Files...18 Settings...19 REC Quality...19 REC Environment ...20 Contrast ...20...
-
Page 4: Introduction
Also, you can record memos to yourself or from others using the digital recorder. With an FM radio built-in, you can always listen to your favorite radio station. Transcend’s latest T.sonic™ 610 is a step above the usual MP3 player. -
Page 5: System Requirements
System Requirements Desktop or notebook computer with a working USB port One of following operating systems: • Windows 98SE • Windows Me • Windows 2000 • Windows XP • Mac OS 10.2.8 or later • Linux kernel 2.4 or later Reminders 1. -
Page 6: Product Overview
Joypad Next / Fast-Forward (Right) Previous / Fast-Rewind (Left) Volume Up (Up) Volume Down (Down) PLAY Button MENU Button LOCK Switch Product Overview REC Button A-B Button Reset Button Microphone Earphone Jack Mini USB Connector OLED Display Neck Strap Hole... -
Page 7: Oled Display
Icons Volume Displays the volume status. Repeat Mode Indicates the repeat mode that includes Normal, Repeat One, Repeat All, Random and Repeat in Folder. Equalizer (EQ) Mode Indicates the EQ mode settings that include Normal, Classical, POP, Rock, Jazz, and USER EQ. A-B Repeat Indicates when AB repeat function is enabled. -
Page 8: Charging The Battery
1. Open the rubber cap on top of the T.sonic, you can see a mini USB port inside. 2. Insert one end of the USB cable into the T.sonic‘s mini USB port, and plug the other end of the cable into a computer USB port. Power on the unit and the display will show the ready status. -
Page 9: Basic Operation
Power On Press and hold the PLAY button to turn the power on. An animated logo will appear on the OLED Display, and then you can start to use the T.sonic. The waiting time of power on depends on how many files in T.sonic. More files in T.sonic will spend more waiting time powering on. -
Page 10: Fast Rewind
Fast Rewind Press and hold the left (Fast-Rewind) of Joypad to rewind the track. Increase Volume Press once or press and hold the upwards (Volume Up) of Joypad until you reached the desired volume level. Decrease Volume Press once or press and hold the downwards (Volume Down) of Joypad until you have reached the desired volume. -
Page 11: Repeat In Folder
Repeat in Folder Please see “Settings Mode” in “MP3 Functions” for detailed instructions. Repeat a Portion of a Track (AB Repeat) Press the A-B button to mark the beginning of the portion you wish to repeat and then press the button again to mark the end of the portion you wish to repeat. -
Page 12: Driver Installation
Driver Installation Driver Installation for Windows 98SE 1. Put the Driver CD into the CD-ROM (Auto-Run supported). Select the Win98 Driver button. 2. Select Next to continue. 3. The InstallShield Wizard will guide you through the installation process. 4. After the drivers have been installed, plug your T.sonic into an available USB port. The New Hardware Found dialogue boxes will appear. -
Page 13: Driver Installation For Windows Me, 2000, And Xp
T.sonic from the computer to play or record files. 2. To avoid destruction of T.sonic, NEVER format your T.sonic in Windows. 3. There is a hidden file “settings.610” in the root directory of your T.sonic, please don’t delete it. Warning... - Page 14 4. T.sonic is limited to 50 folders. ™ 5. Audio files (MP3/WMA/WAV) must be organized on the T.sonic 610, so that they are no more than 4 levels from the root directory 6. T.sonic is limited to 80 characters in file name.
-
Page 15: Mp3 Function
Download or Upload MP3/WMA Files 1. Open the rubber cap on top of the T.sonic, you can see a mini USB port inside. Insert one end of the USB cable into T.sonic USB port, and plug the other end cable into a computer USB port. -
Page 16: Using The Navigation Functions
2. If there are no MP3 or WMA files available, the “ **No Files** ” message will be show on the OLED display. 3. Press the right (Next) The files are listed in access order. 4. Press the PLAY button to play the selected MP3/WMA file. 5. -
Page 17: Sync Lyrics Function
2. Press the right (Next) upwards (Volume Up) REPEAT and the EQ function. Select a desired EQ mode to suit your personal taste: NORMAL, POP, JAZZ, CLASSICAL, ROCK, or USER EQ. If you select USER EQ, please see “User EQ” in “Settings” for detailed setting and instructions. -
Page 18: Fm Functions
Press the A-B button to tag the beginning portion of the track you wish to repeat. The A- figure will be shown on the OLED display. Press the A-B button again to tag the end of the track’s portion you wish to repeat. The A-B figure will be shown on the OLED display, and the tagged portion will play as a continuous loop. -
Page 19: Select A Preset Channel
1. Select a desired channel (frequency) first. 2. Press the PLAY button, the message “SET CH” will appear on the display. 3. Press the right (Next) station (CH01 to CH20), and press the PLAY button to save the selected channel to the selected favorite channel number. -
Page 20: Record An Fm Channel
Record an FM Channel 1. Select a desired channel. 2. Press the REC button for 2 seconds. 3. Once the REC button is pressed, the selected channel will start being recorded. On the display, a recording FM file is generated and placed under the folder name of [/FM/]. The recording file name sequence starts from [F0001.WAV], then [F0002.WAV], and so forth. -
Page 21: Play The Recorded Files
If lying in the noise environment, you can press the right (Next) Joypad to select “Noisy REC Envi“, and obtain distinct record quality. 3. Press the PLAY button to pause the recording and press the PLAY button again to continue. 4. -
Page 22: Settings
1. Press the MENU button to enter the main menu. Select the Record icon, and then press the PLAY button to enter the record function. 2. If there are no MP3 or WMA files available, the “ **No Files** ” message will be shown on the OLED display. -
Page 23: Rec Environment
2. Press the upwards (Volume Up) and then press the PLAY marked with a tick logo. 3. Press the MENU button again and back to the main menu. REC Environment Set the Record Environment to Quiet or Noise, and fit your surroundings. 1. -
Page 24: Power Saving
3. Press the MENU Set the language option to support the filename or ID3 (ID3 provides textual information about the music file, such as title, artist etc.) tag/title display of the MP3/WMA files. If there is an ID3 tag/title for the MP3/WMA file, it will be displayed first, otherwise the display will just show the filename. 1. -
Page 25: Screen Saver
3. If you select 5 MIN or 10 MIN, the T.sonic will power off automatically after 5 or 10min of idle time (not playing music). If you select DISABLE, the T.sonic will always remain on. 4. Press the MENU Screen Saver darken Set a time to the OLED display automatically. -
Page 26: User Eq
2. Press the upwards (Volume Up) and then press the PLAY hear the change through your earphones. 3. Press the MENU User EQ In user EQ setting, you can adjust the sound to your reference. 1. Press the upwards (Volume Up) the User EQ icon in the Settings menu, and then press the PLAY 2. -
Page 27: Sync Lyrics Function
Sync Lyrics Function The Sync Lyrics Function will show the song lyrics on the LCD display synchronized with the audio during MP3 and WMA playback. 1. Press the upwards (Volume Up) the Sync Lyrics icon in the Settings menu, then press the PLAY 2. -
Page 28: Delete Mp3/Wma/Wav Files
To delete a MP3/WMA or recorded files 1. Press the MENU button to enter the main menu. Select the Delete icon, then press the PLAY button to enter the delete function. 2. Press the right (Next) button to enter. If you want to delete music files (MP3 or WMA), please select the MUSIC FILES. If you want to delete voice recording files (WAV), please select the VOICE FILES. -
Page 29: Safely Remove Your T.sonic
Before removing your T.sonic, please make sure the OLED Display is not in the READ/WRITE status or unpredictable damage to the files or your T.sonic may occur. Remove the T.sonic in Windows 98SE Unplug your T.sonic from your system directly when data is not transferring. Remove the T.sonic in Windows Me, 2000, and XP 1. -
Page 30: Recover The T.sonic In Windows 98Se
Recover the T.sonic in Windows 98SE 1. Plug your T.sonic into an available USB port. Select the select Programs > Transcend T.sonic 610 > T.sonic 610 Firmware Update to run the T.sonic 610 Firmware Update program. If you have not installed the Windows 98SE driver yet, please install it first. -
Page 31: Recover The T.sonic In Windows Me, 2000, And Xp
Recover the T.sonic in Windows Me, 2000, and XP Skip steps 1-3 if the Recovery program has already been installed. 1. Put the Driver CD into the CD-ROM (Auto-Run supported) and then select the Recovery button on the T.sonic splash screen. 2. - Page 32 5. The Found New Hardware messages will appear. 6. Select the button on the task bar and select Programs > Transcend T.sonic 610 > T.sonic 610 Firmware Update to run the T.sonic 610 Firmware Update program. 7. The T.sonic 610 Firmware Update dialog box will appear.
- Page 33 8. If the Format Data Area checkbox is checked. The Option message box will appear. Select Yes to continue. Running this step will erase all the data currently on the T.sonic. Please backup all of the data on the T.sonic first. 9.
-
Page 35: Menu Table
Music Play Music File List Quick Set FM Tuner Scan CH Preset CH Select Preset CH Record FM Record Play Record File List Quick Set Lock MENU Table Delete Delete Music File Delete Voice File Delete Radio File Settings REC Quality REC Environment Contrast Language... -
Page 36: Troubleshooting
If an error occurs, first check the information listed below before taking your T.sonic for repair. If you are unable to remedy a problem from the following hints, please consult your dealer, service center, or local Transcend branch office. Driver CD cannot auto-run in Windows Enter Device Manager in the Control Panel and enable the Auto-Insert function of the CD-ROM drive. - Page 37 1. Are there any MP3 or WMA files in the root directory of your T.sonic? If no, you must download music files from your computer or Internet first. (Only Mpeg I Layer 3 and WMA files compressed at a rate of 32Kbps–320Kbps are supported.) 2.
- Page 38 Re-delete the file and refer to the “Safely Remove Your T.sonic” section to remove the T.sonic after the delete process is completed. T.sonic automatically removed from the operating system This problem occurs when you press the PLAY button while your T.sonic is still connected to a USB port.
-
Page 39: Specifications
Specifications • Size: • Weight: • Data Retention: • Signal-to-Noise Ratio: • Output Frequency: • MP3 Format: • Record Format: • Compress Rate: • Certificates: Ordering Information Memory Size 512MB 512MB 70 mm × 34.5 mm × 15.5 mm Up to 10 years 90dB 20Hz–20KHz MP3 and WMA... -
Page 40: T.sonic Limited Warranty
We consistently position ourselves to be significantly above the industry norm. It’s all part of our commitment to Customer Satisfaction. All Transcend Information, Inc. (Transcend) products are warranted and tested to be free from defects in material and workmanship and to conform to the published specifications. Should your Transcend T.sonic malfunction during normal use in its recommended environment due to...
