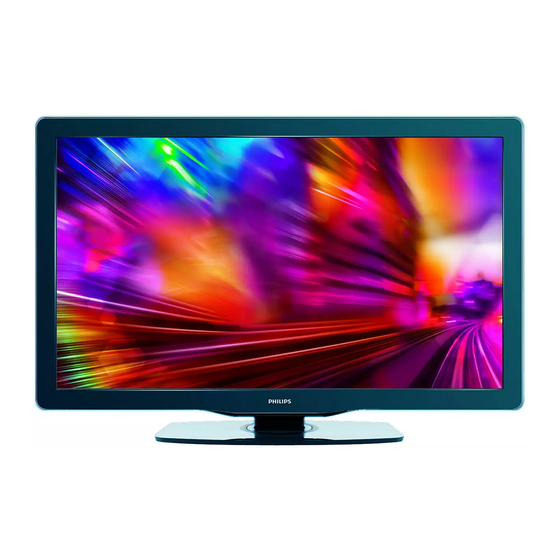

Philips 22HFL5662H/F7 User Manual

Philips healthcare lcd tv 22/36/32/37/42" led pro:idiom with mpeg-4
Hide thumbs Also See for 22HFL5662H/F7:

Advertisement

22HFL5662H
User Manual
26HFL5662H
32HFL4462F
32HFL5662D
32HFL5662H
32HFL5662L
37HFL4482F
37HFL5682D
37HFL5682L
42HFL4482F
42HFL5682D
42HFL5682H
42HFL5682L

Advertisement

Table of Contents
loading

Summary of Contents for Philips 22HFL5662H/F7

  • Page 1 22HFL5662H User Manual 26HFL5662H 32HFL4462F 32HFL5662D 32HFL5662H 32HFL5662L 37HFL4482F 37HFL5682D 37HFL5682L 42HFL4482F 42HFL5682D 42HFL5682H 42HFL5682L...
  • Page 2: Table Of Contents

    OSS declaration Cleaning and care Environmental care 2 Your TV Standalone installation and side controls Guest remote control (optional) Philips Hospitality setup remote control (not included in box) RC2573GR setup remote control (not included in box) 3 Installation Smart Installation...
  • Page 3: Notice

    3. Installing the TV on the wall requires special skill that should only be performed by a qualifi ed personnel. You should not attempt to do the work yourself. Philips bears no responsibility for improper mounting or mounting that results in accident or injury. Make sure that the wall mount is being fi...
  • Page 4: Important Safety Instructions

    Important Safety Instructions Read before operating equipment 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 5: Oss Declaration

    United States patents. No further warranty is expressed or implied. Philips can’t be held responsible neither for any errors in the content of this document nor for any problems as a result of the content in this document.
  • Page 6: Environmental Care

    • Like all LCD products, this set contains a lamp with mercury; please dispose of according to all local, state and federal laws. Philips pays a lot of attention to produce environment-friendly products in green focal areas. Your new TV contains materials which can be recycled and reused.
  • Page 7: Your Tv

    4. Press RC5 SETUP to display the setup menu. Note • The setup remote control is not included in the box. Contact your Philips authorized agent or dealer to acquire the setup remote control. Setup remote control might differ from the illustration.
  • Page 8: Guest Remote Control (Optional)

    Guest remote control (optional) POWER: Press to turn on/off the TV from or to standby mode. HOME: Toggles the main menu on or off. SOURCE: Selects connected devices. OPTIONS: Selects different options. COLOR buttons: Selects tasks or options. Forward button: Fast forward feature. USB/MEDIA: Access the USB files or photos.
  • Page 9: Philips Hospitality Setup Remote Control

    RC5 GUEST RC5 SETUP RC6 GUEST RC6 SETUP HOSPITALITY RC2573GR setup remote control (not included in box) RC2573GR is an optional remote control. It is used for Philips Commercial Solutions features and SmartCard settings. It can be purchased separately. GUIDE OPTIONS SMART...
  • Page 10: Installation

    3 Installation Smart Installation In the 1st time (Virgin) installation, the OSD will instruct you step by step to do the TV installation setting. 1. Please Select Your Language • Choose a language and press proceed to the next step. 2.
  • Page 11: Install Tv Channels

    Install TV Channels This TV is equipped with Helptext which will time out in 10 sec or upon Remote Control key press. Install TV Channels: This option allows you to Install ■ TV channels. For the “Install TV Channels” option, you can do the setting for following options in sub-menu: •...
  • Page 12 • Select Your RC Lock Settings: “No”, “Yes”. • This function enables/disables the processing of the Guest remote control signals. Installer remote control signals will still function regardless of the setting. • Default setting is “No”. • Any CEC Communication: “Yes”, “No” •...
  • Page 13 This TV has the capability to add a custom Hotel Logo icon to the Home guest menu screen (replaces the “PHILIPS” in the lower right corner). Then this icon can be assigned to a channel where the property runs informational or advertising programming. So when the guest clicks on this icon, the TV will switch to the assigned program.
  • Page 14 » Press OK to select one of the four colors. The TV is confi gured to respond to the RC that is set to the same color. » Press the color button (same color as above) on the guest RC simultaneously to set to the selected color. »...
  • Page 15: Home Screen

    4 Home Screen Press key to go to the Home Screen. Watch TV In this option, you can use the cursor to select category you would like to see via OK key. This is the screen you see if SmartGuide is enabled, otherwise you see •...
  • Page 16: Usb

    Using this option, you can select the files you want to play. For the “USB” option, you can do the setting for following options in sub-menu: • “Folders”, “music”, “picture” TV Settings in Guest Menu In this menu, the following settings are available. ■...
  • Page 17 • CC Setup: “CC”— “Off ”, “On”, “CC on Mute” • This feature allows the Closed Captions settings of this TV to be customized. Any changes made in this section will be reset to default values when the TV is turned off.
  • Page 18: Option

    5 Option OPTIONS Press key on the Guest Remote Control to enter the Option Menu Setting: Audio Language: ■ • Displays options (if available) SAP allows you to select the Secondary Audio Program of the analog TV channel (if available) •...
  • Page 19: Hotel Setting

    6 Hotel Setting Press M on the Setup Remote Control to display the Hotel Setup Menu. Hotel and Room Information Select this option can set the hotel information to customer. ■ Hotel Name: Use the virtual keyboard to enter the Hotel Name Hotel Phone Number: Use the virtual keyboard to ■...
  • Page 20: Guest Tv Settings

    ■ Current Ring: “Ring1”, “Ring2”, “Ring3”, “Ring4”. Only those channels assigned to the “Current Ring” will be available to the guest. Note Channels can be assigned to more than one ring. Guest TV Settings ■ Home Menu Options are : “Smart Features Menu Item”, “Media Player Menu Item”, “TV Settings Menu Item”, “Logo Menu Item”...
  • Page 21: Ppv/Vod Options

    ■ Selectable AV (selecting Yes/No for these items adds or removes them from the list of available sources when the guest presses the Source button on the remote control.): “AV”, “CVI”, “Side AV”, “VGA”, “HDMI1”, “HDMI2”, “HDMI3”, “Side HDMI” ■ Auto Sensing: “Side AV”, “VGA”, “Side HDMI”, “USB”...
  • Page 22 Connected Pro:Idiom system and StandAlone Pro:Idiom system. The conversion mechanism is via a 9 digit keycode obtained from your Philips representative. • Enter the Philips Hospitality setup menu, • Enter the PPV/VOD options and go into the Decryption Control Menu, •...
  • Page 23: Installer Tv Settings

    If the ID is found, the TV will function. If the ID is not found, the TV will display an error message and not function. This functionality requires an external device (PSG) to be installed in the property head end. Contact you Philips sales associate if this functionality is required.
  • Page 24 ■ Control: “Digit Timeout”, “3-Digit Entry”, “Step Tuning”, “HDMI-CEC” ■ This section allows the Installer to customizes the Control and Performance settings of the TV. ■ Digit Timeout - This function enables the setting of the timeout (in seconds) between digit key presses during TV channel changing.
  • Page 25: Smartclone

    Clone data will be received. To receive data over RF requires an additional piece of equipment (PSG) installed in the property head end to transmit the data to the TVs. Contact your Philips sales associate for more information.
  • Page 26: Tv Upgrade

    TV Upgrade data will be received. Like the SmartClone function, the RF option requires a PSG installed in the property head end to broadcast the data to the TVs. For more information, contact your Philips sales representative. ■...
  • Page 27 ■ Upgrade Type: “All”, ”Software Upgrade Package”, “Software Asset Package” ■ This section Select the type of software to be upgraded to the TV. • If set to ALL, then all software types (Software Upgrade Package and Software Asset Package) will be upgraded automatically.
  • Page 28: Overview Of Tv Connectors And Controls

    7 Overview of TV connectors and controls L/D/H model a VIDEO IN b AUDIO IN L/R c VGA IN d PC-AUDIO IN e USB f SIDE HDMI g AUDIO OUT L/R h VIDEO IN i AUDIO IN L/R j CVI (YPbPr and AUDIO L/R) k Data 1 l SPDIF OUT DATA 1...
  • Page 29 F models a VIDEO IN b AUDIO IN L/R c VGA IN d PC-AUDIO IN e USB f SIDE HDMI g CVI (YPbPr and AUDIO L/R) h Data 1 i SPDIF OUT j HDMI 1 k RS232 (Service Port) l TV 75Ω DATA 1 HDMI 3 HDMI 2...
  • Page 30: Glossary

    480p – The picture is the same 720x480 pixels, but non-interlaced. HDTV: 720p – The picture is 1280x720 pixels non-interlaced, | SPDIF (Sony and Philips Digital Interconnect Format) is the high quality digital audio output from the SPDIF TV. Use this to connect the TV sound to a home theater audio system.
  • Page 32 © 2010 Koninklijke Philips Electronics N.V. All rights reserved.
