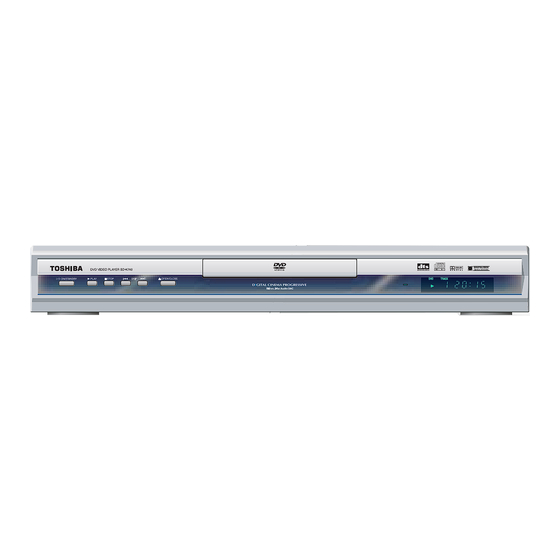

- Page 1 DIGITAL VIDEO DVD VIDEO PLAYER SD-K740SU OWNER’S MANUAL © 2004 Toshiba Corporation 2C01501A COVER 12/16/03, 19:58...
-
Page 2: Safety Precautions
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications made to this equipment, not expressly approved by Toshiba, or parties authorized by Toshiba, could void the user’s authority to operate the equipment. CAUTION: Servicing instructions are for use by qualified service personnel only. -
Page 3: Important Safeguard
IMPORTANT SAFEGUARDS CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS PROVIDED IN THIS OWNER’S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE. This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. - Page 4 IMPORTANT SAFEGUARDS 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
- Page 5 16. Do not overload wall outlets; extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 17. Never insert objects of any kind into this apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.
-
Page 6: Precautions
Introduction Precautions Notes on handling When shipping the DVD video player, the original shipping carton and packing materials come in handy. For maximum protection, repack the unit as it was originally packed at the factory. Do not use volatile liquids, such as insect spray, near the DVD video player. -
Page 7: Notes On Discs
Notes on discs On handling discs Do not touch the playback side of the disc. Do not attach paper or tape to discs. On cleaning discs Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the center outwards with a soft cloth. - Page 8 Introduction Notes on discs (continued) About this owner’s manual This owner’s manual explains the basic instructions of this DVD video player. Some DVD video discs are produced in a manner that allows specific or limited operation during playback. As such, the DVD may not respond to all operating commands.
-
Page 9: Table Of Contents
Table of contents Introduction SAFETY PRECAUTIONS ... 2 IMPORTANT SAFEGUARD ... 3 Precautions ... 6 Notes on discs ... 7 Table of contents ... 9 Identification of controls ... 10 Front panel ... 10 Rear panel ... 10 FL display ... 11 Remote control ... -
Page 10: Identification Of Controls
Introduction Identification of controls See the page in for details. Front panel Rear panel 2C01501A P10-13 12/16/03, 19:58... -
Page 11: Fl Display
FL display Dimmer function This function will change the brightness of the FL display during Power-on status. 1. Press FL DIM once to dim the FL display. 2. Press FL DIM twice to turn off the FL display. 3. Press FL DIM third times to turn on the FL display. The display may vary depending on the types of discs you play. -
Page 12: Remote Control
Introduction Identification of controls (continued) The instructions in this manual describe the functions on the remote control. See the page in Remote control MENU button Use the MENU button to display the menu included on many DVD video discs. To operate a menu, follow the instructions in “DVD menu.”... -
Page 13: Loading Batteries
Loading batteries Slide the battery compartment cover in the direction of the arrow. Install two “AAA” batteries (supplied), paying attention to the polarity diagram in the battery compartment. Replace the compartment cover. Notes on batteries Improper use of batteries may cause battery leakage and corrosion. -
Page 14: Connections
Connections Connecting to a TV Connect the DVD video player to your TV. Connecting to a TV Signal flow To S (red) (white) VIDEO To AUDIO To VIDEO S video cable (not supplied) Notes: • Refer to the owner’s manual of the connected TV as well. •... -
Page 15: Connecting To An Audio System And Tv Equipped With Component Video Inputs
Component video outputs/inputs PROGRESSIVE outputs/inputs Some TVs or monitors are equipped with component video inputs that are capable of reproducing a progressively scanned video signal. Connenting to these inputs allows you to view the highest quality pictures with less flicker. INTERLACED outputs/inputs Some TVs or monitors are equipped with component video inputs. -
Page 16: Connecting To Optional Equipment
Connections Connecting to optional equipment You can enjoy high quality dynamic sounds by connecting the DVD video player to optional audio equipment. For connection to your TV, see “Connecting to a TV” Connecting to an amplifier equipped with a Dolby Digital decoder Dolby Digital Dolby Digital is the surround sound technology used in theaters showing the latest movies, and is now available to reproduce this realistic effect in the home. -
Page 17: Connecting To An Amplifier Equipped With An Mpeg2 Audio Decoder
Warning • When playing DTS-encoded discs (DVD video discs and audio CDs), excessive noise may be output from the analog stereo jacks. To avoid possible damage to the audio system, you should take proper precautions when the AUDIO OUT (L/R) jacks of the DVD video player are connected to an amplification system. -
Page 18: Basic Playback
Basic playback Playing a disc This section shows you the basics on how to play a disc. Basic playback Preparations: • When you want to view a disc, turn on the TV and select the corresponding video input connected to the DVD. This may include S-video or component video inputs which are exclusive to DVD playback. - Page 19 To obtain a higher quality picture POWER Occasionally, some picture noise not usually visible during a normal broadcast may appear on the TV screen while playing a DVD video disc because the high OPEN/CLOSE resolution pictures on these discs include a lot of information. While the amount of noise depends on the TV you use with this unit, you should generally reduce the sharpness adjustment on your TV when viewing DVD video discs.
-
Page 20: Playing In Fast Reverse Or Fast Forward Directions
Basic playback Playing a disc (continued) You can play discs at various speeds. Playing in fast reverse or fast forward directions Press REW or FF during playback. REW: Fast reverse playback Fast forward playback Each time you press the REW or FF button, the playback speed changes. -
Page 21: Advanced Playback
Advanced playback Zooming/Locating desired scene Zooming This unit will allow you to zoom in on the frame image. You can then make selections by switching the position of the frame. Press ZOOM during playback. The centre part of the image will be zoomed in. -
Page 22: Marking The Scenes
Advanced playback Marking desired scenes The unit stores the points that you want to watch again up to 3 points. You can resume playback from each scene. Marking the scenes Press MARKER during playback. Select the blank Marker using C or D. Then press ENTER at the desired scene. -
Page 23: Repeat Playback
Repeat playback/A-B Repeat playback Repeat playback Press PLAY MODE during playback or stop mode. Press B B B B B /A A A A A or ENTER once or twice to select “Chapter” or “Title”. The unit automatically starts repeat playback after finishing the current title or chapter. -
Page 24: Program Playbck
Advanced playback Program playback/Random playback You can arrange the playback order of tracks or files on the disc. And also the unit selects tracks or files at random and playback them. These feature works for Audio CD, Video CD and MP3/WMA/JPEG Program playback Press PLAY MODE during stop mode. -
Page 25: Changing Angles
Changing angles/Title selection/DVD menu Changing angles When playing back a disc recorded with multi-angle facility, you can change the angle that you are viewing the scene from. Press ANGLE during playback. The current angle will appear. Title selection Two or more titles are recorded on some discs. If the title menu is recorded on the disc, you can select the desired title. Press TOP MENU during playback. -
Page 26: Changing Soundtrack Language
Advanced playback Changing soundtrack language/ Setting surround sound Changing soundtrack language You can select the language when you play a multilingual disc. Press AUDIO during playback. The current soundtrack language will appear. Press AUDIO repeatedly until the desired lan- guage is selected. •... -
Page 27: Subtitles
Subtitles/Karaoke playback Subtitles When playing back a disc recorded with subtitles, you can select the subtitle language or turn the subtitle off. Press SUBTITLE repeatedly during playback until your desired language appears. To turn off the subtitle, press SUBTITLE until “Off”... -
Page 28: Disc Status
Advanced playback Disc status/To turn off the PBC Disc status With each press of DISPLAY, the status of the disc will appear on the screen and change as follows. 00:34:56 01:12:33 Title 1/32 To make status display disappear, press DISPLAY again. -
Page 29: Mp3/Wma/Jpeg Operation
MP3/WMA/JPEG operation This player can play back the MP3/WMA/JPEG-data which has been recorded on CD-R or CD-RW. To produce the MP3/WMA/ JPEG-data, you need a Windows-PC with CD-ROM drive and a MP3/WMA/JPEG-encoding Software (not supplied). The Apple-HFS-System can not be played. MP3/WMA/JPEG CD information Limitations on MP3/WMA/JPEG CD playback •... -
Page 30: Mp3/Wma/Jpeg Playback
Advanced playback MP3/WMA/JPEG operation (continued) MP3/WMA CD playback Place a disc on which MP3 or WMA files have been recorded onto the disc tray. A file menu screen will appear on the screen. Press B B B B B /A A A A A or ENTER to select folder. CD-R Press C C C C C /D D D D D /B B B B B /A A A A A or number buttons (0–9) to select the desired file. -
Page 31: Jpeg Cd Playback
JPEG CD playback Place a disc on which JPEG files have been recorded onto the tray. A file menu screen will appear on the screen. Press B B B B B /A A A A A to select folder. Press C C C C C /D D D D D /B B B B B /A A A A A or number buttons (0–9) to select the desired file. -
Page 32: Selecting Progressive Scan
Advanced playback Selecting PROGRESSIVE scan The progressive scan capability provides the highest resolution pictures with less flicker and line structure. If you are using the Component video jacks, but are connecting the DVD video player to a standard (analog) television, set PROGRESSIVE to Off. If you are using the Component video jacks for connection to a TV or monitor that is compatible with a progressive scan signal, set PROGRESSIVE to On. -
Page 33: Function Setup
Function setup Customizing the function settings You can change the default settings to customize performance to your preference. Setting procedure Press SETUP during stop mode. The following on-screen display appears. Language Picture /Enter/Setup/Return Press B or A to select the desired section, then press D or ENTER. -
Page 34: Setting Details
Function setup Customizing the Function Settings (continued) Setting details Section Option Menu Language Subtitle Audio E.B.L. Tv Screen Display Picture JPEG Interval Select Files Dialogue Sound Password Parental Parental OSD language Other 2C01501A P32-37 Details To select the language of “Menu”, “Subtitle” and “Audio”... - Page 35 Language Language Picture Menu Subtitle Audio /Enter/Setup/Return Menu, Subtitle, Audio You can select the language of “Menu”, “Subtitle” and “Audio” if their languages are recorded onto the disc more than one language. English, Francais, Espanol: The selected language will be heard or seen. Other: Other language can be selected (see the “Language code list”...
- Page 36 Customizing the Function Settings (continued) Setting details Diplay On screen display can be switched on or off when you press the buttons. On: On screen displays appear when you press the buttons (factory setting). Off: On screen displays do not appear when you press any buttons.
- Page 37 Parental Parental control setting Some discs are specified not suitable for children. Such discs can be limited not to play back with the unit. 1) Press C or D to select “Parental”, then press B or A until the level you require appears. •...
-
Page 38: Temporary Disabling Of Rating Level By Dvd Disc
Function setup Temporary disabling of rating level by DVD disc Depending on the DVD disc, the disc may try to temporarily cancel the rating level that you have set. It is up to you to decide whether to cancel the rating level or not. Load a DVD disc and press PLAY or OPEN/ CLOSE on the unit (see page 18). -
Page 39: Language Code List
Language code list Enter the appropriate code number for the initial settings “Menu”, “Subtitle” and/or “Audio” (see pages 35). Language Name Code Language Name Code Abkhazian 1112 Fiji Afar 1111 Finnish Afrikaans 1116 French Albanian 2927 Frisian Amharic 1123 Galician Arabic 1128 Georgian... -
Page 40: Multi Brand Remote Control
Function setup Multi brand remote control The remote control can be compatible with various brands of TV by setting their control codes. The TOSHIBA code has initially been set to control TOSHIBA TVs. Setting TV control codes Press TV to set the remote control operating your TV. -
Page 41: Others
Others Troubleshooting guide Check the following guide for the possible cause of a problem before contacting service. Symptom Cause No power. • The power plug is disconnected. No picture. • The TV is not set to receive DVD signal output. •... -
Page 42: Specifications
Others Specifications DVD Video Player Power supply Power consumption Mass External dimensions Signal system Pickup Frequency response Harmonic distortion Wow and flutter Operating conditions Outputs Video output S video output Component video output Audio output (BITSTREAM/PCM COAXIAL) Audio output (BITSTREAM/PCM OPTICAL) Audio output (ANALOG) COMPONENT/S-VIDEO selector... -
Page 43: Limited Warranty Dvd Video Player
LIMITED WARRANTY DVD VIDEO PLAYER Toshiba America Consumer Products, L.L.C. (“TACP”) and Toshiba Hawaii, Inc. (“THI”) make the following limited warranties to original consumers for DVD Players purchased and used in the United States. THESE LIMITED WARRANTIES EXTEND TO THE ORIGINAL CONSUMER PURCHASER OR ANY PERSON RECEIVING THIS DVD PLAYER AS A GIFT FROM THE ORIGINAL CONSUMER PURCHASER AND TO NO OTHER PURCHASER OR TRANSFEREE. - Page 44 LIMITATION OF IMPLIED WARRANTIES ALL WARRANTIES IMPLIED BY THE LAW OF ANY STATE OF THE U.S.A., INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY LIMITED TO THE DURATION OF THE LIMITED WARRANTIES SET FORTH ABOVE. LIMITATION OF WARRANTY WITH THE EXCEPTION OF ANY WARRANTIES IMPLIED BY THE LAW OF ANY STATE OF THE U.S.A.
-
Page 45: Precauciones De Seguridad
- Solicitud de ayuda al proveedor o a un técnico de radio/televisión experimentado. ADVERTENCIA: Los cambios o modificaciones realizados en este equipo, no aprobados expresamente por Toshiba, o los concesionarios autorizados por Toshiba, pueden anular la autoridad para utilizar el equipo. 2C01507A Q-Sheet El símbolo de rayo con cabeza de flecha, dentro de un triángulo... - Page 46 INSTRUCCIONES IMPORTANTES SOBRE SEGURIDAD PRECAUCIÓN: LEA Y OBSERVE CUIDADOSAMENTE TODAS LAS ADVERTENCIAS E INSTRUCCIONES OFRECIDAS EN ESTE MANUAL DE INSTRUCCIONES, Y LAS MARCADAS EN LA UNIDAD. GUARDE ESTE MANUAL PARA FUTURAS REFERENCIAS. Este aparato ha sido diseñado y fabricado para asegurar la seguridad personal. La utilización inadecuada podría resultar en descargas eléctricas o en incendios.
- Page 47 Conexión a un televisor Flujo de la señal a S VIDEO (blanca) (roja) a AUDIO a VIDEO Cable de video S (no suministrado) Si el televisor posee entrada de video S, conecte el reproductor de DVD con un cable de video S. Cuando utilice un cable de video S, no conecte el cable de video amarillo.
- Page 48 Macrovision Corporation autorice otra cosa. Está prohibido modificar esta ingeniería y desmontar la unidad. Fabricado bajo licencia de Dolby Laboratories. “Dolby” y el símbolo de la doble D son marcas comerciales de Dolby Laboratories. © 2004 Toshiba Corporation 12/16/03, 19:41 para Impreso en Tailandia...
