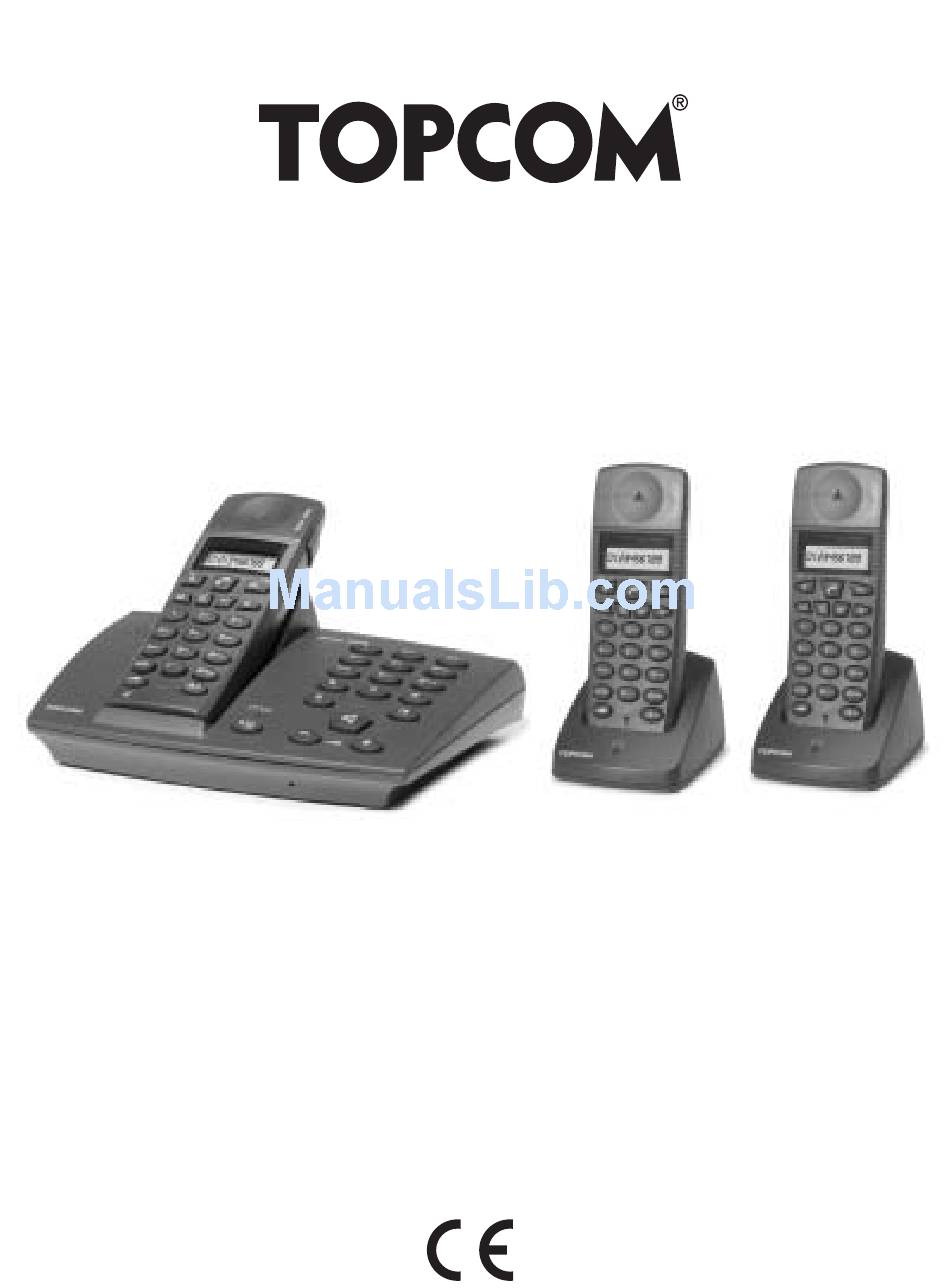

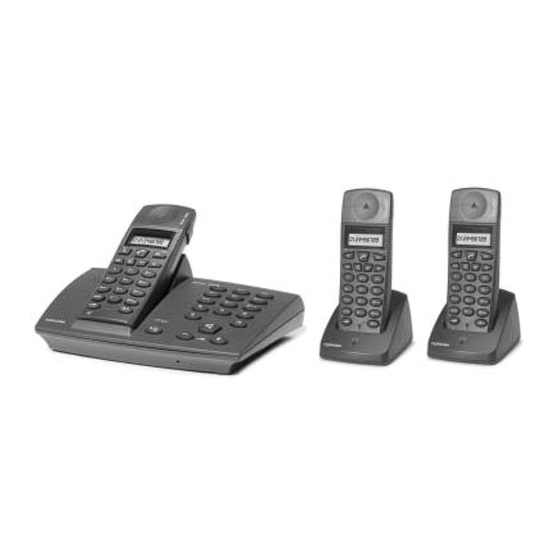

BUTLER 2820/TWIN/TRIPLE USER MANUAL HANDLEIDING MANUEL D’UTILISATEUR GEBRAUCHSANWEISUNG v.1.0...
Page 2
To use ‘Caller ID’ (display caller), this service has to be activated on your phone line. Normally you need a separate subscription from your telephone company to activate this function. If you don’t have the Caller ID function on your phone line, the incoming telephone numbers Pour utiliser la fonction ‘Caller ID/Clip’...
Erasing a number from the Call list Store a number from the call log into the memory REGISTER/DE-REGISTER A HANDSET Register to a Topcom B2800/2820 base Removing a handset CALL TRANSFER AND INTERCOM BETWEEN TWO HANDSETS Call transfer and conference call during an external call...
Page 4
This telephone uses rechargable batteries. You have to dispose of the batteries in an environment friendly manner according to your specific country regulations. CLEANING Clean the telephone with a slightly damp cloth or with an anti-static cloth. Never use cleaning agents or abrasive solvents. N i M H...
3.1 BASESTATION • Plug one end of the phone cable into the phone unit and the other end into the telephone line wall socket. • Connect the small plug of the AC adaptor to the phone and the other end of the adapter cable to the electric socket.
Topcom Butler 2820 3.2 HANDSET CHARGER UNITS (ONLY TWIN/TRIPLE VERSION) • Connect the AC adaptor to the electric socket 3.3 HANDSET • Insert 2 rechargeable batteries (AAA) inside the battery compartment of the handset.. Put the handset on the base unit. The red Charge LED Charge the handset for a period of 24 hours before using the handset for the first time.
5.1.2 Call setup with dial preparation • Enter the desired telephone number. An incorrect number can be corrected by means of the Mute you haven’t pressed a button for 10 seconds, the number you’ve already entered will disappear and the handset returns to standby mode.
When you press the R button, also called flash or recall, the unit generates a line interruption (of 100 ms or 250 ms). It gives you the possibility to use the special services of your telephone provider and/or to transfer calls when you have a telephone exchange.
To set the base dial mode please look at §9.3. 6. CALLER-ID FUNCTION (CLIP) The Topcom B2820 displays the telephone numbers of incoming calls. This function is only possible if you are subscribed to a telephone operator that provides this service. Contact your telephone provider for more information.
You want to subscribe a different handset to this base unit. The underlined procedure is only applicable to a Topcom Butler 24xx, 28xx, 29xx handset and base unit!! Keep the Paging key on the base unit pressed for 10 seconds until the Line/Charge indicator on the base unit begins to blink rapidly.
If the other handset answers the call by pressing the Line button • Press the Line button to end the call. 9. BASE TELEPHONE OPERATION You can also make a telephone call by using the base station handsfree speakerphone. 9.1 MAKING A CALL • Press the Handsfree base dialling key •...
10.1 WARRANTY PERIOD The Topcom units have a 24-month warranty period. The warranty period starts on the day the new unit is purchased. The warranty on batteries is limited to 6 months after purchase. Consumables or defects causing a negligible effect on operation or value of the equipment are not covered.
Topcom Butler 2820 11. TROUBLESHOOTING PROBLEM No Display No dialling tone Volume of conversation partner too low Handset ringer volume too low 12. TECHNICAL DATA Range: Dialling options: Batteries: Max. standby time: Max. talk time: Ambient temperature: Permitted relative air humidity:...
Page 17
Topcom Butler 2820 VEILIGHEIDSVOORSCHRIFTEN • Gebruik enkel de meegeleverde adapter. Geen vreemde adapters gebruiken, de accucellen kunnen hierdoor beschadigd worden. • Gebruik enkel oplaadbare batterijen van hetzelfde type. Gebruik nooit gewone, niet oplaadbare batterijen. Let bij het plaatsen van de oplaadbare batterijen op de polariteit (aangeduid in de batterijruimte van de handset).
Topcom Butler 2820 2. DISPLAY IKOON: BETEKENIS: In verbinding Nieuwe nummers in de Oproeplijst Laadniveau van de herlaadbare batterijen De antenne toont de kwaliteit van de ontvangst. De antenne knippert als de handset niet is aangemeld of buiten bereik van de basis is...
Topcom Butler 2820 3.2 HANDSET LADER (ENKEL IN TWIN/TRIPLE VERSIE) • Steek de AC-adapter in het stopcontact.. 3.3 HANDSET • Plaats de 2 oplaadbare batterijen (AAA) in de batterijruimte onderaan de handset.. Plaats de handset op het basisstation. De rode laadindicator Laad de handset gedurende 24 uur op alvorens de handset voor het eerst te gebruiken.
Topcom Butler 2820 5. WERKING HANDSET 5.1 UITGAANDE GESPREKKEN 5.1.1 Gewoon telefoneren • Druk op de Lijntoets . U hoort de kiestoon. • Voer het gewenste telefoonnummer in. • Druk op de Lijntoets om, na het gesprek, de verbinding te verbreken.
Topcom Butler 2820 5.5 EEN GEHEUGENNUMMER OPROEPEN • Druk op de Geheugentoets , gevolgd door het geheugenplaatsnummer (0-9).. • Druk op de Lijn-toets . Het geheugennummer wordt automatisch gevormd. • Druk op de Lijntoets om, na het gesprek, de verbinding te verbreken.
6. NUMMERWEERGAVE (CLIP-CALLER ID) De Butler 2820 geeft het telefoonnummer weer bij inkomende oproepen. Deze functie is echter enkel mogelijk als deze dienst door uw telefoonmaatschappij wordt aangeboden en als u op deze dienst geabonneerd bent. Neem hiervoor contact op met uw telefoonmaatschappij.
Topcom Butler 2820 6.3 OPROEPEN VAN EEN NUMMER UIT DE OPROEPLIJST • Doorloop de lijst tot het gewenste nummer op de display verschijnt. • Druk op de Lijntoets . Het nummer wordt automatisch gevormd. 6.4 TELEFOONNUMMERS UIT DE OPROEPLIJST WISSEN •...
Topcom Butler 2820 7.2 HANDSET VERWIJDEREN (AFMELDEN) U kan andere handset afmelden om zo plaats te maken voor nieuwe handsets indien nodig: • Druk en hou de Microfoon Uit • Geef de pincode (0000) in. Indien de pincode verkeerd is zal de handset terug keren naar standby.
10. GARANTIE 10.1 GARANTIEPERIODE Op de Topcom-toestellen wordt een garantie van 24 maanden verleend. De garantieperiode begint op de dag waarop het nieuwe toestel wordt gekocht. De garantie op batterijen is beperkt tot 6 maanden na aankoop. Kleine onderdelen of defecten die een verwaarloosbaar effect hebben op de werking of waarde van het toestel zijn niet gedekt door de garantie.
Topcom Butler 2820 De garantie dekt geen schade te wijten aan externe factoren, zoals bliksem, water en brand, noch enige transportschade. Er kan geen garantie worden ingeroepen als het serienummer op het toestel is gewijzigd, verwijderd of onleesbaar gemaakt. Garantieclaims zijn ongeldig indien het toestel hersteld, gewijzigd of aangepast werd door de koper of door niet- gekwalificeerde, niet-officieel erkende Topcom-hersteldienst.
Page 29
Topcom Butler 2820 TOUCHES ECRAN INSTALLATION Base Chargeur Combiné INDICATION DE NIVEAU FAIBLE DES PILES FONCTIONNEMENT DU COMBINÉ Appels sortants Appels entrants Activer/désactiver la fonction mains-libres Programmer des numéros mémoires Appeler un numéro mémoire Coupure du micro (Mute) Régler le volume Paging Signal d’avertissement Hors-Portée...
Page 30
Topcom Butler 2820 CONSIGNES DE SÉCURITÉ • Utilisez uniquement l’adaptateur fourni à la livraison. Ne pas utiliser des adaptateurs étrangers, les cellules de charge pourraient être endommagées. • Installez uniquement des batteries rechargeables du même type. N'utilisez en aucun cas des batteries normales non rechargeables.
Topcom Butler 2820 2. ECRAN Icône: Signification: Vous avez decroché la ligne Nouveaux numéros dans la liste des appels Indicateur de niveau de la pile rechargeable L'antenne indique la qualité de la réception. L’antenne clignote lorsque le combiné est hors de portée ! Microphone désactivé...
Topcom Butler 2820 3.2 CHARGEUR (UNIQUEMENT B2820 TWIN/TRIPLE) • Introduisez l'adaptateur AC sur une prise 3.3 COMBINÉ • Introduisez les 2 batteries AAA rechargeables dans le compartiment à batterie en bas du combiné.. Déposez le combiné sur le poste de base. La DEL rouge de charge sur la base.
Topcom Butler 2820 5. FONCTIONNEMENT DU COMBINÉ 5.1 APPELS SORTANTS 5.1.1 Téléphoner • Appuyez sur la touche de Ligne • Composez le numéro de téléphone désiré. • Appuyez sur la touche de Ligne 5.1.2 Sélection en bloc • Composez le numéro de téléphone désiré. Vous pouvez encore corriger le numéro en vous servant de la touche Mute .
Topcom Butler 2820 5.5 APPELER UN NUMÉRO MÉMOIRE • Appuyez sur la touche Mémoire • Appuyez sur le bouton Line • Appuyez sur la touche de Ligne 5.6 COUPURE DU MICRO (MUTE) Il est possible de désactiver le microphone pendant une communication. De cette façon vous pouvez parler librement, sans que celui qui appelle vous entende.
6. AFFICHAGE DU NUMÉRO (CLIP-CALLER ID) Le Butler 2820 montre les numéros de téléphone quand il reçoit des appels entrants. Cette fonction ne fonctionne cependant que lorsque ce service est offert par votre compagnie de téléphonie et lorsque vous êtes abonné à ce service.
Topcom Butler 2820 6.3 APPELER UN NUMÉRO DE LA LISTE D’APPELS • Parcourez la liste d’appels jusqu’à l’affichage du numéro désiré à l’écran. • Appuyez sur la touche de Ligne 6.4 EFFACER DES NUMÉROS DE TÉLÉPHONE DE LA LISTE D’APPELS •...
Topcom Butler 2820 7.2 DÉSINSCRIRE UN COMBINÉ Vous pouvez éliminer un combiné de la base pour permettre à un autre combiné de s’enregistrer : • Appuyez et maintenez enfoncé le bouton mute • Entrez le code pin (0000). Si le code pin est erroné, le combiné passe en mode stand-by.
10.1 PÉRIODE DE GARANTIE Les appareils de Topcom jouissent d’une période de garantie de 24 mois. La période de garantie commence le jour d’achat du nouvel appareil. La garantie sur les batteries est limitée à 6 mois après l’achat. Les accessoires ou défauts entraînant un effet négligeable sur le fonctionnement de l’appareil ne sont pas couverts.
Aucune garantie ne peut être réclamée si le numéro de série sur les unités a été modifié, enlevé ou rendu illisible. Toute demande de garantie sera nulle si l’unité a été réparée, changée ou modifiée par l’acheteur ou par des centres de service non qualifiés et non-officiels de Topcom. 11. RÉSOLUTION DE PROBLÈMES PROBLÈME...
Page 42
Topcom Butler 2820 TASTEN/LED DISPLAY INSTALLATION Basisstation Ladegerät Handgerät BATTERIEFÜLLSTANDSANZEIGE BETRIEB HANDSET Telefonieren Einen Anruf entgegennehmen Freisprechfunktion an-/ausschalten Kurzwahlnummern programmieren Eine Kurzwahlnummer anrufen Stummschalten des Mikrofons (Mute) Lautstärke einstellen Paging Warnung “Außer Reichweite” 5.10 Flashtaste (R) 5.12 TastenverriegElung 5.13 Den wählmodus einstellen RUFNUMMERNÜBERMITTLUNG (CLIP-CALLER ID)
Page 43
Topcom Butler 2820 SICHERHEITSHINWEISE • Verwenden Sie nur das mitgelieferte Steckernetzgerät. Keine fremden Adapter verwenden, die Akkuzellen können sonst beschädigt werden. • Legen Sie nur, aufladbare Akkus des gleichen Typs ein. Verwenden Sie auf keinen Fall normale nicht aufladbare Batterien.Wiederaufladbare Akkus richtig gepolt einlegen (Hinweisschild ist in den Akkufächern des Mobilteils angebracht).
Topcom Butler 2820 2. DISPLAY ICON: MEANING: Sie sind in Verbindung Neue Nummern in der Anrufliste Anzeige wiederaufladbare Batterien Die Antenne zeigt die Qualität des Empfangs an. Wenn die Antenne blinkt, befindet sich Ihr Telefon außerhalb des Empfangsbereichs! Mikrofon ist stummgeschaltet Speicher werden geöffnet oder eingestellt...
Topcom Butler 2820 3.2 LADEGERÄT (NÜR B2820 TWIN/TRIPLE) • Das Netzteil stecken Sie in. 3.3 HANDGERÄT Legen Sie die 2 aufladbaren Batterien (AAA) in das Batteriefach an der Unterseite des Mobilteils. Legen Sie das Mobilteil in die Basisstation. Die rote Aufladeanzeige Basisstation steckt.
Topcom Butler 2820 5. BETRIEB HANDSET 5.1 TELEFONIEREN 5.1.1 Normaler Verbindungsaufbau • Betätigen Sie die Leitungstaste • Wählen Sie die gewünschte Nummer. • Betätigen Sie, nach dem Gespräch, die Leitungstaste 5.1.2 Telefonieren mit Wahlvorbereitung • Wählen Sie die gewünschte Nummer. Fehlerhafte Eingaben können mit der Mikrofonstummschaltungstaste C/ korrigiert werden.
Topcom Butler 2820 5.5 EINE KURZWAHLNUMMER ANRUFEN • Betätigen Sie die Speichertaste • Drücken Sie die Verbindungstaste • Betätigen Sie nach dem Gespräch die Leitungstaste 5.6 STUMMSCHALTEN DES MIKROFONS (MUTE) Wenn Sie, während eines Gespräches, etwas mit einem dritten Person besprechen wollen, und Sie wollen nicht dass Ihr Gesprächspartner etwas darüber hört, betätigen Sie die Mikrofonstummschaltungstaste...
Topcom Butler 2820 5.12 TASTENVERRIEGELUNG Wenn die Tastatur verriegelt ist, hat es keinen Effekt, wenn man während des Stand-bys irgendeine Taste drückt (außer wenn man die -Taste drückt). • Drücken und halten Sie die • und die Tastatur wird verriegelt •...
Topcom Butler 2820 • Mit Hilfe der linken Pfeiltaste genden Eintrag. • Um die Anrufliste zu verlassen, betätigen Sie die 6.3 WÄHLEN EINER RUFNUMMER AUS DER ANRUFLISTE • Blättern Sie in der Liste, bis die gewünschte Rufnummer auf dem Display erscheint.
Topcom Butler 2820 7.2 ABMELDEN EINES HANDAPPARATES Sie können einen Handapparat von einer Basisstation abmelden, um einen anderen anzumelden: • Halten Sie die Stummschaltetaste • Geben sie den PIN Code ein (0000). Ist der PIN Code falsch, kehrt der Handapparat in den Ruhezustand zurück.
10. GARANTIE 10.1 GARANTIEZEIT Topcom Geräte habe eine 24-monatige Garantiezeit.Die Garantiezeit beginnt an dem Tag, an dem das neue Gerät erworben wurde. Die Garantie für Batterien ist auf 6 Monate nach Erwerb begrenzt.Verschleißartikel oder Mängel, die den Wert oder die Gebrauchstauglichkeit des Gerätes nur unerheblich beeinflussen, sind von der Garantie ausgeschlossen.
10.3 GARANTIEAUSSCHLÜSSE Schäden oder Mängel, die durch unsachgemäße Handhabung oder Betrieb verursacht wurden, sowohl als auch Defekte, die durch die Verwendung von Nicht-Originalteilen oder die Verwendung von nicht von Topcom empfohlenen Zubehör entstehen, werden nicht von der Garantie abgedeckt. Schnurlose Telefone von Topcom wurden so konstruiert, dass sie ausschließlich mit wiederaufladbaren Batterien funktionieren.Ein durch nicht-wiederaufladbare Batterien verursachter Schaden fällt nicht unter die Garantieleistung.
Page 56
This product is in compliance with the essential requirements and other relevant provisions of the R&TTE directive 1999/5/EC. The Declaration of conformity can be found on : http://www.topcom.net/support/cedeclarations.php U8006263...
