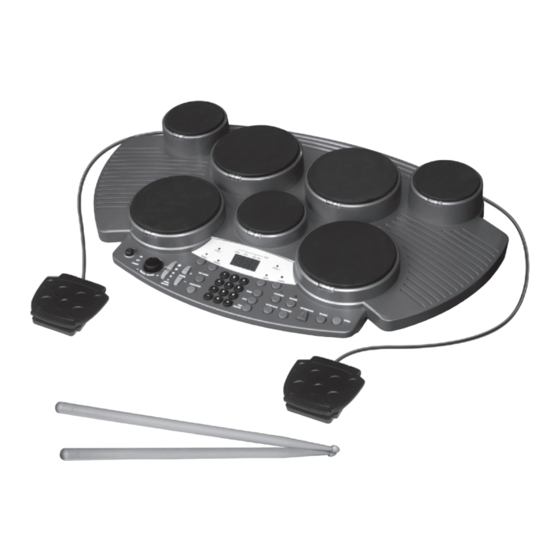

Summary of Contents for The Singing Machine 7 Pad Electronic Drum Set SMI-1452
Page 1
7 Pad Electronic Drum Set 7 Cojines Sistema Electrónico del Tambor de 7 Garnitures Ensemble Électronique de Tambour de SMI-1452...
Page 2
Congratulations! Thank you for purchasing your SOUNDX Portable Digital Drum Set. This Digital Drum Set has been developed to perform with ease. Before using this instrument, we recommend that you to read through this manual. Taking care of your Portable Digital Drum Set For optimum use of your Digital Drum Set, LOCATION •...
CONTENTS Panel Controls ... 4 - Front panel ... 4 - Rear Panel... 5 Setting Up ... 6 - Using the AC - Adaptor ... 6 - Using Batteries ... 6 - Using Headphones ... 6 Present Pad Number and Drum Kit Functions ...
PANEL CONTROL Front Panel POWER SONG VOLUME DRUM PAD (x7) BEAT SONG KITS PAD ASS. PEDAL 1 PEDAL 2 LEARNING RECORD TAP START METRONOME SONG TEMPO SUPER BASS PLAY/STOP POWER KITS START/STOP SONG VOLUME ASSIGN [ Power on – off ] switch This switch turns power on / off.
PANEL CONTROL Front Panel [ Demo ] button This button is used to start or stop a demo song. [ Tap Start ] button [ Start / Stop ] button This button can be used to start or stop playing all songs. Number keys [ Song ] button This button is used to enter song menu.
SETTING UP Power Supply Your digital drum set will operate on either batteries or the supplied power adaptor. Follow the instructions below according to the power source you intend to use. Using the AC-Adaptor Connect the power adaptor to the DC IN jack located on the rear panel of the unit, and plug the AC power adaptor into an AC power outlet.
PRESENT PAD NUMBER AND DRUM KIT Strike the pad with the supplied drum sticks to play the drum voices. Drum Kit “001” is automatically chosen whenever the power is turned on and the [KITS] button is pressed. Striking the pads with different forces results in relatively loud or soft sounds accordingly. Loudness of the sound may vary depending on which part of the pad is struck.
FUNCTION The Digital Drum Set includes a demo song to demonstrate performance of the drums. To play the demo song, follow the instruction below: Playing the Demo Song [1] Turn on the power Turn the [POWER] switch ON. The LED Display will light up. [2] Start the Demo Song Press the [DEMO] button, the demo song will start and the LEARNING indicator will illuminate at the same time.
PADS / PEDALS Assigning a Drum Kit to the Pads and Pedals The Digital Drum allows you to choose from 20 different Drum Kits plus one custom kit (1 - 20: see "Drum Kit List" on page 20) quickly and easily. 20 of the kits have preset voice combinations that will be set to the pads and pedals when the kit is selected.
PADS / PEDALS Assigning a Voice to Individual Pads and Pedals (”CU” Custom Kit) The Digital Drum Set has a total of 76 high quality percussion sounds (see the "Drum Voice List" page 19) that can be assigned to each of the 7 drum pads and 2 foot pedals. Try assigning some different voices to the "CU"...
OPERATION Adjust Reverb Function Different depths of the Digital Drum's reverb effect can be selected to the instrument's overall sound. The REVERB effect is turned on automatically every time you turn the power on and the default level is set to [r-2]. Select the REVERB Depth Press the reverb button to display the current setting, use the “-”...
PLAYING A SONG The Digital Drum Set features 100 ( 00 - 99 ) different songs that can be used to provide accompaniment (see the "Song List" on page 21). Select one of the songs for your listening pleasure. Selecting a Song [1] Press the [SONG] button Press the [SONG] button, and this LED indicator will illuminate.
Super Bass The Super Bass option have been created to make the voices deeper, and also for a more powerful bass. The Super Bass is turned ON at the time you power the Digital Drum Set ON. Pressing the [SUPER BASS] button once will power it off.
Tap Start The TAP START function allows you to set the song's overall tempo as well as start the accompaniment. The accompaniment will playback at the tempo with which the pads are struck or the pedals are pressed. [1] Press the [TAP START] button Pressing the [TAP START] button, and the indicator will illuminate.
RECORDING The Digital Drum’s recording feature allows you to record and playback a song (approximately 1000 notes). • Data that can be recorded in the recording mode. • Drum pad and pedal data. • Song data (the number cannot be changed while in the RECORD mode).
MAKING THE CONNECTIONS MIDI The MIDI IN and MIDI OUT terminals, located on the rear panel of the unit, offer broadened musical possibilities through the use of MIDI. The following shows the description of MIDI and How you can use MIDI with the Digital Drum Set. What is MIDI? MIDI is the abbreviation for Musical Instrument Digital Interface.
MAKING THE CONNECTIONS Pedals This appliance supports 1 hi-hat pedal and 1 kick pedal as input devices. PEDAL Phones Output The phones output supports a stereo headphones as an output device. PEDAL PHONES/ DC-12V OUTPUT MIDI PHONES/ DC-12V OUTPUT MIDI...
DRUM KIT LIST Kit Name Pad1 Standard 1 Crash Cymbal 1 Standard 2 HH Open/Closed Standard 3 Crash Cymbal 1 Standard 4 HH Open/Close Standard 5 Crash Cymbal 1 Standard 6 Splash Cymbal Standard 7 HH Open/Close Standard 8 HH Open/Close Rock Crash Cymbal 1 Heavy Metal...
SONG LIST Song Name 8 Beat 8 Beat 1 8 Beat 2 8 Beat 3 8 Beat 4 8 Beat 5 8 Beat Ballad 1 8 Beat Ballad 2 8 Beat Ballad 3 Soft Rock Rock 1 Rock 2 Rock 3 Rock 4 Rock 5 Hard Rock 1...
MIDI IMPLEMENTATION CHART Function Default Basic Changed Channel Default Mode Messages Altered Note Number True voice Velocity Note on Note off After Key s Ch s Touch Pitch Bend Control Program Change True System Exclusive System Song Position Song Select Tune Common Clock...
Page 24
¡Felicitaciones! Gracias por haber comprado su equipo de Batería Digital Portátil SOUNDX. Esta Batería Digital ha sido elaborada para poderse usar con facilidad. Antes de usar este instrumento, le recomendamos que lea este manual cuidadosamente. El cuidado de su Batería Digital Portátil Para el mejor uso de su Batería Digital, por favor siga las instrucciones para el mantenimiento a continuación.
Page 25
ÍNDICE DE MATERIAS Tablero de control ... 4 Tablero delantero ... 4 Tablero de atrás ... 5 Configuración ... 6 Uso con el Adaptador AC Uso con Pilas ... 6 Uso de Auriculares ... 6 Número Actual de Pads y Drum Kits Funciones ...
TABLERO DE CONTROL Tablero Delantero POWER SONG VOLUME DRUM PAD (x7) BEAT SONG KITS PAD ASS. PEDAL 1 PEDAL 2 LEARNING RECORD TAP START METRONOME SONG TEMPO SUPER BASS PLAY/STOP POWER KITS START/STOP SONG VOLUME ASSIGN Interruptor [ Power on off ] Este interruptor enciende / apaga la unidad.
TABLERO DE CONTROL Tablero Delantero Botón [ Demo ] Este botón se usa para empezar o parar una canción de demostración Botón [ Tap Start ] Botón [ Start Stop ] Este botón se puede usar para empezar o parar de tocar todas las canciones Teclas de Números Botón [ Song ] Este botón se usa para entrar en el menú...
CONFIGURACIÓN Módulo de Alimentación Su batería digital trabajará con pilas o con el adaptador de corriente que está incluido. Siga las instrucciones a continuación de acuerdo con el tipo de corriente que piensa usar . Uso con el Adaptador AC Conecte el adaptador de corriente al terminal DC IN situado en el tablero de atrás de la unidad, y enchufe el adaptador de corriente AC...
NÚMERO ACTUAL DE PADS Y DRUM KITS Debe golpear en el pad con las baquetas que acompañan la unidad para tocar las voces de la batería. El Drum Kit “001” se selecciona automáticamente cuando se enciende la unidad y se oprime el botón [KITS] Darles a los pads con más o menos fuerza resulta en sonidos relativamente altos o suaves, como corresponde.
FUNCIONES La Bateria Digital Drum Set incluye una canción de demostración para demostrar el funcionamiento de los tambores. Para tocar la canción de demostración, siga las instrucciones a continuación : Tocar la Canción Demo Encender la unidad Ponga el interruptor [POWER] en ON El visualizador LED se encenderá...
PADS / PEDALES Como asignar un Drum Kit a los Pads y Pedales El Digital Drum le permite escoger rápida y fácilmente de entre 20 Drum Kits distintos más un custom kit de su preferencia [1 -20: vea la “Lista de Drum Kits” en la página 20]. Veinte de los kits tienen combinaciones de voces preseleccionadas que se activarán en los pads y los pedales cuando se seleccione ese kit.
PADS / PEDALES Cómo asignar una voz a Pads y Pedales individuales[“CU” Custom Kit] El Drum Set Digital tiene en total 76 sonidos de percusión de alta calidad [vea la “Drum Voice List” en la página 19] que se pueden asignar a cada uno de los 7 drum pads y 2 pedales. Pruebe asignarle varias voces distintas al “CU”...
FUNCIONAMIENTO Ajustar la Función Reverb Se pueden seleccionar diferente grados de intensidad del efecto de reverberación del Digital Drum en el sonido global del instrumento El efecto REVERB se enciende automáticamente cada vez que usted enciende la unidad y el nivel de opción por defecto se fija a [r-2] Seleccione la intensidad de REVERB Oprima el botón de reverberación para desplegar la...
TOCAR UNA CANCIÓN El Digital Drum Set tiene 100 [ 00 - 99 ] canciones que se pueden usar para dar acompañamiento [vea la lista “Song List” en la página 21]. Seleccione una de las canciones para escuchar y disfrutarla. Seleccionar una Canción Oprima el botón [SONG] Oprima el botón [SONG], y este indicador LED se...
Super Bass La opción Super Bass se ha generado para hacer más graves las voces, y también para obtener graves de mayor potencia . El Super Bass se enciende [ON] en el momento que usted enciende el Digital Drum Set [ON]. Oprima el botón [SUPER BASS] una vez y se apagará.
Tap Start La función TAP START le permite fijar el tempo global de la canción a la vez que empieza el acompañamiento. El acompañamiento tocará al ritmo con que se golpéen los pads o con que se presionen los pedales . Oprima el botón [TAP START] Oprima el botón [TAP START], y el indicador se alumbrará...
GRABAR La caractéristica de grabación del Digital Drum le permite a usted grabar y reproducir una canción (aproximadamente 1,000 notas) . • Datos que se pueden grabar en el modo de grabación • Datos de drum pad y pedales • Datos de la canción [el número no se puede cambiar mientras se está...
CÓMO HACER LAS CONEXIONES MIDI Los terminales MIDI IN y MIDI OUT, situados en el panel de atrás de la unidad, le ofrecen posibilidades musicales más amplias mediante el uso de MIDI. A continuación se verá la descripción de MIDI y cómo se puede usar MIDI con el Digital Drum Set . ¿Qué...
COMO HACER LAS CONEXIONES Los Pedales Este aparato soporta 1 pedal hi-hat y 1 pedal kick como dispositivos de entrada. PEDAL Salida Para Auriculares La salida para auriculares soporta auriculares estereofónicos como dispositivo de salida. PEDAL PHONES/ DC-12V OUTPUT MIDI PHONES/ DC-12V OUTPUT...
DETALLES TÉCNICOS 7 drum pads con sensibilidad Drum Pad: [bombo y hi-hat] 76 PCM voces de batería Voces 20 drum kits preprogramados + 1 drum kit hecho a la orden Drum Kits: 100 canciones preprogramadas Canciones [se incluyen 80 estilos y 20 canciones] Visualizador LED de 3 dígitos Visualizador Enchufe de salida para auriculares...
LISTA DE DRUM KITS Kit Name Pad1 Standard 1 Crash Cymbal 1 Standard 2 HH Open/Closed Standard 3 Crash Cymbal 1 Standard 4 HH Open/Close Standard 5 Crash Cymbal 1 Standard 6 Splash Cymbal Standard 7 HH Open/Close Standard 8 HH Open/Close Rock Crash Cymbal 1...
LISTA DE CANCIONES Song Name 8 Beat 8 Beat 1 8 Beat 2 8 Beat 3 8 Beat 4 8 Beat 5 8 Beat Ballad 1 8 Beat Ballad 2 8 Beat Ballad 3 Soft Rock Rock 1 Rock 2 Rock 3 Rock 4 Rock 5...
TABLA DE EJECUCIÓN DE MIDI FUNCION Defecto Básico Cambiado Canal Defecto Mensajes Modo Alterado Nota Número Voz real Velocidad Notas activadas Notas desactivadas Despues Llaves Canales Toque Pitch Bend Control Cambio de Programa Verdadero Exclusiva del Sistema Sistema Posición de la canción Selector de canción Común Tono...
Page 46
Félicitation! Nous vous remercions de l'achat du Batterie Electronique Portable SOUNDX. Afin d'obtenir les meilleurs résultats avec votre clavier, veuillez suivre les étapes expliquées dans ce manuel quand vous commencerez à le tester. Nous vous garantissons que vous l'apprécierez et vous découvrirez toutes les possibilités de votre nouveau clavier.
Page 47
CONTENU Tableau de Contrôle ... 4 Tableau de Contrôle Avant Tableau de Connexion Arrière Installation ... 6 Avec Adaptateur AC ... 6 Avec Piles ... 6 Utilisation D'écouteurs Numero Tambour Actuel Et Kit Batterie Fonction ... 8 - Jeu de la Chanson de Démo Tambours / Pédales ...
Page 48
CONTRÔLES Vue De Face POWER SONG VOLUME BATTERIE (x7) BEAT SONG KITS PAD ASS. PEDAL 1 PEDAL 2 LEARNING RECORD TAP START METRONOME SONG TEMPO SUPER BASS PLAY/STOP POWER KITS START/STOP SONG VOLUME ASSIGN Allume - Eteint commutateur Cet interrupteur active/désactive l'appareil. Volume Principal + &...
Page 49
CONTRÔLES Vue De Face Démonstration bouton Ce bouton permet de démarrer ou arrêter une musique de démo. [ Tap Start ] bouton DE DÉBUT / DE FIN Ce bouton permet de démarrer ou arrêter la lecture des morceaux. Number keys Chanson bouton Ce bouton permet d'entrer dans le menu...
INSTALLATION Alimentation Votre clavier électronique peut fonctionner avec des piles ou avec l'adaptateur fourni. Suivez les instructions ci-dessous selon l'alimentation que vous utiliserez. Avec Adaptateur AC Branchez l'adaptateur à l'entrée DC IN située à l'arrière de l'appareil et l'adaptateur AC à la prise AC correspondante.
NUMERO TAMBOUR ACTUEL ET KIT BATTERIE Frapper le tambour avec les baguettes fournies pour jouer les sons de tambour. Le kit batterie “001” est autommatiquement choisi dès que l'appareil est activé et que le bouton [KITS] est pressé. Le son sera plus ou moins fort selon la force de frappe sur le tambour. La force du son peut varier selon les parties du tambour qui son frappées.
FONCTION L'ensemble batterie numérique inclut une musique de démo pour montrer la performance des batteries. Pour lire la musique de démo, suivre les instructions ci-dessous: Jeu De La Chanson De Démo Rétablir le courant Tourner l'interrupteur [POWER] (MARCHE) sur ON. L'affichage LED s'allume.
TAMBOURS / PÉDALES Assigner Un Kit Batterie Aux Tambours Et Pédales La batterie numérique propose 20 kits batterie différents plus un kit personnalisé (1-20: voir "Liste kits batterie" page 20) rapidement et facilement. Les 20 kits comprennent une combinaison de sons préréglés ajustés aux tambours et pédales lorsque le kit est sélectionné. Sélectionner différents kits et les essayer.
TAMBOURS / PÉDALES Assigner un son aux tambours et pédales individuels (kit personnalisé "CU") La batterie numérique comprend au total 76 sons de percussion de haute qualité (voir la "Liste des sons de batterie" page 19) pouvant être assignés à chacun des 7 tambours et aux 2 pédales.
FONCTIONNEMENT Ajuster La Fonction De Reverb Différentes profondeurs d'effet d'amplification de la batterie numérique peuvent être sélectionnées pour le son général de l'instrument. L'effet REVERB (AMPLIFICATION) est automatiquement activé à chaque fois que l'appareil est activé et le niveau par défaut est sur [r-2]. Choisir la profondeur de REVERB Appuyer sur le bouton Reverb pour afficher le réglage en cours, utiliser les touches "-"...
JEU D'UNE CHANSON La batterie numérique comprend 100 (00 à 99) morceaux d'accompagnement (voir la "Liste des morceaux" page 21). Sélectionner l'un des morceaux pour écouter ce qui vous semble jouable. Choix D'une Chanson Appuyer sur [le bouton de CHANSON] Appuyer sur le bouton [MORCEAU], l'indicateur LED s'allume.
Super Basse L'option Super basse a été créée pour rendre le son plus profond et la basse plus puissante. La Super basse est activée au moment où la batterie numérique est activée. Une pression sur [SUPER B A S S E ] d é...
Taper Le Début La fonction TAP START permet de régler le tempo général des morceaux et de démarrer l'accompagnement. L'accompagnement jouera au tempo auquel sont frappés les tambours ou enfoncées les pédales. A p p u y e r s u r [ l e b o u t o n ROBINET]...
ENREGISTREMENT La fonction d'enregistrement de la batterie numérique permet d'enregistrer puis écouter une musique (environ 1000 notes). • Les données peuvent être enregistrées en mode enregistrement. • Données tambour et pédales. • Données morceau (le numéro ne peut pas être changé...
POUR FAIRE LES CONNECTIONS MIDI Les terminaux MIDI IN et MIDI ON, situés à l'arrière de l'appareil, offrent de plus larges possibilités musicales grâce à l'utilisation de la MIDI. Ci-dessous est décrit la MIDI et comment l'utiliser avec la batterie numérique. Quel est le MIDI? MIDI est l'abréviation de Musical Instrument Digital Interface (Interface numérique pour instruments de musique).
POUR FAIRE LES CONNECTIONS Pédale Cet appareil accepte 1 pédale hi-hat et 1 pédale kick comme appareils d'entrée. PEDAL Sortie Phono La sortie phono accepte des écouteurs stéréo comme appareil de sortie. PEDAL PHONES/ DC-12V OUTPUT MIDI PHONES/ DC-12V OUTPUT MIDI...
DETAILS TECHNIQUES 7 garnitures de tambour avec la sensibilité de contact et deux Garniture De pédales (tambour bas et salut-chapeau) Tambour Voix: 76 voix de tambour de PCM Kits De 20 kits préréglés de tambour Tambour Kits faits sur commande de 1 tambour Song: 100 chansons préréglées (inclure 80 modèles et 20 chansons)
LISTE DE KIT DE TAMBOUR Kit Name Pad1 Standard 1 Crash Cymbal 1 Standard 2 HH Open/Closed Standard 3 Crash Cymbal 1 Standard 4 HH Open/Close Standard 5 Crash Cymbal 1 Standard 6 Splash Cymbal Standard 7 HH Open/Close Standard 8 HH Open/Close Rock Crash Cymbal 1...
LISTE DE CHANSON Song Name 8 Beat 8 Beat 1 8 Beat 2 8 Beat 3 8 Beat 4 8 Beat 5 8 Beat Ballad 1 8 Beat Ballad 2 8 Beat Ballad 3 Soft Rock Rock 1 Rock 2 Rock 3 Rock 4 Rock 5...
GRAPHIQUE DU MODE D’ÉXÉCUTION Fonction Par Défaut Canal Modifié ormal Par Défaut Messages Mode Altéré Numéro de Note Vrai son Vélocité Note on Note off Après Clé Canal Lien Pitch Bend Contrôle Programe Changement True Exclusivité de Système Position d’une Système chanson Sélection d’une...
Page 68
