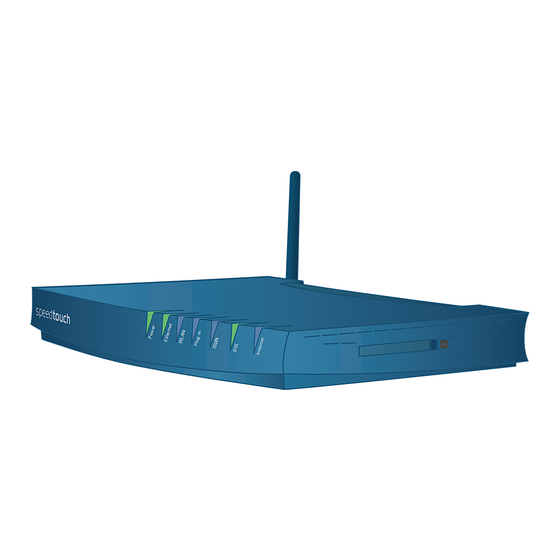

SpeedTouch™620
Wireless Business DSL Routers
Operator's Guide

Advertisement

Table of Contents
loading

Related Manuals for THOMSON Wireless Business DSL Routers SpeedTouchTM620

Summary of Contents for THOMSON Wireless Business DSL Routers SpeedTouchTM620

  • Page 1 SpeedTouch™620 Wireless Business DSL Routers Operator’s Guide...
  • Page 3 SpeedTouch™ Operator’s Guide...
  • Page 4 Copyright Copyright ©1999-2006 THOMSON. All rights reserved. Distribution and copying of this document, use and communication of its contents is not permitted without written authorization from THOMSON. The content of this document is furnished for informational use only, may be subject to change without notice, and should not be construed as a commitment by THOMSON.

  • Page 5: Table Of Contents

    Contents 1 Introduction ... 3 2 SpeedTouch™ Command Line Interface ... 5 About the CLI Interface... 5 CLI Access via Telnet or Serial Console... 6 Basic Navigation ... 7 Command Line Interface Commands ... 10 Menu-driven CLI Navigation... 13 3 SpeedTouch™ System Software ... 15 About the System Software...
  • Page 6 Contents 5 SpeedTouch™ Software Modules... 45 6 SpeedTouch™ System Services... 49 6.3.1 6.3.2 6.3.3 6.3.4 6.3.5 6.3.6 6.3.7 7 The SpeedTouch™ File System... 75 SpeedTouch™ Service Templates ... 40 SpeedTouch™ System Languages Management ... 41 Software Activation Key Management ... 46 SpeedTouch™...
  • Page 7 8 SpeedTouch™ Remote Access ... 79 Remote Web Interface Access ... 81 Secure Remote Web Interface Access ... 84 Remote Telnet Access... 88 Remote SSH Access ... 91 Remote FTP Access... 97 Remote SFTP Access ... 100 LAN Based Auto-Configuration (LAC) Support (TR-064) ... 106 CPE WAN Management Protocol (CWMP) Support (TR-069)...
  • Page 8 Contents 10.1 10.1.1 10.1.2 10.2 10.2.1 10.2.2 10.2.3 10.2.4 10.2.5 10.2.6 10.2.7 10.2.8 10.2.9 10.2.10 10.2.11 10.2.12 10.3 10.3.1 10.3.2 10.3.3 10.3.4 10.4 11 SpeedTouch™ Advanced Diagnostics ... 171 11.1 11.2 SpeedTouch™ Monitoring ... 133 An Introduction to SNMP... 134 Basic Concepts ...
  • Page 9 11.3 Command Line Interface Diagnostics ... 179 11.3.1 About CLI Diagnostics ... 180 11.3.2 Lower Layer Diagnostics ... 181 11.3.3 Router Services Diagnostics ... 184 11.3.4 Routing Diagnostics... 186 11.3.5 Ethernet Diagnostics... 189 11.3.6 Management Diagnostics ... 191 12 SLA Monitoring..193 13 Resetting the SpeedTouch™...
  • Page 10 Contents E-DOC-CTC-20051017-0155 v1.0...
  • Page 11 About this Operator’s Guide Used Symbols Terminology Generally, the SpeedTouch™620 will be referred to as SpeedTouch™ in this Operator’s Guide. Typographical When we display interactive input and output we’ll show our typed input in a bold font and the computer output Conventions Comments are added in italics.
  • Page 12 About this Operator’s Guide E-DOC-CTC-20051017-0155 v1.0...

  • Page 13: Introduction

    1 Introduction Overview Being a key component of your business network, a good operation of the SpeedTouch™ is essential to gain maximum performance of your DSL connectivity. Continuous management and diagnosis of the SpeedTouch™ should be performed to ensure a faultless operation of the SpeedTouch™, 24hours a day, 7 days a week. As such the SpeedTouch™...
  • Page 14 Chapter 1 Introduction E-DOC-CTC-20051017-0155 v1.0...

  • Page 15: Speedtouch™ Command Line Interface

    2 SpeedTouch™ Command Line Interface 2.1 About the CLI Interface CLI access You can access the Command Line Interface via: The SpeedTouch™ CLI Web Interface A Telnet session The serial Console interface. CLI web page access To access the CLI via the SpeedTouch™ Web Interface, you need: requirements A TCP/IP connection between the computer and the SpeedTouch™.

  • Page 16: Cli Access Via Telnet Or Serial Console

    Chapter 2 SpeedTouch™ Command Line Interface 2.2 CLI Access via Telnet or Serial Console Access via a Telnet session or serial console As soon a session to the CLI is opened, a banner pops up, followed by the CLI prompt: ----------------------------------------------------------------------- ______ ___/_____/\...

  • Page 17: Basic Navigation

    2.3 Basic Navigation Command group From the top level, you can change to a command group by executing the name of navigation the desired command group (for example type the name of the command group and press ENTER). To obtain a list of all available command groups, use the top level: =>:help Following commands are available :...
  • Page 18 Chapter 2 SpeedTouch™ Command Line Interface Help Command completion Going to the beginning or end of a line Breaking off commands You can use from any level to list all available commands and command help groups for that level. Below an example is provided of executing help from the firewall command group selection: =>:firewall help Following commands are available :...
  • Page 19 Chapter 2 SpeedTouch™ Command Line Interface History of Commands The CLI allows you to re-use commands you have used before during a CLI session. To scroll through the previously used CLI commands use UP ARROW and DOWN ARROW. To execute a re-used command, press ENTER. E-DOC-CTC-20051017-0155 v1.0...

  • Page 20: Command Line Interface Commands

    Chapter 2 SpeedTouch™ Command Line Interface 2.4 Command Line Interface Commands Executing Commands from the Top Level All CLI commands are commands that operate on, or configure, the SpeedTouch™ settings. You can use these commands from top level, preceded by the name of the command group from which the command should be executed (for example firewall list =>:firewall list...
  • Page 21 Executing Commands You can also enter the commands from the command group itself, using the from the Command reduced form of the command (for example selection): Group =>firewall [firewall]=>list Config ====== State Keep TcpChecks TcpWindow UdpChecks IcmpChecks LogDefault LogThreshold Modules ======= Module -----------------------------------------------------------------------...
  • Page 22 Chapter 2 SpeedTouch™ Command Line Interface Saving the configuration After configuring the SpeedTouch™ via the CLI, it is advised to save your configuration. You can save the complete SpeedTouch™ configuration to persistent memory by executing the command. saveall command can be entered from any CLI prompt. saveall E-DOC-CTC-20051017-0155 v1.0...

  • Page 23: Menu-Driven Cli Navigation

    Chapter 2 SpeedTouch™ Command Line Interface 2.5 Menu-driven CLI Navigation Introduction To improve the user-friendliness of the SpeedTouch™ CLI, the CLI features a menu- driven interface. Entering the CLI menu To enter the menu-driven interface, simply enter the command menu from the CLI prompt: The semi-graphical CLI offers you an attractive and easy-to-use configuration...
  • Page 24 Chapter 2 SpeedTouch™ Command Line Interface E-DOC-CTC-20051017-0155 v1.0...

  • Page 25: Speedtouch™ System Software

    3 SpeedTouch™ System Software 3.1 About the System Software Upgrade system For new system software packages, you can visit the SpeedTouch™ support pages software http://www.speedtouch.com System software All SpeedTouch™ system software packages are: packages and security Digitally signed and encrypted: Packages that may have become corrupted, or have been altered in any way, will not be accepted by the SpeedTouch™.

  • Page 26: System Software Management Via Ftp

    Chapter 3 SpeedTouch™ System Software 3.2 System Software Management via FTP FTP access SpeedTouch™ system software locations Overview For more information on the SpeedTouch™ file system and how to access it via FTP, see “7 The SpeedTouch™ File System” on page The SpeedTouch™...

  • Page 27: Backup System Software Via Ftp

    3.2.1 Backup System Software via FTP Introduction For backup reasons, you can transfer system software files from both SpeedTouch™’s ‘/active’ and ‘/dl’ subdirectories to your local disk. Backup procedure To transfer system software files from the SpeedTouch™ to your local disk as backup, proceed as follows: Step E-DOC-CTC-20051017-0155 v1.0...
  • Page 28 Chapter 3 SpeedTouch™ System Software Step Action To identify the system software file name, use the software version command: ftp> quote site software version 200- Flash image : 5.4.0.10.0 200- Active SW : ZZUIAA5.40A (5.4.0.a.0) 200- Passive SW : ZZUIAA5.40A (5.4.0.a.0) 200- 200 CLI command "software version"...

  • Page 29: Upgrade Or Restore System Software Via Ftp

    3.2.2 Upgrade or Restore System Software via FTP Upgrade/Restore The procedure to upgrade or restore the SpeedTouch™ system software consists of procedure three main steps: Step E-DOC-CTC-20051017-0155 v1.0 Action Transfer system software to the SpeedTouch™ Mark system software file as Passive Software Version Activate the upgrade/ restored system software Chapter 3 SpeedTouch™...
  • Page 30 Chapter 3 SpeedTouch™ System Software Transfer system software to the SpeedTouch™ To transfer a system software file stored on your local disk to the SpeedTouch™, proceed as follows: Step Action Open an FTP session to the SpeedTouch™. At the user name prompt, enter a user name.
  • Page 31 Step As a result the system software file is stored on the ‘/dl’ subdirectory of the SpeedTouch™. In addition, the SpeedTouch™ will automatically clean its file system. E-DOC-CTC-20051017-0155 v1.0 Action Put the upgrade system software to the SpeedTouch™ ‘/dl’ subdirectory: ftp>...
  • Page 32 Chapter 3 SpeedTouch™ System Software Mark system software file as Passive Software Version Activate the upgrade/ restored system software You must identify the system software you transferred to the SpeedTouch™ ‘/dl’ subdirectory as passive software version to allow the SpeedTouch™ to mark the file as system software.

  • Page 33: Manual System Software Management Via Bootp/Tftp Server

    3.2.3 Manual System Software Management via BOOTP/TFTP server System software The SpeedTouch™ system software can also be updated based on BOOTP, a management standard mechanism used for booting diskless stations. The SpeedTouch™ is able to be placed in BOOTP mode, allowing a BOOTP/TFTP server to manage the SpeedTouch™...
  • Page 34 Chapter 3 SpeedTouch™ System Software Procedure To upgrade/restore the SpeedTouch™ system software: Step Action Make sure that your SpeedTouch™ is powered off and that a BOOTP/ TFTP server is readily installed on the computer from which you intend to perform the system software upgrade Configure the BOOTP/TFTP server to use the SpeedTouch™...

  • Page 35: Speedtouch™ Configuration Management

    4 SpeedTouch™ Configuration Management Saving the Whenever the configuration of the SpeedTouch™ has been altered in any way, with configuration the intention to keep this configuration, you should save it. You can save the configuration manually in two ways: Click Save All in the Topics menu of the SpeedTouch™ Expert Mode Web Interface Enter Result:...

  • Page 36: Configuration Management Via The Speedtouch™ Web Interface

    Chapter 4 SpeedTouch™ Configuration Management 4.1 Configuration Management via the Basic and expert mode Backing up configurations via the basic Web Interface SpeedTouch™ Web Interface The SpeedTouch™ features two ways of managing its configuration via the Web Interface: Via the basic Web Interface Via the expert Web Interface Proceed as follows: Step...
  • Page 37 Restoring Proceed as follows: configurations via the basic Web Interface Step E-DOC-CTC-20051017-0155 v1.0 Action Open a web browser and go to the SpeedTouch™ Web Interface. Go to Home > SpeedTouch > Configuration. Click Save or Restore Configuration: Click on Browse and choose the configuration file, residing on your local disk, you want to restore on your SpeedTouch™.
  • Page 38 Chapter 4 SpeedTouch™ Configuration Management Backing up saved configurations via the expert Web Interface Proceed as follows: Step Action Open a web browser and go to the SpeedTouch™ Web Interface. Go to expert mode. Click Save All to save the current configuration. Open the Update page via Home >...
  • Page 39 Restoring a Proceed as follows: configuration via the expert pages Step E-DOC-CTC-20051017-0155 v1.0 Action Open a web browser and go to the SpeedTouch™ Web Interface. Go to expert mode. Open the Upgrade page via Home > SpeedTouch > System Update: Click Browse to locate the configuration file on your local disk you intend to restore.

  • Page 40: Configuration Management Via Telnet

    Chapter 4 SpeedTouch™ Configuration Management 4.2 Configuration Management via Telnet FTP access SpeedTouch™ configuration files For more information on the file system of the SpeedTouch™ and how to access it via FTP, see “7 The SpeedTouch™ File System” on page The SpeedTouch™’s last saved configuration is stored in the SpeedTouch™...

  • Page 41: The :Config Cli Command Group

    4.3 The :Config CLI Command Group Introduction The config CLI command group allows the management of SpeedTouch™ configurations. Following CLI commands are available in the config CLI command group: =>:help config Following commands are available : save load delete flush list dump =>...
  • Page 42 Chapter 4 SpeedTouch™ Configuration Management Applying a configuration stored on the SpeedTouch™ To activate a configuration file, stored on the SpeedTouch™ ‘/dl’ subdirectory, the CLI command :config load is used. Following CLI commands are available in the config load CLI command group: =>:help config load Load saved or default configuration.

  • Page 43: Back Up Configurations Via Ftp

    4.3.1 Back up Configurations via FTP Introduction For backup reasons, you can transfer configuration files from both the SpeedTouch™ ‘/active’ and ‘/dl’ subdirectories to your local disk. Backup procedure To backup the current SpeedTouch™ configuration to your local disk as backup user.ini file, proceed as follows: Step E-DOC-CTC-20051017-0155 v1.0...
  • Page 44 Chapter 4 SpeedTouch™ Configuration Management Step Action Optionally, you can make a listing of the subdirectory’s contents: ftp> dir 200 Connected to 192.168.1.254 150 Opening data connection for /bin/ls -rwxrwxrwx -rwxrwxrwx -r--r--r-- -r--r--r-- -r--r--r-- -r--r--r-- -rwxrwxrwx -rw-rw-rw- -rw-rw-r-- 226 Options: -l : 9 matches total ftp: 600 bytes received in 0,00Seconds 600000,00Kbytes/ sec.ftp: 400 bytes received in 0.01Seconds 40.00Kbytes/sec.

  • Page 45: Store Configurations Via Ftp

    4.3.2 Store Configurations via FTP Introduction Via the procedure described below you can: Restore a configuration file you previously backed up via the procedure described in Apply a new configuration to the SpeedTouch™ by storing a new or changed configuration file. Store multiple SpeedTouch™...
  • Page 46 Chapter 4 SpeedTouch™ Configuration Management Transfer the configuration file to the SpeedTouch™ To transfer a SpeedTouch™ configuration file stored on your local disk to the SpeedTouch™, proceed as follows: Step Open an FTP session to the SpeedTouch™. At the user name prompt, enter a user name and at the password prompt, the password (refer to “The SpeedTouch™...
  • Page 47 Step E-DOC-CTC-20051017-0155 v1.0 Action Put the configuration file to the SpeedTouch™ ‘/dl’ subdirectory: ftp> put config.ini 200 Connected to 192.168.1.254 port 1657 150 Opening data connection for config.ini 226 File written successfully ftp: 4472 bytes sent in 0.02Seconds 223.60Kbytes/sec. ftp> You can check whether the configuration file was stored successfully by making a listing of the subdirectory’s contents: ftp>...
  • Page 48 Chapter 4 SpeedTouch™ Configuration Management Applying a configuration stored on the SpeedTouch™ To activate a configuration file, stored on the SpeedTouch™ ‘/dl’ subdirectory, the CLI command :config load is used. Below the syntax of the config load CLI command is provided: =>help config load Load saved or default configuration.
  • Page 49 In case the file name of the configuration file is different from user.ini, you should specify the file name. This allows you to store multiple configuration files on the SpeedTouch™ file system, and load them when needed: ftp> dir 200 Connected to 192.168.1.254 port 2187 150 Opening data connection for /bin/ls -rwxrwxrwx -rwxrwxrwx...

  • Page 50: Speedtouch™ Service Templates

    Chapter 4 SpeedTouch™ Configuration Management 4.4 SpeedTouch™ Service Templates Introduction Delivered template files Template files on the SpeedTouch™ file system Template files are ASCII text files consisting of a set of SpeedTouch™ (embedded) Easy Setup wizard specific commands and CLI commands. Used by the SpeedTouch™...

  • Page 51: Speedtouch™ System Languages Management

    4.5 SpeedTouch™ System Languages Management Introduction The following three actions are possible regarding the system languages. Upload a new system language file, which can be found on the SpeedTouch™ Setup CD, to the SpeedTouch™. Switch between system languages via the system language bar. Delete a system language via the SpeedTouch™...
  • Page 52 Chapter 4 SpeedTouch™ Configuration Management Switch between system languages To switch between system languages, select the desired system language in the system language bar. The system language bar can be found on the top right side of the SpeedTouch™ Web Interface: By default, the SpeedTouch™...
  • Page 53 Delete a system Proceed as follows: language Step E-DOC-CTC-20051017-0155 v1.0 Action Open a web browser and go to the SpeedTouch™ Web Interface. Go to the Expert Mode. Open the language page via Home > SpeedTouch > System Update. Click on the Language Packs tab: Select the entry at the desired system language and click Delete.
  • Page 54 Chapter 4 SpeedTouch™ Configuration Management E-DOC-CTC-20051017-0155 v1.0...

  • Page 55: Speedtouch™ Software Modules

    5 SpeedTouch™ Software Modules SpeedTouch™ software The SpeedTouch™ comes by default with an extended set of features to provide module functionality end-to-end connectivity over the DSL line, IP Routing, RIP, Hyper-NAT, SNMP, Syslog, DHCP, DNS, Remote Assistance, Game & Application Sharing, UPnP, Web Site Filtering, IDS, DSD to name just a few.

  • Page 56: Software Activation Key Management

    Chapter 5 SpeedTouch™ Software Modules 5.1 Software Activation Key Management The SpeedTouch™ Software Modules web page How to Access the Software Modules Page Via the SpeedTouch™ web interface you can easily overview the SpeedTouch™ available software activation keys and their current status: The Software Module Status Display shows the available software modules that can be activated via a software activation key.
  • Page 57 Software activation key You can overview the software modules and their status and link information via management via the CLI the SpeedTouch™ Command Line Interface (CLI). “2 SpeedTouch™ Command Line Interface” on page 5 how to access the Command Line Interface. :software addon list current software modules, their status, and some additional information: =>:software addon list...
  • Page 58 Chapter 5 SpeedTouch™ Software Modules How to Install a Software Key How to Back Up the Software Keys Disabling software modules on the SpeedTouch™ After applying for a software key, your ISP should provide you with a software key user name and password. Proceed as follows to install and activate the software key via the GUI: Step Action...

  • Page 59: Speedtouch™ System Services

    6 SpeedTouch™ System Services Overview This chapter covers the following services: Service Dynamic DNS Simple Network Time Protocol (SNTP) Website Filtering Intrusion Detection Remote Assistance E-DOC-CTC-20051017-0155 v1.0 Chapter 6 SpeedTouch™ System Services...

  • Page 60: Speedtouch™ Dynamic Dns

    Chapter 6 SpeedTouch™ System Services 6.1 SpeedTouch™ Dynamic DNS Introduction Applying for the dynamic DNS service Dynamic DNS client configuration Preparing the SpeedTouch™ dynamic DNS client Dynamic DNS is a mechanism, offered by several dynamic DNS service providers (available through the Internet) that allows the mapping of a worldwide resolvable static DNS host name to a dynamically (and temporarily) assigned public IP address used for Internet connectivity.
  • Page 61 The SpeedTouch™ CLI The SpeedTouch™ allows configuration of its dynamic DNS client functionality via dyndns commands the :dyndns CLI command group: =>:dyndns help Following commands are available : modify delete flush list Following command groups are available : host => In this command group all commands are available for adding/deleting and configuring a dynamic DNS client.
  • Page 62 Chapter 6 SpeedTouch™ System Services Example dynamic DNS subscription Adding a dynamic DNS host name Adding a dynamic DNS client For this example, following dynamic DNS subscription is assumed at DynDNS (www.dyndns.org): user name password Dynamic DNS host Allow wildcards Depending on your dynamic DNS subscription some other, more advanced options may be required or available, e.g.
  • Page 63 Modifying the dynamic Now the dynamic DNS client must be configured according your dynamic DNS DNS client subscription. According the following configuration must be done: =>:dyndns modify name = MyDynDNS [intf] = PPPoE_1 [user] = JohnDoe@MyISP.com [password] = **** Please retype password for verification. [password] = **** verification [group] = MyDynDNSHost...
  • Page 64 Chapter 6 SpeedTouch™ System Services Refining the dynamic DNS service settings If needed or required by the dynamic DNS service provider, you can change some details of the dynamic DNS service. Example dynamic DNS subscription service settings, as the pre-configured settings should be adequate. Below an overview of the default service settings per pre-configured dynamic DNS service provider (and the custom dynamic DNS service): =>:dyndns service list...
  • Page 65 Enabling the Dynamic In a final step you must enable the dynamic DNS client: DNS Service =>:dyndns modify name=MyDynDNS status=enabled Checking dynamic DNS You can easily check whether the dynamic DNS client is successfully updating the client Resolving SpeedTouch™ public IP address towards the dynamic DNS service provider’s hostserver: =>:dyndns list MyDynDNS : PPPoE_1 [CONNECTED]...

  • Page 66: The Speedtouch™ Sntp Client

    Chapter 6 SpeedTouch™ System Services 6.2 The SpeedTouch™ SNTP Client Introduction Daylight Saving Time The RTC The SNTP web page The SpeedTouch™ Simple Network Time Protocol (SNTP) client allows you to configure the SpeedTouch™ internal real-time clock (RTC), used for time-critical operations, for example for online certificates enrolment (IPSec VPN client).
  • Page 67 Chapter 6 SpeedTouch™ System Services The Manual tab Select Manual to: Set a date manually. (format dd/mm/yyyy) Set a time manually. (format HH:mm:ss) Select a geographical timezone. (from GMT-12:00 to GMT+12:00) Enable or disable summertime. The Manual TAB, if selected, disables the SpeedTouch™ SNTP client E-DOC-CTC-20051017-0155 v1.0...
  • Page 68 Chapter 6 SpeedTouch™ System Services The SNTP tab To enable the SpeedTouch™ SNTP client, select the SNTP TAB: As long no NTP servers are configured, time will not be controlled by SNTP. Proceed as follows to add an NTP server: Step Action Click New.
  • Page 69 Setting the time via CLI :system rtc settime real-time clock settings and to configure them: =>:system rtc settime date = 04/07/2003 time = 10:34:55 timezone = +01:00 daylightsaving = off => You can also use this CLI command to manually set the SpeedTouch™ internal real- time clock: =>:help system rtc settime Set/Get date, time, timezone, daylight savings time...

  • Page 70: Website Filtering

    Chapter 6 SpeedTouch™ System Services 6.3 Website Filtering About Website Filtering Address Based Filtering The website filtering feature offers you the possibility to control Internet Access by filtering blocking access to certain websites. The SpeedTouch™ has two methods of controlling access to the Internet: Method Address Based Filtering Content Based Filtering...
  • Page 71 Content Based Filtering With content based filtering, you can block or allow access to web sites based on their content. To do this, you can apply a content level as filter. You can use (an, if necessary, customize) one of the predefined content levels or create your own. The following is an example of (part of) a content level: Note that “x”...

  • Page 72: The Website Filtering Configuration

    Chapter 6 SpeedTouch™ System Services 6.3.1 The Website Filtering Configuration Pages Page Overview The website filtering section of the SpeedTouch™ web interface offers three pages: Page Overview Configure Help Description Allows you to view the filtering configuration Allows you to configure website filtering Provides online help on Website filtering...

  • Page 73: How To Verify The Filtering Configuration

    6.3.2 How to Verify the Filtering Configuration Procedure Proceed as follows to verify the website filtering configuration: Step Result: E-DOC-CTC-20051017-0155 v1.0 Action Go to the SpeedTouch™ configuration home page In the Toolbox section, click Web Site filtering. you are taken to the website filtering overview page: Chapter 6 SpeedTouch™...
  • Page 74 Chapter 6 SpeedTouch™ System Services The Website Filtering Web page This page has two sections: Section Description Filtering Information This section provides information on the active filtering configuration: Address based filtering information: a list of all specified websites and the actions to be taken. Content based filtering information: license information and information about the active content level.

  • Page 75: How To Activate A Web Filtering License

    6.3.3 How to Activate a Web Filtering License Prerequisite Before you can activate the web site filtering license, you need a valid license key. Procedure Proceed as follows to activate a web filtering license: Step E-DOC-CTC-20051017-0155 v1.0 Action Go to the SpeedTouch™ configuration home page In the Toolbox section, click Web Site filtering.

  • Page 76: Configuring The Actions For Uncategorised Sites

    Chapter 6 SpeedTouch™ System Services 6.3.4 Configuring the Actions for Uncategorised Filter Priority Actions for Uncategorised Sites Procedure Sites The address based filter, if activated, has the highest priority. For web sites that are not specified in the address based filter, the system uses the Content based filter (if activated).

  • Page 77: How To Create An Address Based Filter

    6.3.5 How to Create an Address Based Filter How to Create a New Proceed as follows: Entry Step How to Modify an Entry Proceed as follows to modify an entry in the filter table: Step How to Delete an Entry Proceed as follows to delete an entry in the filter table: Step E-DOC-CTC-20051017-0155 v1.0...

  • Page 78: How To Create A Content Based Filter

    Chapter 6 SpeedTouch™ System Services 6.3.6 How to Create a Content Based Filter About Content Levels Procedure Content levels determine which web sites will be targeted by the filter, based on their content. There are 5 pre-defined content levels: Level Legal Teenagers Children...

  • Page 79: How To Create A Content Level

    6.3.7 How to Create a Content Level How to get a Detailed Proceeds as follows to get a detailed view of an content level: View Step How to Edit a Content Proceed as follows to edit an existing Content Level: Level Step E-DOC-CTC-20051017-0155 v1.0...
  • Page 80 Chapter 6 SpeedTouch™ System Services How to Create a New Content Level Proceed as follows to create a new content level: Step Action Go to the Web site filtering Configure page In the Pick a Task... list, select Create a new content level. Fill in a name and a description and click Next If you want to: Start from a copy of an existing level, select Clone an Existing Level.

  • Page 81: Intrusion Detection And Protection

    6.4 Intrusion Detection and Protection About Intrusion The SpeedTouch™ actively protects your system against malicious intrusion. You Detection can view statistics on the intrusion attempts the SpeedTouch™ has detected. How to View the Proceed as follows to see the intrusion statistics: Intrusion Detection statistics Step...

  • Page 82: Remote Assistance

    Chapter 6 SpeedTouch™ System Services 6.5 Remote Assistance About Remote Assistance How to Set Up Remote Assistance How to Log On To The SpeedTouch™ Remotely Remote Assistance allows you to log on to the SpeedTouch™ from a remote location and perform tasks. Proceed as follows to set up Remote Assistance: Step Action...
  • Page 83 Chapter 6 SpeedTouch™ System Services Connection Type On most variants, the connection will be HTTPS (secure HTTP). However, some variants do not support SSH and will therefore use an HTTP connection; E-DOC-CTC-20051017-0155 v1.0...
  • Page 84 Chapter 6 SpeedTouch™ System Services E-DOC-CTC-20051017-0155 v1.0...

  • Page 85: The Speedtouch™ File System

    7 The SpeedTouch™ File System Introduction The SpeedTouch™ file system exists of nonvolatile memory responsible for storing, retrieving and maintaining the system software files, configuration profile files, language-pack files, software activation keys, secure storage files, etc. The file system of the SpeedTouch™ is accessible via the well known File Transfer Protocol (FTP).
  • Page 86 Chapter 7 The SpeedTouch™ File System Access rights to the file system Preparing for FTP file transfers Following access/action rights apply to the directories and its contents: 'root' Directory Access is allowed No Read access No Write access '/active' Subdirectory Access is allowed Listing of files (dir) FTP (m)get of (multiple) files...
  • Page 87 Files stored on the file The following is an example output of the SpeedTouch™ ‘/dl’ and ‘/active’ system subdirectory content: C:\Documents and Settings\john_doe>ftp 192.168.1.254 Connected to 192.168.1.254. 220 Inactivity timer = 120 seconds. Use 'site idle <secs>' to change. User (192.168.1.254:(none)):Administrator 331 SpeedTouch (00-0E-50-0F-FE-2A) Password required.
  • Page 88 Chapter 7 The SpeedTouch™ File System File types Following file types can be found: System software files (e.g. ZZUIAA5.321) The SpeedTouch™ system software file. The one in the ‘/active’ directory is currently used by the SpeedTouch™; the one in the ‘/dl’ directory is dormant. Software activation keys(e.g.

  • Page 89: Speedtouch™ Remote Access

    8 SpeedTouch™ Remote Access The SpeedTouch™ The SpeedTouch™ offers various access methods to allow configuration and access methods monitoring of the device. SpeedTouch™ HTTP SpeedTouch™ HTTPs access SpeedTouch™ Telnet access SpeedTouch™ FTP access SpeedTouch™ SSH access However, for obvious security reasons, in the default configuration all these methods are denied from the WAN side.
  • Page 90 Chapter 8 SpeedTouch™ Remote Access Interface access list IPSec Protection The interface access list of a service contains the interface groups from where a user is allowed access to that specific service. The interface access list can contain 1 or more of the following groups: lan: the local or corporate network local:...

  • Page 91: Remote Web Interface Access

    8.1 Remote Web Interface Access Introduction The SpeedTouch™ web interface is provided by the SpeedTouch™ HTTP web server. Access to this server and hence the web interface is controlled by the HTTP service. By default, the HTTP service is configured to let the web server accept http requests from LAN side only.
  • Page 92 Chapter 8 SpeedTouch™ Remote Access Refinement of the Service If needed, the service can be fine-tuned to restrict the allowed traffic to: A single IP address A subnet A range of IP addresses Use the following CLI command to restrict the allowed traffic to 1 IP address. =>:service system ipadd name=HTTP ip=192.6.11.5 =>...
  • Page 93 Hyper-NAT Refinements The SpeedTouch™ features a powerful Hyper-NAT engine allowing the local hosts to share a single (remotely negotiated) public IP address. In case Hyper-NAT is enabled on the WAN interface that will be used for remote management, and a static mapping has been made to allow remote hosts to address regular HTTP services on a host residing on your local network, you must make sure that accessing the SpeedTouch™...

  • Page 94: Secure Remote Web Interface Access

    Chapter 8 SpeedTouch™ Remote Access 8.2 Secure Remote Web Interface Access HTTPs service Introduction The remote management certificate Default HTTPs service configuration The SpeedTouch™ supports secure HTTP or HTTPS. The Transport Layer Security (prior SSL implemented by Netscape) provides communications privacy over the Internet.
  • Page 95 Configuration via To have HTTPs access via WAN, additional configuration of the HTTPs service is CLI commands needed. Use the following CLI command to allow HTTPs access from the WAN to the SpeedTouch™: =>:service system ifadd name=HTTPs group=wan => If you take a look at the HTTPs service configuration, you will see that the group is added to the Interface Access List: =>:service system list name=HTTPs expand=enabled Idx Name...
  • Page 96 Chapter 8 SpeedTouch™ Remote Access Refinement of the Service If needed, the service can be fine-tuned to restrict the allowed traffic to: A single IP address A subnet A range of IP addresses Use the following CLI command to restrict the allowed traffic to 1 IP address. =>:service system ipadd name=HTTPs ip=192.6.11.5 =>...
  • Page 97 Hyper-NAT Refinements The SpeedTouch™ features a powerful Hyper-NAT engine allowing the local hosts to share a single (remotely negotiated) public IP address. In case Hyper-NAT is enabled on the WAN interface that will be used for remote management, and a static mapping has been made to allow remote hosts to address regular HTTPs services on a host residing on your local network, you must make sure that accessing the SpeedTouch™...

  • Page 98: Remote Telnet Access

    Chapter 8 SpeedTouch™ Remote Access 8.3 Remote Telnet Access About Secure Remote Telnet Access and SSH Default Telnet service configuration Configuration via CLI commands The SpeedTouch™ Telnet host is provided by the SpeedTouch™ Telnet server. Access to this server and hence the Telnet interface is controlled by the Telnet service.
  • Page 99 Refinement of the If needed, the service can be fine-tuned to restrict the allowed traffic to: Service A single IP address A subnet A range of IP addresses Use the following CLI command to restrict the allowed traffic to 1 IP address. =>:service system ipadd name= =>...
  • Page 100 Chapter 8 SpeedTouch™ Remote Access Hyper-NAT Refinements The SpeedTouch™ features a powerful Hyper-NAT engine allowing the local hosts to share a single (remotely negotiated) public IP address. In case Hyper-NAT is enabled on the WAN interface that will be used for remote management, and a static mapping has been made to allow remote hosts to open a Telnet session to a host residing on your local network, you must make sure that Telnet access to the SpeedTouch™...

  • Page 101: Remote Ssh Access

    8.4 Remote SSH Access SSH service SSH (Secure Shell) is to be used to establish privacy between 2 network devices. It Introduction provides a secured layer on top of TCP/IP. The implementation of SSH in the SpeedTouch™ is mainly targeted to allow privacy for CLI sessions when remotely managing the SpeedTouch™...
  • Page 102 Chapter 8 SpeedTouch™ Remote Access Public Keys The SpeedTouch™ supports management of SSH public keys. To each public key installed on the SpeedTouch™, a role is assigned. This role defines the privileges, a user accessing the SpeedTouch™, can have. To view the public keys installed on the SpeedTouch™ use the following CLI command: =>:ssh publickey list Name...
  • Page 103 Default SSH Use the following CLI command to see the default SSH service configuration. service configuration =>:service system list name=SSH expand=enabled Idx Name ---------------------------------------------------------------------- 1 SSH Description... SSH server Properties... server Attributes... state port aclip aclif aclifgroup map log User Managed Attributes... state aclip aclif aclifgroup map log Attribute Values : State...
  • Page 104 Chapter 8 SpeedTouch™ Remote Access Configuration via CLI commands To have SSH access via WAN, additional configuration of the SSH service is needed. Use the following CLI command to allow SSH access from the WAN to the SpeedTouch™: =>:service system ifadd name=SSH group=wan If you take a look at the SSH service configuration, you will see that the is added to the Interface Access List: =>:service system list name=SSH expand=enabled...
  • Page 105 Refinement of the If needed, the service can be fine-tuned to restrict the allowed traffic to: Service A single IP address A subnet A range of IP addresses Use the following CLI command to restrict the allowed traffic to 1 IP address. =>:service system ipadd name=SSH ip=192.6.11.5 Use the following CLI command to restrict the allowed traffic to a subnet.
  • Page 106 Chapter 8 SpeedTouch™ Remote Access Hyper-NAT Refinements The SpeedTouch™ features a powerful Hyper-NAT engine allowing the local hosts to share a single (remotely negotiated) public IP address. In case Hyper-NAT is enabled on the WAN interface that will be used for remote management, and a static mapping has been made to allow remote hosts to address regular SSH services on a host residing on your local network, you must make sure that accessing the SpeedTouch™...

  • Page 107: Remote Ftp Access

    8.5 Remote FTP Access Introduction The SpeedTouch™ FTP interface is provided by the SpeedTouch™ FTP server. Access to this server and hence the FTP interface is controlled by the SpeedTouch™ FTP service. By default, the FTP service is configured to let the SpeedTouch™ FTP server accept FTP requests from LAN side only.
  • Page 108 Chapter 8 SpeedTouch™ Remote Access Refinement of the Service If needed, the service can be fine-tuned to restrict the allowed traffic to: A single IP address A subnet A range of IP addresses Use the following CLI command to restrict the allowed traffic to 1 IP address. =>:service system ipadd name=FTP ip=192.6.11.5 Use the following CLI command to restrict the allowed traffic to a subnet.
  • Page 109 Hyper-NAT Refinements The SpeedTouch™ features a powerful Hyper-NAT engine allowing the local hosts to share a single (remotely negotiated) public IP address. In case Hyper-NAT is enabled on the WAN interface that will be used for remote management, and a static mapping has been made to allow remote hosts to address regular FTP services on a host residing on your local network, you must make sure that accessing the SpeedTouch™...

  • Page 110: Remote Sftp Access

    Chapter 8 SpeedTouch™ Remote Access 8.6 Remote SFTP Access SFTP Introduction SSH authentication Enableing SFTP SSH is to be used to establish privacy between 2 network devices. It provides a secured layer on top of TCP/IP. SFTP allows privacy during file transfer sessions. The SpeedTouch™...
  • Page 111 Public Keys The SpeedTouch™ supports management of SSH public keys. To each public key installed on the SpeedTouch™, a role is assigned. This role defines the privileges, a user accessing the SpeedTouch™, can have. To view the public keys installed on the SpeedTouch™ , use the following CLI command: =>:ssh publickey list Name...
  • Page 112 Chapter 8 SpeedTouch™ Remote Access Default SSH service configuration Use the following CLI command to see the default SSH service configuration. =>:service system list name=SSH expand=enabled Idx Name Protocol ---------------------------------------------------------------------- 1 SSH Description... SSH server Properties... server Attributes... state port aclip aclif aclifgroup map log User Managed Attributes...
  • Page 113 Configuration via To have SSH access via WAN, additional configuration of the SSH service is needed. CLI commands Use the following CLI command to allow SSH access from the WAN to the SpeedTouch™: =>:service system ifadd name=SSH group=wan If you take a look at the SSH service configuration, you will see that the is added to the Interface Access List: =>:service system list name=SSH expand=enabled Idx Name...
  • Page 114 Chapter 8 SpeedTouch™ Remote Access Refinement of the Service If needed, the service can be fine-tuned to restrict the allowed traffic to: A single IP address A subnet A range of IP addresses Use the following CLI command to restrict the allowed traffic to 1 IP address. =>:service system ipadd name=SSH ip=192.6.11.5 Use the following CLI command to restrict the allowed traffic to a subnet.
  • Page 115 Hyper-NAT Refinements The SpeedTouch™ features a powerful Hyper-NAT engine allowing the local hosts to share a single (remotely negotiated) public IP address. In case Hyper-NAT is enabled on the WAN interface that will be used for remote management, and a static mapping has been made to allow remote hosts to address regular SSH services on a host residing on your local network, you must make sure that accessing the SpeedTouch™...

  • Page 116: Lan Based Auto-Configuration (Lac) Support (Tr-064)

    Chapter 8 SpeedTouch™ Remote Access 8.7 LAN Based Auto-Configuration (LAC) Support About TR-064 Configuration Options How to Configure LAC: Syntax (TR-064) The SpeedTouch™ supports the DSL Forum’s TR-064 Technical Report on LAN Based Auto-Configuration. This provides the possibility to automatically configure the SpeedTouch™...
  • Page 117 How to Configure LAC: The CLI command uses the following parameters: Parameter Descripion Parameter tr64 tr64auth E-DOC-CTC-20051017-0155 v1.0 SpeedTouch™ Remote Access Value Description enabled or Enable or disable LAC/TR-064 disabled enabled or Enable or disable LAC/TR-064 disabled Security Chapter 8...

  • Page 118: Cpe Wan Management Protocol (Cwmp) Support (Tr-069)

    Chapter 8 SpeedTouch™ Remote Access 8.8 CPE WAN Management Protocol (CWMP) About CWMP Architecture Supported Features Configuration Options Support (TR-069) The SpeedTouch™ supports the DSL Forum’s TR-069 Technical Report on CWMP. This allows the SpeedTouch™ to be configured and monitored from a management application running on a remote Auto-Configuration Server (ACS).
  • Page 119 How to View the From the main prompt, use the following command to view the CWMP Parameters: Configuration =>cwmp =>[cwmp]config This results in the following type of output on the screen, providing an overview of all parameters and their values: State Mode Max Envelopes...
  • Page 120 Chapter 8 SpeedTouch™ Remote Access How to Configure CWMP: Parameter Descripion The CLI command uses the following parameters: Parameter Value state enabled or disabled mode read-only or full periodicInform enabled or disabled periodicInfInt number sessionTimeout number noIpTimeout number maxEnvelopes number connectionRequest enabled or disabled...
  • Page 121 How to Configure the From the cwmp server prompt, use the following commands to configure the CWMP Server: CWMP Server parameters: Syntax config [url = <string>] [username = <string>] [password = <string>] How to Configure the The CLI command uses the following parameters: CWMP Server: Parameter Description Parameter...
  • Page 122 Chapter 8 SpeedTouch™ Remote Access E-DOC-CTC-20051017-0155 v1.0...

  • Page 123: The Integrated Speedtouch™ Isdn Modem

    9 The Integrated SpeedTouch™ ISDN Modem Overview This chapter covers the following topics: Topic About the ISDN Modem How to Configure the ISDN Modem ISDN Backup ISDN Callback ISDN Remote CAPI E-DOC-CTC-20051017-0155 v1.0 Chapter 9 The Integrated SpeedTouch™ ISDN Modem See Page...

  • Page 124: About The Isdn Modem

    Chapter 9 The Integrated SpeedTouch™ ISDN Modem 9.1 About the ISDN Modem Introduction Scenarios ISDN software key The ISDN modem as initiator or responder Security PPP on top of the ISDN Modem Next to the DSL, Ethernet and Wireless interface, the SpeedTouch™ features an ISDN modem, to allow the end user Internet connectivity.
  • Page 125 Scenario examples The following 2 scenarios are examples of using the ISDN modem as a responder: Dialling in to the SpeedTouch™ for remote management purposes: Take into account the following configuration factors: Dealing in via the SpeedTouch™ to surf to the corporate network. Take into account the following configuration factors: E-DOC-CTC-20051017-0155 v1.0 This scenario is a good alternative for when the DSL line is down or...

  • Page 126: How To Configure The Isdn Modem

    Chapter 9 The Integrated SpeedTouch™ ISDN Modem 9.2 How to Configure the ISDN Modem General configuration procedure ISDN group configuration Proceed as follows to configure the ISDN modem: Step Action Add a new ISDN interface with name ISP1: =>:isdn ifadd intf=ISP1 Configure the new ISDN interface with the dial-in number of the ISP: =>:isdn ifconfig intf=ISP1 number=090934100 mlppp=disabled mode=dialout...

  • Page 127: Isdn Backup

    9.3 ISDN Backup ISDN Backup The SpeedTouch™ has an ISDN interface that can be used to create an ISDN backup for the ADSL line. The process is shown in the diagram below: When the ADSL line fails, the SpeedTouch™ establishes a dial-in connection towards the ISDN network.

  • Page 128: How To Configure The Isdn Dial-In Connection

    Chapter 9 The Integrated SpeedTouch™ ISDN Modem 9.3.1 How to Configure the ISDN Dial-In Connection Via the Web Interface Proceed as follows to configure the ISDN dial-in connection via the Web interface: Step Action Go to Expert mode Click Connections Click Routed PPoI Result: on the page that appears, you see a predefined connection called ISDN backup.
  • Page 129 Step Via CLI Use the following command sequence to configure the ISDN dial-in connection via CLI: [isdn]=>ifconfig intf BODstart callback [isdn]=>ifconfig intf = buisdn [number] = 025292222 [mlppp] = disabled [mlppp] = disabled [BODstart] = 40 [BODend] = 38 [mode] = dialout [callback] = disabled [callback] = disabled...
  • Page 130 Chapter 9 The Integrated SpeedTouch™ ISDN Modem CLI Parameters: The table below provides a description of the relevant parameters: Parameter Value intf text string number numeric mlppp enabled or disabled BODStart Numerical (in kbps) Default: 40 BODEnd Numerical (in kbps) Default: 38 mode dialout...

  • Page 131: How To Configure The Ppp Connection

    9.3.2 How to Configure the PPP Connection How to Configure the If you used the Web interface to configure the Dial-In connection, you do not need PPP Connection Via the any additional configuration. Web Interface How to Configure the Use the following command sequence to configure the PPP connection via CLI: PPP Connection Via CLI [ppp]=>ifconfig intf = bu_isdn...
  • Page 132 Chapter 9 The Integrated SpeedTouch™ ISDN Modem CLI Parameters: The table below provides a description of the relevant parameters. Do not alter the default value of the parameters not shown in this table: Parameter Value intf text string dest text string user text string password...
  • Page 133 Parameter demanddial doddelay primdns secdns idletime idletrigger E-DOC-CTC-20051017-0155 v1.0 The Integrated SpeedTouch™ ISDN Modem Value Description enabled or disabled Enable or disable dial-on-demand (DOD). This means that the system will engage the ISDN backup if the DSL line fils numeric (in s) Delay during which DOD is Default: 120 disengaged;...

  • Page 134: Isdn Callback

    Chapter 9 The Integrated SpeedTouch™ ISDN Modem 9.4 ISDN Callback ISDN Backup ISDN Callback More Information Dial-In Modes Configuring Callback The SpeedTouch™ has an ISDN interface that can be used to create an ISDN backup for the ADSL line. The process is shown in the diagram below: ISDN ISDN When the ADSL line fails, the SpeedTouch™...

  • Page 135: How To Configure The Isdn Dial-In Connection

    9.4.1 How to Configure the ISDN Dial-In Connection Via the Web Interface Proceed as follows to configure the ISDN dial-in connection via the Web interface: Step E-DOC-CTC-20051017-0155 v1.0 Action Go to Expert mode Click Connections Click Routed PPoI Result: on the page that appears, you see a predefined connection called ISDN backup.
  • Page 136 Chapter 9 The Integrated SpeedTouch™ ISDN Modem Via CLI Step Action Click Other. Result: the Other page appears: Select the Mode (On-Demand or Always On) Fill in the idle time limit. If the connection is On-Demand, and the connection is idle for this amount of time (i.e. no traffic), the connection shuts down.
  • Page 137 CLI Parameters: The table below provides a description of the relevant parameters: Parameter intf number mlppp BODStart BODEnd mode callback E-DOC-CTC-20051017-0155 v1.0 The Integrated SpeedTouch™ ISDN Modem Value Description text string name of the ISDN interface numeric Dial-in number for the ISDN line enabled or disabled Enable or disable multilink ppp.

  • Page 138: How To Configure The Ppp Connection

    Chapter 9 The Integrated SpeedTouch™ ISDN Modem 9.4.2 How to Configure the PPP Connection How to Configure the PPP Connection Via the Web Interface How to Configure the PPP Connection Via CLI If you used the Web interface to configure the Dial-In connection, you do not need any additional configuration.
  • Page 139 CLI Parameters: The table below provides a description of the relevant parameters. Do not alter the default value of the parameters not shown in this table: Parameter intf dest user password auth restart retryinterval passive silent echo ladrress radress netmask format savepwd E-DOC-CTC-20051017-0155 v1.0...
  • Page 140 Chapter 9 The Integrated SpeedTouch™ ISDN Modem Parameter Value demanddial enabled or disabled doddelay numeric (in s) Default: 120 primdns ip address secdns ip address idletime numeric idletrigger Rx, Tx or RxTx Description Enable or disable dial-on-demand (DoD). This means that the system will engage the ISDN backup if the DSL line fils Delay during which DoD is...

  • Page 141: Isdn Remote Capi

    9.5 ISDN Remote CAPI About Remote CAPI Using RemoteCAPI, the ISDN interface of the SpeedTouch™ can be used by PC applications that typically need an ISDN board integrated into the PC. About RVS COM RVS COM is an application that allows you to use voice based services such as: sending and receiving faxes sending and receiving sms PC Answering machine with auto-attendant...
  • Page 142 Chapter 9 The Integrated SpeedTouch™ ISDN Modem How to Configure the Remote CAPI Client How to Configure Remote CAPI via the Web interface How to Enable Remote CAPI via CLI The above installation procedure adds the Remote CAP20 Client application to your system.

  • Page 143: Speedtouch™ Monitoring

    SpeedTouch™ Monitoring Overview This chapter covers the following topics : Topic 10.1 An Introduction to SNMP 10.2 SNMP configuration 10.3 The SpeedTouch™ Syslog 10.4 SpeedTouch™ Identification on AWS E-DOC-CTC-20051017-0155 v1.0 Chapter 10 SpeedTouch™ Monitoring See Page...

  • Page 144: An Introduction To Snmp

    Chapter 10 SpeedTouch™ Monitoring 10.1 An Introduction to SNMP Introduction SNMP in the SpeedTouch™ Overview The Simple Network Management Protocol (SNMP) is a widely spread method for managing networks. Based on a client/server concept, the SNMP server (the SNMP manager) gets or sets the values of objects defined in a Management Information Base (MIB) kept by the SNMP client (the SNMP agent).

  • Page 145: Basic Concepts

    10.1.1 Basic Concepts Management The Management Information Base, or MIB, is a tree-like structure containing SNMP Information Base objects, instances of these objects and their corresponding values. Parts of this tree have been standardized, other parts may be specific to a device. For the SpeedTouch™...

  • Page 146: Mibs Explained

    Chapter 10 SpeedTouch™ Monitoring 10.1.2 MIBs Explained. Introduction Standard MIBs As mentioned in “ Management Information Base” on page 135 SpeedTouch™ SNMP agent and the SNMP manager rely on Management Information Base (MIB) files containing all relevant SNMP objects. In the following, all MIBs important for the SpeedTouch™ are described. Additionally some of the most important and/or interesting SNMP counters are shortly highlighted.
  • Page 147 Standard MIBs Continued from previous page. (Continued) RFC1213 MIB II RFC 2790 Host Resources MIB This MIB shows hot resource information such as software builds, CPE date and time-of-day, the total and free amount of Flash Memory and RAM and processor load.
  • Page 148 Chapter 10 SpeedTouch™ Monitoring ADSL and SHDSL MIBs ILMI MIBs ATM MIBs Following two MIBs are specific per SpeedTouch™’s DSL variant (ADSL or SHDSL variants). You should only load the appropriate MIB, although loading both will not harm functionality. To retrieve maximum SNMP information it is imperative to use the MIB provided on the SpeedTouch™...

  • Page 149: Snmp Configuration

    10.2 SNMP configuration About SNMP There are a few configurable options covering the SNMP functionality. If you configuration require no traps are , the default options suffice to access information in the SpeedTouch™ from the LAN. Enabling SNMP By default, the SNMP agent is disabled. Before using or configuring SNMP, you must enable it: Command Line All the SNMP settings can be changed or viewed using CLI commands.

  • Page 150: How To Allow Access To The Snmp Agent

    Chapter 10 SpeedTouch™ Monitoring 10.2.1 How to Allow Access to the SNMP Agent Default Setting Command By default, access to the SNMP Agent is disabled. Before you are able to use SNMP, you must enable it. Use the following command to allow access to the SNMP Agent: :service system modify name=SNMPV3_AGENT state=enabled E-DOC-CTC-20051017-0155 v1.0...

  • Page 151: How To View The Snmp Configuration

    10.2.2 How to View the SNMP Configuration About the SNMP The SpeedTouch™ SNMP service controls all SNMP traffic from and towards the Service SpeedTouch™. By default, no restrictions apply regarding SNMP traffic from and towards the local network. However SNMP traffic from and towards the WAN will be blocked.

  • Page 152: How To View The System Contact, Name And Location

    Chapter 10 SpeedTouch™ Monitoring 10.2.3 How to View the System Contact, Name and Command Default Configuration Location Use the following CLI command to view the default configuration: {Administrator}[snmp]=>config The default configuration is as follows: SNMP System Contact : Service Provider SNMP System Name : SpeedTouch 620 SNMP System Location...

  • Page 153: How To Configure Snmpv1

    10.2.4 How to Configure SNMPv1 Configuring SNMPv1 on The SpeedTouch™ supports SNMPv3, but is also backwards compatible with the SpeedTouch™ SNMPv1. However, you need specific configuration procedures for this. Basically you need to do the following in order to configure SNMPv1: Configure the SNMPv1 Client If applicable, enable SNMPv1 traps How to Configure the...
  • Page 154 Chapter 10 SpeedTouch™ Monitoring How to Configure the SNMPv1 Traps Proceed as follows: Step Action Create a new target: :snmp target add name=Test_trap_pc addr=10.0.0.110 taglist=Trap_tag params=Trap_params Create a notify filter: :snmp notify add name=trap_notify_test tag=Trap_tag Configure the target parameters: :snmp targetparams add paramname=Trap_params mpmodel=v1 securitymodel=snmpv1 securityname=RWCommunity securitylevel=noAuthNoPriv Enable traps:...

  • Page 155: How To Configure The System Contact, Name And Location

    10.2.5 How to Configure the System contact, Name and Location Command You can set the System contact, System Name and the System Location in the MIB II RFC1213. Use the following CLI command to do so: config [sysContact = <quoted string>] [sysName = <quoted string>] [sysLocation = <quoted string>] [traps <{disabled|enabled}>]...

  • Page 156: How To Force The Source Ip Address

    Chapter 10 SpeedTouch™ Monitoring 10.2.6 How to Force the Source IP Address About Loopback How to Assign an IP Address to the Local Loop Interface How to Make the Local Loop Address the Primary Address How the View the Loopback Configuration The SpeedTouch™...

  • Page 157: How To Configure The Snmp Target

    10.2.7 How to Configure the SNMP Target About the SNMP Target The SNMP target is the destination for the SNMP traps, e.g an SNMP Manager. You can add up to nine different SNMP manager destination addresses, using the :snmp target add Command Use the following command to add an SNMP target: add name = <string>...
  • Page 158 Chapter 10 SpeedTouch™ Monitoring Use of defaults How to Delete a Destination Parameter Value taglist <quoted string> params <{V1Params}> storage other,volatile, nonVolatile, permanent or readOnly <number{484-65535}> If you do not specify a parameter, default values are used. The key parameters are name addr To delete a manager destination, use...

  • Page 159: How To Read Snmp Parameters Via The Cli

    10.2.8 How to Read SNMP Parameters via the CLI About Reading SNMP snmp get Parameters GetNext or Walk SNMP settings and/or counters from a MIB object. The MIB object is identified by the MIB object’s ID. This is only used for ebugging purposes. SNMP get Use the following CLI command to read a specific object ID: {Administrator}[snmp]=>get [objectid = <string>]...

  • Page 160: Snmp Walk

    Chapter 10 SpeedTouch™ Monitoring SNMP walk Use the following CLI command to skim through a MIB object: {Administrator}[snmp]=> walk [objectid = <string>] Example: For example, objectid .1.3.6.1.2.1.1, identifies the SpeedTouch™ MIB system group. The example below skims through this MIB object: {Administrator}[snmp]=>walk ObjectId=1.3.6.1.2.1.1 VB_octetStr .1.3.6.1.2.1.1.1.0 SpeedTouch 620 VB_objId .1.3.6.1.2.1.1.2.0 .1.3.6.1.4.1.637.61.2...

  • Page 161: How To Allow Remote Snmp

    Chapter 10 SpeedTouch™ Monitoring 10.2.9 How to Allow Remote SNMP About Remote SNMP It is possible to allow to allow a remote SNMP manager to monitor the SpeedTouch™. To do this, add the WAN interface to the service access list. Command Use the following command: =>service system ifadd name SNMPV3_AGENT group wan...

  • Page 162: How To Add An Snmp User

    Chapter 10 SpeedTouch™ Monitoring 10.2.10 How to Add an SNMP User About SNMP Users Limiting MIB Access Users and Communities SNMP User Groups SNMP Users allow you to determine which MIBs a specific user is allowed to view or change. This is done by adding a user to a user group. This user group determines the user’s access to the MIBs.
  • Page 163 Group Power User LAN Admin WAN Admin Administrator TechAdmin Super User Case As an example, we will create the following: A new user group called “Grayskull” A new user called “Musclor” A new view called “View_All” The user has full rights (read, write and notification) to all MIBs. E-DOC-CTC-20051017-0155 v1.0 Description Has the same rights as User, plus additional read...
  • Page 164 Chapter 10 SpeedTouch™ Monitoring Procedure The general flow of user configuration is as follows: you create a view, which is basically a set of MIB access rights. after that, you create a user group with access to that view. Then, you create a user and add it to the group. Thus, the user will have the groups MIB access and have tha access rights you defined in the view.
  • Page 165 How to View the Users Use the following command to view the users: :snmp user list This results in the following output: securityname=SU snmpengineID=localSnmpID securityname=user snmpengineID=localSnmpID securityname=LanAdmin snmpengineID=localSnmpID securityname=WanAdmin snmpengineID=localSnmpID securityname=PowerUser snmpengineID=localSnmpID securityname=TechAdmin snmpengineID=localSnmpID securityname=Administrator snmpengineID=localSnmpID E-DOC-CTC-20051017-0155 v1.0 authprot=usmNoAuthProtocol privprot=usmNoPrivProtocol targettag= storage=nonVolatile authprot=usmNoAuthProtocol...
  • Page 166 Chapter 10 SpeedTouch™ Monitoring How to View the Communities Use the following command to view the communities: :snmp securiytogroup list This results in the following output: securitymodel=snmpv1 securityname=ROCommunity groupname=V1ROGroup storage=nonVolatile securitymodel=snmpv1 securityname=RWCommunity groupname=V1RWGroup storage=nonVolatile securitymodel=usm securityname=SU groupname=SU_Group storage=nonVolatile securitymodel=usm securityname=user groupname=Basic_Group storage=nonVolatile securitymodel=usm securityname=LanAdmin groupname=Extended_Group storage=nonVolatile...

  • Page 167: How To Restrict Snmp Access

    10.2.11 How to Restrict SNMP Access SNMP Access You can restrict SNMP Access so that it is accepted from specific IP addresses only. Restriction To do this, add the IP address or an IP Address range to the access list for the service SNMPV3_Agent.

  • Page 168: How To Configure The Traps

    Chapter 10 SpeedTouch™ Monitoring 10.2.12 How to Configure the Traps Procedure How to Set the Message Handling Parameters How to Create a Notify Filter How to Create a Notify Profile Using that Filter How to Create NotifyTags In order to configure which traps are sent where, you need to: Step Action Set the message handling parameters...
  • Page 169 How to Create a Use the Destination for Example: theTraps :snmp target add name=Test_trap_pc addr=10.0.0.110 taglist=Trap_tag params=Trap_params How to Enable Traps Use the following command sequence: :snmp config traps enabled :service system modify name SNMPV3_TRAPS state enabled More Information For more information about these commands, refer to the CLI Command Guide E-DOC-CTC-20051017-0155 v1.0 command.

  • Page 170: The Speedtouch™ Syslog

    Chapter 10 SpeedTouch™ Monitoring 10.3 The SpeedTouch™ Syslog Introduction WELF Compliancy The SNMP service The SNTP client Syslog is a basic, uncomplicated, yet powerful method to administer a network device as the SpeedTouch™. By generating syslog messages, the SpeedTouch™ is able to inform network managers about the general state of the device and to record events which can be retrieved for later analysis and diagnosis.

  • Page 171: The Speedtouch™ Syslog Daemon

    10.3.1 The SpeedTouch™ Syslog Daemon What is Syslog Syslog is a message generating tool that can be implemented in any network device. The intention of the tool is to send messages over the network indicating status, actions, possible problems, etc. from the device. Although the syslog protocol is widely spread and evolved to a de-facto standard, only recently some first Internet drafts and informational Request For Comments (RFC) became available to describe the existing protocol and some proposal for...
  • Page 172 Chapter 10 SpeedTouch™ Monitoring Syslog priority facilities Following priority facilities are possible for a syslog message generated by the SpeedTouch™. The facilities are listed by descending priority: Priority Kernel messages User-level messages Mail system System daemons Authorization messages Syslog daemon messages Line Printer subsystem Network news subsystem UUCP subsystem...
  • Page 173 Syslog message bodies The SpeedTouch™ syslog daemon is internally responsible for collecting and administering messages generated by one or more of its subsystems. Following of the SpeedTouch™ subsystems are able to trigger a message: Auto-PVC module Configuration module DHCP Client module DHCP Relay module DHCP server module Firewall module...

  • Page 174: Syslog Via The Web Interface

    Chapter 10 SpeedTouch™ Monitoring 10.3.2 Syslog via the Web Interface The Syslog web page The SpeedTouch™ Syslog web page allows users to view all or a selection of syslog messages the SpeedTouch™ has generated. Browse to the SpeedTouch™ Expert pages and open the Syslog pages via Home > SpeedTouch > Syslog. The advantage of offering the syslog Web Interface is that any authenticated user is able to browse the SpeedTouch™...
  • Page 175 Chapter 10 SpeedTouch™ Monitoring Syslog configuration Via the SpeedTouch™ Syslog page, you can also configure the SpeedTouch™ syslog daemon to send syslog messages to one or more particular host IP addresses. This allows dedicated syslog software on the host to collect SpeedTouch™syslog messages for immediate notification, future reference, and event archiving.

  • Page 176: Syslog Via The Cli

    Chapter 10 SpeedTouch™ Monitoring 10.3.3 Syslog via the CLI The Syslog CLI command group The SpeedTouch™ CLI syslog command group basically provides the same possi- bilities as provided on the SpeedTouch™ syslog web page: =>:syslog help Following commands are available: config : Set/Display configuration ruleadd...

  • Page 177: Remote Syslog Notification

    10.3.4 Remote Syslog Notification Introduction The SpeedTouch™ can be configured to send all or a selection of generated syslog messages to a host on the local or a remote network IP address. This section describes how to configure the SpeedTouch™ syslog daemon to send messages to a particular host.
  • Page 178 Chapter 10 SpeedTouch™ Monitoring Syslog host on a remote network The default SYSLOG SpeedTouch™ service is configured to allow traffic from the SpeedTouch™ syslog daemon towards the WAN: =>:service system list name=SYSLOG expand=enabled Idx Name Protocol ----------------------------------------------------------------------- 1 SYSLOG bled Description...

  • Page 179: Speedtouch™ Identification On Aws

    10.4 SpeedTouch™ Identification on AWS Information Exchange The SpeedTouch™ exchanges some variables after the DSL synchronisation with the DSLAM (Digital Subscriber Line Access Multiplexer). These variables are hard- coded into the SpeedTouch™. The following variables are exchanged: Chipset vendor ID: For example the SpeedTouch™620 chipset vendor ID will be “BCM”...
  • Page 180 Chapter 10 SpeedTouch™ Monitoring SpeedTouch™ Identification over AWS The ADSL Work Station (AWS) is the graphical management tool to control and configure DSL lines on a DSLAM. The figure below is an example of a screenshot of an AWS. The CPE Remote Inventory displays the values in a HEX notation. E-DOC-CTC-20051017-0155 v1.0...

  • Page 181: Speedtouch™ Advanced Diagnostics

    11 SpeedTouch™ Advanced Diagnostics About the Advanced The SpeedTouch™ features advanced diagnostics to allow for extended monitoring Diagnostics of the system’s performance, operation and connection status. You can access the diagnostics either with the Web interface or via CLI. The Web interface also provides a page showing the entire office network.

  • Page 182: The Office Network Web Page

    Chapter 11 SpeedTouch™ Advanced Diagnostics 11.1 The Office Network Web Page About the Office Network Web Page How to Access the Office Network Page Additional Pages The Office Network Web page shows all devices on the LAN and their main characteristics: Proceed as follows: Step...
  • Page 183 The Devices Page The Devices page provides information on the devices present on the LAN: To see more details of a specific device, click on the corresponding device name, e.g. a00098 in the above example: E-DOC-CTC-20051017-0155 v1.0 From these pages you can also perform the following tasks: Assign a game or application to a device Assign the public IP address of a connection to a device To do this, click on the corresponding task in the Pick a task...
  • Page 184 Chapter 11 SpeedTouch™ Advanced Diagnostics The Interfaces Page The Devices page provides information on the devices present on the LAN: To see more details of a specific interface, click on the corresponding interface name, e.g. lan1 in the above example: E-DOC-CTC-20051017-0155 v1.0...

  • Page 185: The Diagnostic Web Page

    11.2 The Diagnostic Web Page Introduction In this section the Diagnostic Web Page is described. Opening the Proceed as follows: SpeedTouch™ Open a web browser an go to the SpeedTouch™ Web Interface. Diagnostic Web Go to the Expert Mode pages. Interface Open the diagnostic pages via Home >...
  • Page 186 Chapter 11 SpeedTouch™ Advanced Diagnostics System Diagnostics Use the expand button (or Expand all) to open the System Diagnostics: The information shown is mainly meant for uniquely identifying your device (for example as reference for helpdesking). Among others, following information is provided: Device identifiers: Serial number Bootloader version...
  • Page 187 LAN Diagnostics Use the expand button (or Expand all) to open the LAN Diagnostics: The LAN Diagnostics provide information on the SpeedTouch™’s local network Ethernet interface(s). Per Ethernet interface a visual indicator shows whether: Per interface following data are shown: The interface’s mode (forwarding or disabled) The operation mode of the interface: Whether the operation mode is selected via negotiation (Yes) or manually set...
  • Page 188 Chapter 11 SpeedTouch™ Advanced Diagnostics WAN Diagnostics Use the expand button (or Expand all) to open the WAN Diagnostics: The WAN diagnostics consists basically of two expandable parts: The physical layer DSL diagnostics: Next to some general information on the DSL line flavour, status, bandwidth characteristic and throughput counters, some line properties and statistics are shown.

  • Page 189: Command Line Interface Diagnostics

    11.3 Command Line Interface Diagnostics Overview This chapter covers the following topics: Topic About CLI Diagnostics Lower Layer Diagnostics Router Services Diagnostics Routing Diagnostics Ethernet Diagnostics Management Diagnostics E-DOC-CTC-20051017-0155 v1.0 Chapter 11 SpeedTouch™ Advanced Diagnostics See Page...

  • Page 190: About Cli Diagnostics

    Chapter 11 SpeedTouch™ Advanced Diagnostics 11.3.1 About CLI Diagnostics Introduction Accessing the CLI Diagnostical CLI commands Traces This section describes some of the diagnostics available from the SpeedTouch™ Command Line Interface (CLI). For a full description of the CLI commands see the “SpeedTouch™ CLI Reference Guide”...

  • Page 191: Lower Layer Diagnostics

    11.3.2 Lower Layer Diagnostics ADSL :adsl info SpeedTouch™ DSL line status. Although it is the same command for both SpeedTouch™ ADSL/POTS and ADSL/ ISDN variants, the command features specific output parameters and counters per variant. ADSL reporting has been extended to report the unrestricted ADSL bandwidth, i.e.
  • Page 192 Chapter 11 SpeedTouch™ Advanced Diagnostics ATM OAM Several commands are available to display specific Asynchronous Transfer Mode (ATM) statistics: :atm debug aal5stats Displays AAL5 port specific Asynchronous Transfer Mode (ATM) statistics :atm debug gstats Displays global ATM statistics :atm debug portstats Displays port specific ATM statistics Below some examples are provided: =>:atm debug aal5stats...
  • Page 193 ATM Auto-Configuration The ILMI operates between the network and the ATM Network Termination at the via TR-37/ ILMI 4.0 customer premises for example the SpeedTouch™. ILMI 4.0 is supported on VP/VC 0/16. Meaning that the VCC or VPC can be provisioned via this management channel.

  • Page 194: Router Services Diagnostics

    Chapter 11 SpeedTouch™ Advanced Diagnostics 11.3.3 Router Services Diagnostics DHCP Following DHCP statistics are available: :dhcp client debug stats Displays statistics of SpeedTouch™’s DHCP client :dhcp server debug stats Displays statistics of SpeedTouch™’s DHCP server :dhcp relay debug stats Displays statistics of SpeedTouch™’s DHCP relay Below some examples are provided: =>:dhcp server debug stats DHCP server state: Running...
  • Page 195 Following DNS server/forwarding statistics are available: :dns server debug stats Displays statistics of SpeedTouch™’s DNS server/forwarder =>:dns server debug stats Corrupted packets received Local questions resolved Local negative answers sent Total DNS packets forwarded External answers received Spoofed responses Forward table full, discard Spurious answers Unknown query types =>...

  • Page 196: Routing Diagnostics

    Chapter 11 SpeedTouch™ Advanced Diagnostics 11.3.4 Routing Diagnostics Firewall Rule To check the operation of the SpeedTouch™ packet firewall following command is available: :firewall rule debug stats Displays per firewall rule, the number of packets (and corresponding bytes) that passed the firewall rule. =>:firewall rule debug stats chain -----------------------------------------------------------------------...
  • Page 197 IP Diagnostics There are two useful commands: ping: traceroute: Each of these can be given from the root of the CLI, as well as from any other place in any command group. The Ping Command The Ping command has the following syntax: ping addr = <ip-address>...
  • Page 198 Chapter 11 SpeedTouch™ Advanced Diagnostics The Traceroute Command The traceroute command has the following syntax: traceroute addr = <ip-address> [count = <number{1-10}>] [size = <number{1-20000}>] [interval = <number{1000-60000}>] [maxhops = <number{1-255}>] [dstport = <number{1-65535}>] [maxfail = <number{0-255}>] [type = <{icmp|udp}>] [utime = <{disabled|enabled}>] It uses the following parameters: Parameter...

  • Page 199: Ethernet Diagnostics

    11.3.5 Ethernet Diagnostics Non-intrusive Sniffing For debugging purposes, the SpeedTouch™ offers a port mirroring feature. This means that, three out of the four physical ethernet ports can be used for network connections, while the remaining ethernet port can be used to connect a sniffing device.
  • Page 200 Chapter 11 SpeedTouch™ Advanced Diagnostics To verify which port is being mirrored (ingress or egress) use the following commands: =>:eth switch mirror ingress Ingress mirror port = 1 =>:eth switch mirror egress Egress mirror port = 2 => When there is no need to mirror traffic to ethernet port four any more you can disable the mirroring by executing the following command: =>:eth switch mirror ingress port=1 state=disabled =>:eth switch mirror egress port=2 state=disabled...

  • Page 201: Management Diagnostics

    11.3.6 Management Diagnostics SNMP and Syslog The SpeedTouch™ Simple Network Management Protocol (SNMP) and Syslog modules are industry standard management utilities to diagnose the device’s status, connections, etc. For a full description of the SpeedTouch™ SNMP module and Syslog, see Introduction to SNMP”...
  • Page 202 Chapter 11 SpeedTouch™ Advanced Diagnostics E-DOC-CTC-20051017-0155 v1.0...

  • Page 203: Sla Monitoring

    12 SLA Monitoring. Introduction The SpeedTouch™ supports Service Level Agreement/QoS monitoring on a continuous basis. An extended ping or trace route process can be started from the SpeedTouch™ to another node in the worldwide IP network, to measure the QoS (round-trip delay, packet loss, jitter, availability, routing stability, ..) to this other node and all intermediate nodes.
  • Page 204 Chapter 12 SLA Monitoring. Now that we defined an SLA ping test we need to configure the test. The following parameters can be configured: Parameter Description test The name of the ping test to configure. addr The destination IP address. size The size of the data portion to be transmitted in a ping probe.
  • Page 205 Use the following command to modify the SLA ping parameters: =>:sla ping modify test = internet [addr] = 11.0.0.138 [size] = 200 [timeout] = 3 [count] = 15 [datafill] = test [frequency] = 2 [maxrow] = 50 [storagetype] = nonVolatile [trap] = [trapprobefilter] = 2 [traptestfilter] = 12...
  • Page 206 Chapter 12 SLA Monitoring. SLA Ping History Following results will be displayed : Name Description status In Progress, Stopped minrtt Minimum RTT (Round-Trip-Time): microseconds maxrtt Maximum RTT: microseconds avgrtt Average RTT: microseconds rttsumofsqr RttSumOfSquares : milliseconds responses Probe Responses: number of responses received sentprobes Sent Probes: number of probes sent A complete list of the SLA pings send can be view as well.
  • Page 207 Traceroute Process Traceroute is usually implemented by transmitting a series of probe packets with increasing time-to-live values. A probe packet is a UDP datagram encapsulated into an IP packet. Each hop in a path to the target (destination) host rejects the probe packet (probe's TTL too small) until its time-to-live value becomes large enough for the probe to be forwarded.
  • Page 208 Chapter 12 SLA Monitoring. Now that we defined an SLA ping test we need to configure the test. The following parameters can be configured: Parameter Description test The name of the traceroute test to configure. addr The destination IP address. size The size of the data portion to be transmitted in a traceroute...
  • Page 209 Parameter maxfail bypassrt dffield dsfield Use the following command to modify the SLA traceroute parameters: =>:sla traceroute modify test = route [addr] = 11.0.0.138 [size] = 0 [timeout] = 3 [probePerHop] = 3 [port] = 33434 [maxTtl] = 30 [initTtl] = 1 [createHopEntries] = disabled [frequency] = 0 [maxrow] = 50...
  • Page 210 Chapter 12 SLA Monitoring. SLA Traceroute result Now that the SLA traceroute process has been started you can view the SLA traceroute results. Use the following command: =>:sla traceroute list route: [owner = modem] dest = 11.0.0.138 size = 0 timeout[s] = 3 probePerHop = 3 port = 33434 maxTTL = 30 InitialTTL = 1 frequency[s] = 0 maxrows = 50 maxfailures = 5 createHopEntries = no...
  • Page 211 Following results will be displayed : Name status currHopCount currProbeCount testAttempts testSuccesses Lastgoodpath SLA Traceroute History A history of the SLA traceroute can be view as well. To do so, use the following CLI command: =>:sla traceroute hist test route owner modem Index Ttl 06:02:19.215236 06:02:20.224824...
  • Page 212 Chapter 12 SLA Monitoring. E-DOC-CTC-20051017-0155 v1.0...

  • Page 213: Resetting The Speedtouch

    13 Resetting the SpeedTouch™ Introduction If needed you can reset the SpeedTouch™ to factory defaults or just reboot. Normal reboot To reboot the SpeedTouch™ without erasing the current configuration,use the following command: =>:saveall This command will save the current configuration to the user.ini file. Now enter the following command: =>:system reboot This command will reboot the SpeedTouch™...
  • Page 214 Chapter 13 Resetting the SpeedTouch™ The Reset button On the back side of the SpeedTouch™ there is a resetbutton. By pressing this button for three to six seconds the device will reboot and startup with the settings defined in the isp.def if present. The reset button can be disabled by executing the following command: =>:system config resetbutton=disabled This command will disable the reset button on the back of the SpeedTouch™.
