Summary of Contents for Tascam CD-DJ1

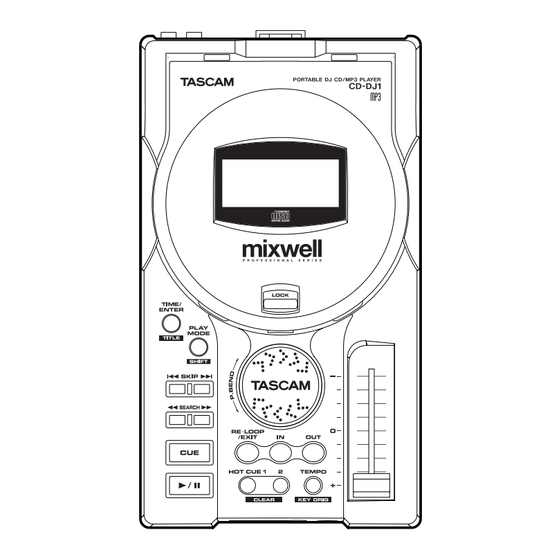

- Page 1 » D00890300A CD-DJ1 PORTABLE DJ CD/MP3 PLAYER OWNER'S MANUAL...
-
Page 2: Important Safety Precautions
Consult the dealer or an experienced radio/TV technician for help. TASCAM CD-DJ1 WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. -
Page 3: Important Safety Instructions
• The apparatus should be located close enough to the AC outlet so that you can easily grasp the power cord plug at any time. • An apparatus with Class I construction shall be connected to an AC outlet with a protective grounding connection. TASCAM CD-DJ1... - Page 4 Wavelength: 775 to 816 nm TASCAM CD-DJ1 CAUTION • D O N O T R E M O V E T H E P R O T E C T I V E HOUSING USING A SCREWDRIVER.
-
Page 5: Table Of Contents
Beware of condensation ...7 Power supply ...7 Sleep function ...7 Handling of compact discs ...8 About this manual ... 8 2- Features of the CD-DJ1 ... 9 Top panel... 9 Front panel ...11 Rear panel ...11 Display ...11 The “home” screen ...11 Setup screen ...12... -
Page 6: 1- Introduction
We hope that with this knowledge you will enjoy using the CD-DJ1 and all of its features for many years. After you have finished reading this man- ual, please keep it in a safe place for future reference. -
Page 7: Precautions And Notes For Placement And Use
Precautions and notes for placement and use Please use the CD-DJ1 only within its operating tem- perature range of 5°C to 35°C (41°F to 95°F). Please avoid use or storage in dusty or humid environments because these conditions can cause malfunction. -
Page 8: Handling Of Compact Discs
1- Introduction Handling of compact discs The CD-DJ1 has been designed for the playback of CD-DA (standard audio) format discs and MP3 files recorded on the discs using the ISO9660 format: In addition to ordinary 12cm (5-inch) and 8cm (3-inch) CDs, it can also play properly recorded CD-Rs and CD-RWs. -
Page 9: 2- Features Of The Cd-Dj1
To open the CD cover, lift the cover from the indentations on the sides of the unit. When a disc is loaded and the CD cover is closed, the CD-DJ1 will read the disc information (TOC). After reading is complete, the unit will pause. Lock lever... - Page 10 IMPORTANT SAFETY PRECAUTIONS 2- Features of the CD-DJ1 When set to SRCH, pressing these keys searches through the tracks backward and forward in both playback and pause mode (see “Track search” on page 15). When set to BEND, these keys cause pith bend.
-
Page 11: Front Panel
Front panel 1 2 3 Rear panel Display features The display shows the status of the CD-DJ1 and information about the loaded disc. Normally, the display shows the current settings and conditions, but when the key is pressed, the Setup menu is SETUP shown. -
Page 12: Setup Screen
2- Features of the CD-DJ1 IMPORTANT SAFETY PRECAUTIONS Playback time The time value shown depends on the currently selected playback time display mode. will be displayed when there is no disc in the unit. Playback time display mode The selected play- back time display mode (ELAPSED, REMAIN, or TOTAL REMAIN) is shown. -
Page 13: 3- Setup Menu
IMPORTANT SAFETY INSTRUCTIONS Setup menu operation Various settings can be made using the CD-DJ1 Setup menu. These settings remain even when the power is turned off. 1. Push the SETUP key on the front panel. The Setup menu screen appears. The cursor points to the currently selected menu item. Cursor Menu item 2. Select a menu item using the push the ENTER key. The current value will be highlighted in reverse contrast. -
Page 14: 4- Playback Operations
TASCAM CD-DJ1 For playback of CDs with MP3 files, see “MP3 play- back” on page 20. However, the CD-DJ1 may not be able to play some CD-Rs and CD-RWs due to disc quality or record- ing conditions. If the appears, remove and clean or replace the loaded disc. -
Page 15: Track Search
The A.CUE indicator appears on the display when the Auto Cue function is on. The A.RDY indicator appears on the display when the Auto Ready function is on. SKIP µ/ key skips SHIFT dial while the CD is paused allows TASCAM CD-DJ1... -
Page 16: 5- Dj Functions
When you release the key, playback pauses and the playback position resets to the same cue point. Hot Cue The CD-DJ1 has two keys ( HOT CUE allow you to set independent Hot Cue points. After a Hot Cue point has been set, pressing its key either starts or pauses playback at that point. -
Page 17: Canceling Hot Cue Points
The will turn off, but the loop points will not be canceled. 5- DJ functions PLAY/PAUSE HOT CUE HOT CUE key to set the cur- key light RE-LOOP/EXIT TASCAM CD-DJ1... -
Page 18: Re-Loop Playback
±8% (default setting), ±16%, ±32%, ±100% The new range setting becomes effective after it flashes on the display for a few seconds. TASCAM CD-DJ1 Press the key for immediate playback from the IN point when it is set (like a loop points are canceled. -
Page 19: Key Original Function
Release the key to restore the original playback tempo. dial controls NOTE When the Key Original function is on, bending the pitch will change the tempo, but not the pitch. 5- DJ functions keys for pitch bend and the JOG TASCAM CD-DJ1... -
Page 20: 6- Mp3 Playback
JOG dial operation (scrub playback) • • Hot Cue • Loop playback TASCAM CD-DJ1 • Bit rate: 32 to 192 kbps (VBR is not supported) • Sampling frequency: 44.1k Hz, mono or stereo • File extensions: mp3, Mp3, mP3, MP3 •... -
Page 21: Mp3 File Folders And Tracks
B and C, folder A cannot be selected for playback, but folder B and C can be selected for playback. The CD-DJ1 can play back MP3 files recorded in formats that conform to ISO9660 level 1, level 2, and the Joliet extensions. -
Page 22: 7- Other Features
7- Other features TT-M1 use The CD-DJ1 has a TT-M1 jack for connecting a TASCAM TT-M1 (sold separately). An analog turn- table with an attached TT-M1 connected to the unit Turning the TT-M1 on and off Use the switch on the TT-M1 to turn it on and off. -
Page 23: Setting Output Volume
Auto Play Use the Setup menu AUTOPLAY item to turn Auto Play on and off. With this function on, playback will begin as soon as the CD-DJ1 power is turned on. The default setting is off. Adjusting the backlight Set display backlight brightness in the Setup menu. -
Page 24: 8- Specifications
Signal-to-noise ratio Total harmonic distortion Channel separation Note: All measurements are made with tempo change at 0%. TASCAM CD-DJ1 8 cm (3-inch), 12 cm (5-inch) CD, CD-R, CD-RW Audio (CD-DA), Data CDs in IS09600 Level 1 and 2, Joliet format, containing MP3 files 16 bits 44.1 kHz... -
Page 25: Backup Memory
Setup menu settings (all except for the ª system reset parameter) Key Original Digital Attenuation TT-M1 Calibration Auto Cue Auto Ready CD-ROM Folder play Flash Start Auto Play CUE Key mode Loop OUT Key mode SEARCH Key functions LCD Contrast Backlight Dimmer Dimensional drawing 8- Specifications Other settings ª Tempo control settings Playback and repeat mode Playback time display mode 155 mm 6.10" 60 mm 2.36" TASCAM CD-DJ1... - Page 26 Notes TASCAM CD-DJ1...
- Page 27 Notes TASCAM CD-DJ1...
