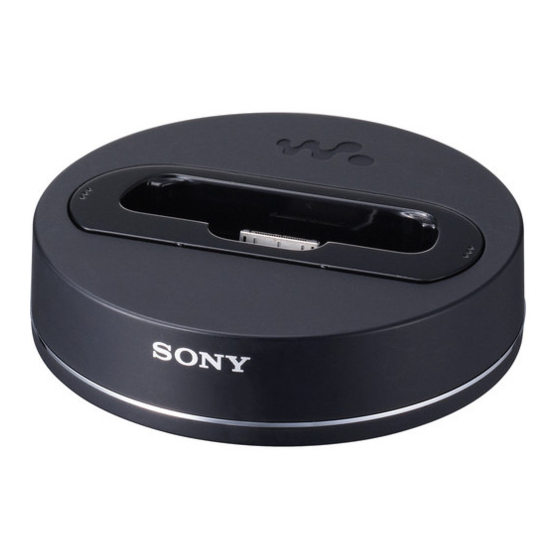

Cradle

Advertisement

Quick Links

Cradle / Station d’accueil
Operating Instructions
Mode d’emploi
Manual de instrucciones
BCR-NWU7
©2009 Sony Corporation
Printed in Malaysia
4-151-752-11(1)
A
B
English
WARNING
 Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
 As the main plug is used to disconnect the unit from the mains, connect the unit to an
easily accessible AC outlet. Should you notice an abnormality in the unit, disconnect
the main plug from the AC outlet immediately.
 To reduce the risk of fire or electric shock, do not expose this apparatus to dripping or
splashing, and do not place objects filled with liquids, such as vases, on the apparatus.
 You are cautioned that any changes or modifications not expressly approved in this
manual could void your authority to operate this equipment.
 Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and
other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of
electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of this
product. The recycling of materials will help to conserve natural resources. For more
detailed information about recycling of this product, please contact your local Civic
Office, your household waste disposal service or the shop where you purchased the
product.
 Notice for customers: the following information is only applicable to equipment sold in
countries applying EU directives
The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo,
Japan. The Authorized Representative for EMC and product safety is Sony Deutschland
GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee
matters please refer to the addresses given in separate service or guarantee documents.
 The following FCC statement applies only to the version of this model manufactured
for sale in the U.S.A. Other versions may not comply with FCC technical regulations.
 If you have any questions about this product, you may call;
Sony Customer Information Service Center 1-800-222-7669 or http://www.sony.com/
Declaration of Conformity
Trade Name:
SONY
Model No.:
BCR-NWU7
Responsible Party:
Sony Electronics Inc.
Address:
16530 Via Esprillo, San Diego, CA 92127 U.S.A.
Telephone No.:
858-942-2230
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
 For customers in the U.S.A.
Use “LIMITED WARRANTY” card warranted by Sony Electronics Inc.
 For customers in Canada
Use “Consumer 1 Year Warranty” card warranted by Sony of Canada Ltd.
 Note on installation
If you use the unit in a place subject to static or electromagnetic energy, a track’s
transferred data may be corrupted. This may prevent successful transferring
authorization on your computer.
Notes on use
 Do not subject the unit to:
– Extreme heat or cold
– Strong magnetic fields
– Dust, dirt, or sand
– Mechanical shock
– High humidity
– Direct sunlight (for extended periods)
– Vibration
 Do not set the unit on an unstable surface as it may fall, causing injury or damage.
 Do not drop the unit.
 Unplug the AC power adaptor from the AC outlet if the unit is not to be used for an extended
period. Disconnect the power cord by the plug, never the cord itself.
 Be sure that nothing metallic comes into contact with the metal parts of this unit as a short circuit
may occur and the unit may be damaged.
 Do not operate the unit if it has a damaged cord, or if it has been dropped or damaged.
 Always keep the metal contacts clean.
 Do not disassemble or modify the unit.
 While the unit is in use, it gets warm. This is normal.
 Keep the unit away from TV or AM receivers, as it may disturb reception.
Cleaning
Clean the unit with a soft, dry cloth, or a soft cloth lightly moistened with a mild
detergent solution. Do not use any type of solvent, such as alcohol or benzine, which may
damage the finish.
Preparation
Checking the supplied items
 Cradle (1) ()
 USB cable (1) ()
 Attachment (“A”) (1) ()
 Operating Instructions (this manual, 1)
 Attachment (“B”) (1) ()
 AC power adaptor (AC-S508U) (1) ()
 AC power cord (1)
Checking other components
 “WALKMAN”
 Attachment supplied with your “WALKMAN”
Installing the attachment
When you use the cradle, fit the attachment supplied with your “WALKMAN” or the
cradle.
The shape of the attachment may be different, depending on your “WALKMAN” model.
Orient the attachment so its profile matches that of the hole, and push down evenly on
both sides.
To remove the attachment, push strongly the either mark (  ) of attachment ().
 Hint
The following “WALKMAN” models require the attachment (“A, ” “B”) supplied with the
cradle. “A” or “B” is marked on the rear of the attachment ().
Attachment “A”
 NWZ-E430/S630/S730/A720/A800/A810/A820 series
(NWZ-E435F/E436F/E438F/S636F/S638F/S639F/S636FK/S736F/S738F/S739F/A726/A728/A729/
A808/A806/A805/A815/A816/A818/A826/A828/A829/A826K/A828K/A829K)*
Attachment “B”
 NWZ-S510/S610/S710/X1000 series
(NWZ-S515/S516/S615F/S616F/S618F/S715F/S716F/S718F/X1050/X1060)*
* As of March 2009

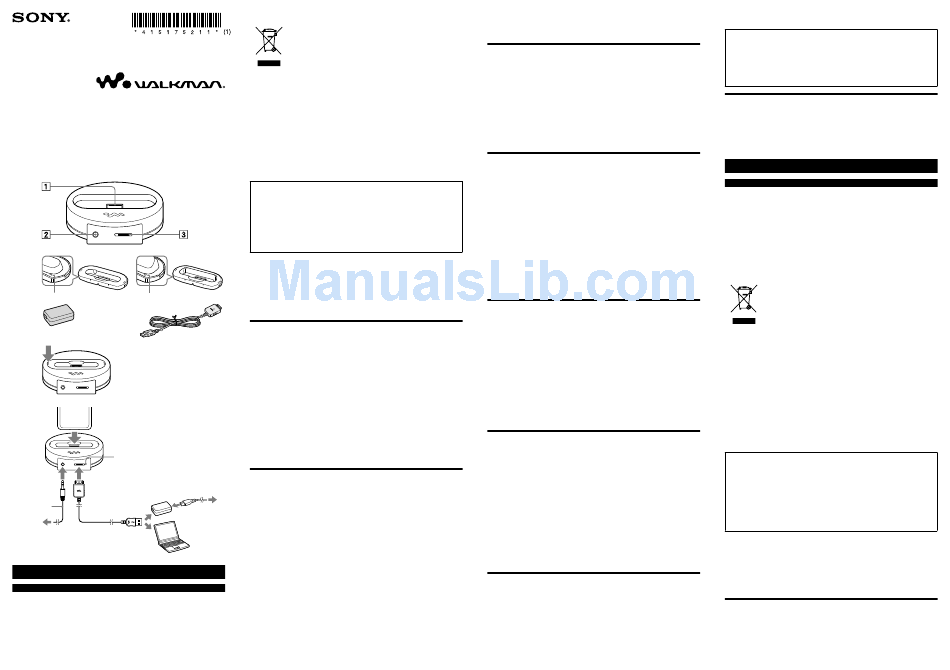

Parts and controls
Refer to Illustration .
 WM-PORT* connector for “WALKMAN”: To connect a “WALKMAN” to the
cradle.
 AUDIO OUT jack: Outputs a line-level signal to a device such as an active
speaker, using an optional audio cable.
 WM-PORT jack for a computer: To connect the cradle to your computer or
AC power adaptor using USB cable.
Note
If a device other than a computer is to be connected, refer to the operating instructions supplied
with the device.
* WM-PORT is a dedicated multiple connector for connecting accessories to your “WALKMAN. ”
Charging a “WALKMAN”
Refer to Illustration .
1
Connect the WM-PORT terminal () of the USB cable to the WM-PORT jack
() of the cradle.
2
Connect the USB terminal () of the USB cable to the AC power adaptor
(supplied).
3
Connect the AC power cord (supplied) to the AC power adaptor ().
4
Connect the AC power cord to the wall outlet ().
5
Attach the “WALKMAN” to the WM-PORT connector on the top of the cradle
().
Charging starts. Charging time will vary, depending on the model of the
“WALKMAN. ” For details, refer to the Operation Guide of the “WALKMAN. ”
Notes
 Be sure to use the supplied AC power adaptor (AC-S508U).
 Place the “WALKMAN” firmly into the cradle.
 Do not connect anything to the AUDIO OUT jack of the cradle if you wish to listen to songs using
the headphones of the “WALKMAN” while charging. Otherwise, no sound is output from the
headphone jack of the “WALKMAN. ”
Connecting to a computer
Refer to Illustration .
1
Connect the WM-PORT terminal () of the USB cable to the WM-PORT jack
() of the cradle.
2
Connect the USB terminal () of the USB cable to your computer.
3
Attach the “WALKMAN” to the WM-PORT connector on the top of the cradle
().
Notes
 Place the “WALKMAN” firmly into the cradle.
 Even if the cradle is not connected to a wall outlet, the “WALKMAN” can be charged via the USB
cable. If the cradle is connected to a laptop computer which is not connected to a wall outlet, the
“WALKMAN” will deplete the battery of the laptop computer.
 If the “WALKMAN” is disconnected from the cradle while data is being transferred from the
computer, attach the “WALKMAN” to the cradle and transfer the data again.
 Do not disconnect the USB cable while transferring data from the computer; otherwise the data
transfer will be interrupted. If this occurs, reconnect the USB cable or detach the “WALKMAN”
from the cradle, and transfer the data after attaching the “WALKMAN” to the cradle again.
Connecting to a device such as a speaker
Refer to Illustration .
Using an optional audio cable (), you can connect the cradle to a device that outputs
audio, such as an active speaker. Be sure to turn off all devices before connecting them.
1
Connect the device to the AUDIO OUT jack of the cradle with a suitable audio
cable (sold separately).
2
Attach the “WALKMAN” to the cradle.
3
Start playback of the “WALKMAN.”
Notes
 While the cradle is connected to the computer, sound may not be output from the AUDIO OUT jack
of the cradle. If this occurs, disconnect the USB cable from the computer.
 Sound from the computer is not output from the AUDIO OUT jack of the cradle.
 While an audio cable is connected to the AUDIO OUT jack of the cradle, no sound is output from
the headphone jack of the “WALKMAN. ”
 If the recording level of audio data played back on the “WALKMAN” is too high, the output sound
quality from the “WALKMAN” via the cradle to a device, such as an active speaker, may not meet
the user customized settings, e.g., “Equalizer” etc.
 If you use a “WALKMAN” with a built-in FM tuner, you may not be able to hear FM broadcasts, or
reception may be lowered substantially.
Specifications
Terminals
WM-PORT* connector (22 pin) (For “WALKMAN”)
WM-PORT* jack (22 pin)
AUDIO OUT (Stereo mini, 10kΩ)
AC power adaptor: AC-S508U DC 5V (AC 100V - 240V)
Dimensions
Diameter approx. 80.3 mm (3 1/4 in.), Height approx. 25 mm (1 in.)
Mass
Approx. 80 g (2.9 oz)
“WALKMAN” and “WALKMAN” logo are registered trademarks of Sony Corporation.
* The WM-PORT is a dedicated multi-terminal connector, used to connect a “WALKMAN” to its
accessories.
About the customer support Web site
If you have any questions or issues with this product, or would like information on compatible items
with this product, visit the following web sites.
For customers in the U.S.A.: http://www.sony.com/walkmansupport
For customers in Canada: http://www.sony.ca/ElectronicsSupport/
For customers in Europe: http://support.sony-europe.com/DNA
For customers in Latin America: http://www.sony-latin.com/index.crp
For customers in other countries/regions: http://www.sony-asia.com/support
For customers who purchased the overseas models: http://www.sony.co.jp/overseas/support/
Troubleshooting
Use only the supplied AC power adaptor (AC-S508U). Do not use any other AC power
adaptor.
The player cannot charge the battery.
 Check whether the cradle, USB cable and AC power cord are connected properly.
There is no sound from the AUDIO OUT of the cradle.
 Check whether the cradle and audio output device are connected properly.
Français
AVERTISSEMENT
N’installez pas l’appareil dans un espace confiné comme dans une bibliothèque ou
un meuble encastré.
 Etant donné que la fiche principale permet de débrancher l’appareil du secteur,
raccordez l’appareil à une prise secteur facilement accessible. Si vous observez une
quelconque anomalie de l’appareil, débranchez immédiatement la fiche principale de la
prise secteur.
 Pour éviter tout risque d’incendie ou d’ é lectrocution, n’ e xposez pas cet appareil aux
éclaboussures et évitez de placer dessus des objets remplis de liquide, tels que des
vases.
 N’ o ubliez pas que toute modification non expressément approuvée dans ce manuel
peut annuler votre droit d’utilisation de cet équipement.
 Traitement des appareils électriques et électroniques en fin de vie (Applicable dans les
pays de l’Union Européenne et aux autres pays européens disposant de systèmes de
collecte sélective)
Ce symbole, apposé sur le produit ou sur son emballage, indique que ce
produit ne doit pas être traité avec les déchets ménagers. Il doit être remis
à un point de collecte approprié pour le recyclage des équipements
électriques et électroniques. En s’assurant que ce produit est bien mis au
rebut de manière appropriée, vous aiderez à prévenir les conséquences
négatives potentielles pour l’ e nvironnement et la santé humaine. Le
recyclage des matériaux aidera à préserver les ressources naturelles. Pour
toute information supplémentaire au sujet du recyclage de ce produit, vous pouvez
contacter votre municipalité, votre déchetterie ou le magasin où vous avez acheté le
produit.
 Avis à l’intention des clients : les informations suivantes s’appliquent uniquement aux
appareils vendus dans des pays qui appliquent les directives de l’Union Européenne.
Le fabriquant de ce produit est Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo,
Japon. Le représentant agréé en matière de normes CEM et de sécurité des produits est
Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Allemagne. Pour
toute demande d’ e ntretien ou de garantie, veuillez écrire aux adresses spécifiées dans les
documents d’ e ntretien ou de garantie séparés.
 La déclaration FCC suivante s’applique uniquement à la version de ce modèle
fabriquée en vue de sa vente aux Etats-Unis. Il est possible que les autres versions ne
soient pas conformes aux règlements techniques de la FCC.
 Si vous avez des questions concernant ce produit, vous pouvez appeler :
Centre du service d’informations clients Sony 1-800-222-7669 ou
http://www.sony.com/
Déclaration de conformité
Dénomination :
SONY
N° de modèle :
BCR-NWU7
Responsable :
Sony Electronics Inc.
Adresse :
16530 Via Esprillo, San Diego, CA 92127 Etats-Unis
N° de téléphone :
858-942-2230
Cet appareil est conforme à l’article 15 des règlements de la FCC.
Son utilisation est soumise aux deux préalables suivants : (1) cet appareil ne peut
produire d’interférences nuisibles et (2) cet appareil doit accepter toutes les
interférences, y compris celles qui sont susceptibles de provoquer un fonctionnement
indésirable.
 Pour les clients aux Etats-Unis
Utilisez la carte de garantie limitée fournie par Sony Electronics Inc.
 Pour les clients au Canada
Utilisez la carte de garantie de 1 an fournie par Sony of Canada Ltd.
 Remarque sur l’installation
Si vous utilisez l’appareil dans un endroit soumis à un rayonnement statique ou
électromagnétique, les données transférées d’une plage risquent d’ ê tre corrompues. Le
transfert de ces données sur votre ordinateur pourrait alors ne pas être autorisé.
Remarques concernant l’utilisation
 Ne placez pas l’appareil à des endroits :
– Extrêmement chauds ou froids
– Soumis à des champs magnétiques
– Sales, poussiéreux, sablonneux
– Soumis à des chocs mécaniques
– Extrêmement humides
– Exposés au rayonnement direct du
– Soumis à des vibrations
soleil (pendant des durées prolongées)
 N’installez pas l’appareil sur une surface instable, car il pourrait chuter et risquerait d’ ê tre
endommagé ou de provoquer des blessures.

Advertisement

loading

Summary of Contents for Sony Walkman BCR-NWU7

  • Page 1 Utilisez la carte de garantie limitée fournie par Sony Electronics Inc.  Pour les clients au Canada Utilisez la carte de garantie de 1 an fournie par Sony of Canada Ltd.  Remarque sur l’installation Si vous utilisez l’appareil dans un endroit soumis à un rayonnement statique ou électromagnétique, les données transférées d’une plage risquent d’...
  • Page 2 Environ 80 g (2,9 on.) Adaptateur « B »  Série NWZ-S510/S610/S710/X1000 « WALKMAN » et le logo « WALKMAN » sont des marques déposées de Sony Corporation. (NWZ-S515/S516/S615F/S616F/S618F/S715F/S716F/S718F/X1050/X1060)* * Le WM-PORT est un connecteur spécialisé à plusieurs branchements qui est utilisé pour raccorder le * En date de mars 2009 «...
