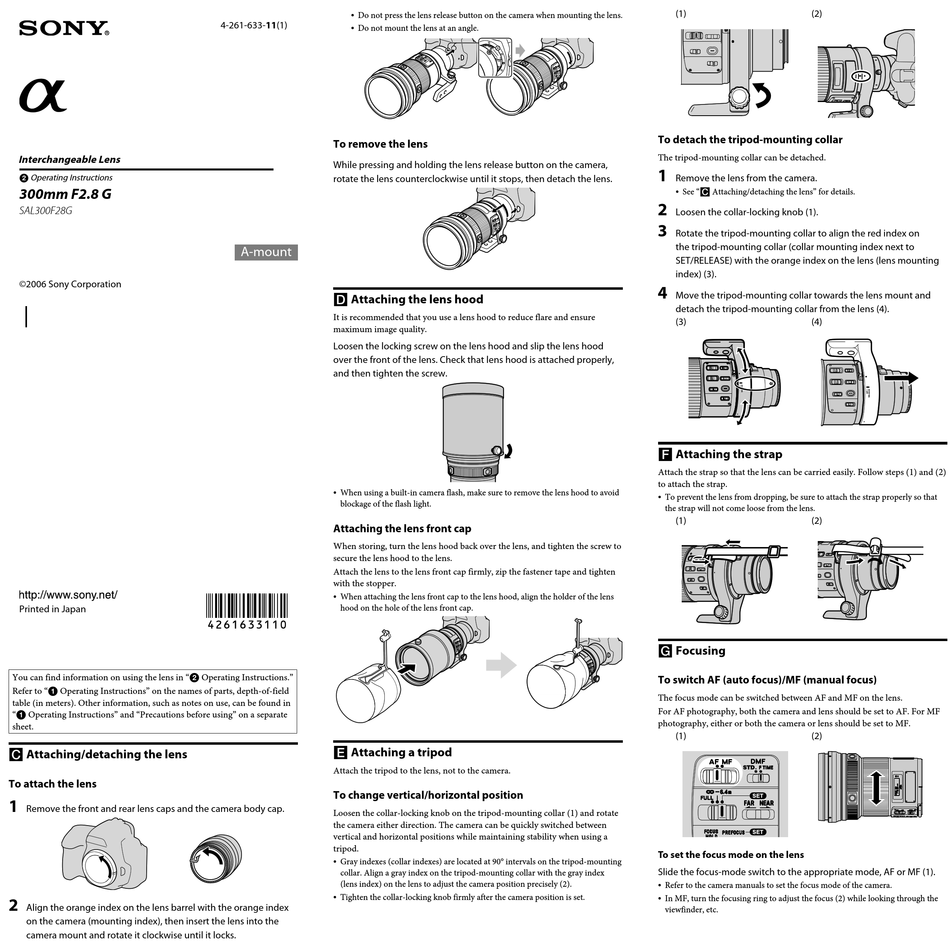

Sony SAL300F28G Operating Instructions

Interchangeable Lens
 Operating Instructions
300mm F2.8 G
SAL300F28G
©2006 Sony Corporation
Printed in Japan
You can find information on using the lens in " Operating Instructions."
Refer to " Operating Instructions" on the names of parts, depth-of-field
table (in meters). Other information, such as notes on use, can be found in
" Operating Instructions" and "Precautions before using" on a separate
sheet.
 Attaching/detaching the lens
To attach the lens
1
Remove the front and rear lens caps and the camera body cap.
2
Align the orange index on the lens barrel with the orange index
on the camera (mounting index), then insert the lens into the
camera mount and rotate it clockwise until it locks.
Do not press the lens release button on the camera when mounting the lens.

4-261-633-11(1)
Do not mount the lens at an angle.

To remove the lens
While pressing and holding the lens release button on the camera,
rotate the lens counterclockwise until it stops, then detach the lens.
A-mount

 Attaching the lens hood

It is recommended that you use a lens hood to reduce flare and ensure
maximum image quality.
Loosen the locking screw on the lens hood and slip the lens hood
over the front of the lens. Check that lens hood is attached properly,
and then tighten the screw.
When using a built-in camera flash, make sure to remove the lens hood to avoid

blockage of the flash light.
Attaching the lens front cap
When storing, turn the lens hood back over the lens, and tighten the screw to
secure the lens hood to the lens.
Attach the lens to the lens front cap firmly, zip the fastener tape and tighten
with the stopper.
When attaching the lens front cap to the lens hood, align the holder of the lens

hood on the hole of the lens front cap.
 Attaching a tripod
Attach the tripod to the lens, not to the camera.
To change vertical/horizontal position
Loosen the collar-locking knob on the tripod-mounting collar (1) and rotate
the camera either direction. The camera can be quickly switched between
vertical and horizontal positions while maintaining stability when using a
tripod.
Gray indexes (collar indexes) are located at 90° intervals on the tripod-mounting

collar. Align a gray index on the tripod-mounting collar with the gray index
(lens index) on the lens to adjust the camera position precisely (2).
Tighten the collar-locking knob firmly after the camera position is set.

(1) (2)
To detach the tripod-mounting collar
The tripod-mounting collar can be detached.
1
Remove the lens from the camera.
See " Attaching/detaching the lens" for details.

2
Loosen the collar-locking knob (1).
3
Rotate the tripod-mounting collar to align the red index on
the tripod-mounting collar (collar mounting index next to
SET/RELEASE) with the orange index on the lens (lens mounting
index) (3).
4
Move the tripod-mounting collar towards the lens mount and
detach the tripod-mounting collar from the lens (4).
(3) (4)

 Attaching the strap

Attach the strap so that the lens can be carried easily. Follow steps (1) and (2)
to attach the strap.
To prevent the lens from dropping, be sure to attach the strap properly so that

the strap will not come loose from the lens.
(1) (2)
 Focusing
To switch AF (auto focus)/MF (manual focus)
The focus mode can be switched between AF and MF on the lens.
For AF photography, both the camera and lens should be set to AF. For MF
photography, either or both the camera or lens should be set to MF.
(1) (2)
To set the focus mode on the lens
Slide the focus-mode switch to the appropriate mode, AF or MF (1).
Refer to the camera manuals to set the focus mode of the camera.

In MF, turn the focusing ring to adjust the focus (2) while looking through the

viewfinder, etc.
