SMC Networks SMC EZ Connect N Pro Draft 11n Wireless CardBus Adapter SMCWCB-N2 User Manual

Wireless cardbus adapter
Hide thumbs Also See for SMC EZ Connect N Pro Draft 11n Wireless CardBus Adapter SMCWCB-N2:

Advertisement

Quick Links

EZ Connect™ N Pro
Draft 11n Wireless Cardbus Adapter
SMCWCB-N2

Advertisement

Table of Contents
loading

Summary of Contents for SMC Networks SMC EZ Connect N Pro Draft 11n Wireless CardBus Adapter SMCWCB-N2

  • Page 1 EZ Connect™ N Pro Draft 11n Wireless Cardbus Adapter SMCWCB-N2...
  • Page 2 LIMITED WARRANTY Limited Warranty Statement: SMC Networks, Inc. (“SMC”) warrants its products to be free from defects in workmanship and materials, under normal use and service, for the applicable warranty term. All SMC products carry a standard 90-day limited warranty from the date of purchase from SMC or its Authorized Reseller.
  • Page 3 * SMC will provide warranty service for one year following discontinuance from the active SMC price list. Under the limited lifetime warranty, internal and external power supplies, fans, and cables are covered by a standard one-year warranty from date of purchase. SMC Networks, Inc. 20 Mason Irvine, CA 92618...
  • Page 4 Compliances Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 5 Compliances Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN60950-1:2001 A11:2004 Safety of Information Technology Equipment EN50392 : (2004-01)
  • Page 6 Hereby, SMC Networks, declares that this Radio LAN device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español Por medio de la presente SMC Networks declara que el Radio LAN device cumple con [Spanish] los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
  • Page 7 Slovensky SMC Networks týmto vyhlasuje, že Radio LAN device spĺňa základné požiadavky a [Slovak] všetky príslušné ustanovenia Smernice 1999/5/ES. Suomi SMC Networks vakuuttaa täten että Radio LAN device tyyppinen laite on direktiivin [Finnish] 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
  • Page 8: Table Of Contents

    Table of Contents Chapter 1 - Getting Started with the SMCWCB-N2 Chapter 2 - Wireless LAN Networking Transmission Rate (Transfer Rate) Type of Wireless Networks Wireless LAN Security Chapter 3 - Hardware and Wireless Utility About Your Draft 11n Wireless Cardbus Adapter Package Content System Requirement LED Definition...
  • Page 9: Chapter 1 - Getting Started With The Smcwcb-N2

    Chapter 1 - Getting Started with the SMCWCB-N2 Congratulations on purchasing the SMCWCB-N2. This manual provides information for setting up and configuring the SMCWCB-N2. This manual is intended for both home users and professionals. It is not required to read some of the more technical information in this manual (such as in “Wireless LAN Networking”...
  • Page 10: Chapter 2 - Wireless Lan Networking

    Chapter 2 - Wireless LAN Networking This section provides background information on wireless LAN networking technology. HE INFORMATION IN THIS SECTION IS FOR YOUR REFERENCE. NETWORK SETTINGS AND PARTICULARLY SECURITY SETTTINGS SHOULD ONLY BE DONE BY AN AUTHORIZED ADMINISTRATOR. Transmission Rate (Transfer Rate) The SMCWCB-N2 provides various transmission (data) rate options for you to select.
  • Page 11 To connect to a wired network within a coverage area using access points, set the SMCWCB-N2 operation mode to Infrastructure (BSS). To set up an independent wireless workgroup without an access point, use Ad-hoc (IBSS) mode. (IBSS) N ETWORK Ad-hoc mode does not require an access point or a wired network. Two or more wireless stations communicate directly to each other.
  • Page 12 When a number of wireless stations are connected using a single access point, you have a Basic Service Set (BSS).
  • Page 13 In the ESS diagram below, communication is done through the access points, which relay data packets to other wireless stations or devices connected to the wired network. Wireless stations can then access resources, such as a printer, on the wired network.
  • Page 14 In an ESS environment, users are able to move from one access point to another without losing the connection. In the diagram below, when the user moves from BSS (1) to BSS (2) the SMCWCB-N2 automatically switches to the channel used in BSS (2). Roaming in an ESS network diagram...
  • Page 15: Wireless Lan Security

    Wireless LAN Security Because wireless networks are not as secure as wired networks, it’s vital that security settings are clearly understood and applied. The list below shows the possible wireless security levels on your SMCWCB-N2 starting with the most secure. EAP (Extensible Authentication Protocol) is used for authentication and utilizes dynamic WEP key exchange.
  • Page 16: Chapter 3 - Hardware And Wireless Utility

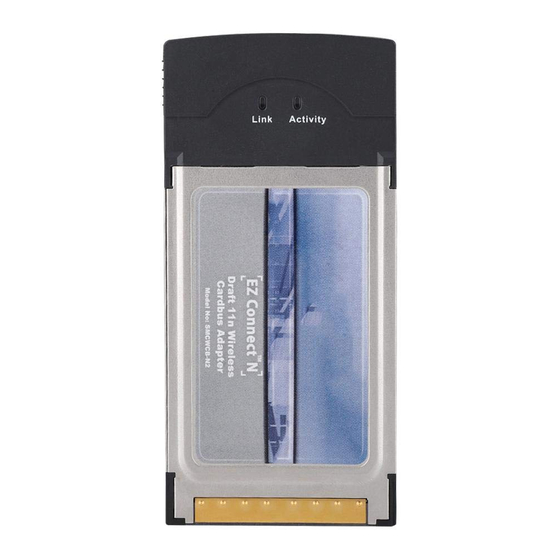

    Chapter 3 - Hardware and Wireless Utility This chapter introduces the Adapter and prepares you to use the Wireless Utility. About Your Draft 11n Wireless Cardbus Adapter With the Adapter, you can enjoy wireless mobility within almost any wireless networking environment. The following lists the main features of your Card.
  • Page 17: Hardware And Wireless Utility Installation

    Hardware and Wireless Utility Installation Follow the instructions below to install the Cardbus Adapter and Wireless Utility. Do not insert the EZ Connect™ N Wireless Cardbus Adapter until instructed. Put the EZ Installation & Documentation CD in to your CD-ROM drive. The CD will auto run. If the CD does not auto run browse to your CD drive &...
  • Page 18 The wizard is ready to begin installation. Click [Install]. A “Software Installation” warning may appear, click [Continue Anyway]. Click [Finish] to exit the installation wizard.
  • Page 19 Insert the EZ Connect™ N Wireless Cardbus Adapter in to an available PC Card slot. The “Found New Hardware Wizard” will appear. Click [No, not this time], then [Next]. 10. Click [Install the software automatically (Recommended)], then click [Next]. 11. A “Hardware Installation” warning may appear, click [Continue Anyway].
  • Page 20: Using The Utility To Configure Your Network

    12. Click [Finish] to complete the Driver/Utility installation. Using the Utility to Configure Your Network The following are explanations on how to configure and use the Utility program. After completing the installation procedure, a new icon as shown below will automatically appear in the lower right tray bar. Hold your mouse pointer over the icon, and double click the left mouse button to open the Wireless Client Utility.
  • Page 21 The user can now use any of the management functions available in the Wireless Client Utility.
  • Page 22: Link Information

    Link Information Click the Link Information tab to see general information about the program and its operation. The following table describes the items found on the Link Information screen. Wireless Network Status Profile Name The name of the current selected configuration profile. Set up the configuration name on the Profile tab.
  • Page 23: Site Survey

    Control Channel Channel number of the control 20MHz channel Extension Channel To locate the 40MHz channel on combination with the control channel Channel Width 20MHz only or 40/20MHz channel support Security Shows the security type – Disable, WEP, WPA/WPA2, WAP-PSK/WAP2-PSK or 802.1X Authentication Displays the authentication mode.
  • Page 24 Connecting to a different network Hold your mouse pointer over the network icon, and click the right mouse button to select the network. Click the Connect button to connect the available network. If no configuration profile exists for that network, the Profile Settings window opens to ask to create a profile for the network. Follow the procedures to create profile for that network.
  • Page 25: Scan Available Networks

    Scan Available Networks Click the Browse button on the Profile Settings screen to scan for available infrastructure and ad hoc networks. On this list, click Refresh to refresh the list at any time. To configure a profile for Ad-Hoc or Infrastructure mode, select the Network Type field on the Profile Settings.
  • Page 26 Click Next to continue. To define the security mode, select the desired security mode from drop down list. And then click Next to continue. Please see following table for details of security modes. WEP This card support three modes of WEP, include: 64 Bits 128 Bits 152 Bits...
  • Page 27 Protocol) authenticates wireless LAN clients using only server-side digital certificates by creating an encrypted SSL/TLS tunnel between the client and the authentication server. The tunnel then protects the subsequent user authentication exchange. PEAP (EAP-MSCHAP V2) Authentication Protocol) security, the server must have WPA-PEAP certificates, and the server properties must already be set.
  • Page 28 The following table describes the items found on the Advanced Settings screen. Power Save Mode Shows the power save mode. Power management is disabled in ad hoc mode. The options include: Continuous Access Mode Maximum Power Saving Fast Power Saving 802.11b Preamble Displays the 802.11b preamble format.
  • Page 29 After advanced settings are finished, the following screen is displayed as below. You can activate the profile now or later. Wi-Fi Protected Setup (WPS) is based on push-button or PIN (Personal Identification Number) entry authentication to provide strong WPA/WPA2 encryption keys to client devices. Users can push a button on the access point and the client device to exchange the encryption key.
  • Page 30 4. After WPS detects security setting you will be prompted to save them to a new profile as shown below. Click Save to save settings 5. After clicking save the following will be displayed to confirm WPS is connected successfully. Note: If WPS fails, click the PBC button few more times to try again.
  • Page 31 WPS Setup - PIN Configuration The WPS PIN (Personal Identification Number) setup is optional to the WPS button setup. It is more secure than using the WPS button. All WPS-compatible devices have their own PIN number. 1. The PIN number of your Wireless Cardbus Adapter is an eight-digit number located at the upper-right position of configuration utility.
  • Page 32 Note: You may have to click PIN for few more times to try again. If you still cannot connect to an access point this way, please make sure the PIN code you provided to access point is correct. WPS Status Bar Description: 1.
  • Page 33: Chapter 4 - Maintenance

    Step 1. Double-click System Step 2. Under Hardware tab, click Device Manager. Step 3. Double-click Network Card Step 4. Right-click mouse button on “SMC EZ Connect N Wireless Cardbus Adapter”, and choose Step 5. Uninstall Click OK to confirm that you are going to uninstall the driver Step 6.
  • Page 34: Glossary

    Glossary For unfamiliar terms used below, look for entries elsewhere in the glossary. (IBSS) Ad-hoc mode does not require an AP or a wired network. A network that transmits wireless from computer to computer without the use of a base station (access point). Two or more wireless stations communicate directly to each other.
  • Page 35 SSID The SSID (Service Set Identity) is a unique name shared among all wireless devices in a wire- less network. Wireless devices must have the same SSID to communicate with each other. EM POR AL NTEGRI TY Temporal Key Integrity Protocol (TKIP) uses 128-bit keys that are dynamically generated and distributed by the authentication server.
  • Page 36 SMCWCB-N2 SMCWBR11-G...
