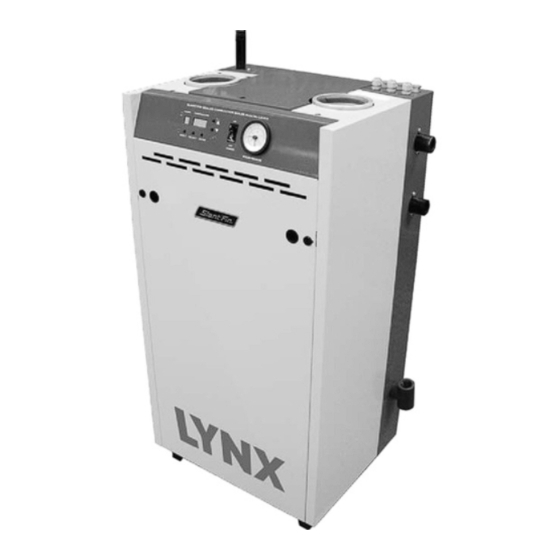

Slant/Fin LX-85A Replacement Parts List

Slant/fin modulating condensing gas boiler replacement parts list.


BOBCAT
Boiler Replacement Parts List
Item No.
1
GAS SHUT OFF VALVE
2
JACKET - LEFT TOP COVER
3
JACKET - RIGHT TOP COVER
4
JACKET FRONT ASSEMBLY
5
1/4 TURN PAWL LATCH
6
1/4 LATCH PAWL LATCH SLOTTED STUD
7
JACKET VIEW WINDOW PLUG
8
JACKET LEFT - ASSEMBLY
9
JACKET RIGHT- ASSEMBLY
10
PROPANE CONVERSION KIT
11
AIR INTAKE & FLUE COLLAR ASSEMBLY
12
AIR INTAKE WELDED ASSEMBLY
13
TOP COVER
14
FRONT PANEL ASSEMBLY
15
TERMINAL BRACKET
16
REAR FRAME SUBASSEMBLY
17
REAR BOTTOM SUBASSEMBLY
18
BOILER LEGS PACKAGE (PACKAGE OF 4)
19
SNAP BUSHING
20
WALL BRACKET
21
BELLOWS
22
GAS PIPE GROMMET
23
BLOWER GASKET
24
WORM DRIVE CLAMPS 3 1/2" DIA
25
GAS VALVE (WITH FLANGE)
26
BLOWER
27
GAS PIPE ASSEMBLY
28
COMBUSTION CHAMBER
29
O-RING 1.102 x 0.177 - 70EP
31
DRAIN VALVE 1/2"
32
WATER HIGH LIMIT
33
WATER SENSOR
34
SPARK IGNITOR GASKET
35
SPARK IGNITOR
36
HELICAL BUNDLING WRAP (FOR SPARK CABLE)
38
OBSERVATION WINDOW (SIGHT GLASS)
39
RETURN PIPE- WELDED ASSEMBLY
40
SUPPLY PIPE - WELDED ASSEMBLY
41
HEAT EXCHANGER ASSEMBLY
42
FLUE SENSOR
43
FLUE COLLECTOR CLEANING ACCESS DOOR SEALING
44
FLUE COLLECTOR CLEANING ACCESS DOOR
45
FLUE PIPE
46
CAP
47
FLUE COLLECTOR
48
CONDENSATION DRAIN PIPE - ASSEMBLY
49
HONEYWELL VENTURI
50
HEYCO -TITE LIQUID TIGHT STRAIGHT THRU CORDGRIPS, RLTCG 7 (SMALL SIZE)
51
3/8" STRAIGHT BX CONNECTOR
52
ON/OFF SWITCH
53
TERMINAL BLOCKS 8,
54
CONTROL BOARD WITH COVER
55
LED DISPLAY - ASSEMBLY
56
TRANSFORMER 24V, HONEYWELL 140B1297
57
PRESSURE GAUGE ( INCL. CHECK VALVE)
58
J2 CONNECTOR HARNESS (FOR ON/OF SWITCH, GROUND TERMINAL)
59
J5 CONNECTOR HARNESS (FOR WATER AND FLUE SENSORS, THERMOSTATS AND L.W.C.O. CONNECTION)
60
J6 CONNECTOR HARNESS (FOR BOILER LOOP AND DHW CIRCULATORS CONNECTION)
61
J9 CONNECTOR HARNESS (FOR COMBUSTION BLOWER CONNECTION - CONTROL SIDE)
62
J13 CONNECTOR HARNESS (FOR GAS VALVE TRANSFORMER AND GROUND, WATER HIGH LIMIT CONNECTION)
63
BLOWER CONNECTOR HARNESS
64
GAS VALVE CABLE
65
SPARK CABLE
66
GROUND WIRE
67
CIRCULATOR NEUTRAL JUMPER
68
AIR INTAKE PIPE
69
SCREW PACKAGE
70
VENT/AIR INTAKE TERMINATION KIT (FOR PVC VENTING)
71
CIRCULATOR TACO
72
SAFETY RELIEF VALVE
73
AIR CHAMBER REPLACEMENT ASSEMBLY
74
SEALING - EZ SEAL ( 70" LONG STRIP FOR AIR INTAKE AND FLUE PIPE)
76
AIRBOX GASKET
77
FLUE COLLECTOR GASKET
78
OUTDOOR SENSOR KIT (12 kOhm)
79
VENT/AIR INTAKE TERMINATION HORIZ. MOUNTING ASSY (FOR STAINLESS STEEL VENTING)
80
NATURAL GAS CONVERSION KIT
When ordering replacement parts: specify the model number, serial number and gas by name ( natural or propane).
For replacement parts, heating contractors should contact their Slant/Fin boiler distributor.
Modulating Condensing Gas Boiler
Description
This parts list must be left with owner, hung on or adjacent to
the boiler. Owner should retain parts list for fuure reference.
B-120
86 3803 000
86 1101 000
86 1102 000
86 0102 000
00 5075 000
00 5074 000
86 3105 000
86 0103 000
86 0104 000
86 0905 000
86 0106 000
86 0107 000
86 1115 000
86 0112 000
86 1132 000
86 0111 000
86 0113 000
86 6915 000
50 0385 000
86 1128 000
86 3202 000
86 3203 000
86 3204 000
86 3205 000
86 3208 000
86 3215 000
86 0211 000
86 3301 000
86 3401 000
86 3495 000
86 3404 000
86 3406 000
86 3407 000
86 3408 000
86 3608 000
86 3433 000
86 3435 000
86 3442 000
86 0406 000
86 3501 000
86 3503 000
86 1501 000
86 3502 000
86 3505 000
86 3504 000
86 0502 000
86 3209 000
86 3602 000
40 0309 000
86 2601 000
86 2603 000
84 2609 000
86 2606 000
66 0528 000
86 3611 000
86 2107 000
86 2103 000
86 2105 000
86 2106 000
86 2108 000
86 2109 000
86 2104 000
86 2101 000
86 2100 000
86 2110 000
86 3106 000
86 6914 000
86 0802 000
86 3804 000
65 0550 000
86 0910 000
86 6911 000
86 3409 000
86 3424 000
86 3805 000
45 1138 000
86 0906 000
PUBLICATION: B-10PL REV. A
B-200
86 3803 000
86 1101 000
86 1102 000
86 0152 000
00 5075 000
00 5074 000
86 3105 000
86 0153 000
86 0154 000
86 0955 000
86 0106 000
86 0157 000
86 1165 000
86 0162 000
86 1132 000
86 0161 000
86 0163 000
86 6915 000
50 0385 000
86 1178 000
86 3202 000
86 3203 000
86 3254 000
86 3205 000
86 3208 000
86 3265 000
86 0256 000
86 3351 000
86 3401 000
86 3495 000
86 3404 000
86 3406 000
86 3407 000
86 3408 000
86 3608 000
86 3433 000
86 3485 000
86 3492 000
86 0456 000
86 3501 000
86 3503 000
86 1501 000
86 3552 000
86 3505 000
86 3554 000
86 0552 000
86 3259 000
86 3602 000
40 0309 000
86 2601 000
86 2603 000
84 2609 000
86 2606 000
66 0528 000
86 3611 000
86 2107 000
86 2103 000
86 2105 000
86 2106 000
86 2108 000
86 2109 000
86 2104 000
86 2101 000
86 2100 000
86 2110 000
86 3106 000
86 6914 000
86 0802 000
86 3806 000
65 0550 000
86 0960 000
86 6911 000
86 3459 000
86 3474 000
86 3805 000
45 1138 000
86 0956 000
Printed in U.S.A. 208
Part No. 86 5738 000
