SkyLink GT-100 User Manual

Garage Door Closer
1. INTRODUCTION
Congratulations on your purchase of the Skylink
Model GT-100. Skylink ® Garage Door Closer is very easy to install, and
provides you with the peace of mind you have been looking for by
knowing your garage door will not be left open anymore. Skylink

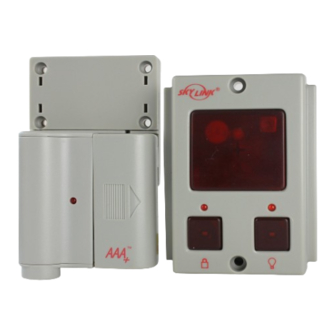

Garage Door Closer consists of 2 units:
Garage Door
TM
Monitor Sensor
(Battery Included)
GS-101
3V Lithium battery
4 pcs 3 x 18 screws
2 pcs 3.5 x 25 screws
Wall Console does not require any battery to operate and it can replace
most of the existing garage door opener's push buttons. Garage Door
Sensor is battery operated and can be mounted on to the garage door by
double sided tape or screws. These 2 units operate wirelessly which
simplifies the installation.
Programming is very simple, you can select the time you would like the
door to be closed after it has been opened. The selectable door closing
times are 2 minutes, 5 minutes, 10 minutes and 20 minutes.
®
Before installing the Skylink
door is equipped with an external entrapment protection device, such
as an infrared beam sensor which "sees" an object obstructing the door
without having actual contact with the object. A Garage door opener does
that not have the auto reversing mechanism should be replaced by one that
has the auto reversing mechanism feature and the garage door closer
must not be installed on garage a door opener without this feature.
Without a properly working safety reversal system, a person could be
seriously injured or killed by a closing garage door.
2. INSTALLATION
Unplug the power cord of your garage door opener
before installation to ensure power is not connected.
WARNING
The installation involves 2 units:
TM
1) Garage Door Monitor Sensor
2) Wall Console
TM
Garage Door Monitor Sensor
Step 1 – Select a spot on your garage door to mount
the sensor
Before you install the sensor onto the garage door,
make sure the garage door is closed. The sensor
assembly should be mounted on one of the vertical
supports of your garage door near the bottom.
When the door is closed, the detection rod should be retracted. When
the door is open, the detection rod will be extended.
Door open
Door closed
TM
Model GT-100
®
Garage Door Closer
Double-sided
foam tape
Wall Console
Extension wires GT-100R
WARNING
garage door closer, ensure your garage
Remove the battery
isolator
One of
Vertical
Supports
Step 2 – Mount the sensor on to your garage door
You can mount the sensor onto your garage
®
door with double-sided foam tape if the sur-
face of your garage door is smooth and clean
enough to provide a good adhesive surface,
such surf ace can usually be found on a me tal
garage door. Please ensure the surface is
smooth and clean. Important: The bottom
of the sensor should be 1/2 inch above
the ground. (Refer to Diagram A)
For w ooden garage doors, it is recommended
to mount the sensor with screws on to the
garage door with 3 x 18 screws provided.
Note:
When the garage door is opening/closing,
make sure the sensor does not interfere with
the safety reversing sensor or safety beam
sensor supplied with your existing garage
door opener.
Note: Ensure you straighten up the antenna
on the receiver to receive the best possible
reception.
Wall Console
The GT-100R Wall Console replaces most garage door "push buttons" or
"wall consoles". There are 2 different kinds of "push buttons".
1) Single button
2) Multi-Function Wall Console
1) Single button
If your garage door opener equips with a single button "push button",
you can replace the existing push button with Skylink
Closer Wall Console GT-100R. Please follow the procedures below.
1. Remove the existing push button by removing
the screws.
2. Disconnect the 2 wires that are connected to
the existing push button.
3. Connect these 2 wires to the 2 terminals on the
GT-100R Wall Console. Loosen the 2 screws
on the terminals, feed the 2 wires to the 2
terminals and tighten 2 screws to secure the
2 wires.
4. After connecting the 2 wires, the red LED under-
neath the push button will be on. The GT-100R
is now charging up. The GT-100R will be fully
charged when the buzzer emits a beep (approx
10 seconds to 1 minute depending on the brand
of garage door opener), the red LED will then
flash slowly. The GT-100R is now ready to operate.
5. Mount the Wall Console to the wall with 2 screws.
6. Straighten up the antenna on the GT-100R.
2. INSTALLATION (CONT)
4 Screws
1/2 Inch
®
Double-sided
foam tape
Diagram A
Garage Door
Remove
existing
wires
