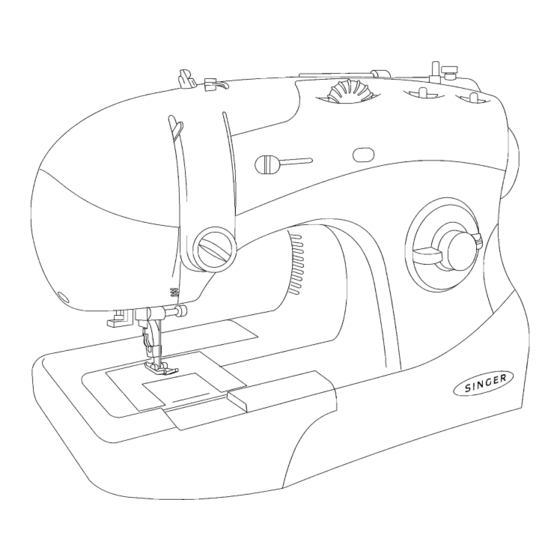

THE SINGER COMPANY
C
2004 SINGER DO BRASIL
ALL RIGHTS RESERVED

PARTS LIST

SEWING MACHINE

PRINTED IN BRAZIL
P/N 358420-001
2004

Advertisement

Table of Contents
loading

Related Manuals for Singer 5160

Summary of Contents for Singer 5160

  • Page 1: Parts List

    SEWING MACHINE THE SINGER COMPANY 2004 SINGER DO BRASIL ALL RIGHTS RESERVED PARTS LIST PRINTED IN BRAZIL P/N 358420-001 2004...

  • Page 2: Table Of Contents

    NEEDLE POSITION 27 - 28 PATTERN SELECTOR 29 - 30 CAM STACK 31 - 33 BUTTONHOLER & FEED REGULATOR CAM CAM CONTROLLED FEED 34 - 35 36 - 38 FEED SYSTEM 39 - 41 ELECTRICAL EQUIPMENT 5160 Model P/N 358420-001 Adopted...
  • Page 3 ATTACHMENT SET REV.:_______________ DATE: ______________...

  • Page 4: Attachment Set

    172336000BUY BOBBIN (3 UNITS) 8879656 FELT FOR SPOOL PIN 546358000 LINT BRUSH FOR CLEANING 357993900 FABRIC GUIDE FEED COVER PLATE 313117000BUY ROLLED HEM 358364900 358365900 CORDING FOOT 356942453 SPOOL PIN Model 5160 P/n: 358420-001 ATTACHMENT SET DESCRIPTION Page 02 Adopted...
  • Page 5 OPTIONAL ACCESSORIES REV.:_______________ DATE:______________...
  • Page 6 REF. PART NBR. 358078-900 FINGER GUARD 357792-452 SOFT VINYL COVER WITH SINGER LOGO Model 5160 P/N: 358420-001 OPTIONAL ACESSORIES DESCRIPTION Page 04 Adotpted...
  • Page 7 ARM, BED, THROAT PLATE & BOBBIN VISOR REV.:_______________ DATE:______________...
  • Page 8 BED (BOTTON) COVER & CABINET BOLT WASHER 514608-000 BED (BOTTON) COVER & CABINET BOLT NUT 357017-002 ARM SHAFT (REAR) HOUSING ASSEMBLY 357019-000 ARM TOP COVER SUPPORT STUD 113455-006 ARM SHAFT (REAR) HOUSING MOUNTING SCREW 357956-451 CONNECTING STOP SCREW Model 5160 P/N: 358420-001 DESCRIPTION Page 06 Adopted...
  • Page 9 COVERS REV.:_______________ DATE:______________ Page07...
  • Page 10 357734-004 TENSION MECHANISM DIAL WITH GRAPHICS 355263-451 REAR COVER MOUNTING SCREW 113455-001 REAR COVER SCREW 357944-900 BIGHT AMPLITUDE CONTROL LEVER KNOB 357979-900 BIGHT AMPLITUDE CONTROL LEVER KNOB RETAINING 354895-453 REAR COVER SCREW Model 5160 P/N:358420-001 COVERS DESCRIPTION Page 08 Adopted...
  • Page 11 Page09 OTHERS COVERS REV.:_______________ DATE:______________...
  • Page 12 FACE PLATE COMPLETE 357782-900 BED (BOTTOM) COVER PLASTIC WITH BED CUSHION 113455-001 BED (BOTTOM) COVER FASTENING SCREW 514608-000 BED (BOTTOM) COVER FASTENING SCREW NUT 357797-451 BED CUSHION 358082-451 ACCESSORIES BOX ADHESIVE Model 5160 P/N: 358420-001 OTHERS COVERS DESCRIPTION Page 10 Adopted...
  • Page 13 NEEDLE BAR, PRESSER BAR & AUTOMATIC NEEDLE THREADER HOUSING REV.:_______________ DATE:______________...
  • Page 14 NEEDLE BAR CLAMPING SCREW 204514-100 NEEDLE 2045 –SIZE NBR.14 357430-001 NEEDLE CLAMP BODY WITH SCREW 355248-451 NEEDLE THUMB SCREW 357429-001 NEEDLE CLAMP BODY 37943-000 NEEDLE BAR GIB 357421-001 NEEDLE CLAMP THREAD GUIDE Model 5160 P/N: 358420-001 DESCRIPTION Page 12 Adopted...
  • Page 15 NEEDLE THREADER SUPPORT GUIDE PLATE 358162-000 NEEDLE THREADER S. GUIDE PLATE SCREW WASHER 3357093-451 NEEDLE BAR VIBRATING BRACKET HINGE PIN NUT 446359-000 NEEDLE BAR VIBRATING BRACKET HINGE PIN 445721-000 NEEDLE BAR VIBRATING BRACKET HINGE PIN RETAINING RING Model 5160 P/N: 358420-001 Page 13 Adopted...
  • Page 16 PRESSER BAR REV.:_______________ DATE:______________ 36 37 Pag.14...
  • Page 17 POSITIONING CAM COLLAR 357852-900 BUTTONHOLER ACTUATING LEVER POSITIONER CAM 357839-900 357906-900 ACTUATING ARM SHAFT SPRING 357917-900 ACTUATING ARM SHAFT 357932-900 BUTTONHOLER ACTUATING LEVER POSITIONING CAM PIN NUT 357851-900 POSITIONING CAM ACTUATING SCREW Model 5160 P/N: 358420-001 PRESSER BAR DESCRIPTION Page 15 Adopted...
  • Page 18 357838-900 BUTTONHOLER ACTUATING LEVER BUTTON 141913-451 BUTTONHOLE ACTUATING LEVER STOP SPRING SCREW 357820-900 BUTTONHOLE ACTUATING LEVER STOP SPRING 357824-900 HEAT SHIELD 445539-000 WASHER 358039-000 BUTTONHOLER ACTUATING LEVER ASSEMBLY 179898-001 BUTTONHOLER ACTUATING ARM WASHER Model 5160 P/N: 358420-001 Page 16 Adopted...
  • Page 19 ARM SHAFT DRIVE REV.:_______________ DATE:______________ Page 17...
  • Page 20 ROTATING HOOK DRIVE BELT TENSIONER SCREW 446237 BELT (ROTATING HOOK DRIVE) ARM SHAFT (UPRIGHT) BELT DRIVE PULLEY WASHER 319826 FEED LIFTING CAME COMPLETE 446228-000 THREAD TAKE- UP SET SCREW 141916-833 Model 5160 P/N:358420-001 ARM SHAFT DRIVE DESCRIPTION Page 18 Adopted...
  • Page 21 Page 19 HAND WHEEL REV.:_______________ DATE:______________...
  • Page 22 446387-000 HAND WHEEL RETAINING RING (TREADLE/ELECTRIC) 357359-000 HAND WHEEL DISENGAGING CLUTCH BUSHING HAND WHEEL DISENGAGING CLUTCH BUSHING COMPLETE 357744-001 HAND WHEEL DISENGAGING CLUTCH BUSHING SCREW 354813-451 HAND WHEEL (PLASTIC) 357709-900 Model 5160 P/N: 358420-001 HAND WHEEL DESCRIPTION Page 20 Adopted...
  • Page 23 TENSION MECHANISM REV.:_______________ DATE:______________...

  • Page 24: Tension Mechanism

    TENSION DISC PRESSURE PLATE 356092-451 TENSION INDICATOR WITH STUD 357734-004 TENSION INDICATOR DIAL 356245-000 TENSION MECHANISM SUPORT ASSEMBLY 445784-000 THREAD GUIDE (LOWER) 356094-000 TENSION DISC 356443-000 TENSION MECHANISM SHROUDER WASHER Model 5160 P/N: 358420-001 TENSION MECHANISM DESCRIPTION Page 22 Adopted...

  • Page 25: Hook System

    HOOK SYSTEM REV.:_______________ DATE:______________ Page 23...
  • Page 26 ROTATING HOOK BUSHING 353410-900 ROTATING HOOK BUSHING SET SCREW 141938-833 ROTATING HOOK BUSHING SET SCREW NUT 353367-451 141844-451 ROTATING HOOK BUSHING ADJUSTING SCREW 618638-005 ROTATING HOOK BUSHING ADJUSTING SCREW NUT Model 5160 P/N: 358420-001 HOOK SYSTEM DESCRIPTION Page 24 Adopted...
  • Page 27 BIGHT AMPLITUDE REV.:_______________ DATE:______________...

  • Page 28: Bight Amplitude

    NEEDLE BAR DRIVING ARM TENSION SPRING 445780-000 LIGHT LEAD SHIELD & NEEDLE BAR DRIVING ARM TENSION SPRING MOUNTING PLATE 113455-001 LIGHT LEAD SHIELD & NEEDLE BAR DRIVING ARM TENSION SPRING MOUNTING PLATE SCREW Model 5160 P/N: 358420-001 BIGHT AMPLITUDE DESCRIPTION Page 26...
  • Page 29 REV.:_______________ DATE:______________...

  • Page 30: Needle Position

    141920-451 NEEDLE BAR ARM SLIDE ARM SCREW 357958-901 NEEDLE POSITION SELECTOR LEVER BRACKET ASSEMBLY 357938-900 NEEDLE POSITION LEVER 357975-900 NEEDLE POSITION LEVER ADJUSTING ECCENTRIC SCREW 357940-900 NEEDLE POSITION LEVER KNOB Model 5160 P/N: 358420-001 NEEDLE POSITION DESCRIPTION Page 28 Adopted...
  • Page 31 PATTERNSELECTOR REV.:_______________ DATE:______________...

  • Page 32: Pattern Selector

    NEEDLE POSITION SELECTOR MOUNTING PLATE 618638-005 VERTICAL DRIVING GEAR SHAFT NUT 357933-900 VERTICAL DRIVING PATTERN SELECTOR DIAL 357934-900 VERTICAL PATTERN SELECTOR DIAL DRIVING GEAR PIN 357936-900 SELECTOR DRIVING GEAR 357935-900 VERTICAL DRIVING GEAR SHAFT Model 5160 P/N 358420-001 PATTERN SELECTOR DESCRIPTION Page 30 Adopted...
  • Page 33 CAM STACK REV.:_______________ DATE:______________...

  • Page 34: Cam Stack

    DISC STACK SHAFT DRIVING BUSHING 357815-900 DISC STACK GUIDE BUSHING SUPPORT 354133-453 DISC STACK GUIDE BUSHING SUPPORT SCREW 446904-000 BIGHT AMPLITUDE CONTROL LEVER LINK STOP 618638-005 VERTICAL DRIVING GEAR SHAFT NUT Model 5160 P/N: 358420-001 CAM STACK DESCRIPTION Page 32 Adopted...

  • Page 35: Buttonholer & Feed Regulator Cam

    Page 33 BUTTONHOLER & FEED REGULATOR CAM REV.:_______________ DATE:______________...
  • Page 36 FEED CAM FOLLOWER LEVER CONNECTING LINK ASSEMBLY 357856-900 CONNECTING ARM BUSHING ARTICULATION PIN 357811-900 FEED CAM FOLLWER LEVER CONNECTING LINK 113455-001 FEED REGULATOR CONTROL ARM SCREW 353304-000 FEED REGULATOR CONTROL ARM ASSEMBLY Model 5160 P/N: 358420-001 DESCRIPTION Page 34 Adopted...
  • Page 37 BUTTONHOLER & FEED REG. MECH. MTG. PLATE STUD SPRING 408030-000 BUTTONHOLER & FEED REG. MECH. MTG. PLATE STUD RET. RING 445808-000 BUTTONHOLER & FEED REG. MECH. MTG. PLATE STUD SPRING WASHER 358034-000 FEED CAM FOLLOWER LEVER COMPLETE Model 5160 P/N: 358420-001 Page 35 Adopted...
  • Page 38 CAM CONTROLLED FEED REV.:_______________ DATE: ______________...

  • Page 39: Cam Controlled Feed

    618638-005 CONNECTING ARM SCREW NUT 357909-900 CONNECTING ARM POSITIONING SPRING 358025-000 CAM CONTROLLED FEED & DIS. CONNECTING ARM ASSEMBLY 357886-900 CONNECTING ARM SCREW 357994-900 CAM CONTROLLED FEED LEVER KNOB Model 5160 P/N: 358420-001 CAM CONTROLLED FEED DESCRIPTION Page 37 Adopted...

  • Page 40: Feed System

    FEED SYSTEM REV.:_______________ DATA:_____________ Page 38...
  • Page 41 FEED REGULATOR RETURN SPRING 445768 FEED REGULATOR RETURN SPRING BUSHING (PLASTIC) 353600 FEED REGULATOR HINGE STUD ASSEMBLY 357641-000 FEED FORKED CONNECTION WITH SLIDE BLOCK 353375-451 FEED ROCK SHAFT CENTER SUP. BRACKET SCREW WASHER Model 5160 P/N: 358420-001 FEED SYSTEM DESCRIÇÃO Page 39 Adopted...
  • Page 43 MOTOR MODULE (120V) 988752-013 MOTOR MODULE (220V) 362239-022 MOTOR PLASTIC COVERS WITH GRAPHICS 356803-901 MOTOR MOUNTING PLATE 362263-901 MOTOR MOUNTING PLATE SPACER SCREW 362237-001 MOTOR MOUNTING PLATE SPACER (PLASTIC) Lista de Peças Nº358420-001 ELECTRIC EQUIPMENT DESCRIPTION Modelo 5160 Pág.41 Adopted...

  • Page 44: Electrical Equipment

    (120 V) (220 V) (240 V) 362160-002 605488-026 605488-026 362001-008 362001-008 362001-008 605488-026 362095-001 362095-002 362095-015 362095-005 362095-006 362095-005 362095-022 362180-012 362180-016 362180-016 362180-022 362180-023 362180-022 362180-015 Modelo 5160 ÁSIA & ÁSIA & ÁFRICA & ÁFRICA & ÁFRICA & AMÉRICA DO RUSSIA AMÉRICA DO...
