Belkin F5D7231-4 User Manual

High-speed mode wireless g router
Hide thumbs Also See for F5D7231-4:
Table of Contents

Advertisement

Quick Links

See also: Setup Manual

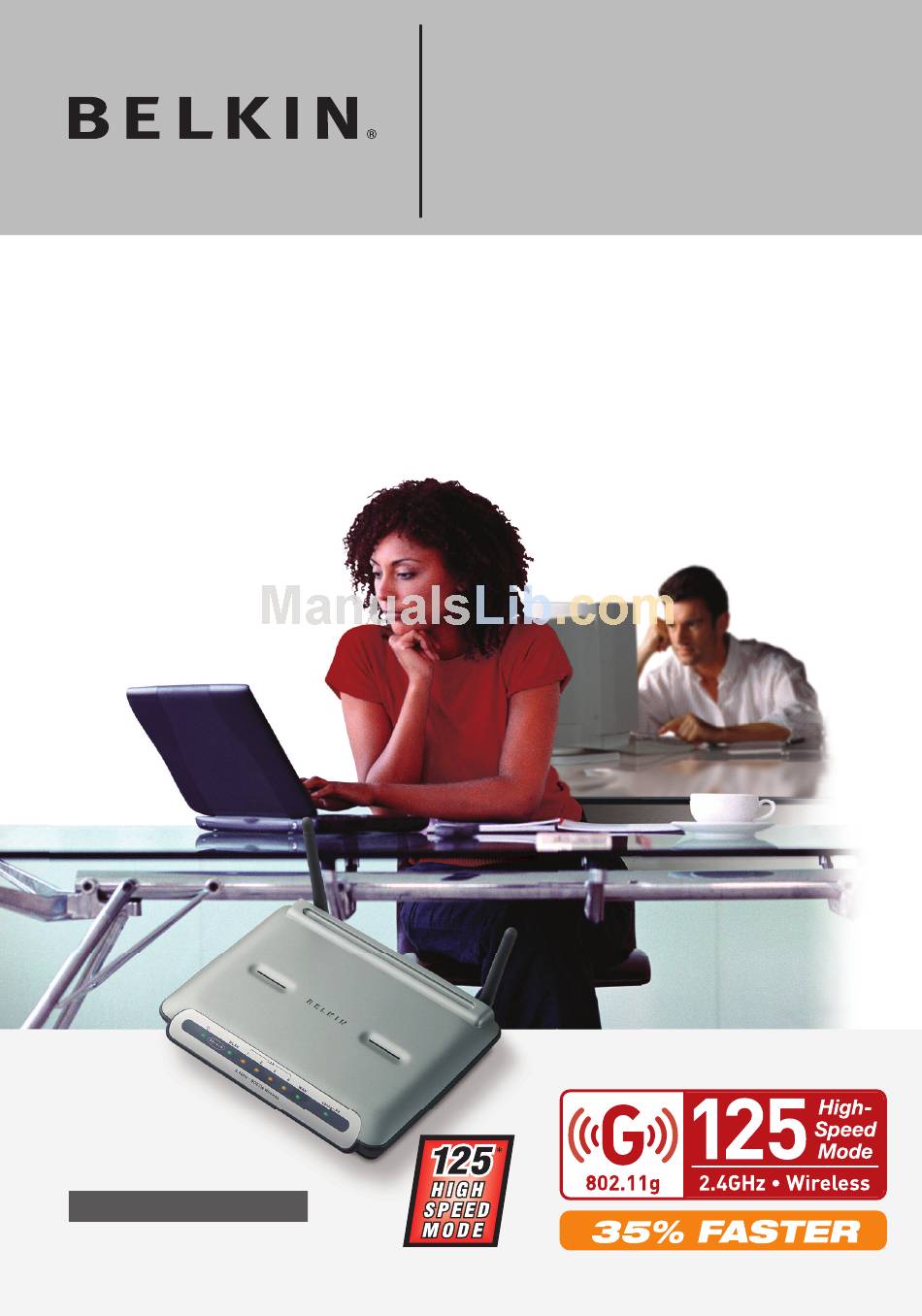

Share your broadband Internet access on
a
FASTER
User Manual
wireless network
High-Speed Mode
Wireless G Router
F5D7231-4

Advertisement

Table of Contents
loading

Related Manuals for Belkin F5D7231-4

Summary of Contents for Belkin F5D7231-4

  • Page 1 Share your broadband Internet access on FASTER wireless network User Manual High-Speed Mode Wireless G Router F5D7231-4...

  • Page 2: Table Of Contents

    Table of Contents 1 Introduction ........1 Benefits of a Home Network .

  • Page 3: Introduction

    Introduction Thank you for purchasing the Belkin High-Speed Mode Wireless G Router (the Router). Below are two short sections, one discusses the benefits of home networking, the other outlines best practices in order to maximize your wireless home network range and performance.

  • Page 4: Placement Of Your Wireless G Router

    Wireless Router or Access Point, in order to see if distance is the problem. If difficulties persist even at close range, please contact Belkin Technical Support. Note: While some of the items listed below can affect network performance, they will not prohibit your wireless network from functioning;...
  • Page 5 Introduction Avoid Obstacles and Interference Avoid placing your Wireless Router or Access Point near devices that may emit radio “noise,” such as microwave ovens. Dense objects that can inhibit Wireless communication include: • Refrigerators • Washers and/or dryers • Metal cabinets •...
  • Page 6 These guidelines should allow you to cover the maximum possible area with your Wireless Router or Access Point. Should you need to cover an even wider area, we suggest the Belkin Wireless Range Extender/Access Point. Secure connections, VPNs, and AOL Secure connections are connections that typically require a user name and password, and are used where security is important.
  • Page 7 Introduction For more information regarding our networking products, visit our website at www.belkin.com/networking or call Belkin Technical Support at: 877-736-5771 310-898-1100 ext.2263 Europe: 00 800 223 55 460 Australia: 1800 666 040...

  • Page 8: Product Overview

    In minutes you will be able to share your Internet connection and network your computers. The following is a list of features that make your new Belkin Wireless G Router an ideal solution for your home or small office network.
  • Page 9 Product Overview SPI Firewall Your Router is equipped with a firewall that will protect your network from a wide array of common hacker attacks including IP Spoofing, Land Attack, Ping of Death (PoD), Denial of Service (DoS), IP with zero length, Smurf Attack, TCP Null Scan, SYN flood, UDP flooding, Tear Drop Attack, ICMP defect, RIP defect, and fragment flooding.
  • Page 10 Integrated Parental Control Web Content Filter Belkin has teamed with Cerberian, a leading content-filtering company, to bring you this unique feature. Your Belkin Wireless G Router is the first home networking solution with an integrated web content filter that allows you to block unwanted or offensive web content before it makes it to your network.

  • Page 11: Knowing Your Router

    Knowing Your Router Package Contents • Belkin High-Speed Mode Wireless G Router • Quick Installation Guide • Belkin Easy Install Wizard Software CD • Belkin RJ45 Ethernet Networking Cable • Power Supply • User Manual System Requirements • Broadband Internet connection such as a cable or DSL modem with RJ45 (Ethernet) connection •...
  • Page 12 Knowing Your Router The Router has been designed to be placed on a desktop. All of the cables exit from the rear of the Router for better organization and utility. The LED indicators are easily visible on the front of the Router to provide you with information about network activity and status.
  • Page 13 Knowing Your Router LED will light. GREEN means a 10Base-T device is connected, AMBER means a 100Base-T device is connected. When information is being sent over the port, the LED blinks rapidly. Green Orange Blinking (Orange or Green) WAN Status LED This LED lights in GREEN to indicate that your modem is connected properly to the Router.
  • Page 14 Knowing Your Router Power Jack - GRAY Connect the included 5V DC power supply to this jack. Connections to Computers (LAN Ports) - BLUE Connect your wired (non-wireless) computers to these ports. These ports are RJ45, 10/100 auto-negotiation, auto-uplinking ports for standard UTP category 5 or 6 Ethernet cable. The ports are labeled 1 through 4.
  • Page 15 Knowing Your Router Resetting the Router Push and release the Reset button. The lights on the Router will momentarily flash. The Power/Ready light will begin to blink. When the Power/Ready light becomes solid again, the reset is complete. Restoring the Factory Defaults Press and hold the Reset button for at least ten seconds then release it.

  • Page 16: Connecting And Configuring Your Router

    SUCH AS NOTEBOOK CARDS AND DESKTOP CARDS. Easy Install Wizard Belkin has provided our Easy Install Wizard software to make installing your Router a simple and easy task. You can use it to get your Router up and running in minutes.
  • Page 17 Connecting and Configuring Your Router and working at the time of installation. If it is not, you must use the “Alternate Setup Method” section of this manual to configure your Router. Additionally, if you are using an operating system other than Windows 98SE, Me, 2000, or XP, you must set up the Router using the “Alternate Setup Method”...
  • Page 18 Connecting and Configuring Your Router Welcome Screen After you insert the CD into your CD-ROM drive, the Wizard’s welcome screen will appear. Make sure you have not connected the Router at this point. If you have connected your Router, please reconnect your computer directly to the modem.
  • Page 19 Connecting and Configuring Your Router Multi-NICs Screen If you have more than one network adapter installed in your computer a Multi-NIC Screen will appear. If you have more than one network adapter installed in your computer, the Wizard will need to know which adapter is connected to your modem.
  • Page 20 Connecting and Configuring Your Router This step instructs you to locate the BLUE cable that is included with your Router. Plug one end of this cable into ANY one of the BLUE ports on your Router. Plug the other end of the cable into the networking port on your computer.
  • Page 21 Connecting and Configuring Your Router Step 3 Checking the Connection Once you have completed connecting the Router, the Wizard will check the connection to the Router and then go on to determine what type of Internet connection you have. 3.2 User Name and Password Needed If you have a connection type that requires a user name and a password, the Wizard will ask you to type in...
  • Page 22 Connecting and Configuring Your Router Step 4 Configuring the Router The Wizard will now transfer all of the configuration information to the Router. This will take approximately one minute. During this time, do not turn off the Router or computer. The Router will restart itself at the end of this step.
  • Page 23 Internet by opening your browser and going to your favorite web page. Congratulations! You have finished installing your new Belkin Router. You are ready to set up the other computers in your home. You can also add computers to your Router any time you want.

  • Page 24: Alternate Setup Method

    Alternate Setup Method The Advanced User Interface is a web-based tool that you can use to set up the Router if you don’t want to use the Easy Install Wizard. You can also use it to manage advanced functions of the Router. From the Advanced User Interface, you can perform the following tasks: •...
  • Page 25 Alternate Setup Method Turn your cable or DSL modem on by reconnecting the power supply to the modem. Mac or PC computer that was originally connected to the cable or DSL modem Network cable (to computer) Note: Your Router may have ports in different locations than depicted in the illustration above.
  • Page 26 Alternate Setup Method Step 2 Set your Computer’s Network Settings to Work with a DHCP Server See the section in this manual called “Manually Configuring Network Settings” for directions. Step 3 Configuring the Router Using the Web-Based Advanced User Interface Using your Internet browser, you can access the Router’s Web-Based Advanced User Interface.
  • Page 27 Alternate Setup Method Logging out of the Router One computer at a time can log in to the Router for the purposes of making changes to the settings of the Router. Once a user has logged in to make changes, there are two ways that the computer can be logged out.
  • Page 28 Alternate Setup Method (10) Home Button The home button is available in every page of the UI. Pressing this button will take you back to the home page. Internet Status Indicator This indicator is visible in all pages of the Router, indicating the connection status of the Router.
  • Page 29 Alternate Setup Method Help Button The “Help” button gives you access to the Router’s help pages. Help is also available on many pages by clicking “more info” next to certain sections of each page. LAN Settings Shows you the settings of the Local Area Network (LAN) side of the Router.
  • Page 30 Alternate Setup Method Step 4 Configuring your Router for Connection to your Internet Service Provider (ISP) The “Internet/WAN” tab is where you will set up your Router to connect to your Internet Service Provider (ISP). The Router is capable of connecting to virtually any ISP’s system provided you have correctly configured the Router’s settings for your ISP’s connection type.
  • Page 31 Alternate Setup Method Setting your Connection Type From the connection type page, you can select the type of connection you use. Select the type of connection you use by clicking the button (1) next to your connection type and then clicking “Next” (2).
  • Page 32 Alternate Setup Method Setting your Internet Service Provider (ISP) Connection Type to Dynamic IP A dynamic connection type is the most common connection type found with cable modems. Setting the connection type to “dynamic” in many cases is enough to complete the connection to your ISP. Some dynamic connection types may require a host name.
  • Page 33 Alternate Setup Method Setting your Internet Service Provider (ISP) Connection Type to Static IP A static IP address connection type is less common than other connection types. If your ISP uses static IP addressing, you will need your IP address, subnet mask, and ISP gateway address.
  • Page 34 Alternate Setup Method Setting your ISP connection type to PPPoE Most DSL providers use PPPoE as the connection type. If you use a DSL modem to connect to the Internet, your ISP may use PPPoE to log you into the service. If you have an Internet connection in your home or small office that doesn’t require a modem, you may also use PPPoE.
  • Page 35 Alternate Setup Method User Name This space is provided to type in your User name that was assigned by your ISP. Password Type in your password and re-type it into the “Retype Password” box to confirm it. Service Name A Service name is rarely required by an ISP. If you are not sure if your ISP requires a service name, leave this blank.
  • Page 36 Alternate Setup Method Setting your Internet Service Provider (ISP) Connection Type to Point-to-Point Tunneling Protocol (PPTP) [European Countries Only]. Some ISPs require a connection using PPTP protocol, a type of connection most common in European countries. This sets up a direct connection to the ISP’s system. Type in the information provided by your ISP in the space provided.
  • Page 37 Alternate Setup Method Service IP Address Provided by your ISP. Enter your service IP address here. My IP Address Provided by your ISP. Enter the IP address here. My Subnet Mask Provided by your ISP. Enter the IP address here. Connection ID (optional) Provided by your ISP.
  • Page 38 Alternate Setup Method Setting your Connection Type if you are a Telstra ® BigPond User [Australia Only] Your user name and password are provided to you by Telstra BigPond. Enter this information below. Choosing your state from the drop-down menu (6) will automatically fill in your login server IP address.
  • Page 39 Setting Custom Domain Name Server (DNS) Settings A “Domain Name Server” is a server located on the Internet that translates Universal Resource Locater (URLs) like “www.belkin.com” to IP addresses. Many Internet Service Providers (ISPs) do not require you to enter this information into the Router. The “Automatic from ISP”...
  • Page 40 Internet service. When you install the Router, its own MAC address will be “seen” by the ISP and may cause the connection not to work. Belkin has provided the ability to clone (copy) the MAC address of the computer into the Router.
  • Page 41 Alternate Setup Method Cloning your MAC Address To clone your MAC address, make sure that you are using the computer that was ORIGINALLY CONNECTED to your modem before the Router was installed. Click the “Clone” button (1). Click “Apply Changes” (3). Your MAC address is now cloned to the Router.

  • Page 42: Using The Web-Based Advanced User Interface

    Using the Web-Based Advanced User Interface Using your Internet browser, you can access the Router’s Web-Based Advanced User Interface. In your browser, type “192.168.2.1” (do not type in anything else such as “http://” or “www”) then press the “Enter” key. You will see the Router’s home page in your browser window.

  • Page 43: Changing Lan Settings

    Subnet Mask There is no need to change the subnet mask. This is a unique, advanced feature of your Belkin Router. It is possible to change the subnet mask if necessary, however, do NOT make changes to the subnet mask unless you have a specific reason to do so. The...
  • Page 44 IP address to change. Local Domain Name The default setting is “Belkin”. You can set a local domain name (network name) for your network. There is no need to change this setting unless you have a specific advanced need to do so. You can...

  • Page 45: Viewing The Dhcp Client List Page

    Using the Web-Based Advanced User Interface Viewing the DHCP Client List Page You can view a list of the computers (known as clients), which are connected to your network. You are able to view the IP address (1) of the computer, the host name (2) (if the computer has been assigned one), and the MAC address (3) of the computer’s network interface card (NIC).

  • Page 46: Configuring The Wireless Network Settings

    Using the Web-Based Advanced User Interface Configuring the Wireless Network Settings The Wireless tab lets you make changes to the wireless network settings. From this tab you can make changes to the wireless network name (SSID), operating channel, encryption security settings, and configure the Router to be used as an access point.
  • Page 47 Using the Web-Based Advanced User Interface Using the Wireless Mode Switch Your Router can operate in three different wireless modes: “802.11g- Auto”, “802.11g-Only”, and “802.11g-LRS”. The different modes are explained below. 802.11g-Auto Mode In this mode, the Router is compatible with 802.11b and 802.11g wireless clients simultaneously.
  • Page 48 Using the Web-Based Advanced User Interface Using High-Speed Mode The Router supports two High-Speed modes, 125HSM* mode and Frame Bursting mode. Selecting “125HSM mode” will result in all devices running in 125HSM mode if all devices are capable of 125Mbps speeds. If any non-125HSM device connects or associates with the network, the Router will automatically shift the entire network back to Frame Bursting mode.
  • Page 49 Using the Web-Based Advanced User Interface Changing the Wireless Channel There are a number of operating channels you can choose from. In the United States and Australia, there are 11 channels. In the United Kingdom and most of Europe, there are 13 channels. In a small number of other countries, there are other channel requirements.
  • Page 50 Using the Web-Based Advanced User Interface Using the Broadcast SSID Feature Note: This advanced feature should be employed by advanced users only. For security, you can choose not to broadcast your network’s SSID. Doing so will keep your network name hidden from computers that are scanning for the presence of wireless networks.

  • Page 51: Securing Your Wi-Fi Network

    Using the Web-Based Advanced User Interface ® Securing your Wi-Fi Here are a few different ways you can maximize the security of your wireless network and protect your data from prying eyes and ears. This section is intended for the home, home office, and small office user.
  • Page 52 Most of the new wireless equipment in the market today supports both 64-bit and 128-bit WEP encryption, but you might have older equipment that only supports 64-bit WEP. All Belkin wireless products will support both 64-bit and 128-bit WEP. Encryption Keys After selecting either the 64-bit or 128-bit WEP encryption mode, it is critical that you generate an encryption key.
  • Page 53 WPA (with radius server) distributes the Network key to the clients automatically. This is typically found in a business environment. For a list of Belkin wireless products that support WPA, please visit our website at www.belkin.com/networking. uses what is known as a...
  • Page 54 Using the Web-Based Advanced User Interface Sharing the Same Network Keys Most Wi-Fi products ship with security turned off. So once you have your network working, you need to activate WEP or WPA and make sure your wireless networking devices are sharing the same Network key.
  • Page 55 Using the Web-Based Advanced User Interface Using a Hexadecimal Key A hexadecimal key is a mixture of numbers and letters from A–F and 0–9. 64-bit keys are five two-digit numbers. 128-bit keys are 13 two-digit numbers. For instance: AF 0F 4B C3 D4 = 64-bit key C3 03 0F AF 0F 4B B2 C3 D4 4B C3 D4 E7 = 128-bit key In the boxes below, make up your key by writing in two characters between A–F and 0–9 in each box.

  • Page 56: Wep Setup

    Using the Web-Based Advanced User Interface WEP Setup 64-Bit WEP Encryption Select “64-bit WEP” from the drop-down menu. After selecting your WEP encryption mode, you can enter your key by typing in the hex key manually, or you can type in a passphrase in the “Passphrase”...
  • Page 57 Using the Web-Based Advanced User Interface 128-Bit WEP Encryption Note to Mac ® users: The Passphrase option will not operate with Apple ® AirPort ® . To configure encryption for your Mac computer, set the encryption using the manual method described in the next section.

  • Page 58: Wpa Setup

    Microsoft. This patch works only with the Windows XP operating system. You also need to download the latest driver for your Belkin Wireless G Desktop or Notebook Network Card from the Belkin support site.
  • Page 59 Using the Web-Based Advanced User Interface Click “Apply Changes” to finish. You must now set all clients to match these settings. Setting WPA (with radius server) Settings If your network uses a radius server to distribute keys to the clients, use this setting.
  • Page 60 Please Note: This section is to provide you with the information on how to configure your Belkin Wireless G Network Cards to use security. At this point, you should already have your Wireless Router or Access Point set to use WPA or WEP. In order for you to gain a wireless connection, you will need to set your wireless notebook card and wireless desktop card to use the same security settings.
  • Page 61 Using the Web-Based Advanced User Interface Connecting your Computer to a Wireless Network that Requires WPA-PSK (no server) Double-click the “Signal Indicator” icon to bring up the “Wireless Network” screen. The Advanced button will allow you to view and configure more options of your card. Under the “Wireless Networks”...
  • Page 62 Using the Web-Based Advanced User Interface Connecting your Computer to a Wireless Network that Requires WPA (with radius server) Double-click the Signal Indicator icon to bring up the “Wireless Network” screen. The “Advanced” button will allow you to view and configure more options of your Card. Under the “Wireless Networks”...
  • Page 63 Using the Web-Based Advanced User Interface Setting Up WPA for a Non-Belkin Wireless Desktop and Wireless Notebook Cards For non-Belkin WPA Wireless Desktop and Wireless Notebook Cards that are not equipped with WPA-enabled software, a file from Microsoft called “Windows XP Support Patch for Wireless Protected Access”...
  • Page 64 Using the Web-Based Advanced User Interface Setting Up Windows XP Wireless Network Utility to Use WPA-PSK In order to use WPA-PSK, ensure you are using Windows Wireless Network Utility by doing the following: Under Windows XP, click “Start > Control Panel > Network Connections”.
  • Page 65 Using the Web-Based Advanced User Interface Under the Wireless Networks tab, click the “Configure” button, and you will see the following screen. For a home or small business user, select “WPA-PSK” under “Network Authentication”. Note: Select “WPA” if you are using this computer to connect to a corporate network that supports an authentication server such as a radius server, please consult your network administrator for further information.

  • Page 66: Using The Access Point Mode

    Using the Web-Based Advanced User Interface Using the Access Point Mode Note: This advanced feature should be employed by advanced users only. The Router can be configured to work as a wireless network access point. Using this mode will defeat the NAT IP sharing feature and DHCP server.

  • Page 67: Wireless Range Extension And Bridging

    Wireless Access Point. Note that you can only bridge your Wireless G Router (model F5D7230-4, F5D7231-4) to a Belkin Wireless G Range Extender/Access Point (model F5D7131, F5D7130). Bridging with access points of other manufacturers is not supported at this time. You can use the bridge...
  • Page 68 Using the Web-Based Advanced User Interface Adding Another Network Segment Wirelessly Bridging an Access Point to your Wireless Router allows you to add another network segment in another area in the home or office without running wires. Connecting a network switch or hub to the Access Point’s RJ45 jack will allow a number of computers connected to the switch access to the rest of the network.
  • Page 69 Setting Up a Bridge Between your Wireless Router and a Secondary Access Point Bridging your Belkin Router to a secondary Access Point requires that you access the Router’s Advanced Setup Utility and enter the MAC address of the Access Point in the appropriate area. There are also a few other requirements.
  • Page 70 Using the Web-Based Advanced User Interface From a computer already connected to your Router, access the Advanced Setup Utility by opening your browser. In the address bar, type in “192.168.2.1”. Do not type in “www” or “http://” before the number. Note: If you have changed your Router’s IP address, use that IP address.

  • Page 71: Configuring The Firewall

    Using the Web-Based Advanced User Interface Configuring the Firewall Your Router is equipped with a firewall that will protect your network from a wide array of common hacker attacks including: • IP Spoofing • SYN flood • Land Attack • UDP flooding •...
  • Page 72 Using the Web-Based Advanced User Interface Configuring Internal Forwarding Settings The Virtual Servers function will allow you to route external (Internet) calls for services such as a web server (port 80), FTP server (Port 21), or other applications through your Router to your internal network. Since your internal computers are protected by a firewall, computers outside your network (over the Internet) cannot get to them because they cannot be “seen.”...
  • Page 73 Using the Web-Based Advanced User Interface Setting Client IP Filters The Router can be configured to restrict access to the Internet, e-mail, or other network services at specific days and times. Restriction can be set for a single computer, a range of computers, or multiple computers. To restrict Internet access to a single computer for example, enter the IP address of the computer you wish to restrict access to in the IP fields (1).

  • Page 74: Setting Mac Address Filtering

    Using the Web-Based Advanced User Interface Setting MAC Address Filtering The MAC address filter is a powerful security feature that allows you to specify which computers are allowed on the network. Any computer attempting to access the network that is not specified in the filter list will be denied access.

  • Page 75: Enabling The Dmz

    Using the Web-Based Advanced User Interface Enabling the Demilitarized Zone (DMZ) The DMZ feature allows you to specify one computer on your network to be placed outside of the firewall. This may be necessary if the firewall is causing problems with an application such as a game or video conferencing application.
  • Page 76 Using the Web-Based Advanced User Interface Blocking an ICMP Ping Computer hackers use what is known as “pinging” to find potential victims on the Internet. By pinging a specific IP address and receiving a response from the IP address, a hacker can determine that something of interest might be there.

  • Page 77: Utilities Tab

    Using the Web-Based Advanced User Interface Utilities Tab This screen lets you manage different parameters of the Router and perform certain administrative functions. Parental Control See separate Parental Control User Manual from Belkin.

  • Page 78: Restarting The Router

    Using the Web-Based Advanced User Interface Restarting the Router Sometimes it may be necessary to restart or reboot the Router if it begins working improperly. Restarting or rebooting the Router will NOT delete any of your configuration settings. Restarting the Router to Restore Normal Operation Click the “Restart Router”...
  • Page 79 Using the Web-Based Advanced User Interface Restoring Factory Default Settings Using this option will restore all of the settings in the Router to the factory (default) settings. It is recommended that you back up your settings before you restore all of the defaults. Click the “Restore Defaults”...
  • Page 80 Using the Web-Based Advanced User Interface Saving a Current Configuration You can save your current configuration by using this feature. Saving your configuration will allow you to restore it later if your settings are lost or changed. It is recommended that you back up your current configuration before performing a firmware update.
  • Page 81 Using the Web-Based Advanced User Interface When the save is complete, you will see the following window. Click “Close”. The configuration is now saved. Restoring a Previous Configuration This option will allow you to restore a previously saved configuration. Click “Browse”. A window will open that allows you to select the location of the configuration file.
  • Page 82 Using the Web-Based Advanced User Interface You will be asked if you want to continue. Click “OK”. A reminder window will appear. It will take up to 60 seconds for the configuration restoration to complete. Click “OK”. A 60-second countdown will appear on the screen. When the countdown reaches zero, the Router’s configuration will be restored.

  • Page 83: Updating The Firmware

    Using the Web-Based Advanced User Interface Updating the Firmware From time to time, Belkin may release new versions of the Router’s firmware. Firmware updates contain feature improvements and fixes to problems that may exist. When Belkin releases new firmware, you can download the firmware from the Belkin update website and update your Router’s firmware to the latest version.
  • Page 84 Using the Web-Based Advanced User Interface Downloading a New Version of Firmware If you click the “Check Firmware” button and a new version of firmware is available, you will see a screen such as the following. To download the new version of firmware, click “Download”. A window will open that allows you to select the location where you want to save the firmware file.
  • Page 85 Using the Web-Based Advanced User Interface When the save is complete, you will see the following window. Click “Close”. The download of the firmware is complete. To update the firmware, follow the next steps in “Updating the Router’s Firmware”. Updating the Router’s Firmware In the “Firmware Update”...
  • Page 86 Using the Web-Based Advanced User Interface The “Update Firmware” box will now display the location and name of the firmware file you just selected. Click “Update”. You will be asked if you are sure you want to continue. Click “OK”. You will see one more message.

  • Page 87: Changing System Settings

    Using the Web-Based Advanced User Interface Changing System Settings The “System Settings” page is where you can enter a new administrator password, set the time zone, enable remote management, and turn on and off the NAT function of the Router. Setting or Changing the Administrator Password The Router ships with NO password entered.

  • Page 88: Enabling Remote Management

    Internet and get a response. You cannot set the clock yourself. Enabling Remote Management Before you enable this advanced feature of your Belkin Router, MAKE SURE YOU HAVE SET THE ADMINISTRATOR PASSWORD. Remote management allows you to make changes to your Router’s settings from anywhere on the Internet.
  • Page 89 Enabling/Disabling UPnP UPnP (Universal Plug-and-Play) is yet another advanced feature offered by your Belkin Router. It is a technology that offers seamless operation of voice messaging, video messaging, games, and other applications that are UPnP- compliant. Some applications require the Router’s firewall to be configured in a specific way to operate properly.
  • Page 90 Using the Web-Based Advanced User Interface Enabling/Disabling Auto Firmware Update This innovation provides the Router with the built-in capability to automatically check for a new version of firmware and alert you that the new firmware is available. When you log into the Router’s advanced interface, the Router will perform a check to see if new firmware is available.

  • Page 91: Manually Configuring Computer Network Settings

    Manually Configuring Computer Network Settings In order for your computer to properly communicate with your Router, you will need to change your PC’s TCP/IP settings to DHCP. Manually Configuring Network Adapters in Windows 2000, NT, or XP Click “Start”, “Settings”, then “Control Panel”. Double-click on the “Network and dial-up connections”...
  • Page 92 Manually Configuring Computer Network Settings Manually Configuring Network Adapters in Windows 98SE or Me Right-click on “My Network Neighborhood” and select “Properties” from the drop-down menu. Select “TCP/IP -> settings” for your installed network adapter. You will see the following window. If “Specify and IP address”...
  • Page 93 Manually Configuring Computer Network Settings Set up the computer that is connected to the cable or DSL modem FIRST using these steps. You can also use these steps to add computers to your Router after the Router has been set up to connect to the Internet.
  • Page 94 Manually Configuring Computer Network Settings Close the window. If you made any changes, the following window will appear. Click “Save”. Restart the computer. When the computer restarts, your network settings are now configured for use with the Router.
  • Page 95 Manually Configuring Computer Network Settings Manually Configuring Network Adapters in Mac OS X Click on the “System Preferences” icon. Select “Network” (1) from the “System Preferences” menu. Select “Built-in Ethernet” (2) next to “Show” in the Network menu.
  • Page 96 Manually Configuring Computer Network Settings Select the “TCP/IP” tab (3). Next to “Configure” (4), you should see “Manually” or “Using DHCP”. If you do not, check the PPPoE tab (5) to make sure that “Connect using PPPoE” is NOT selected. If it is, you will need to configure your Router for a PPPoE connection type using your user name and password.

  • Page 97: Recommended Web Browser Settings

    Recommended Web Browser Settings In most cases, you will not need to make any changes to your web browser’s settings. If you are having trouble accessing the Internet or the advanced web-based user interface, then change your browser’s settings to the recommended settings in this section. Internet Explorer 4.0 or Higher Start your web browser.
  • Page 98 Recommended Web Browser Settings Make sure there are no check marks next to any of the displayed options: “Automatically detect settings”, “Use automatic configuration script”, and “Use a proxy server”. Click “OK”. Then click “OK” again in the “Internet Options” page. Netscape Navigator 4.0 or Higher Start Netscape.

  • Page 99: Using Your Router With Aol Broadband

    Using your Router with AOL Broadband How to set up your network to operate with AOL ® for Broadband and your new Belkin Router There are two types of AOL connections available—either AOL DSL or AOL Cable. A third service is called AOL BYOA (Bring Your Own Access).
  • Page 100 Using your Router with AOL Broadband Perform a keyword search on “names” by clicking “Keyword”, and then “Go to Keyword”. In the “Keyword” window, type in “names” then click “Go”. You will see the “AOL Screen Names” window. Click “CREATE a Screen Name”.
  • Page 101 Using your Router with AOL Broadband The “Choose a Screen Name” window will appear. Type in a screen name, and click “Continue”. If this screen name is for the Router, the name you choose should be something like your master screen name followed by the word Router.
  • Page 102 Using your Router with AOL Broadband The “Select a Parental Controls setting” window will appear. If this screen name is for the Router, choose any one of the settings (it doesn’t matter which). If this screen name is for a computer, choose the desired setting and click “Continue”.
  • Page 103 Using your Router with AOL Broadband Step 2 Configuring the Router Follow this step only if you use AOL DSL. This procedure is for Belkin Router models F5D5231-4, F5D6231-4, F5D7230-4, and F5D7231-4. Connect your Router to your network per the instructions in your User Manual.
  • Page 104 Using your Router with AOL Broadband In the password fields, type in the password you created for the Router’s screen name (2). Leave the “Service Name” field blank (3). Do not change the MTU setting. Click on “Apply Changes” (4). .
  • Page 105 Using your Router with AOL Broadband Step 3 Configure your computers with the AOL screen names you just created This step consists of installing the AOL software on each computer and configuring it to use one of the screen names you created in Step 1.
  • Page 106 Using your Router with AOL Broadband AOL Cable or AOL BYOA (Bring Your Own Access) Users Directions AOL Cable users need to follow these directions. If you have AOL DSL, go to the “Directions for AOL DSL” section beginning on page 97.
  • Page 107 Using your Router with AOL Broadband You should see the “AOL Screen Names” window. Click “CREATE a Screen Name”. A window will appear that asks whether the screen name is for a child. Click “Yes” or “No” to answer. The “Choose a Screen Name”...
  • Page 108 Using your Router with AOL Broadband The “Choose a password” screen will appear. Enter the password for this screen name twice, and click “Continue”. The “Select a Parental Controls setting” window will appear. Choose the appropriate setting for this screen name.
  • Page 109 Repeat steps 1-11 for each computer that will be using AOL and that will be connected to your Belkin Router. When you are finished adding screen names, go to Step 2. Step 2 Configure your computers with the new AOL screen names...

  • Page 110: Troubleshooting

    Troubleshooting Problem: Installation CD does not automatically start Solution: If the CD-ROM does not start the Easy Install Wizard automatically, it could be that the computer is running other applications that are interfering with the CD drive. If the Easy Install Wizard screen does not appear within 15-20 seconds, open up your CD-ROM drive by double clicking on the “My Computer”...
  • Page 111 Troubleshooting Problem: Easy Install cannot find my Router Solution: If the Easy Install Wizard is not able to find the Router during the installation process please check the following items: If the Easy Install Wizard is not able to find the Router during the installation process, there may be 3rd party firewall software installed on the computer attempting to access the Internet.
  • Page 112 Troubleshooting Problem: Easy Install cannot connect my Router to the Internet Solution: If the Easy Install Wizard is not able to connect the Router to the Internet, please check the following items: Use the troubleshooting suggestions within the Easy Install Wizard. If the troubleshooting screen does not open automatically, click on the “Troubleshoot”...
  • Page 113 This will cause the router to re-attempt communication with the modem. If the “WAN” light on the Router is not lit after completing these steps, please contact Belkin Technical Support. Try shutting down and restarting your computer. Problem: •...
  • Page 114 Please refer to the instructions provided by the publisher of your firewall software for instructions on configuring the firewall to allow Internet access. If you are still unable to access the Internet after disabling any Firewall software, please contact Belkin Technical Support.
  • Page 115 Solution: If you are unable to connect to the Internet from a wireless computer, please check the following items: Look at the lights on your Router. If you’re using a Belkin Router, the lights should be as follows: • The “Power” light should be on.
  • Page 116 Troubleshooting Problem: I can’t connect to the Internet wirelessly, but my network name is listed Solution: If the name of your network is listed in the “Available Networks” list, please follow the steps below to connect wirelessly: Click on the correct network name in the “Available Networks”...
  • Page 117 This setting is found on the Router’s wireless “Channel and SSID” configuration page. If you are still unable to access the Internet after completing these steps, please contact Belkin Technical Support. Problem: My wireless network performance is inconsistent...
  • Page 118 Range Extender/Access Point that can be connected wirelessly to a Belkin 802.11g Wireless Router, without requiring an Ethernet cable or Powerline Ethernet Adapters. These Belkin products are available at your local retailer, or can be ordered from Belkin directly. For network/range extension information, please visit: www.belkin.com/networking to find out more about:...
  • Page 119 Troubleshooting Problem: I am having difficulty setting up Wired Equivalent Privacy (WEP) security on a Belkin Router or Belkin Access Point Solution Log into your Wireless Router or Access Point. Open your web browser and type in IP address of the Wireless Router or Access Point.
  • Page 120 The “Advanced” button will allow you to view and configure more options of the card. Once the advanced button is clicked the Belkin Wireless LAN Utility will appear. This Utility will allow you to manage all the advanced features of the Belkin wireless card.
  • Page 121 Download the patch here: http://www.microsoft.com/downloads/details.aspx?FamilyID=009d8 425-ce2b-47a4-abec-274845dc9e91&displaylang=en You also need to download the latest driver for your Belkin Wireless 802.11g Desktop or Notebook Network Card from the Belkin support site. Other operating systems are not supported at this time. Microsoft’s patch only supports devices with WPA-enabled drivers such as Belkin 802.11g products...
  • Page 122 Troubleshooting Problem: I am having difficulty setting up Wi-Fi Protected Access (WPA) security on a Belkin Wireless Router or Belkin Access Point for a home network. Solution: From the “Security Mode” drop-down menu, select “WPA-PSK (no server)”. For Encryption Technique, select “TKIP” or “AES”. This setting will have to be identical on the clients that you set up.
  • Page 123 Troubleshooting Problem: I am having difficulty setting up Wi-Fi Protected Access (WPA) security on a Belkin Wireless Router or Belkin Access Point for a business. Solution: If your network uses a radius server to distribute keys to the clients, use this setting. This is typically used in a business environment.
  • Page 124 Troubleshooting Problem: I am having difficulty setting up Wi-Fi Protected Access (WPA) security on a wireless Belkin client card for a home network. Solution: Clients must use the same key that the Wireless Router or Access Point uses. For instance if the key is “Smith Family Network Key” in the Wireless Router or Access point, the clients must also use that same key.
  • Page 125 The “Advanced” button will allow you to view and configure more options of the card. Once the advanced button is clicked the Belkin Wireless LAN Utility will appear. This Utility will allow you to manage all the advanced features of the Belkin wireless card.
  • Page 126 Troubleshooting Problem: I am having difficulty setting up Wi-Fi Protected Access (WPA) security on a non-Belkin client card for a home network. Solution: For non-Belkin WPA Wireless Desktop and Wireless Notebook Network Cards that are not equipped with WPA-enabled software, a file from Microsoft called “Windows XP Support Patch for Wireless...
  • Page 127 Troubleshooting Select “TKIP” or “AES” under “Date Encryption”. This setting will have to be identical to the Wireless Router or Access Point that you set up. Type in your encryption key in the “Network Key” box. Important: Enter your Pre-Shared key. This can be from 8 to 63 characters and can be letters, numbers, or symbols.
  • Page 128 Troubleshooting What’s the difference between 802.11b, 802.11g and 802.11a? Currently there are three levels of wireless networking standards, which transmit data at very different maximum speeds. Each is based on the designation 802.11x, so named by the IEEE, the board that is responsible for certifying networking standards. The most common wireless networking standard, 802.11b, transmits information at 11Mbps;...
  • Page 129 Troubleshooting Technical Support You can find technical support information at networking www.belkin.com want to contact technical support by phone, please call: 877-736-5771 or 310-898-1100 ext.2263 Europe: 00 800 223 55 460 Australia: 1800 666 040 http://www.belkin.com/ through the tech support area. If you...

  • Page 130: Information

    Information FCC Statement DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY We, Belkin Corporation, of 501 West Walnut Street, Compton, CA 90220, declare under our sole responsibility that the product, to which this declaration relates, complies with Part 15 of the FCC Rules. Operation is...
  • Page 131 Modifications The FCC requires the user to be notified that any changes or modifications to this device that are not expressly approved by Belkin Corporation may void the users authority to operate the equipment. Canada-Industry Canada (IC) The wireless radio of this device complies with RSS 139 &...
  • Page 132 Belkin Corporation Limited Lifetime Product Warranty Belkin Corporation warrants this product against defects in materials and workmanship for its lifetime. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product.
  • Page 133 Tel: +44 (0) 1933 35 2000 Fax: +44 (0) 1933 31 2000 © 2004 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. The 125 HSM logo, 54g logo and 54g are trademarks of Broadcom Corporation in the U.S.

This manual is also suitable for:

F5d7231F5d7235Wireless g desktop card f5d7000High-speed mode wireless grouter
