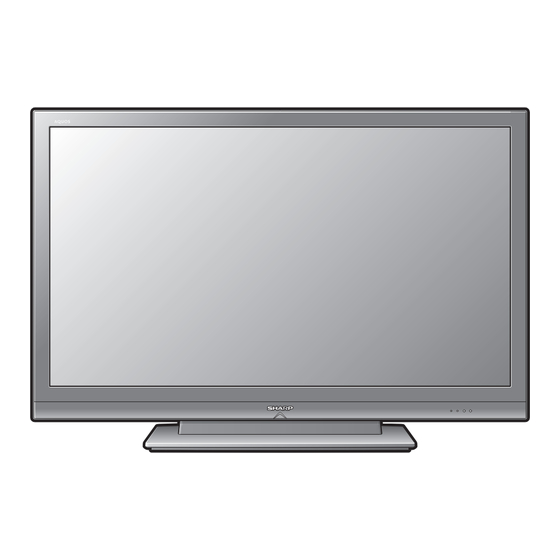

LC-C46700UN
LC-C52700UN
LIQUID CRYSTAL
TELEVISION
OPERATION MANUAL
Supplied Accessories
Make sure the following accessories are provided with the product.
Remote control unit ( g 1)
Page 8
■ Operation manual ( g 2 languages)
•
Always use the AC cord supplied with the TV.
•
The illustrations above are for explanation purposes and may vary slightly from the actual accessories.
ENGLISH
IMPORTANT : Please read this operation manual
"AA" size battery ( g 2)
Page 9
before starting operating the equipment.
AC cord ( g 1)
Cable clamp ( g 1)
Page 8
Page 8
1
Stand unit ( g 1)
Page 7
