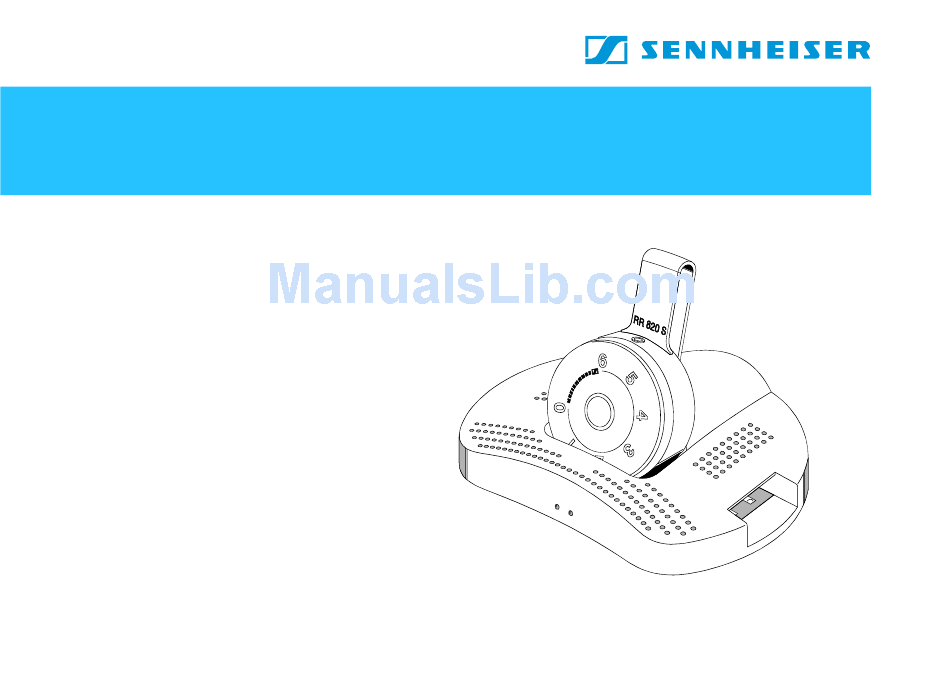

  • Page 1 Set 820 S Bedienungsanleitung Instruction Manual Notice d´emploi Istruzioni per l´uso Instrucciones para el uso Gebruiksaanwijzing Bruksanvisning...
  • Page 3 Deutsch...3 English ... 25 Français ... 47 Italiano... 69 Español ... 91 Nederlands... 113 Svenska ... 135...
  • Page 5 Set 820 S The Set 820 S is an assistive listening system for your radio, TV, hi-fi system or similar sound sources at the volume you choose. The transmitter has a range of up to 100 m which allows you to move around freely –...
  • Page 6 Contents The Set 820 S consists of the following components and accessories: - Receiver - Transmitter (charging unit) - Rechargeable battery - Power supply - Induction neck loop - Microphone (USA/UK only) - Connecting cable for headphone output - Adapter for SCART socket...
  • Page 7 If your TV set is fitted with a SCART socket, use the supplied adapter. If your TV does not have a headphone or SCART socket, you can use an external microphone which is described in the section “Accessories”. SET 820 S...
  • Page 8 One transmitter can be used to transmit to several receivers on the same frequency. The transmitter’s range may decrease due to the surface/ composition of walls. SET 820 S...
  • Page 9 The transmitter is now in stand-by mode, its power consumption is very low so that it can remain connected to the mains. Batteries can always be recharged when the transmitter is connected to the mains. SET 820 S...
  • Page 10 Using the induction neck loop Put the EZT 1011 induction neck loop around your neck and insert its plug into the socket at the top of the receiver. Set your hearing aid to position "T". SET 820 S...
  • Page 11 Adjust the receiver’s volume with the operating control. If you are not using the receiver, pull the 3.5 mm stereo jack plug out of the receiver’s socket to avoid di- scharging the battery. The receiver is then turned off. SET 820 S...
  • Page 12 Turning the automatic compression system on Use the COMP switch (compression) at the rear of the transmitter to turn the automatic compression system on. This system reproduces soft passages louder and decreases loud sounds. Choose the setting that suits your listening preferences. SET 820 S...
  • Page 13 Use the MO/ST switch to choose between mono and stereo transmission. For mono TVs and when using the MKE 800 TV microphone, the switch must be set to MONO (MO). SET 820 S...
  • Page 14 If you decide to change the transmitter channel (see section "Changing the trans- mission channel”), the frequency search tuning must be re-started by pressing the TUNE button on the receiver again. SET 820 S...
  • Page 15 10-12 hours. The transmitter automatically switches to trickle charging so that the battery cannot be overcharged. The receiver can remain in the charging compartment even when the battery has been fully charged. SET 820 S...
  • Page 16 A battery has a service life of 1-2 years and should be replaced if the ope- rating time decreases. Sennheiser batteries can be recycled. Please dispose of the batteries as special waste or return them to your specialist dealer. To protect the envi- ronment, only dispose of totally exhausted batteries which cannot be re- charged.
  • Page 17 Neither transmitter nor receiver must get wet or excessively moist, e.g. due to spilled liquids or use in damp rooms. Accessories Only use original Sennheiser spare parts and accessories. ATTENTION: Components from other manufacturers (e.g. for power supply or battery) may cause damage to the unit and will invalidate the warranty.
  • Page 18 Charger Additional receiver Transmitter External microphone Induction couplers Dynamic headphones HZL series connecting cable (for direct connection to hearing aids) BA 151 L 151-2 RR 820 S TR 820 MKE 800 TV EZT 1011 HD 25 SP SET 820 S...
  • Page 19 12 hours. L 151-2 charger Spare batteries can be charged via the L 151-2 charger. RR 820 S receiver One transmitter can transmit to several receivers. Additional RR 820 S receivers are available from your authorized dealer. SET 820 S...
  • Page 20 MKE 800 TV external microphone If your TV doesn’t have a headphone output, SCART or RCA socket, you can use your Set 820 S together with the MKE 800 TV microphone. Fix the microphone to the loudspeaker of your TV by means of Velcro tape.
  • Page 21 - Are you too far from the transmitter? (if so, move closer) - Choose a different channel. - Adjust the setting with the TUNE button. - Should the problem persist, please contact your authorized dealer for assistance. Never oper the unit! SET 820 S...
  • Page 22 Adjusting the bass response: Potentiometer turned fully to the left Potentiometer turned fully to the right Bass response R Bass response L min. max. Max. volume L Max. volume R attenuation of 25 dB at 100 Hz attenuation 0 dB SET 820 S...
  • Page 23 RF output power AF input voltage range Audio input Microphone socket Charging time for battery SET 820 S FM, stereo see type plate at the base of the transmitter 40 Hz ... 15 kHz 60 dB A rms typ. up to 10 mV 50 mV ...
  • Page 24 4 hours per battery approx. 35 g (without battery) length: 95 mm, width: 63 mm, height: 35 mm max. 700 mV at 32 Ω 300 ... 10,000 Hz 47 Ω 100 mA/m at 1 kHz and 10 mVA 2 years SET 820 S...
  • Page 25: Manufacturer Declarations

    Before putting the device into operation, please observe the respective country-specific regulations! WEEE Declaration Your Sennheiser product was developed and manufactured with highquality materials and compon- ents which can be recycled and/or reused. This symbol indicates that electrical and electronic equip- ment must be disposed of separately from normal waste at the end of its operational lifetime.
  • Page 26 Sennheiser electronic GmbH & Co.KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 01/06 511981 / A01...
