Page 1: Instruction Manual

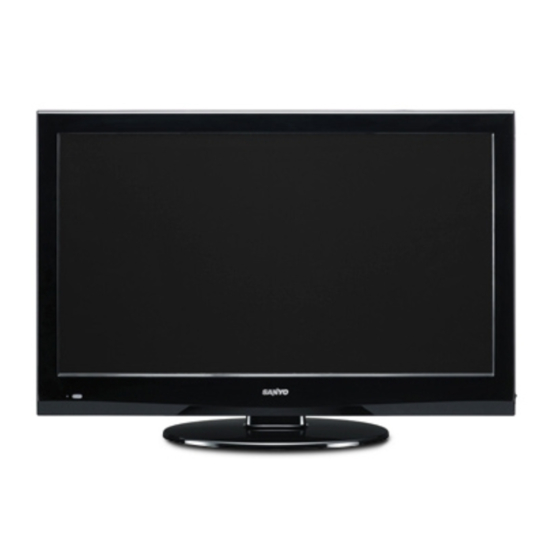

INSTRUCTION MANUAL LCD TV Before connecting, operating or adjusting this product, please read the manual completely. Please keep this manual for future reference. LCD-37XR9SDA... -
Page 2: Important Information
IMPORTANT INFORMATION If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as: ! Using cabinets or stands recommended by the manufacturer of the television. ! Only using furniture that can safety support the television. -
Page 3: Table Of Contents
Table of Contents Important Safety Precautions...1 Important Notice...3 Preparations...4 Identification of Controls ...6 Connections...9 Basic Operations...13 Memorizing the Channels ...16 Channel and Program Selection...20 Picture Adjustment ...21 Sound Adjustment...22 System Setup ...24 Rating and Lock Setup ...25 Timer Setup...27 EPG Operation...29 Teletext &... -
Page 4: Important Safety Precautions
Important Safety Precautions Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. - Page 5 Important Safety Precautions 15. Stand---Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. Do not place the product on an unstable trolley, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product.
-
Page 6: Important Notice
Important Notice About Temperature About After-Image Cleaning and Maintenance Do not use in hot and cold rooms (locations) When the unit is used in rooms (locations) with low temperature, the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal. -
Page 7: Preparations
Preparations Using the Remote Control Use the remote control by pointing it towards the remote sensor window of the < set. Objects between the remote control and sensor window may prevent proper operation. Cautions regarding use of remote control Do not expose the remote control to shock. In addition, do not expose the remote <... -
Page 8: Antenna Connection
Preparations (continued) Antenna Connection INSTALL the unit in a room where direct light will not fall upon the screen. Total darkness or a reflection on the picture screen may cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing. Optimum reception of colour requires a good signal and will generally mean that an outdoor antenna must be used. -
Page 9: Identification Of Controls
Identification of Controls Main Unit (front view/side view) Remote Sensor Power Indicator 1. CH+/- Press these two buttons to directly change the TV channel. In OSD menu, press these buttons to choose the OSD items. 2. VOL+/- Press the VOL+ or VOL- button to directly increase or decrease the sound volume level; In OSD menu, press these buttons to adjust the value or setting of each item. - Page 10 Identification of Controls Main Unit (rear view) 1. HDMI 1/2/3 interface To connect with those equipments with HDMI or DVI interface, for example, Set-top box or DVD player. (A HDMI-to-DVI adapter cable is required when you are connecting a DVI-equipped device to this TV.) 2.
-
Page 11: Remote Control Unit
Identification of Controls Remote Control Unit (Continued) POWER: Switches the TV power on or Standby. TV/Radio: Switches between TV and Radio mode. (DTV only) EPG: Displays the Electronic Program Guide (DTV only). FAV.LIST: Displays the favorite channel list. FAV+/ FAV–: Selects the favorite channel. 0 –... -
Page 12: Connections
Connections Cautions before connecting Carefully check the terminals for position and type before making any connections. The illustration of the external equipment may be different depending on your model. Loose connectors can result in image or color problems. Make sure that all connectors are securely inserted into their terminals. -
Page 13: Connecting A Camcorder
Connections (Continued) Connecting a Camcorder TV REAR Cables are often color-coded to connectors. Connect red to red, white to white, etc. How to connect: Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the unit and camcorder. To playback Camcorder 1. -
Page 14: Connecting Component Video
Connections (Continued) Connecting Component Video TV REAR Cables are often color-coded to connectors. Connect red to red, white to white, etc. To connect a device using component video: Connect the Component Video cable between the Y, Cb/Pb, Cr/Pr input jacks on the unit and Y, Cb/Pb, Cr/Pr output jacks on the device . -
Page 15: Connecting Headphones
Connections (Continued) Connecting a VCR (for Recording) TV REAR How to connect: Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the unit and VCR. To record program 1. Turn on your TV, select a program you wish to record. 2. -
Page 16: Basic Operations
Basic Operations Main Menu Overview List of main menus to help you with operations PICTURE menu Picture Sound Time Option Lock Picture Mode User Contrast Brightness Color Sharpness Tint Prev Page Next Page Select Move Menu TIME menu Picture Sound Time Option Lock... -
Page 17: Turning Off
Basic Operations (Continued) Turning On/Off the Power Turning On Insert the power cord into the wall outlet. Press the Power Switch on the unit to power on. If the unit is in standby mode, press Power button on the unit or the remote control to turn on the unit, and you will be ready to use its features. -
Page 18: Displaying The Information Banner
Basic Operations (Continued) Selecting the Input Signal Source Press SOURCE button. Press 6 or 5 to select the input source. Options include: ! DTV — Watch the DTV signal. ! ATV — Watch the ATV signal. ! AV — Watch the signal from the AV input terminals. ! Component 1 —... -
Page 19: Memorizing The Channels
Memorizing the Channels When you turn on the TV for the first time, you should perform an auto channel search to set up stations on your TV. Note: Be sure to select the proper input source (ATV/DTV) before operation. Auto Channel Search You should perform an auto channel search to search for all channels available and stores them in memory. -
Page 20: Manual Fine Tuning
Memorizing the Channels Manual Searching for ATV programs If desired analog programs cannot be searched by Auto Tuning, you can make use of ATV Manual Tuning to search programs manually. In Channel menu, press 6 item, then press4 or OK to access. Highlight Storage To item, press 3 position in which you want to store. -
Page 21: Labeling Channels
Memorizing the Channels Labeling Channels If required, you can give a name to the programs. Press MENU and the main menu screen displays. Press 3 to select Channel menu, press 6 Press 6 to select Programme Edit item, press 4 open the Programme Edit menu. -
Page 22: Channel List Management
Memorizing the Channels Channel List Management After auto search, a default channel list is created. You can make use of Programme Edit menu to select program, to skip unnecessary channels, to delete channels, to sort programs, and to create a favorite channel list. To skip unnecessary channels After auto search, you can skip unnecessary channels so that only the channels you want to watch can be selected by / CH . -
Page 23: Channel And Program Selection
Channel and Program Selection Please note: your new TV is capable of receiving both radio and TV broadcasts. And for TV reception, your new TV is capable of receiving both traditional analog channels and digital channels. When watching digital TV program and you want to listen to radio program, simply press TV/Radio button to switch. -
Page 24: Picture Adjustment
Picture Adjustment Customizing the Picture Press MENU and the main menu screen displays. Press 3 to select Picture menu, press 6 Within the menu, press 5 and press 5 to navigate through the options or adjust an option. Press MENU to return to previous menu. Press EXIT to exit the menu screen directly. Picture Sound Time... -
Page 25: Sound Adjustment
Sound Adjustment Adjusting the Volume Using the volume buttons (VOL+ and VOL – ) Press the VOL + or VOL- to increase or decrease the volume. Using the Mute Press the MUTE button to temporarily turn off all sound. To restore the sound, press the MUTE button again. Adjusting the Sound Press MENU and the main menu screen displays. -
Page 26: Nicam Broadcast Selection
Sound Adjustment Stereo/Bilingual Selection You can quickly select sound multiplex mode by using the STEREO button on the remote control. NICAM Broadcast Selection This enables the selection of the reception mode when receiving a NICAM signal. To let you enjoy NICAM broadcasting, this TV set receives NICAM system stereo, bilingual, and monaural broadcasts. -
Page 27: System Setup
System Setup System Setup You may change system settings such as Hearing impaired, SPDIF , Audio Preference, etc. by making use of Option menu. Press MENU and the main menu screen displays. Press 3 to select Option menu, press 6 Within the menu, press 5 or adjust an option. -
Page 28: Rating And Lock Setup
Rating and Lock Setup Password Setup The Password setup sub-menu is used to set a new system password or to change an existing system password. By default, the system password is 0000 and you may change it. To access Parental Guidance, to lock or unlock channels, to view locked channels, etc., the system password is required. - Page 29 Rating and Lock Setup Parental Guidance Setup (DTV only) Parental Guidance blocks programs according to their classification so that children can not view certain programs. Navigate to the Lock menu and input the correct password to access. Press 5 to highlight the Parental Guidance item. Use3 to select your desired rating.
-
Page 30: Timer Setup
Timer Setup Time Zone Selection To obtain local time, you should first set local time zone. and it depends on your local station whether has broadcast time zone information. Press MENU and the main menu screen displays. Press 3 to select Time menu, press 6 Press 5 to select Time Zone item, and then press 3 select the appropriate one. -
Page 31: Sleep Timer Setup
Timer Setup (Continued) Off Timer Setup With Off Timer function On, the TV will automatically turn off at the preset time. Navigate to the Time menu, press 6 Press 5 to select Off Time item, press 4 the submenu. Now the Activate item will be highlighted automatically, press to select On . -
Page 32: Epg Operation
EPG Operation The Electronic Programme Guide (EPG) makes it possible for users to see details about the programme they are watching, other programmes and even a schedule of the next 7 days. The information available includes the number and name of the channel, the name and type of programme, the start and end time, and a summary. -
Page 33: Teletext & Subtitle
Teletext & Subtitle Teletext What Is Teletext? Your System receives Teletext signals broadcast by a TV network, and decodes them into graphical format for viewing. News, weather and sports information, stock exchange prices and programme previews are among the many services available. -
Page 34: Screen Setup For D-Sub(Pc) Mode
Screen Setup for D-SUB(PC) Mode Before adjusting the screen, make sure that you select the correct source (D-SUB). Screen Setup Press MENU and the main menu screen displays. Press 3 to select the Picture menu, press 6 Within the menu, press 5 or 6 item, then press 4 or OK to access. -
Page 35: Hotel Mode Setup
Hotel Mode Setup Hotel Mode Setup Press SOURCE button. The Input Source menu opens. Press number buttons: [ 1, 4, 7 ] to access the Hotel Mode screen. Within the menu, press 5 or adjust an option. Press OK to save the setting. Press MENU or EXIT to exit the menu screen directly. -
Page 36: Troubleshooting
Troubleshooting If, after reading these operating instructions, you have additional questions related to the use of your television, please call the services center in your local area. Before calling service, please check the symptoms and follow suggested solutions. Remote Control Problem Remote control does not operate Video and Audio... - Page 37 Troubleshooting General Problem One or some channels can’t be displayed Lost password Some items can’t be accessed TV cabinet creaks Some settings (such as volume setting, etc.)may not be memorized when the TV loses power or you press main Power Switch to turn off the TV.
-
Page 38: Specifications
Specifications Type: LCD TV Display Size diagonal: 94cm (37 inch) Power Supply: AC220-240V 50/60Hz Power Consumption: 150W Dimensions(mm): 899 (W) x 636 (H) x 300 (D) Unit Weight(kg): 16.6 TV System: Analogue: CCIR(PAL-B/G, NTSC(AV)) Digital: DVB-T(2K/8K OFDM) Note Design and specifications are subject to change without notice. -
Page 39: Assembling The Stand And Removing The Stand Column
Assembling the stand and removing the stand column(Option) If the stand is provided, please read these instructions thoroughly before attempting this installation. You must install your TV into the stand in order for it to stand upright on a cabinet or other flat surface. If you intend to mount your TV on a wall or other vertical surface, you must remove the stand column. - Page 40 To remove the stand column: 1. Lay your TV flat (screen down) on a table or bench. Make sure that you put down a soft cushion or cloth so that your TV is not scratched. 2. Remove the four screws holding the stand column to your TV, then remove the stand column. Stand column Remove four screws NOTE:...
- Page 41 5944035970 Ver. 1.0...
