Summary of Contents for Samsung yepp' YP-53

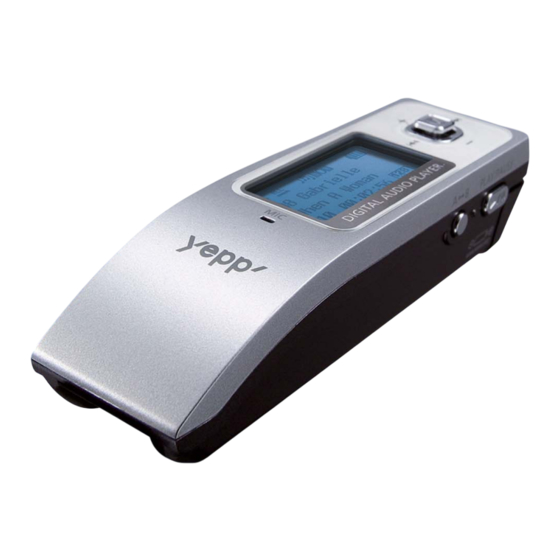

- Page 1 AH68-01614B(Rev 0.0) - FM Reception - MP3, WMA, ASF Playback - 3D Sound - Removable Storage Device - Upgradable - USB 2.0 Support - Direct MP3 Recording - 20 Hours of Continuous Play...
-
Page 2: Table Of Contents
Contents Preparations Safety Instructions...4 Features ...6 Components ...8 Location of Controls ...9 Connection to Computer Connecting to PC ...11 Manual Installation of USB Driver ...15 Using the removable storage(PC)...18 Downloading/Uploading files ...18 Disconnecting the USB cable...18 Formatting ...19 Installing yepp Studio ...20 To View Help on yepp Studio ...21 Basic Usage Playing Music and Turning Off the Device ...22... -
Page 3: Safety Instructions
Safety Instructions Read and understand all the instructions to avoid injury to yourself and damage to the equipment. Do not expose to extreme temper- Do not subject the unit to severe atures (above 95°F or below 23°F). impact, or place heavy objects Do not expose to moisture. -
Page 4: Features
Upgradable You can upgrade the built-in programs when available. Add functions, CODEC, etc. Please check the home page (http://www.samsung.com) for upgrades. 20 Hours of Continuous Play This player uses one AAA/LR03 alkaline battery. Operation can last up to 20hours. Actual playing time may vary according to the type and capacity of the battery. -
Page 5: Components
Components Earphone Carrying case Neck Strap Player One Battery Line In Cable (1.5V AAA/LR03 type) Model YP-53 H YP-53 V YP-53 X Built-in memory 128MB 256MB 512MB The capacity of the useable built-in memory is less than indicated as the internal firmware uses a part of the memory as well. -
Page 6: Connecting To Pc
Location of Controls Display Equalizer, SRS indicator Play mode indicator Hold indicator Play/Stop/Pause indicator Track Number indicator Inserting a Battery Slide the cover in the direction of the arrow to open. Insert a battery to the right poles + , – and push-close the cover in the direction the arrow as indicated. - Page 7 You may not see the display screen during installation. Go to the device manager to check that installation has been successfully completed. When the USB driver is installed, "Samsung yepp YP-53 USB Device" will appear in the [Device Manager]. USB connect cable...
-
Page 8: Manual Installation Of Usb Driver
Device Manager Disk Drives Samsung yepp YP-53 Windows 2000: Control Panel System Hardware Device Manager Disk Drives Samsung yepp YP-53 USB Device Windows XP: Control Panel System Hardware Device Manager Universal Serial Bus controllers Disk Drives Samsung yepp YP-53 USB Device When the USB driver is not installed automatically, refer to the next page. - Page 9 Manual Installation of USB Driver After selecting the driver, click on [Update Driver]. Select a compatible driver, click on [Next] to finish. Manual Installation of USB Driver In Windows 98 Click [Next] button in the series of windows that appear. : To complete the installation, make sure to restart your PC.
-
Page 10: Formatting
Using the removable storage(PC) Downloading/Uploading files Connect the player to your PC. Open Windows Explorer on PC. Removable Disk is displayed in Windows Explorer. Select the file you want to save, then drag and drop it to the removable disk. The saved files will be played in the order of file name as they appear. -
Page 11: Installing Yepp Studio
Installing yepp Studio yepp Studio is the program that can convert and play back the music files in PC. Insert the Installation CD into CD-ROM drive. Select language Select [Install yepp Studio]. Complete the installation by following the instructions in the order as they appear in the windows. -
Page 12: Playing Music And Turning Off The Device
Playing Music and Turning Off the Device Turning Power On and Off Power On : Press the button to turn on the power. √/ Power Off : Press and hold the button to turn off the power. √/ Playing Music Press the button. -
Page 13: Recording Voice
Recording Voice Slide the switch to the ENC position to begin Voice Recording. To stop the recording, move the switch in the opposite direction and a new voice file will be created. Recording Time Remaining Time - The files are recorded in the order of V001,V002..., and saved as WAV file in the VOICE folder after recording. -
Page 14: Searching For Music/Voice Files
Searching for Music/Voice Files To search for specific parts during play Pull and hold the œœ , √√ to the left or right during playback to search for the part you want to listen to. Release the key to resume play normally. To change tracks during play Pull the √√... -
Page 15: Searching Stored Frequencies
Listening to FM Radio Searching Stored Frequencies Press the button in FM Mode. √/ PRESET screen will appear. Use the œœ , √√ to move to the frequency you want. Deleting Stored Frequencies - After moving to the PRESET number you want to delete, press and hold the key. -
Page 16: Loop Repeating
Loop Repeating Starting Point While playing music files, press the A B button briefly at the beginning of the loop you want to set. appears in the display. Ending Point Press the A B button briefly again to set the end of the loop. -
Page 17: Using Navigation
Using Navigation You can easily search for files or switch modes using the Navigation function. Press and hold the key to enter Navigation mode. or press the key to move to Menu and then select Navigation in Menu. Select the file or folder that you want to play. œœ... -
Page 18: Setting Playlist
Setting Playlist Setting Playlist - Move to the file you want in Navigation mode and press the The selected file will be marked. To release the playlist setting, move to the marked file in Navigation mode and press the Playing Playlist Select Playlist in the MENU. -
Page 19: Setting The Eq Mode
Setting the EQ mode Select Equalizer in Settings. In Equalizer, use the to move to the sound mode you want and press the key. SRS ( ): You will hear 3D Stereo sound. TruBass ( ): This is a bass boost feature that adds fullness to the sound. WOW: This feature allows you to enjoy the SRS and Trubass features simultaneously. -
Page 20: Backlight
Display Select Display in Settings. Scroll Use the to set the scroll speed. The setting range for the scroll speed, which adjusts the speed of the track title flow, is 0 to 10. Information Play time: Indicates current play time Remain time: Indicates remaining play time Used size: Indicates used memory Free size: Indicates remaining memory... -
Page 21: Rec Settings
REC Settings Select REC Settings in Settings. Bitrate Use the to set the encoding bit rate you want. When encoding music into an MP3 file, you can select one of the following bit rates: 32Kbps, 48Kbps, 64Kbps, 96Kbps and 128Kbps. AutoSync Time Use the to set the AutoSync Time. -
Page 22: Beep
Default Volume Select Default Volume in Settings. Default Volume Use the to set the Default Volume value. It is possible to set the default volume to a value between 0 and 30(MAX). If the power is turned on again after having adjusted the volume above the default value, music is played at the default volume. -
Page 23: Troubleshooting
Troubleshooting The software doesn’t work Refer to the system Requirements. The player does not work and the LCD displays nothing. Check the battery capacity Check to see if the battery is inserted to the right poles ( + , – ) After connecting it to PC, execute YP-53 Updater in the desktop to update the product. -
Page 24: Specifications
Specifications Model YP-53 Built-in Memory capacity 128MB(YP-53 H), 256MB(YP-53 V), 512MB(YP-53 X), 1GB(YP-53 Z) Voltage 1.5V X 1 (AAA/LR03 size alkaline battery) lasts up to 20hours (Alkaline battery, MP3 128Kbps, Vol level 20) Playing time 27 X 87 X 21 mm / 33 g (without battery) Dimensions/Weight Plastic Case...
