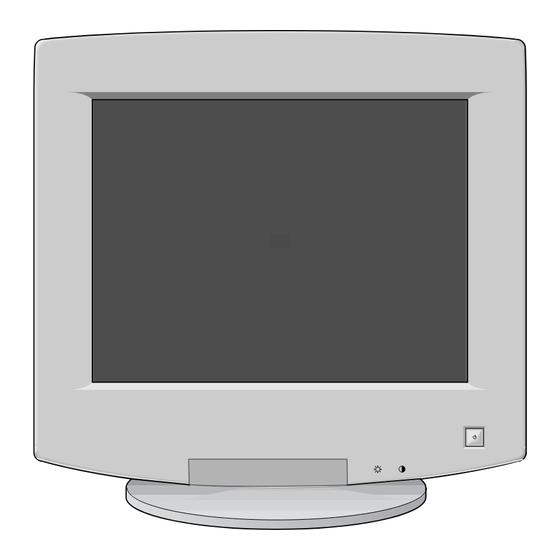

Samsung SyncMaster 1100P Owner's Instructions Manual
Samsung color monitor owner's instructions
Hide thumbs
Also See for SyncMaster 1100P:
- Owner's instructions manual (29 pages) ,
- Manual (58 pages) ,
- Instrucciones de usuario (28 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Samsung SyncMaster 1100P
Summary of Contents for Samsung SyncMaster 1100P
- Page 1 SyncMaster 1100p SyncMaster 1100p Color Monitor Owner’s Instructions...
- Page 2 Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
-
Page 3: Table Of Contents
Contents Safety Instructions ..............2 Unpacking Your Monitor . -
Page 4: Safety Instructions
Safety Instructions Before connecting the AC power cord to the DC adapter outlet, make sure the voltage designa- tion of the DC adapter corresponds to the local electrical supply. Never insert anything metallic into the monitor openings. Doing so may create the danger of electric shock. -
Page 5: Unpacking Your Monitor
Unpacking Your Monitor Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. CD-ROM Manual Power Cord Warranty Card Monitor and Stand Signal Cable (Not available in all areas) -
Page 6: Setting Up Your Monitor
Setting up Your Monitor Connecting Your Monitor Figure 1. Cable connections Turn off your computer and unplug its power cord. Connect the signal cable to the D-SUB or BNC signal port on the back of your monitor. If you are using an IBM-compatible computer, skip to step 5. If you are using a Macintosh computer, connect the other end of the signal cable to a Macintosh adapter. -
Page 7: Plug And Play
Setting up Your Monitor Plug and Play ® Our adoption of the new VESA consuming setup. It allows you to install your monitor in a Plug and Play compatible system without the usual hassles and confusion. Your PC system can easily identify and configure itself for use with your display. -
Page 8: Windows ® 95
Setting up Your Monitor ® Windows To determine the version of Windows Computer icon on the Windows desktop and select Properties. The version number can be seen on the General section under “System:”. Follow the directions given below according to the version of your Windows Version 4.00.950A Click on START, SETTINGS, CONTROL PANEL, DISPLAY SETTINGS tab, CHANGE DISPLAY TYPE, CHANGE, HAVE DISK. -
Page 9: Getting Help
Setting up Your Monitor Check Signal Cable Figure 2. Monitor self test screen The three boxes inside the border are red, green and blue. Failure of any of the boxes to appear indicates a problem with your monitor. This box also appears during normal operation if the video cable becomes disconnected or damaged. -
Page 10: Adjusting Your Monitor
Adjusting Your Monitor User Controls Your samsung SyncMaster computer monitor allows you to easily adjust the characteristics of the image being displayed. All of these adjustments are made using the control buttons on the front of the monitor. These buttons operate the on-screen menu, which shows you the monitor’s settings and allows you to change those settings. -
Page 11: Automatic Save
Adjusting Your Monitor Power indicator This light glows green during normal operation, and blinks amber once as the monitor saves your adjustments. Power button Use this button to turn the monitor on and off. Automatic Save Whenever you open the on-screen menu and allow an adjustment window to remain active for about 3 seconds without pressing another button, the monitor automatically saves any adjustments you have made. -
Page 12: Information
Adjusting Your Monitor Information I n fo r m a t i o n F re q u e n c y R a n g e : H : 3 0 - 1 1 5 k H z V: 5 0 - 1 6 0 H z R e c o m m e n d e d Ti m i n g : 1 6 0 0 x 1 2 0 0 / 8 5 H z S e r i a l N u m b e r :... -
Page 13: Menu Features
Adjusting Your Monitor Menu Features The following features can all be accessed using your monitor’s on-screen menu system. Follow the instructions below to adjust the features. Once you are finished making adjustments to a feature, push the EXIT button to return to the then push EXIT again to turn off the menu. -
Page 14: Size
Adjusting Your Monitor Size Position/Size Position Size Zoom Access Function Size Previous Menu Zoom Position/Size Position Size Zoom Access Function Zoom Previous Menu Follow these instructions to change the size of the monitor’s entire display. With the menu off, push the Push the button or “Position / Size”... -
Page 15: Parallel/Rotation
Adjusting Your Monitor Parallel/Rotation Geometry Parallel/Rotation Pincushion/Trapezoid Pinbalance Linearity Access Function Parallel/Rotation Previous Menu Pincushion/Trapezoid Geometry Parallel/Rotation Pincushion/Trapezoid Pinbalance Linearity Access Function Pincushion/Trapezoid Previous Menu Adjust the parallelogram setting when the display is leaning left or right; adjust the rotation setting when the entire display is tilted left or right. -
Page 16: Pinbalance
Adjusting Your Monitor Pinbalance Geometry Parallel/Rotation Pincushion/Trapezoid Pinbalance Linearity Access Function Pinbalance Previous Menu Linearity Geometry Parallel/Rotation Pincushion/Trapezoid Pinbalance Linearity Access Function Linearity Previous Menu Adjust the pinbalance setting when the sides of the display are bowed towards the left or right. With the menu off, push the Push the button or... -
Page 17: Color
Adjusting Your Monitor Color Color Color1 Color2 Color3 Access Function Color1 9300 9300K 5000 Previous Menu Color2 9300 6500K 5000 Previous Menu Color3 9300 5000K 5000 Previous Menu Color temperature is a measure of the “warmth” of the image colors. The available range is between 5000 to 9300K. -
Page 18: Clear Moire
Adjusting Your Monitor Clear Moiré Screen Clear moiré Focus Convergence Access Function Clear moiré Previous Menu Focus Screen Clear moiré Focus Convergence Access Function Focus Previous Menu A “moire” pattern can appear on your screen, looking like a series of concentric circles or arcs. To eliminate this pattern, use the clear moiré... -
Page 19: Convergence
Adjusting Your Monitor Convergence Screen clear moiré Focus Convergence Access Function Convergence Previous Menu Degauss Advanced Degauss Recall Sync. Input Type Video Input Level D-SUB/BNC Access Function Degauss Degaussing... Previous Menu Convergence affects picture clarity. Adjust the horizontal or vertical convergence to properly align the color dots that make up the image. -
Page 20: Recall
Adjusting Your Monitor Recall Advanced Degauss Recall Sync. Input Type Video Input Level D-SUB/BNC Access Function Recall Previous Menu User-Delete Use the recall feature to reset these monitor settings to their original levels: Position, Size, Pincushion, Trapezoid, Parallelogram, Pinbalance, Rotation, and clear moiré. With the menu off, push the Push the button or... -
Page 21: Sync. Input Type
Adjusting Your Monitor Sync. Input Type Advanced Degauss Recall Sync. Input Type Video Input Level D-SUB/BNC Access Function Sync. Input Type Separate Sync. on Green Previous Menu Video Input Level Advanced Degauss Recall Sync. Input Type Video Input Level D-SUB/BNC Access Function Video Input Level 0.7 V... -
Page 22: D-Sub/Bnc
Adjusting Your Monitor D-SUB/BNC Advanced Degauss Recall Sync. Input Type Video Input Level D-SUB/BNC Access Function D-SUB Menu Position Menu Menu Position Menu Duration Languages Access Function Menu Position Previous Menu Use this menu to choose between the signal source connected to the BNC connector input and the signal source connected to the D-SUB connector input. -
Page 23: Menu Duration
Adjusting Your Monitor Menu Duration Menu Menu Position Menu Duration Languages Access Function Menu Duration (Seconds) Previous Menu Languages Menu Menu Position Menu Duration Languages Access Function Languages Deutsch English Previous Menu The menu will automatically turn off if no adjustments are made for a certain time period. -
Page 24: Appendix
Appendix PowerSaver This monitor has a built-in power management system called PowerSaver. This power management system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time. The available modes are “On,” “Standby,” “Suspend,”... -
Page 25: Troubleshooting
Appendix Troubleshooting Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call the phone number on the warranty card, the phone number on the back cover of this manual, or contact your dealer. Table 2. -
Page 26: Specifications
Appendix Specifications Table 3. Specifications Picture Tube 53 cm (21") Full square type [50.8 cm (20”) Viewable] Flat face, 90° Deflection Dot pitch : 1100p : 0.22 mm (H) / 0.14 mm (V) 1100p Plus : 0.21 mm (H) / 0.14 mm (V) Anti-reflection coating with anti-electrostatic properties Medium-short persistence phosphor Synchronization... -
Page 27: Pin Assignments
Appendix Pin Assignments Table 4. 15-Pin D-SUB connector Sync. 15-Pin Side of the Signal Cable Type Pin No. Separate Green Blue DDC Return GND-R GND-G GND-B Reserved GND-Sync./Self- GND-Sync./Self- Raster DDC Data H-Sync. V-Sync. DDC Clock Figure 1: Male Type 11 12 13 14 15 (Figure 1) Composite... -
Page 28: Display Modes
Appendix Table 5. BNC Connectors Assignment Sync-On-Green Green+Sync. Blue NC = No Connection Display Modes For the display modes listed below, the screen image has been optimized during manufacture. Table 6. Preset timing modes Display Mode Frequency (kHz) IBM, VGA2, 720 x 400 IBM, VGA3, 640 x 480 VESA, 800 x 600 VESA, 1024 x 768... -
Page 29: Index
Advanced Automatic Save Brightness CAUTION Clear moire Color Contrast Degauss D-SUB EXIT ( ) button Focus Geometry Information Information ( ) button Languages Linearity MENU MENU ( ) button Menu duration Menu position No Connection, Check Signal Cable Index OSD Lock/Unlock Parallelogram Pinbalance Pincushion...
