SyncMaster 794MB / 794MB+ / 798MB / 796MB / 796MB+
Install drivers
Install programs

Advertisement

Table of Contents
loading

Summary of Contents for Samsung 794MB, 794MB+, 798MB, 796MB, 796MB+

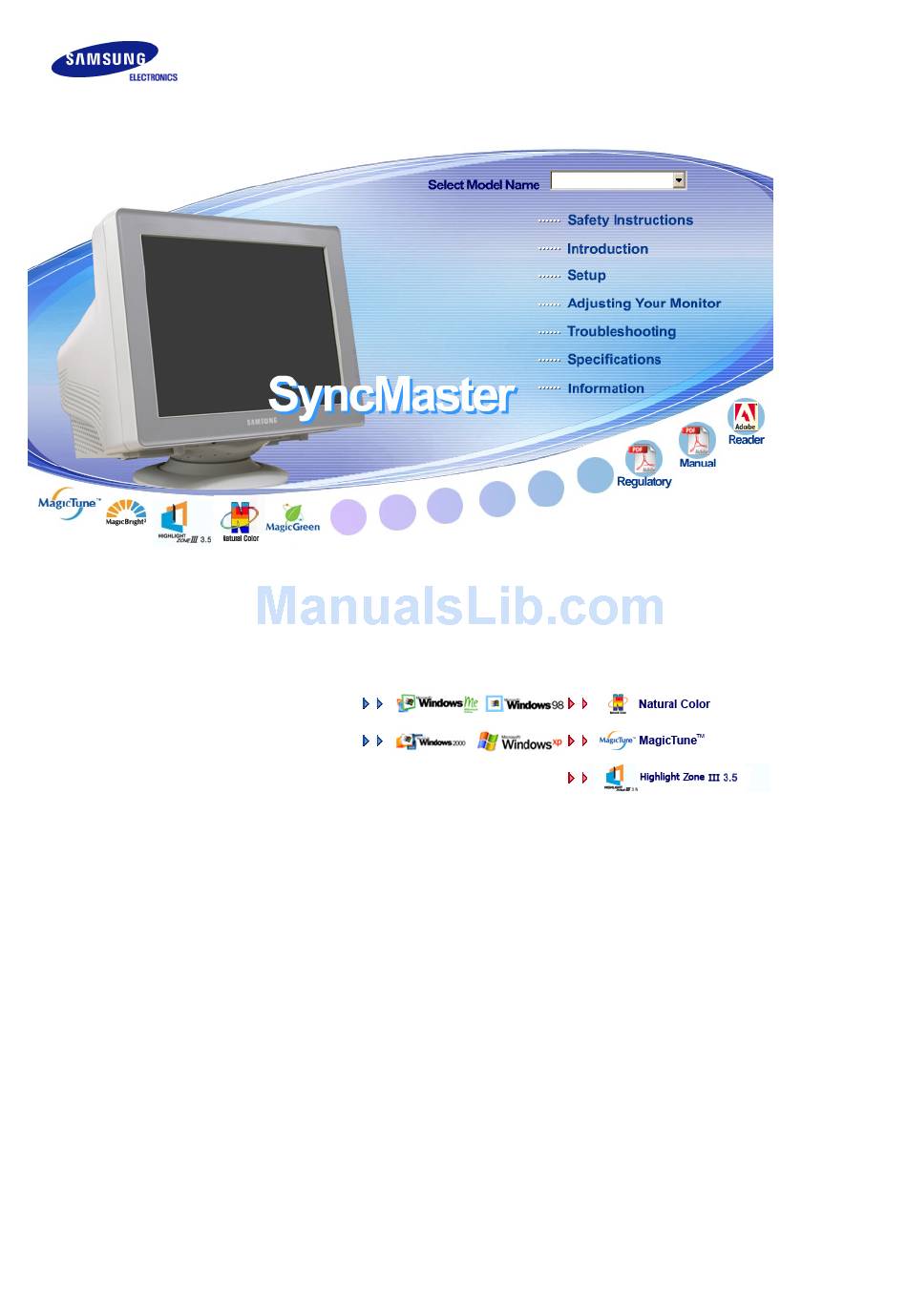

  • Page 1 SyncMaster 794MB / 794MB+ / 798MB / 796MB / 796MB+ Install drivers Install programs...
  • Page 2 SyncMaster 794MB / 794MB+ / 796MB / 796MB+ Notational Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment. Prohibited Do not disassemble Do not touch Power When not used for extended periods of time, set your computer to a screen saver.
  • Page 3 occured, or the screen may be blurred. Do not use a damaged or loose plug. This may cause an electric shock or fire. Do not pull the plug out by the wire nor touch the plug with wet hands. This may cause an electric shock or fire. Use only a properly grounded plug and receptacle.
  • Page 4 Do not drop the monitor when moving it. This may cause damage to the product or human body. Install the monitor base in a showcase or shelf so that the end of the base does not project beyond the showcase or shelf. Dropping the product may cause damage to the product or personal injury.
  • Page 5 Do not place the monitor face down. The CDT surface may be damaged. Do not use the monitor without the monitor stand. It could break down or cause fire due to bad ventilation. If the monitor must be used without the supplied stand, take steps to insure proper ventilation.
  • Page 6: Service Center

    Make sure to unplug the power cord before cleaning the product. Otherwise, this may cause electric shock or fire. Unplug the power cord from the power outlet and wipe the product using a soft, dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent.
  • Page 7 Disconnect the plug from the outlet during storms or lightening or if it is not used for a long period of time. Failure to do so may cause an electric shock or fire. Do not try to move the monitor by pulling only the wire or the signal cable.
  • Page 8 Keep the monitor away from any magnetic substances. This may cause discoloring or distortion of the image. Watching the monitor continuously at a too close angle may result in eyesight damage. To ease eye strain, take at least a five-minute break after every hour of using the monitor.
  • Page 9 Notational Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment. Prohibited Do not disassemble Do not touch Power When not used for extended periods of time, set your computer to a screen saver.
  • Page 10 occured, or the screen may be blurred. Do not use a damaged or loose plug. This may cause an electric shock or fire. Do not pull the plug out by the wire nor touch the plug with wet hands. This may cause an electric shock or fire. Use only a properly grounded plug and receptacle.
  • Page 11 Do not drop the monitor when moving it. This may cause damage to the product or human body. Install the monitor base in a showcase or shelf so that the end of the base does not project beyond the showcase or shelf. Dropping the product may cause damage to the product or personal injury.
  • Page 12 Do not place the monitor face down. The CDT surface may be damaged. Do not use the monitor without the monitor stand. It could break down or cause fire due to bad ventilation. If the monitor must be used without the supplied stand, take steps to insure proper ventilation.
  • Page 13 Make sure to unplug the power cord before cleaning the product. Otherwise, this may cause electric shock or fire. Unplug the power cord from the power outlet and wipe the product using a soft, dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent.
  • Page 14 Disconnect the plug from the outlet during storms or lightening or if it is not used for a long period of time. Failure to do so may cause an electric shock or fire. Do not try to move the monitor by pulling only the wire or the signal cable.
  • Page 15 Keep the monitor away from any magnetic substances. This may cause discoloring or distortion of the image. Watching the monitor continuously at a too close angle may result in eyesight damage. To ease eye strain, take at least a five-minute break after every hour of using the monitor.
  • Page 16 SyncMaster 794MB / 794MB+ / 796MB / 796MB+ Please make sure the following items are included with your monitor. If any items are missing, Unpacking Monitor and Stand (Some models include a stand attached.) Manual Quick Setup Guide Cable contact your dealer.
  • Page 17 Power Cord Stand Stand For Multimedia model (Option) Manual User Guide Cable Sound Cables(2each) Stand Multimedia Speaker Stand Front DC Power Cord...
  • Page 18 MENU Adjust buttons [ Enter button [ ] Power button[ ] Power indicator PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. Rear Opens the OSD menu.
  • Page 19: Tilt/Swivel Base

    (The configuration at the back of the monitor may vary from product to product.) Power port Signal Cable Connecting the Monitor Bottom Tilt/Swivel Base Connect the power cord for your monitor to the power port on the back of the monitor. Connect the signal cable to the video port on your computer.
  • Page 20 Please make sure the following items are included with your monitor. If any items are missing, Unpacking Monitor and Stand (Some models include a stand attached.) Manual Quick Setup Guide Cable SyncMaster 798MB contact your dealer. User's Guide, Monitor Driver, Warranty Card Natural Color software, (Not available in all...
  • Page 21 Power Cord Stand Stand For Multimedia model (Option) Manual User Guide Cable Sound Cables(2each) Stand Multimedia Speaker Stand Front DC Power Cord...
  • Page 22 MENU Adjust buttons [ Enter button [ ] Power button[ ] Power indicator PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. Rear Opens the OSD menu.
  • Page 23 (The configuration at the back of the monitor may vary from product to product.) Power port Signal Cable Connecting the Monitor Bottom Tilt/Swivel Base Connect the power cord for your monitor to the power port on the back of the monitor. Connect the signal cable to the video port on your computer.
  • Page 24 SyncMaster 794MB / 794MB+ / 796MB / 796MB+ Connecting the Monitor Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. Connecting to a computer 2-1.
  • Page 25 Setup-For Multimedia model Turn off your computer and unplug the power cord. Connect the end of the signal cable to your computer's video port(video board, video card or graphics card). Connect one end of the other sound cable to the Mic Input jack on your sound card or computer.Connect the other end of this cable to the Mic By-pass jack on the back of the monitor stand.
  • Page 26 Base Installation Tilt/Swivel Base With the built-in pedestal, you can tilt and/or swivel the monitor for the most comfortable viewing angle. The base is detachable. Attaching and Removing the Base If your monitor was supplied with the base detached, attach the base as follows. DC Power Cord Connect DC power cord to monitor DC 12V output jack.
  • Page 27: Attaching The Base

    Remove the twist-tie before attaching the base to the monitor. Attaching the Base 1. Place the monitor upside-down on a flat work surface. 2. Align the tabs on the base with the corresponding slots on the bottom of the monitor. 3.
  • Page 28 Follow the directions appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown here. Internet web site : http://www.samsung.com/ http://www.samsung.com/monitor http://www.sec.co.kr/monitor http://www.samsungmonitor.com.cn/ Windows ME 1.
  • Page 29: Microsoft ® Windows ® Xp Operating System

    This monitor driver is under certified MS logo and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage. http://www.samsung.com/. 5. Monitor driver installation is completed. Installing the Monitor Driver(Manual) Windows XP When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor.
  • Page 30 4. Click the "Properties" button on the "Monitor" tab and select "Driver" tab. 5. Click "Update Driver.." and select "Install from a list or.." then click "Next" button. 6. Select "Don't search ,I will.." then click "Next" and then click "Have disk". 7.
  • Page 31: Microsoft ® Windows ® 2000 Operating System

    8. If you can see following message window, then click the "Continue Anyway" button. Then click "OK" button. This monitor driver is under certified MS logo and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage. http://www.samsung.com/.
  • Page 32: Microsoft ® Windows ® Millennium Operating System

    How to install 1. Click "Start" , "Setting" , "Control Panel". 2. Double click the "Display" Icon. 3. Choose the "Settings" tab and then click "Advanced..". 4. Choose "Monitor". Case1: If the "Properties" button is inactive, it means your monitor is properly configured. Please stop installation Case2: If the "Properties"...
  • Page 33 Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI). This system is available only for Samsung monitors and makes the color of the images on the monitor the same as the printed or scanned images.
  • Page 34 Connecting the Monitor Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. Connecting to a computer 2-1. Connect the signal cable to the 15-pin, D-sub connector on the back of your computer. 2-2.
  • Page 35 Setup-For Multimedia model Turn off your computer and unplug the power cord. Connect the end of the signal cable to your computer's video port(video board, video card or graphics card). Connect one end of the other sound cable to the Mic Input jack on your sound card or computer.Connect the other end of this cable to the Mic By-pass jack on the back of the monitor stand.
  • Page 36 Base Installation Tilt/Swivel Base With the built-in pedestal, you can tilt and/or swivel the monitor for the most comfortable viewing angle. The base is detachable. Attaching and Removing the Base If your monitor was supplied with the base detached, attach the base as follows. DC Power Cord Connect DC power cord to monitor DC 12V output jack.
  • Page 37 Remove the twist-tie before attaching the base to the monitor. Attaching the Base 1. Place the monitor upside-down on a flat work surface. 2. Align the tabs on the base with the corresponding slots on the bottom of the monitor. 3.
  • Page 38 Follow the directions appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown here. Internet web site : http://www.samsung.com/ http://www.samsung.com/monitor http://www.sec.co.kr/monitor http://www.samsungmonitor.com.cn/ Windows ME 1.
  • Page 39 This monitor driver is under certified MS logo and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage. http://www.samsung.com/. 5. Monitor driver installation is completed. Installing the Monitor Driver(Manual) Windows XP When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor.
  • Page 40 4. Click the "Properties" button on the "Monitor" tab and select "Driver" tab. 5. Click "Update Driver.." and select "Install from a list or.." then click "Next" button. 6. Select "Don't search ,I will.." then click "Next" and then click "Have disk". 7.
  • Page 41 8. If you can see following message window, then click the "Continue Anyway" button. Then click "OK" button. This monitor driver is under certified MS logo and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage. http://www.samsung.com/.
  • Page 42 How to install 1. Click "Start" , "Setting" , "Control Panel". 2. Double click the "Display" Icon. 3. Choose the "Settings" tab and then click "Advanced..". 4. Choose "Monitor". Case1: If the "Properties" button is inactive, it means your monitor is properly configured. Please stop installation Case2: If the "Properties"...
  • Page 43 Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI). This system is available only for Samsung monitors and makes the color of the images on the monitor the same as the printed or scanned images.
  • Page 44 SyncMaster 794MB / 794MB+ / 796MB / 796MB+ Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu. These buttons allow you to highlight and adjust items in the menu. Use to select the OSD menu. MagicBright2™...
  • Page 45 Menu When OSD is not on the screen, push the button to adjust brightness. MagicBright2™ Menu Then push the MagicBright2™ button again to circle through available MagicBright2™ preconfigured modes. Highlight III Description Description...
  • Page 46 Menu The Highlight Zone ensures the clear and sharp display of animated Highlight III multimedia or photo images by enhancing the brightness of a certain area on the screen. Select an icon that you want to know from the OSD menu to display a text or animation explanation of that icon.
  • Page 47 Menu Description Play/Stop You can use the on-screen menus to change the brightness according to personal preference. Direct Access Feature : When OSD is not on the screen, push the button to adjust brightness. You can use the on-screen menus to change the contrast according to personal preference.
  • Page 48 Menu Color temperature is a measure of the 'warmth' of the image colors. (6500K / 9300K) Use to adjust the monitor color setting.(Red) Use to adjust the monitor color setting.(Green) Use to adjust the monitor color setting.(Blue) Standard Red Green Blue (sRGB) is a defined default color space.
  • Page 49 or right. Description Play / Stop Use to turn the Highlight Zone features on or off. Note : When "OFF" is selected, the user cannot choose any other Highlight Zone features. This function is to move the Highlight Zone horizontally. This function is to move the Highlight Zone vertically.
  • Page 50 You can see the frequency (user control mode) used by the user, the polarity of the operational signals, the default frequency (default mode) set when you buy the monitor and the resolution level. Note : These screens do not allow any changes to the settings, they are for information only.
  • Page 51 SyncMaster 798MB Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu. These buttons allow you to highlight and adjust items in the menu. Use to select the OSD menu. MagicBright2™ is a new feature providing optimum viewing environment depending on the contents of the image you are watching.
  • Page 52 Menu When OSD is not on the screen, push the button to adjust brightness. MagicBright2™ Menu Then push the MagicBright2™ button again to circle through available MagicBright2™ preconfigured modes. Highlight III Description Description...
  • Page 53 Menu The Highlight Zone ensures the clear and sharp display of animated Highlight III multimedia or photo images by enhancing the brightness of a certain area on the screen. Select an icon that you want to know from the OSD menu to display a text or animation explanation of that icon.
  • Page 54 Menu Description Play/Stop You can use the on-screen menus to change the brightness according to personal preference. Direct Access Feature : When OSD is not on the screen, push the button to adjust brightness. You can use the on-screen menus to change the contrast according to personal preference.
  • Page 55 Menu Color temperature is a measure of the 'warmth' of the image colors. (6500K / 9300K) Use to adjust the monitor color setting.(Red) Use to adjust the monitor color setting.(Green) Use to adjust the monitor color setting.(Blue) Standard Red Green Blue (sRGB) is a defined default color space.
  • Page 56 or right. Description Play / Stop Use to turn the Highlight Zone features on or off. Note : When "OFF" is selected, the user cannot choose any other Highlight Zone features. This function is to move the Highlight Zone horizontally. This function is to move the Highlight Zone vertically.
  • Page 57 You can see the frequency (user control mode) used by the user, the polarity of the operational signals, the default frequency (default mode) set when you buy the monitor and the resolution level. Note : These screens do not allow any changes to the settings, they are for information only.
  • Page 58: What Is Magictune

    Overview Installation Overview What is MagicTune™? Monitor performance can vary due to the graphics card, host computer lighting conditions and other environmental factors. In order to get the best image on a monitor requires you to adjust it for your unique setting.
  • Page 59: Installation

    Overview Installation OSD Mode Installation Insert the installation CD into the CD-ROM drive. Click the MagicTune™ installation file. Select installation Language, Click "Next". When the InstallationShield Wizard window appears, click "Next." Select "I agree to the terms of the license agreement" to accept the terms of use. Uninstall Troubleshooting...
  • Page 60 Choose a folder to install the MagicTune program. Click "Install." The "Installation Status" window appears.
  • Page 61: Installation Problems

    Click "Finish." When the installation is complete, the MagicTune executable icon appears on your desktop. Double-click the icon to start the program. Magictune execution icon may not appear depending on specification of computer system or monitor. If that happens, press F5 Key. Installation Problems The installation of MagicTune™...
  • Page 62 Windows™ 98 SE Windows™ Me Windows™ 2000 Windows™ XP Home Edition Windows™ XP Professional It is recommended using MagicTune in Windows™ 2000 or later. Hardware 32MB Memory above 25MB Hard disk space above website * For more information, visit the MagicTune...
  • Page 63: Osd Mode

    Overview Installation OSD Mode MagicTune allows for quick accurate tuning of the display with the ability to easily save and use monitor configurations that are best suited for you. OSD mode may appear inconsistent with the explanation in guidance book depending on specification of each monitor. MagicTune control mode will be different according to monitor models.
  • Page 64: Color Tab Definition

    Allows the user to adjust the screen settings to the desired values. Brightness Contrast MagicBright Makes the entire screen brighter or darker. The detailed data of the images in the dark Brightness areas can be lost if the brightness is not adjusted to the proper level. Adjust the brightness for best viewing conditions.
  • Page 65: Image Tab Definition

    Color Tone Color Control The tone of the color can be changed. 5000K - 6500K - 9300K Color Tone Reset Adjusts of the monitor image color. You can change the monitor color to your desired color. Color Control R- G - B sRGB Image Tab Definition Adjusts the Position, Size and Rotation values.
  • Page 66: Option Tab Definition

    Geometry 1 Rotation Size Position Geometry 2 Pincushion Pinbalance Trapezoid Other Moire Degauss Sidepin Corner Top Pinbalance Corner Top Pinbalance Corner Bottom Adjusts the Position, Size and Rotation values. Geometry 1 Position Size Rotation Adjusts the Pincushion, Pinbalance, Trapezoid and Parallelogram values. Geometry 2 Pincushion Pinbalance...
  • Page 67: Support Tab Definition

    Loads the Preferences Dialog Box. Preferences in use will have an "V" in the check box. To turn on or off any Preference, position the cursor over the box and click. Preferences Enable task tray menu . - To access the MagicTune menus, click the icon on the [task tray menu]. The menus are not displayed if the [Enable System Tray] is deselected in [Options] ' [Basic Settings].
  • Page 68 User ID Server IP Department Location Version Displays the version of MagicTune. Shows the user ID that is register in PC. Write down the server IP . Write down the department. Write down the location.
  • Page 69 Overview Installation OSD Mode Uninstall The MagicTune program can be removed only by using the "Add or Remove Programs" option of the Windows™ Control Panel. Perform the following steps remove MagicTune. Go to [Task Tray] ' [Start] ' [Settings] and select [Control Panel] in the menu. If the program runs on Windows™...
  • Page 70: Troubleshooting

    Products from other manufacturers may cause errors. Only Samsung products are able to support this feature. An error may occur even when your monitor is manufactured by Samsung but is out of date. Check if your monitor is able to support MagicTune.
  • Page 71 As the Highlight program uses the communication lines, please exit the Highlight program before you can access MagicTune. Some of Samsung CDT monitors support the Highlight feature. When using both the Highlight feature and MagicTune simultaneously, conflicts occur, which cause errors.
  • Page 72 MagicTune, FAQs (questions and answers) and software upgrades. website Visit the MagicTune and download the installation software for MagicTune MAC. the graphic card, visit our website to check the compatible graphic card list provided. http://www.samsung.com/monitor/magictune Download the latest program. The program can be downloaded http://www.samsung.com/monitor/magictune...
  • Page 73: Other Features

    The Highlight Zone ensures the clear and sharp display of animated multimedia or photo images by enhancing the brightness of a certain area on the screen. Highlight Zone III features a combination of the circuitry and the program built on the proprietary technology of SEC.
  • Page 74 Automatic detect 1. When the Highlight program is running, the monitor automatically detects the video-playing portion of your multimedia program and activates the Highlight Zone feature. No selection is necessary. Major multimedia programs: Windows Media Player, RealPlayer 8.0, video players on the broadcasters¡¯ websites, etc. However, Automatic Detect may not work with a DVD player.
  • Page 75 Manual detect In Manual Detect mode, you can either select a window or use the Drag function to create a Highlight Zone. 1. Selecting a window: Click the Highlight icon( Move the cursor onto the window of your choice and click once to Highlight the window. 2.
  • Page 76 Exit Program 1. Exits the Highlight program. Automatic detect Manual detect Exit Program Auto Detect Picture Setting Full Screen Highlight Off Other Features...
  • Page 77 Auto Detect 1. Allows user to disable Auto Detect when necessary. Once selected, this function saves the selection and keeps it in the memory regardless of exiting or restarting the program. When selected, a check mark (V) appears. Automatic detect Manual detect Exit Program Auto Detect...
  • Page 78 Picture Setting 1. Can be selected only when the Highlight Zone function is on. When selected, a menu window appears which can be used to adjust Contrast and Sharpness within the Highlight Zone. After changing the setting, select OK to save the changes, or Cancel to return to the previous setting. Automatic detect Manual detect Exit Program...
  • Page 79 Full Screen 1. Full Screen: Place the cursor on the Highlight icon( )on the Windows taskbar and right click your mouse once. Then select Full Screen from the menu. Automatic detect Manual detect Exit Program Auto Detect Picture Setting Full Screen Highlight Off Other Features...
  • Page 80 Highlight Off 1. Cancels the selection of a Highlight Zone and reverts to the original screen. Automatic detect Manual detect Exit Program Auto Detect Picture Setting Full Screen Highlight Off Other Features...
  • Page 81 Other Features The Highlight Zone function remembers the variables of the selected areas in Automatic and Manual Detect modes, respectively. 1. If the window selected as a Highlight Zone is moved or its size changed, the Highlight Zone changes accordingly. 2.
  • Page 82 Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call Information section or contact your Symptom Check List No images on the Is the power cord screen.
  • Page 83 magnetic products such as a power adapter, speaker or a high voltage wire near Is the voltage stable? The screen image can also appear to shake or vibrate if there is a problem with the video card or the computer's main board. The screen shows Is the screen strange colors or just...
  • Page 84 When you have a problem with the graphic card, visit our website to check the compatible graphic card list provided. http://www.samsung.com/monitor/magictune Download the latest program. The program can be downloaded http://www.samsung.com/monitor/magictune. contact an authorized service...
  • Page 85 Question How can I change the frequency? How can I adjust the resolution? How can I set the Power Saving function? The monitor makes a sound when it is turned on. How can I clean the outer case/Picture tube? Highlight Zone III 3.5 Q & A Question The program does not function properly.
  • Page 86 Highlight program is running. When a Highlight Zone is on, the rest of the screen dims. The Highlight Zone appears too dark. Want to adjust the position and size of the Highlight Zone . Cannot select Picture Setting. Self-Test Feature Check Self-Test Feature Check Warning Messages Your monitor provides a self test feature that allows you to check whether your monitor is...
  • Page 87 Environment The location and the position of the monitor may influence the quality and other features of the monitor. 1. If there are any sub woofer speakers near the monitor, unplug and relocate the woofer to another room. 2. Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one meter) of the monitor.
  • Page 88 Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call Information section or contact your Symptom Check List No images on the Is the power cord screen.
  • Page 89 magnetic products such as a power adapter, speaker or a high voltage wire near Is the voltage stable? The screen image can also appear to shake or vibrate if there is a problem with the video card or the computer's main board. The screen shows Is the screen strange colors or just...
  • Page 90 When you have a problem with the graphic card, visit our website to check the compatible graphic card list provided. http://www.samsung.com/monitor/magictune Download the latest program. The program can be downloaded http://www.samsung.com/monitor/magictune. contact an authorized service...
  • Page 91 Question How can I change the frequency? How can I adjust the resolution? How can I set the Power Saving function? The monitor makes a sound when it is turned on. How can I clean the outer case/Picture tube? Highlight Zone III 3.5 Q & A Question The program does not function properly.
  • Page 92 Highlight program is running. When a Highlight Zone is on, the rest of the screen dims. The Highlight Zone appears too dark. Want to adjust the position and size of the Highlight Zone . Cannot select Picture Setting. Self-Test Feature Check Self-Test Feature Check Warning Messages Your monitor provides a self test feature that allows you to check whether your monitor is...
  • Page 93 Environment The location and the position of the monitor may influence the quality and other features of the monitor. 1. If there are any sub woofer speakers near the monitor, unplug and relocate the woofer to another room. 2. Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one meter) of the monitor.
  • Page 94 Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call Information section or contact your Symptom Check List No images on the Is the power cord screen.
  • Page 95 magnetic products such as a power adapter, speaker or a high voltage wire near Is the voltage stable? The screen image can also appear to shake or vibrate if there is a problem with the video card or the computer's main board. The screen shows Is the screen strange colors or just...
  • Page 96 When you have a problem with the graphic card, visit our website to check the compatible graphic card list provided. http://www.samsung.com/monitor/magictune Download the latest program. The program can be downloaded http://www.samsung.com/monitor/magictune. contact an authorized service...
  • Page 97 Question How can I change the frequency? How can I adjust the resolution? How can I set the Power Saving function? The monitor makes a sound when it is turned on. How can I clean the outer case/Picture tube? Highlight Zone III 3.5 Q & A Question The program does not function properly.
  • Page 98 Highlight program is running. When a Highlight Zone is on, the rest of the screen dims. The Highlight Zone appears too dark. Want to adjust the position and size of the Highlight Zone . Cannot select Picture Setting. Self-Test Feature Check Self-Test Feature Check Warning Messages Your monitor provides a self test feature that allows you to check whether your monitor is...
  • Page 99 Environment The location and the position of the monitor may influence the quality and other features of the monitor. 1. If there are any sub woofer speakers near the monitor, unplug and relocate the woofer to another room. 2. Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one meter) of the monitor.
  • Page 100 General General Model Name SyncMaster 794MB / 794MB+ Picture Tube Type 17"(16.0" Viewable) Deflection angle 90 ° Dot Pitch 0.20mm (Horizontal) Screen type Aluminized tri-color phosphor dot trio with black matrix. Anti-doming invar shadow mask. Multi-layer coated with anti-static. Resolution Optimum resolution 1024 x 768 @ 85Hz Maximum resolution...
  • Page 101 Power Supply AC90~264VAC,50/60Hz Power Consumption 72W (nominal) Dimensions (WxDxH) / Weight 401 x 414 x 378 mm / 15.8 X 16.3 X 14.9 inch (with Basic Stand)/ 13.8kg Environmental considerations Operating Temperature 32°F ~ 104°F(0°C ~ 40°C) Humidity 10% ~ 80%, non-condensing Storage Temperature -4°F ~113°F (-20°C ~ 45°C) Humidity 5% ~ 95%, non-condensing...
  • Page 102 Horizontal Display Mode Frequency (kHz) VESA, 640 x 480 37.500 VESA, 800 x 600 53.700 VESA, 1024 x 768 68.700 Horizontal Frequency The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency.
  • Page 103 General General Model Name SyncMaster 798MB Picture Tube Type 17"(16.0" Viewable) Deflection angle 90 ° Dot Pitch 0.20mm (Horizontal) Screen type Aluminized tri-color phosphor dot trio with black matrix. Anti-doming invar shadow mask. Multi-layer coated with anti-static. Resolution Optimum resolution 1024 x 768 @ 85Hz Maximum resolution 1280 x 1024 @ 65Hz...
  • Page 104 Power Supply AC90~264VAC,50/60Hz Power Consumption 72W (nominal) Dimensions (WxDxH) / Weight 401 x 414 x 378 mm / 15.8 X 16.3 X 14.9 inch (with Basic Stand)/ 13.8kg Environmental considerations Operating Temperature 32°F ~ 104°F(0°C ~ 40°C) Humidity 10% ~ 80%, non-condensing Storage Temperature -4°F ~113°F (-20°C ~ 45°C) Humidity 5% ~ 95%, non-condensing...
  • Page 105 Horizontal Display Mode Frequency (kHz) VESA, 640 x 480 37.500 VESA, 800 x 600 53.700 VESA, 1024 x 768 68.700 Horizontal Frequency The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency.
  • Page 106 General General Model Name SyncMaster 796MB / 796MB+ Picture Tube Type 17"(16.0" Viewable) Deflection angle 90 ° Dot Pitch 0.20mm (Horizontal) Screen type Aluminized tri-color phosphor dot trio with black matrix. Anti-doming invar shadow mask. Multi-layer coated with anti-static. Resolution Optimum resolution 1024 x 768 @ 85Hz Maximum resolution...
  • Page 107 Power Supply AC90~264VAC,50/60Hz Power Consumption 73W (nominal) Dimensions (WxDxH) / Weight 401 x 414 x 378 mm / 15.8 X 16.3 X 14.9 inch (with Basic Stand)/ 13.8kg Environmental considerations Operating Temperature 32°F ~ 104°F(0°C ~ 40°C) Humidity 10% ~ 80%, non-condensing Storage Temperature -4°F ~113°F (-20°C ~ 45°C) Humidity 5% ~ 95%, non-condensing...
  • Page 108 Horizontal Display Mode Frequency (kHz) VESA, 640 x 480 37.500 VESA, 1024 x 768 68.700 VESA, 1280 x 1024 80.000 Horizontal Frequency The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency.
  • Page 109 Contact SAMSUNG WORLD - WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. CANADA 1-800-SAMSUNG (7267864) MEXICO 01-800-SAMSUNG (7267864) U.S.A 1-800-SAMSUNG (7267864) ARGENTINE 0800-333-3733 BRAZIL 0800-124-421 CHILE 800-726-7864 (SAMSUNG) COSTA RICA...
  • Page 110 JAPAN 0120-327-527 MALAYSIA 1800-88-9999 PHILIPPINES 1800-10-SAMSUNG (7267864) SINGAPORE 1800-SAMSUNG (7267864) THAILAND 1800-29-3232, 02-689-3232 TAIWAN 0800-329-999 VIETNAM 1 800 588 889 SOUTH AFRICA 0860 7267864 (SAMSUNG) U.A.E 800SAMSUNG (7267864) http://www.samsung.com/be http://www.samsung.com/cz http://www.samsung.com/dk http://www.samsung.com/fi http://www.samsung.com/fr http://www.samsung.de http://www.samsung.com/hu http://www.samsung.com/it http://www.samsung.lu http://www.samsung.com/nl http://www.samsung.com/no http://www.samsung.com/pl http://www.samsung.com/pt...
  • Page 111 Highlight Zone is an enhancement feature to increase luminance in a certain area of the monitor for brighter and sharper images/photos. Highlight Zone III 3.5 is carried by Samsung’s unique circuit technology and a powerful combination of programs in order to implement the Highlight Zone feature.
  • Page 112 Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
  • Page 113: Correct Disposal Of This Product (Waste Electrical & Electronic Equipment) - Europe Only

    Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.

This manual is also suitable for:

Syncmaster 794mb+Syncmaster 795mb+
