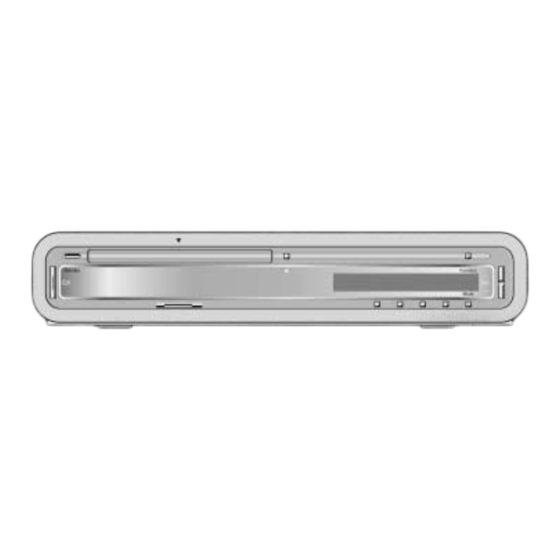

- Page 1 ULTRA SLIM AUDIO SYSTEM CD-R/RW PLAYBACK EV-1/EV-1S Instruction Manual...
-
Page 2: Safety Warnings
Safety Warnings CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1 CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER, NO USER SERVICEABLE PARTS INSIDE, REFER SER- VICING TO QUALIFIED SERVICE PERSONNEL. -
Page 3: Precautions
Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may become hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the CD player to the stand-by mode does not disconnect the electrical supply. -
Page 4: Table Of Contents
YSTEM Symbols Press Push Important Thank you for buying this SAMSUNG ULTRA SLIM audio system. Please take time to read these instructions. They will allow you to operate your system with ease and take full advantage of its features. Note... -
Page 5: I Y U S A S Front Panel View
Front Panel View Standby 1. On/Standby 2. Disc Tray 3. Open/Close 4. Multi-function Button *Depending on the selected Mode, pressing the corresponding button will activate that button. Rear Panel View ANTENNA COAXIAL 1. AM Aerial Connector Terminal 2. FM Aerial Connector Terminal 3. -
Page 6: Remote Control
Remote Control On/Standby P.Sound S.Bass Open/Close CD Skip or Search CD Stop Program/Set Tuning Up/Down Tuning Mode Mono/ST Insert Remote Batteries Follow these precautions to avoid leaking or cracking cells: • Place batteries in the remote control so they match CAUTION the polarity:(+) to (+)and (–)to (–). -
Page 7: Speaker Connection
Speaker Connection • Speaker Connection: Connect the Speaker cords(red/black) to the Speaker jack of the system. ANTENNA (Right Speaker) Directions in Installing Speaker • Installation in a place near heating apparatus, under directly of light or with high humidity may cause performance deration of the speaker. -
Page 8: Connecting The Fm And Am(Mw/Lw) Antennas
Connecting the FM and AM( If FM reception is poor, connect an outdoor FM antenna (not supplied). FM Antenna (supplied) ANTENNA COAXIAL FM antenna connection 1. Connect the FM antenna supplied to the FM 75 COAXIAL terminal. 2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface. -
Page 9: Connecting To An External Source
Connecting to an External Source The auxiliary input can be used to take advantage of the sound quality of your ULTRA SLIM audio system when listening to other sources. Examples: A television A video disc player A Hi-Fi stereo video cassette recorder To connect the external source, the source must have an audio output. -
Page 10: Using The Function Button
Function Using the • Press the Function button Each time the button is pressed, one of the following function are selected. Select CD (For example, 15 tracks with playback time of 53:05) Select AUX Select TUNER (For example, FM 89.1 MHz) About the Mode button If no button is pressed within 8 seconds while in the Mode 1 or Mode 2, the Dis-... -
Page 11: Setting The Clock
Setting the Clock Your system is equipped with a clock which allows you to turn your system on and off automatically. You should set the clock: When you first purchase the ULTRA SLIM audio system After a power failure After unplugging the unit For each step, you have a few seconds to set the required options. -
Page 12: Selecting A Track
Selecting a Track You can select the track you wish to listen to, either when the compact disc player is stopped or when a disc is playing. To start playback at the beginning of the... Next track Current track Previous track Track of your choice VOL. -
Page 13: Random Play Function
Random play function You can listen to the tracks on a compact disc in a different order each time, as the various tracks will be selected automatically in a random sequence. Press the Mode button on the Front Panel until “Random”is displayed to bottom. -
Page 14: Programming The Order Of Playback
The track not desired to listen A maximum of up to 24 order of tracks desired to listen may be programmed. Before selecting the track, the CD player should be stopped. This function may be used simultaneously with the CD Repeat function. -
Page 15: Searching For And Storing The Radio Stations
Searching for and Storing the Radio Stations You can store up to: 15 FM stations 15 MW stations 7 LW stations Switch the system on by pressing On/Standby ( Select the required frequency band by pressing Band on the remote control. Result: The appropriate indication is displayed: Frequency Modulation AM(MW) -
Page 16: About Rds Broadcasting
About RDS broadcasting This unit has the RDS (Radio Data System) function, which enables for the various information such as broadcasting station, radio text, time and 30 types of programs (News, Rock, Classic, etc.) to be received from the FM RDS station together with normal radio signal. Press the On/Standby ( ) button. -
Page 17: Pty(Program Type) Indication And Pty-Search Function
PTY(Program Type) indication and PTY-SEARCH function The PTY information is composed of an identification symbol, which helps the FM radio to recognize the program type of each FM station. The below 30 PTY information is shown on the display by pressing the Pty button. -
Page 18: Timer Function
Timer Function The timer enables you to switch the system on or off at specific times. Example: You wish to wake up to music every morning. If you no longer want the system to be switched on or off automatically, you must cancel the timer. Before setting the timer, check that the current time is correct. -
Page 19: Mute Function
Mute Function You can turn the sound off temporarily on your system. Example: You wish to answer a telephone call. Press Mute. To switch the sound back on (at the same volume as before), press Mute again or the Volume buttons. VOL. -
Page 20: Setting The System To Switch Off Automatically
Setting the System to Switch off Automatically While listening to a compact disc or a cassette, you can set the system to switch off automatically Example: You wish to go to sleep to music. Press Sleep. Result: The following indications are displayed: Sleep 90 Press Sleep one or more times to indicate how long the system should continue playing before it switches off:... -
Page 21: Before Contacting The After-Sales Service
The model and serial numbers, normally printed on the rear of the system Your warranty details A clear description of the problem Then contact your local dealer or SAMSUNG after-sales service. Checks/Explanation • The main lead is not correctly plugged into a wall socket or the wall socket is not switched on. -
Page 22: Technical Specifications
Technical Specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. RADIO Usable sensitivity AM (MW) Signal/noise ratio Usable sensitivity Total harmonic distortion Signal/noise ratio... - Page 23 THIS APPLIANCE IS MANUFACTURED BY: ELECTRONICS LECTRONICS AH68-01169B...
