Ryobi BT3000 Operator's Manual

Ryobi router and jig saw mounting kit operator's manual.


CONGRATULATIONS AND THANK YOU FOR BUYING THIS RYOBI ROUTER AND JIG SAW MOUNTING KIT.
Your new #4950300 Router and Jig Saw Mounting Kit has been designed for use with the RYOBI BT3000 Table Saw. It
has been engineered and manufactured to Ryobi's high standards for dependability, ease of operation, and operator safety.
This kit gives you the capability of mounting a router or jig saw on the accessory table of your BT3000. It also includes a circle
cutting jig for cutting circular patterns in both large and small stock. Properly cared for, it will provide years of dependable,
trouble-free performance.
1.
READ THESE INSTRUCTIONS THOROUGHLY before assembling or using this router and jig saw mounting kit.
2.
READ THE INSTRUCTIONS FOR THE BT3000 TABLE SAW before operating your saw with this kit.
3.
KEEP ASSEMBLY AREA AND WORK AREA CLEAN. Cluttered areas and benches invite accidents.
4.
ALWAYS WEAR SAFETY GLASSES . Everyday eyeglasses have only impact-resistant lenses; they are NOT safety
glasses.
5.
DO NOT USE THIS PRODUCT WITH OTHER EQUIPMENT OR FOR OTHER PURPOSES.
6.
ALWAYS DISCONNECT SAW FROM POWER SUPPLY BEFORE ASSEMBLING THIS KIT. Make sure switch is off
when reconnecting saw to power supply.
Save This Manual For Future Reference
OPERATOR'S MANUAL
#4950300 ROUTER AND JIG SAW MOUNTING KIT
(FOR USE WITH THE BT3000 TABLE SAW)
RULES FOR SAFE OPERATION
Next page ->

Summary of Contents

  • Page 1

    Ryobi’s high standards for dependability, ease of operation, and operator safety. This kit gives you the capability of mounting a router or jig saw on the accessory table of your BT3000. It also includes a circle cutting jig for cutting circular patterns in both large and small stock.

  • Page 2

    This jig saw kit is used to mount a jig saw on the accessory table of your BT3000 table saw. Ryobi jig saws plus many other brands can be mounted using the parts supplied in this kit.

  • Page 3: Table Of Contents

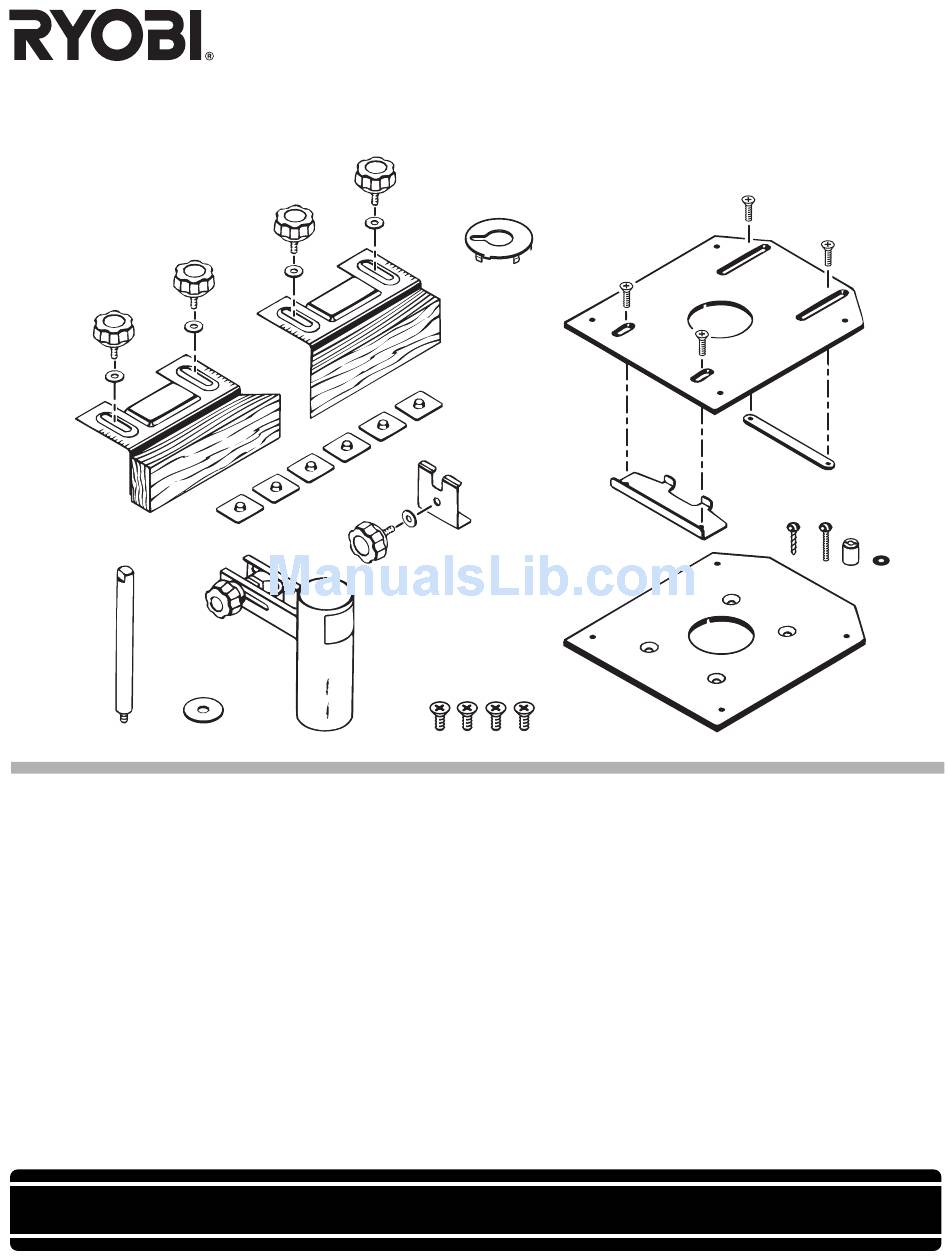

    KNOB BOLT SPACER POST DUST COVER WITH PIVOT ASSEMBLY Your #4950300 Router and Jig Saw Mounting Kit includes the following parts: DESCRIPTION Guide Fence with Guide Block ... 2 Knob Bolt (#5/16-18 x 1/2 in.) ... 4 5/16" Washer ... 5 5/16"...

  • Page 4: Table Of Contents, Square, Bt3000 Table Saw, Loosen And Remove Rear Adjustment

    See Figure 2. This kit requires that five of the special 5/16 in. T-nuts provided fit in the top channel of the rip fence on your BT3000 table saw. The first T-nut is required between the two adjustment screws on top of the rip fence.

  • Page 5: Assembly, Router Mounting, Washer

    ROUTER MOUNTING (Cont'd) TO INSTALL GUIDE FENCE BRACKETS See Figure 4. 1. Align each guide fence bracket with two of the special 5/16 in. T-nuts in channel on top of rip fence. 2. Secure guide fences to rip fence with 5/16 in. washers and 5/16 in. x 1/2 in. knob bolts supplied. Note: As shown in figure 4, center T-nut is not used with guide fences.

  • Page 6

    To avoid this, install the table clamping bracket supplied with this kit. It can be used with a router mounted, with a jig saw mounted, or if desired it can be used with your BT3000 during normal use. 8 MILLIMETER...

  • Page 7: Washer

    ROUTER MOUNTING (Cont'd) TO ASSEMBLE TABLE CLAMPING BRACKET (Cont'd) 1. Remove end cap from rear rail as shown in figure 8. 2. Slide one of the special 5/16 in. T-nuts into channel of rear rail. 3. Orient table clamping bracket as shown and secure with a 5/16 in.

  • Page 8

    When used for jig saw mounting, this kit can be used with all Ryobi jig saws, plus most other brands of jig saws. Proper mounting of the jig saw base to the clamping brackets will determine which saws will work. The jig saw must be mounted securely for safety.

  • Page 9

    REMEMBER: The motor cord of your BT3000 saw should be unplugged from receptacle on side of cabinet; and the power supply cord of your router or jig saw should be plugged into receptacle. This will allow your router or jig saw to be controlled by the master switch of your saw.

  • Page 10

    It then mounts on the sliding miter table in one of the two holes used for the locator pin on the bottom of miter fence (The operator's manual for your BT3000 refers to them as hole "A" and hole "B").

  • Page 11

    Also the rails may need to be adjusted, according to the application and size of the workpiece. For large workpieces, the sliding miter table may need to be placed on the left side of the saw blade. In these situations, the saw blade will need to be lowered below the table surface and the blade guard assembly removed.

  • Page 12

    #4950300 ROUTER AND JIG SAW MOUNTING KIT 14 15 Page 12...

  • Page 13: Screw (#10-24 X 3/4 In. Phillips Flat Hd.)

    Now that you have purchased your Router and Jig Saw Mounting Kit, should a need ever exist for repair parts or service, simply contact your nearest Ryobi Authorized Service Center or other qualified service organization. Be sure to provide all pertinent facts when you call or visit.

  • Page 14

    OPERATOR'S MANUAL #4950300 ROUTER AND JIG SAW MOUNTING KIT (FOR USE WITH THE BT3000 TABLE SAW) RYOBI TECHNOLOGIES INC. 1428 Pearman Dairy Road Anderson SC 29625 Post Office Box 1207 Anderson SC 29622-1207 Phone 1-800-525-2579 612547-852...
