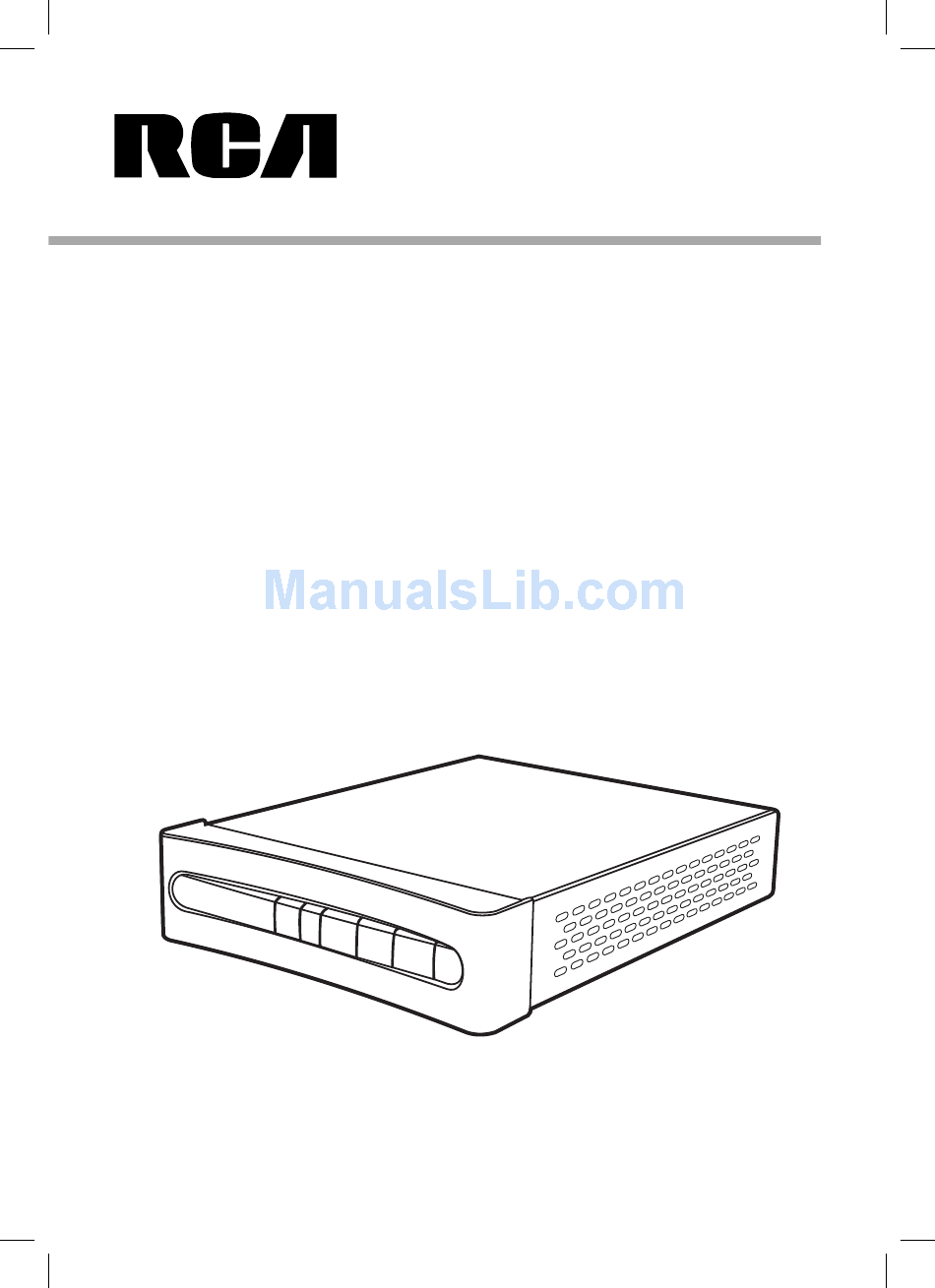

RCA STB7766C User Manual

Rca digital converter box user manual.
user manual
STB7766C
www.RCAav.com
It is important to read this instruction book prior to using your new product for the fi rst time.
- 20 -

   Related Manuals for RCA STB7766C

   Summary of Contents for RCA STB7766C

  • Page 1

    STB7766C www.RCAav.com It is important to read this instruction book prior to using your new product for the fi rst time. - 20 -...

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DO NOT PLACE OBJECTS FILLED WITH LIQUIDS ON OR NEAR THIS UNIT.

  • Page 3: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions.

  • Page 4: Remote Control

    REMOTE CONTROL • Point the remote control at the REMOTE SENSOR located on the unit. • When there is a strong ambient light source, the perform ance of the infrared REMOTE SENSOR may be degraded, causing unreliable operation. • The recommended effective distance for remote operation is about 16 feet (5 meters). To Install Batteries 1.

  • Page 5: Ac Adapter, Rf Cable, Quick Start Guide

    QUICK START GUIDE STEP 1: CONNECTIONS When this converter box is powered on, digital signals from the ANTENNA RF IN jack are converted to analog signals and output from the TV RF OUT jack or the VIDEO OUT jack. When this converter box is in standby state, analog RF TV signals pass through the box and output from the TV RF OUT jack.

  • Page 6: Quick Start Guide, Remote Control

    QUICK START GUIDE STEP 2: TURNING ON THE UNIT 1. While the AC adapter is connected and the unit is in standby mode, power will be consumed and the power indicator is RED. 2. Press the STANDBY/ON button to turn on the unit. The power indicator is GREEN. STEP 3: SETTING THE OSD LANGUAGE 1.

  • Page 7: Control Reference Guide

    CONTROL REFERENCE GUIDE Remote Control MUTE Button Press to turn off the sound. MENU Button Press to display the on-screen menu or switch back to the previous menu screen. CURSOR ( , , , ) Buttons Use to highlight selections on a menu screen and adjust certain settings.

  • Page 8

    CONTROL REFERENCE GUIDE Front View Back View Remote Sensor Receives infrared signals from the remote control. CH-/CH+ Buttons Press to select the channel upward or downward. Button Turns the power on or restores the unit to the standby mode. STANDBY/ON Indicator Green: power on Red: standby mode ANTENNA RF IN Terminal...

  • Page 9: Connections, Connecting A Tv (using The Rf Cable), Connecting A Tv (using The Av Cable)

    CONNECTIONS When this converter box is powered on, digital signals from the ANTENNA RF IN jack are converted to analog signals and output from the TV RF OUT jack or the VIDEO OUT jack. When this converter box is in standby state, analog RF TV signals pass through the box and output from the TV RF OUT jack.

  • Page 10: Power Supply, Turning On The Unit, Dolby Digital

    POWER SUPPLY Using the AC Adapter The supplied 9V adapter operates on AC 100-120V ~ 50/60Hz. While the AC adapter is connected and the unit is in standby mode, power will be consumed and the power indicator is RED. Cautions: •...

  • Page 11: Basic Operation, Searching For Channels Automatically, Viewing The Tv Channel, Adjusting The Volume

    BASIC OPERATION Searching for Channels Automatically 1. Press the MENU button on the remote control. 2. Use the buttons then press ENTER button or press 5 button to select the Settings menu. 3. Use the buttons then press ENTER button or press 1 button to select Channel Scan. 4.

  • Page 12: On-screen Menu Settings, Channel List, Av Settings

    ON-SCREEN MENU SETTINGS Use the menu confi guration to set detailed options for each function. Press the MENU button on the remote control to open the menu screen. • Press the number keys on the remote control to access the corresponding menu item directly.

  • Page 13: Ratings

    • This feature enables you to restrict access to certain TV programs whose content may be deemed unsuitable for your children. Viewing is restricted unless the password (initial default password: 0000) that you have chosen is entered. Password is also required before entering the rating menu.

  • Page 14

    • Press 3 for Change PIN To change the password for ratings. The initial default password is "0000", you can change it and create your own password to activate the rating settings. NOTE 1: Remember your password,If you have changed it. If you forget the password, enter “8888”...

  • Page 15: Closed Captioning, Settings

    CLOSED CAPTIONING • Let you change the closed caption appearance (font, text color, text opacity, background color, background, edge effect and edge color). • Press 1 (Font Options) to change font color and effects, 2 (Back Options) to change background color and effects or 3 (Default) to reset to default settings.

  • Page 16: Display 16:9 Contents, Watching Non-digital Tv

    DISPLAY 16:9 CONTENTS When receiving a 16:9 digital broadcast signal, the Digital TV Converter will convert the 16:9 picture to fi t a 4:3 TV screen. Use the "Picture" setting to select between two conversion modes. Fullscreen Mode (Default) This mode uses the entire screen of your TV, but the left and right end of the picture will be removed.

  • Page 17: Closed Captioning On The Converter Box

    CLOSED CAPTIONING ON THE CONVERTER BOX Closed captions allow people who are deaf or hard of hearing to enjoy TV programming. Captions are also a helpful tool for those learning English or watching TV in a noisy environment. The Converter Box provides two ways for you to view captions. You should choose one method or the other.

  • Page 18: Maintenance, Troubleshooting Guide

    MAINTENANCE Cleaning the Unit • Be sure to turn the unit off and disconnect the AC adapter before maintaining the unit. • Wipe the unit with a dry soft cloth. If the surfaces are extremely dirty, wipe clean with a cloth that has been dipped in a weak soap-and-water solution and wrung out thoroughly.

  • Page 19

    LIMITED WARRANTY AVC MULTIMEDIA (“AVC”) makes the following limited warranty. This limited warranty extend to the original consumer purchaser and is limited to non-commercial use of the product. One Year Parts & Labor Warranty AVC products purchased in the United States are warranted to be free from defects in materials or workmanship for a period of one year from the date of their original retail purchase.

  • Page 20

    © 2009 AVC Multimedia Trademark(s) ® Registered Printed in China Marca(s) ® Registrada(s) 811-776691W090 - 19 -...
