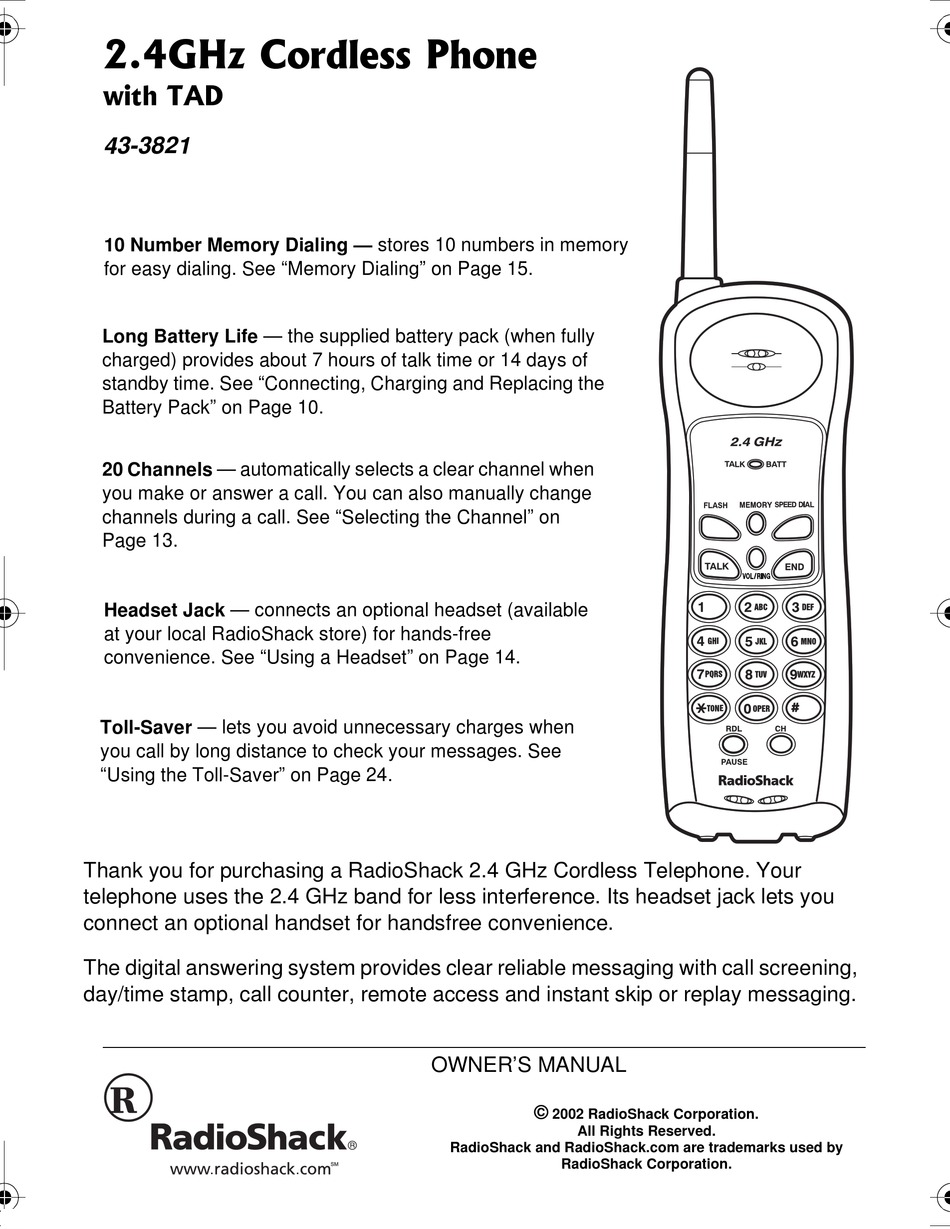

406)*\"%QTFNGUU"2JQPG
YKVJ"6#&
43-3821
10 Number Memory Dialing — stores 10 numbers in memory
for easy dialing. See "Memory Dialing" on Page 15.
Long Battery Life — the supplied battery pack (when fully
charged) provides about 7 hours of talk time or 14 days of
standby time. See "Connecting, Charging and Replacing the
Battery Pack" on Page 10.
20 Channels — automatically selects a clear channel when
you make or answer a call. You can also manually change
channels during a call. See "Selecting the Channel" on
Page 13.
Headset Jack — connects an optional headset (available
at your local RadioShack store) for hands-free
convenience. See "Using a Headset" on Page 14.
Toll-Saver — lets you avoid unnecessary charges when
you call by long distance to check your messages. See
"Using the Toll-Saver" on Page 24.
Thank you for purchasing a RadioShack 2.4 GHz Cordless Telephone. Your
telephone uses the 2.4 GHz band for less interference. Its headset jack lets you
connect an optional handset for handsfree convenience.
The digital answering system provides clear reliable messaging with call screening,
day/time stamp, call counter, remote access and instant skip or replay messaging.
OWNER'S MANUAL
©
2002 RadioShack Corporation.
All Rights Reserved.
RadioShack and RadioShack.com are trademarks used by
RadioShack Corporation.
Advertisement
Table of Contents
Related Manuals for Radio Shack 43-3821
Summary of Contents for Radio Shack 43-3821
- Page 1 See “Using the Toll-Saver” on Page 24. Thank you for purchasing a RadioShack 2.4 GHz Cordless Telephone. Your telephone uses the 2.4 GHz band for less interference. Its headset jack lets you connect an optional handset for handsfree convenience.
- Page 2 TVs and VCRs. To minimize or prevent such interference, the base of the cordless telephone should not be placed near or on top of a TV or VCR. 6*'"(%%"9#065";17"61" -019 In the unlikely event that your phone causes problems on the phone line, the phone company can temporarily discontinue your service.
-
Page 3: Table Of Contents
Lightning damage is not common. Nevertheless, if you live in an area that has severe electrical storms, we suggest that you unplug your phone when storms approach to reduce the possibility of damage. +/2146#06"5#('6;" +05647%6+105 Careful attention is devoted to quality standards in the manufacture of your telephone equipment, and safety is a major factor in its design. - Page 4 "+/2146#06" If an icon appears at the end of a paragraph, go to the box on that page with the corresponding icon for pertinent information. Rý — Warning — Important — Caution ° ° ° ° — Hint ± — Note %106'065 (Continued) Setting the...
-
Page 5: Lightning
may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Servicing — Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. - Page 6 "+/2146#06" Cordless phones such as this one require AC power to operate. When the AC power is off, you cannot dial out or receive incoming calls using your phone. To be safe, you should also have a phone that does not need AC power to operate (not a cordless phone) so you can still make and...
- Page 7 equivalence number, or REN. The REN is on the bottom of your phone. If you use more than one phone or other device on the line, add up all the RENs. If the total is more than five (three in rural areas), your phones might not ring.
- Page 8 "%#76+10" You must use a Class 2 power source that supplies 9V DC and delivers at least 350 mA. Its center tip must be set to positive and its plug must fit the phone's DC IN 9V jack. The supplied adapter meets these specifications.
- Page 9 " "9 "2 " .#6' "9 To mount the phone directly on a wall, you need two screws (not supplied) with heads that fit into the keyhole slots on the base. Drill two holes 3 inches apart. Thread a screw into each hole, letting the heads extend about 1.
-
Page 10: Battery Pack
"+/2146#06" Be sure the battery pack is properly connected before you try to charge it. The CHARGE/IN USE indicator lights when the handset is on the base even if the battery pack is not connected properly. ± ± "016'" " •... -
Page 11: Dialing Mode
About once a month, fully discharge the battery pack by keeping the handset off the base until TALK/BATT flashes. Otherwise, the battery pack loses its ability to fully recharge. The supplied battery pack should last about a year. If the battery pack does not hold a charge for more than 2 hours after an overnight charge, replace it with a new 3.6V, 600 mAh battery pack with a connector that fits the socket in the battery... -
Page 12: Ringer Tone
± ± "016'" " The phone exits the setting mode if you: - wait more than 2 seconds between key presses - receive an incoming call - press PLAY/STOP - press TALK on the handset If the phone exits the setting mode, start again at Step 1. - Page 13 6'.'2*10'"12'4#6+10 " "4 #-+0) #0& '%'+8+0) To make a call, lift the handset and press answer a call, lift the handset. Or, if the handset is not in place on the base, press key, , or . TALK/BATT on the handset and CHARGE/IN USE on the base light.
-
Page 14: Using Redial
± ± "016'" " Using Redial • The redial memory holds up to 24 digits, so you can redial long-distance as well as local numbers. • The redial memory also holds pause entries (see “Entering a Pause” on Page 15). Using a Headset •... - Page 15 "& '/14; +#.+0) You can store up to 10 phone numbers in memory, then dial a stored number by entering its memory location number. You can also dial a number stored in memory location number 1 by pressing . Each number can be up to 16 digits. DIAL "...
-
Page 16: Number Of Rings
± ± "016'" " The phone exits menu setting mode if you: • wait more than 30 seconds between key presses (except when you set the clock, for which time-out is about 2 minutes) • receive an incoming call • press PLAY/STOP •... - Page 17 " "& '66+0) You must set the day and time so the system can record the correct day and time of each message. ±ý 1. Press once. The system announces MENU “Time,” then the currently set time, day, and the ' ' ' ' day’s number ( for Sunday,...
- Page 18 2. Repeatedly press | number appears. 3. Press to store the setting. SET/RING The system beeps and announces “Ring Time” and the currently set ring time. " "4 '66+0) '%14& You can set the recording time to ý ý ý ý (Announce Only) to determine how the system records incoming messages.
-
Page 19: Setting The Record Time
3. Press to store the setting. A beep SET/RING sounds, then the system announces “Message Alert” followed by the new setting. When the first new message is received, a beep sounds. " "/ 740+0) '55#)' The Message Alert tone automatically stops when you have listened to all the new messages. -
Page 20: Outgoing Message
± ± "016'" " Recording/Deleting an Outgoing Message Outgoing messages must be between 2 and 30 seconds long. Setting the System to Answer Calls When the system’s <B <B <B <B message memory is full, appears and the system announces “No remaining time”... -
Page 21: Screening Calls
8 or 9 to adjust the call screening Press volume level. If you do not want to listen to calls, 9 until repeatedly press "+ '%14&+0) 0%1/+0) After the system answers a call, it plays the outgoing message, beeps, then records the caller’s message. - Page 22 To start recording a phone conversation, press on the base until the answering system beeps MEMO ## ## ## ## appears. As it records the conversation, the system beeps to indicate the conversation is being recorded. To stop recording, press PLAY/STOP .
-
Page 23: Deleting Messages
" "8 &,756+0) To adjust the speaker’s volume, repeatedly press 8 or 9 on the base. The volume setting from / / / / (lowest) to (highest) appears. & "/ '.'6+0) '55#)'5 To delete the current message while it is playing, press . - Page 24 store the setting. The system announces “Security code,” followed by the newly set code. To check your code at any time, press The code appears, and the system announces it. " "6 5+0) #8'4 jI jI jI jI If the ring time is set to the Number of Rings”...
- Page 25 play incoming message, press press .” If the system does not respond , try entering your code again. If you enter an incorrect code three times, the system beeps and disconnects. 4. While the system is beeping, press 2 seconds) the number for the desired command. (see “Remote Commands”).
- Page 26 6417$.'5*116+0) 2TQDNGO Low volume or Someone has picked up another phone on the same line. Hang unusual sounds. up the other phone. Press CH to change the channel. Keep the handset away from computers, remote control toys, Severe noise wireless microphones, alarm systems, intercoms, room monitors, interference.
- Page 27 2TQDNGO Make sure the system is turned on and the AC adapter is properly The system does not connected. answer calls. Check all phone line connections. The system does not Recording time is set to announce only. Set it to record the caller’s Delete messages if the memory is full.
- Page 28 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth, TX 76102 RadioShack Corporation Fort Worth, Texas 76102 Limited One-Year Warranty 12/99 43-3821 UCZZ01378BZ 04A02 Printed in China...
