Summary of Contents for Q-See QSD32824-250
- Page 1 QSD32824-250 User’s Manual 8015 E. Crystal Dr Anaheim, CA 92807 http://www.q-see.com Customer Service: Phone:877-998-3440 Email:cs@dpsi-usa.com Phone:877-998-3440 Email:ts@dpsi-usa.com Contact US: Q-See Products Website: Tech Support: Fax: 714-998-3509 Rev 042109...
-
Page 2: Table Of Contents
5.1 Hard Drive Installation ... 6 5.2 Monitor Connection ... 6 5.3 Camera Connection ... 7 5.4 Mouse Connection ... 7 5.5 DVR Power Connection ... 8 6. SETUP ... 8 6.1 Camera ... 10 6.2 Record ... 11 6.3 Alarm ... 13 6.4 Screen ... - Page 3 10.2 Program Interface ... 24 10.3 Button Functions ... 24 11. APPENDIX ... 29 11.1 QSD32824 4CH DVR series - compatible USB Flash Drives..29 11.2 Specifications ... 30 11.3 DVR Accessories (included) ... 31 11.4 Q-SEE Product Warranty ... 31 Customer Information Card ...
-
Page 4: Introduction

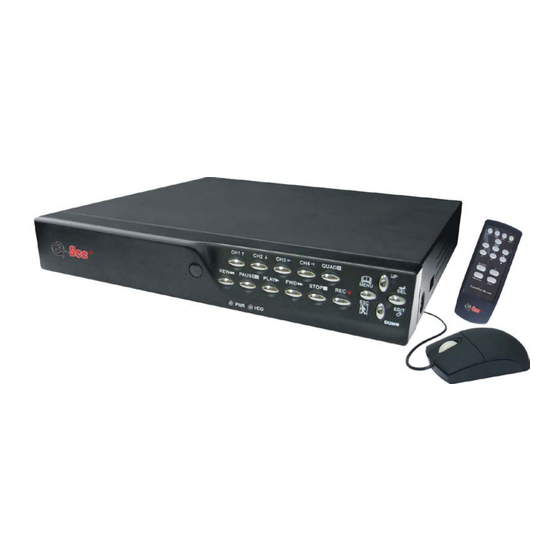

1. INTRODUCTION The QSD32824-250 system provides a total 4-channel digital video security surveillance system supporting duplex (simultaneous playback and record) functionality. You can use front panel buttons, remote control unit or mouse to operate all DVR menu settings. The functionality of each access option is exactly the same. -
Page 5: Physical Unit
(a) GREEN (PWR): The DVR unit is powered up and running. (b) RED (HDD): System is in Recording Mode or in Playback Mode. Some DVR is provided with touch-tone front panels. A series of buttons on the DVR front panel operates the system’s basic functions, such as recording, playback, fast-forward, reverse, etc. -
Page 6: Remote Control
● Fan 3.3 Remote Control The buttons on the DVR remote control unit operates the system’s basic functions, such as recording, playback, fast-forward, reverse, etc. For more details about the DVR menu, refer “6. -
Page 7: Getting Started
4. GETTING STARTED Connect DVR to a TV or monitor. Connect cameras (up to 4) to DVR. If you are using a Mouse it must be connected to DVR before you startup system. -
Page 8: Hardware Setup
This model uses an internal SATA hard drive, and comes with a 250GB hard drive pre-installed. If you want to install a larger hard drive you would need to remove the cover of the DVR, remove the power and data cables from the existing drive and unscrew it from the base, then screw in the new hard drive and attach the power and data cables to it. -
Page 9: Camera Connection
Operation Manual-4CH Duplex DVR Connect “VIDEO IN” of the monitor to “VIDEO OUT” of the DVR system using the BNC to RCA cable that comes with the DVR. 5.3 Camera Connection Connect the included video cables to the “VIDEO IN” of your DVR and “VIDEO OUT” of the camera with video cable and plug in the camera’s power adapter to the power feed of the... -
Page 10: Dvr Power Connection
5.5 DVR Power Connection Connect the DVR power adapter to the adapter jack at the rear panel of the DVR unit. It will boot up the system. If users install a new hard drive, it will ask you to format the hard drive before the system starts to run (Below Fig). - Page 11 Menu options in Fig (a): Channel 1 view Channel 3 view All channel view ” on top right corner of the screen. Fig (a) Channel 2 view Channel 4 view ● Manual recording or Stop manual recording Operation Manual-4CH Duplex DVR...
-
Page 12: Camera
Menu options on the monitor as the “UP” or “DOWN” key on the DVR front panel or remote control to move the cursor. Press “SELECT” button on the front panel or remote control to change the settings. In the MAIN MENU, the cursor “... -
Page 13: Record
Under the camera name option you can change the name of each channel if you want to. 6.2 Record Operation Manual-4CH Duplex DVR Use this option to enable recording on the channel (1,2,3,4). Only selected channels will be recorded no matter how many camera channels are displayed on the screen. - Page 14 1. The higher the record quality is, the higher the video image quality is when you playback. Higher quality requires more hard drive space. Record frame rate, record quality and available hard drive space will determine total recording time for the DVR system.
-
Page 15: Alarm
Value options are: “05, 10, 15, 20, 25, 30” (in seconds). Operation Manual-4CH Duplex DVR pressing the [QUAD] button on the DVR front panel or remote control, or using the left mouse button to click the time period 24. - Page 16 Operation Manual-4CH Duplex DVR Select the channel or channels (1,2,3,4) that you want to record when motion is detected. [SENSITIVITY] You can adjust the sensitivity of the built-in motion sensor on the DVR system. The higher the number, the higher the sensitivity is.
-
Page 17: Screen
Operation Manual-4CH Duplex DVR 6.4 Screen [BORDER] User can make the white borderline around each channel appear or disappear by setting this option to “on” or “off”. [AUTO SEQUENCE] This option is used to setup the channels to appear one at a time on the screen in... -
Page 18: Hard Drive Setup
In this menu, you can see the information of the hard drive installed in the DVR, change the system password, adjust keypad tone, access browser event list or adjust current time on the system. If user logs into the system at admin level, the menu bar will be displayed as user can enter into the “account”... -
Page 19: Account Setup
If the password is incorrect, you will see the below message blinking. Then try to enter the right password again. 6.5.2 Account Setup Operation Manual-4CH Duplex DVR Only Administrator can log into the Account Setup Menu, the Account Setup allows the administrator to add new users, delete existing ones and modify the user’s name/password/and level. -
Page 20: Password Setup
6.5.4 Clear Account Info If you choose ON, the account information will be cleared when you logout of the system. If Operation Manual-4CH Duplex DVR can be used as user account or password. Press 「SEL」to input value, and move the prompt to the “Enter”... -
Page 21: Keypad Tone
*** 2008/08/08 － year/month/day *** 01:01:00 － hour: minute: second To move the cursor on the screen, use “UP” and “DOWN” key on the DVR front The Event list function enables playback by event. On the Event list menu, it shows... -
Page 22: Firmware Upgrade
6.5.8 Firmware Upgrade This menu is for upgrading the firmware of the DVR system through the USB port using a USB flash drive; you can upgrade the system once you connect the USB flash drive that contains a firmware file. -
Page 23: Exit
6.8 Exit After you change settings on DVR menu, you need to confirm the changes under the EXIT menu. [EXIT & SAVE CHANGE] Save change and go back to main screen. [EXIT & DISCARD CHANGES] No change and go back to main screen. -
Page 24: Backup Via Usb Flash Drive
8. BACKUP via USB Flash Drive Our 4-channel DVR system has an enhanced back-up feature so that it’s possible to transfer the video files recorded on the hard drive to USB flash drive. Before you back up a stream of video data, have the USB flash drive formatted and ready before attaching it to the DVR system. -
Page 25: Recording Length
The best record quality is 3, and the lowest record quality is 1. Record Speed REC Quality 60F/Sec 30F/Sec 10. PLAYING BACKED UP VIDEO FILES ON PC 10.1 Installing File Player Put the software installation CD in your CD-ROM. DATA RATE (GB/Hour) Operation Manual-4CH Duplex DVR Record Time (Hour) -
Page 26: Program Interface
Operation Manual-4CH Duplex DVR Select setup option. Set up the install directory. Execute: Start >Program> Vx4SLPlayer. 10.2 Program Interface Double click icon “ ” on desktop to run the program. 10.3 Button Functions... - Page 27 11. Split 4 11. Split 4 13. Mute On/Off 13. Mute On/Off 15. Minimize the window 15. Minimize the window Operation Manual-4CH Duplex DVR 2. Fast Reverse 2. Fast Reverse 4. Previous Frame 4. Previous Frame 6. Next Frame 6. Next Frame 8.
- Page 28 As shown in the below illustrations, first click the right mouse button to select the option “Export”, and then click the left mouse button which will display the window “Export To AVI”. Next select the channels you want to export; Since this model does not have audio ports the Operation Manual-4CH Duplex DVR...
- Page 29 “Capture”, then left click “Mark Out”. Last left click “Export” and there will be a window “Capture” on screen. Operation Manual-4CH Duplex DVR ” to select input file and output file, and click...
- Page 30 Operation Manual-4CH Duplex DVR The “Output Size” is the size of output file. Left click “ ” to setup save path. Then left click “ ”.
-
Page 31: Appendix
11. APPENDIX 11.1 QSD32824 4CH DVR series - compatible USB Flash Drives. In case noise occurs on USB line due to a variety of reasons such as power noise, it might cause an error during the data transferring process. In this case, it requires re-transferring the date to the flash drive. -
Page 32: Specifications
Operation Manual-4CH Duplex DVR 11.2 Specifications ITEM 4CH DVR Video Format NTSC / PAL Operation System Linux Video Input 4 channel Composite BNC Video Output 1 channel Composite BNC PAL: 100fps (4*25fps); Display Speed NTSC: 120fps (4*30fps); PAL: Max. 50 frame per second;3fps~Max 25fps(each channel adjustable);... -
Page 33: Dvr Accessories (Included)
11.3 DVR Accessories (included) 11.4 Q-SEE Product Warranty Thank you for choosing our products. All of our products users have a conditional free warranty repair service for hardware within 12 months starting from purchase date, and a free exchange service within one month (valid for manufacturing defects). -
Page 34: Customer Information Card
Product Purchase Date Distributor If you have questions: Mailing Address: DPS Inc. 8015 E. Crystal Dr Anaheim, CA 92807 Website: http://www.q-see.com Fax: 714-998-3509 Operation Manual-4CH Duplex DVR Contact Us: Customer Service: Phone: 877-998-3440 x 538 Email: cs@dpsi-usa.com Tech Support: Phone: 877-998-3440 x 539 Email: ts@dpsi-usa.com...
